Whirlpool
Wall Oven/Microwave Combo

Model # GMC305PRB00 Official Whirlpool electric built-in oven with microwave

Here are the diagrams and repair parts for Official Whirlpool GMC305PRB00 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

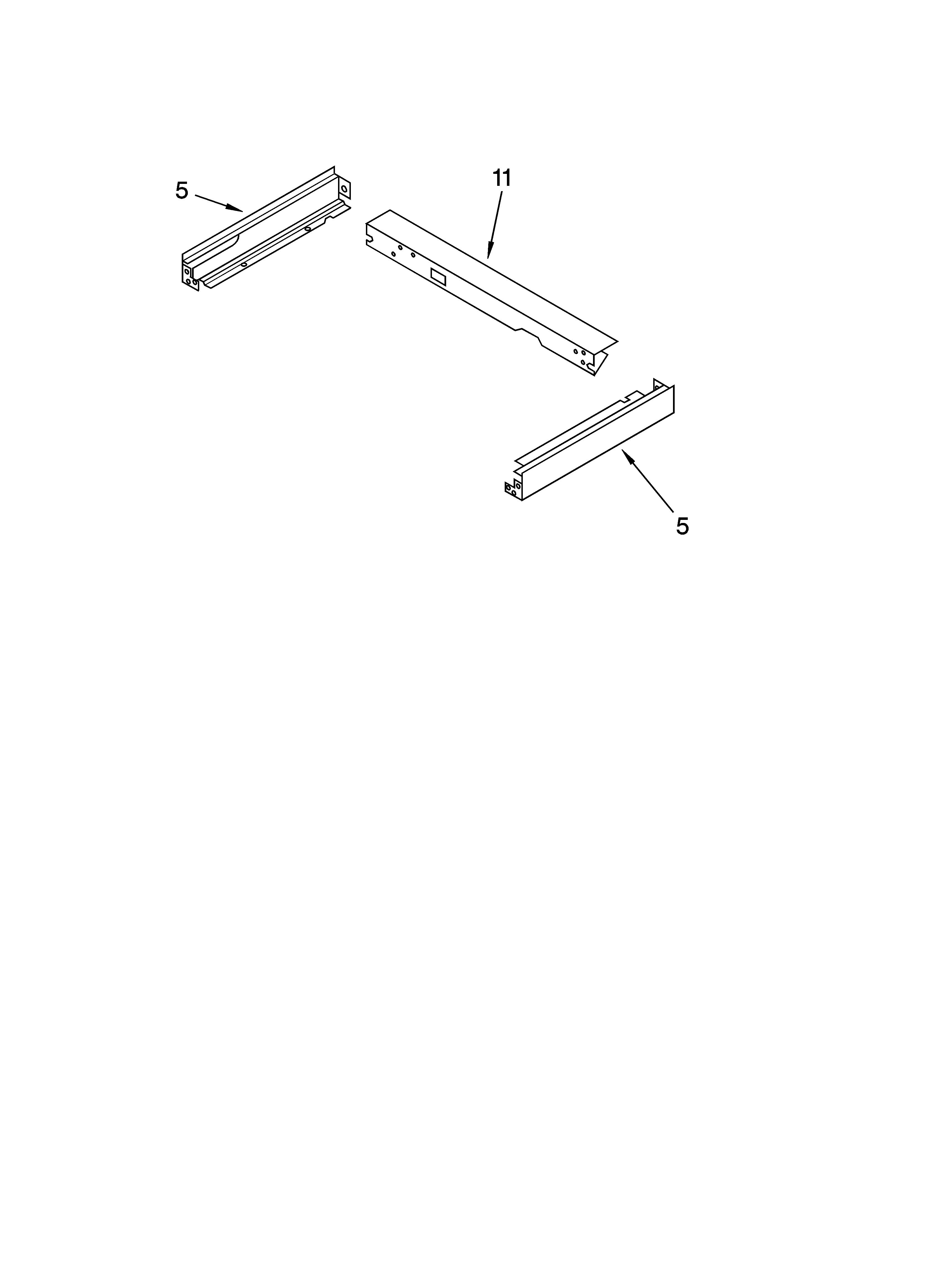

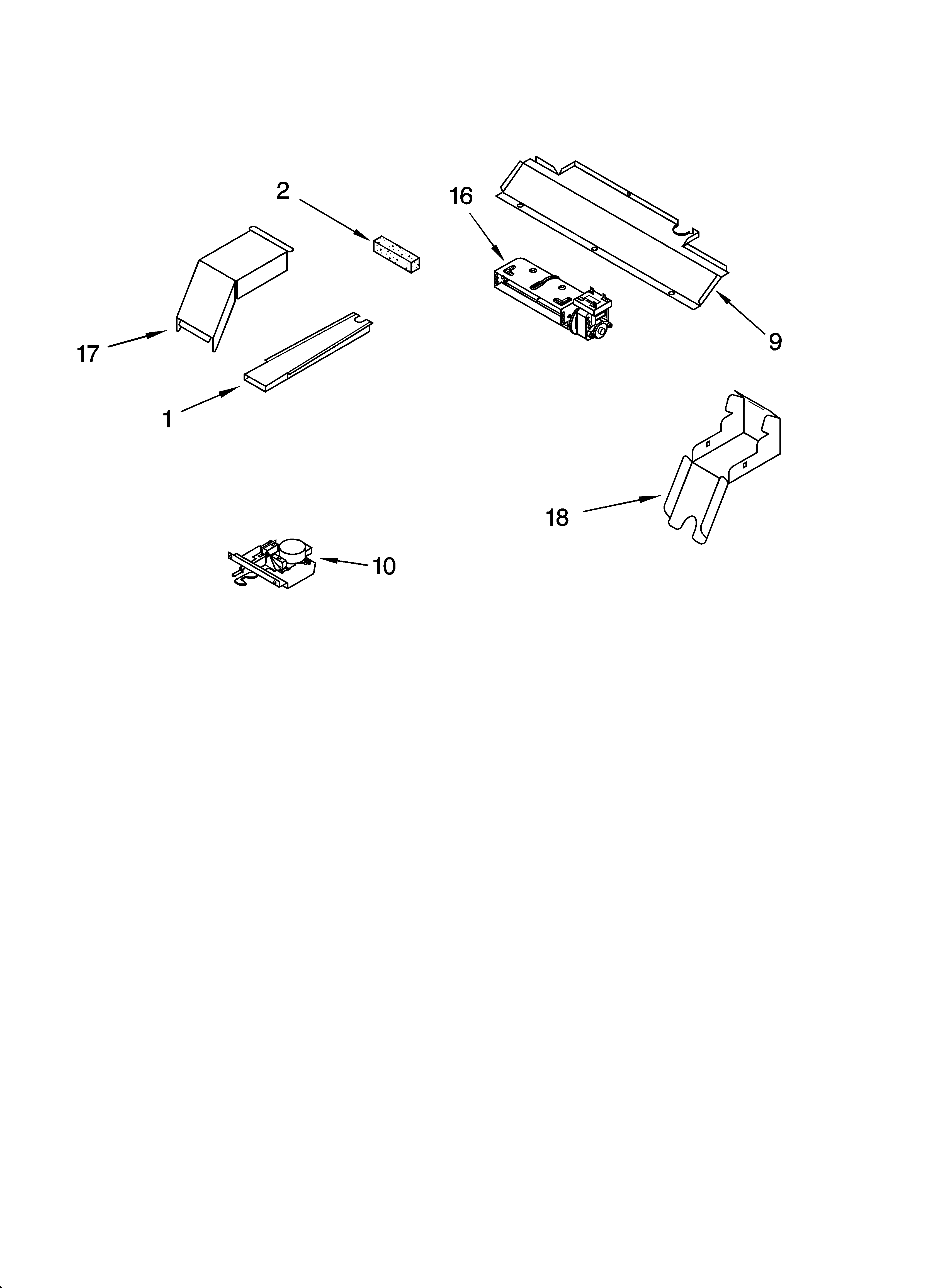

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |

Spray W 350930
#NI

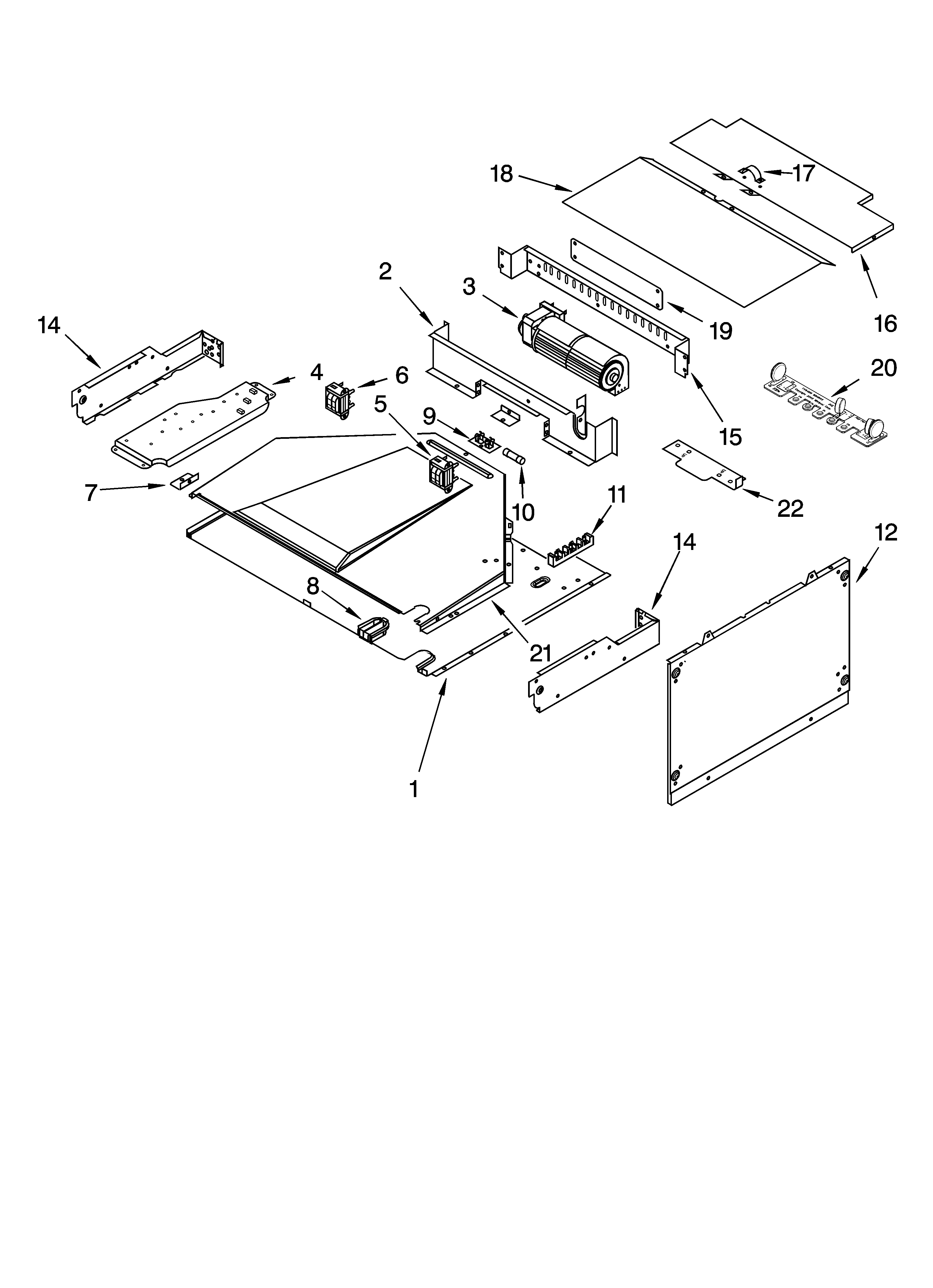

Top venting parts, optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Wall Oven Door Inner Glass 4449259
#3

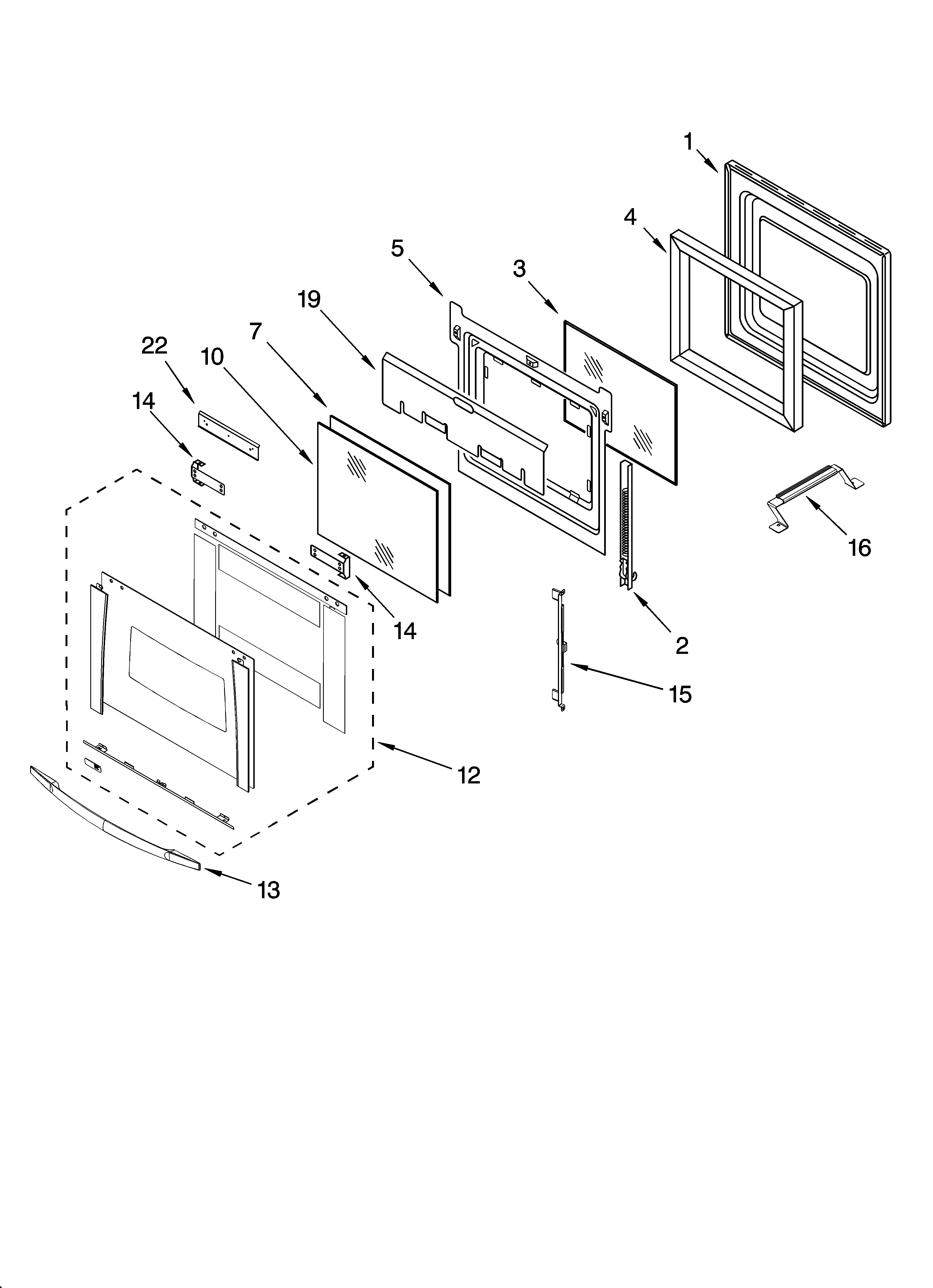

Oven door parts diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$85.15
23% OFF MSRP : $110.00
In Stock
Bake Element 4452153
#7

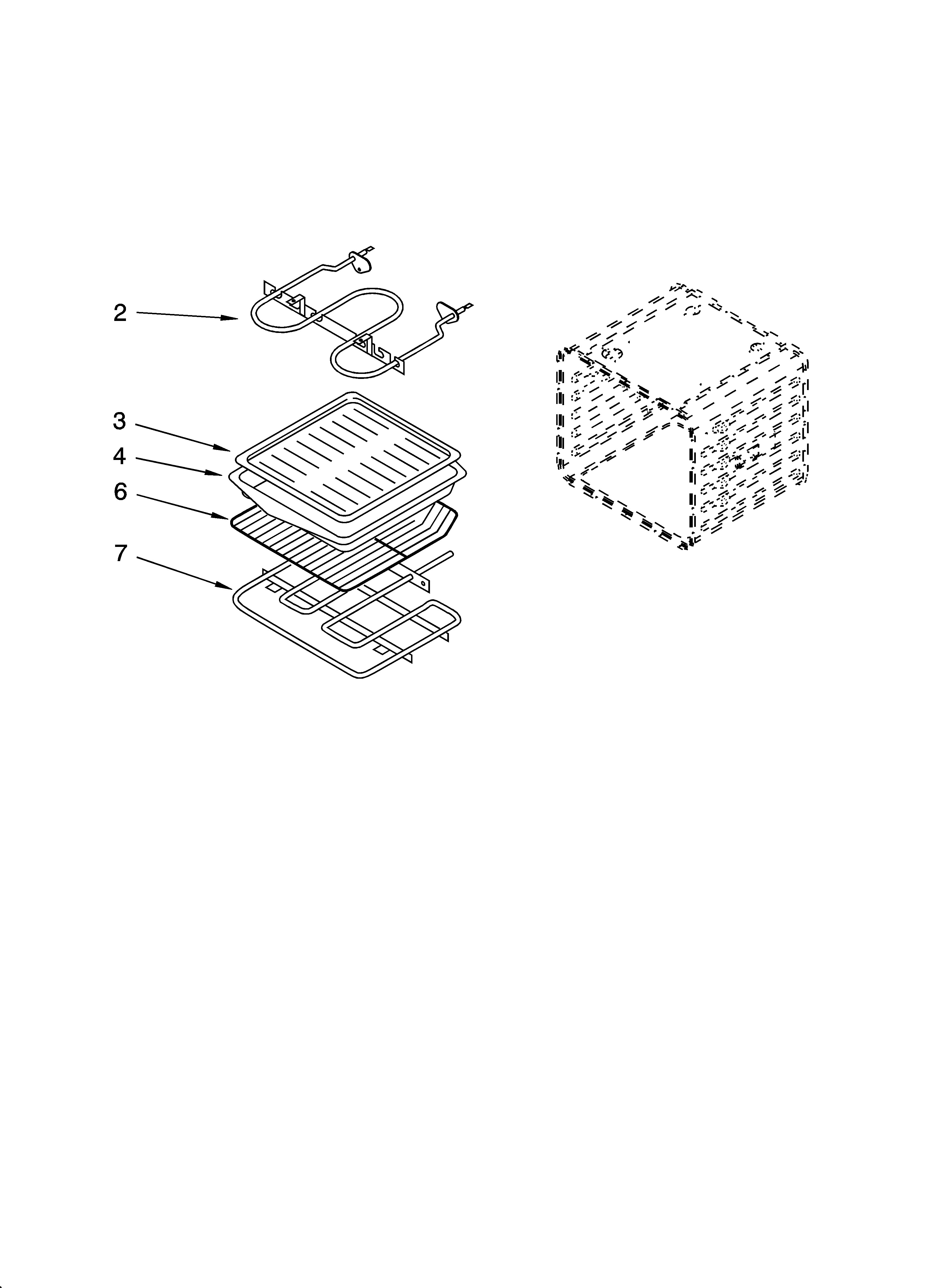

Internal oven parts diagram

Bake element

Part #4452153

Replaced by #WPW10207397

?
Manufacturer substitution
This part replaces 4452153. Substitute parts can look different from the original.
BEST SELLER
$60.97
16% OFF MSRP : $73.00
In Stock
Touch-up Paint (black) 72032
#NI

Top venting parts, optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.18
49% OFF MSRP : $12.00
In Stock
Wall Oven Temperature Sensor 4455636
#29

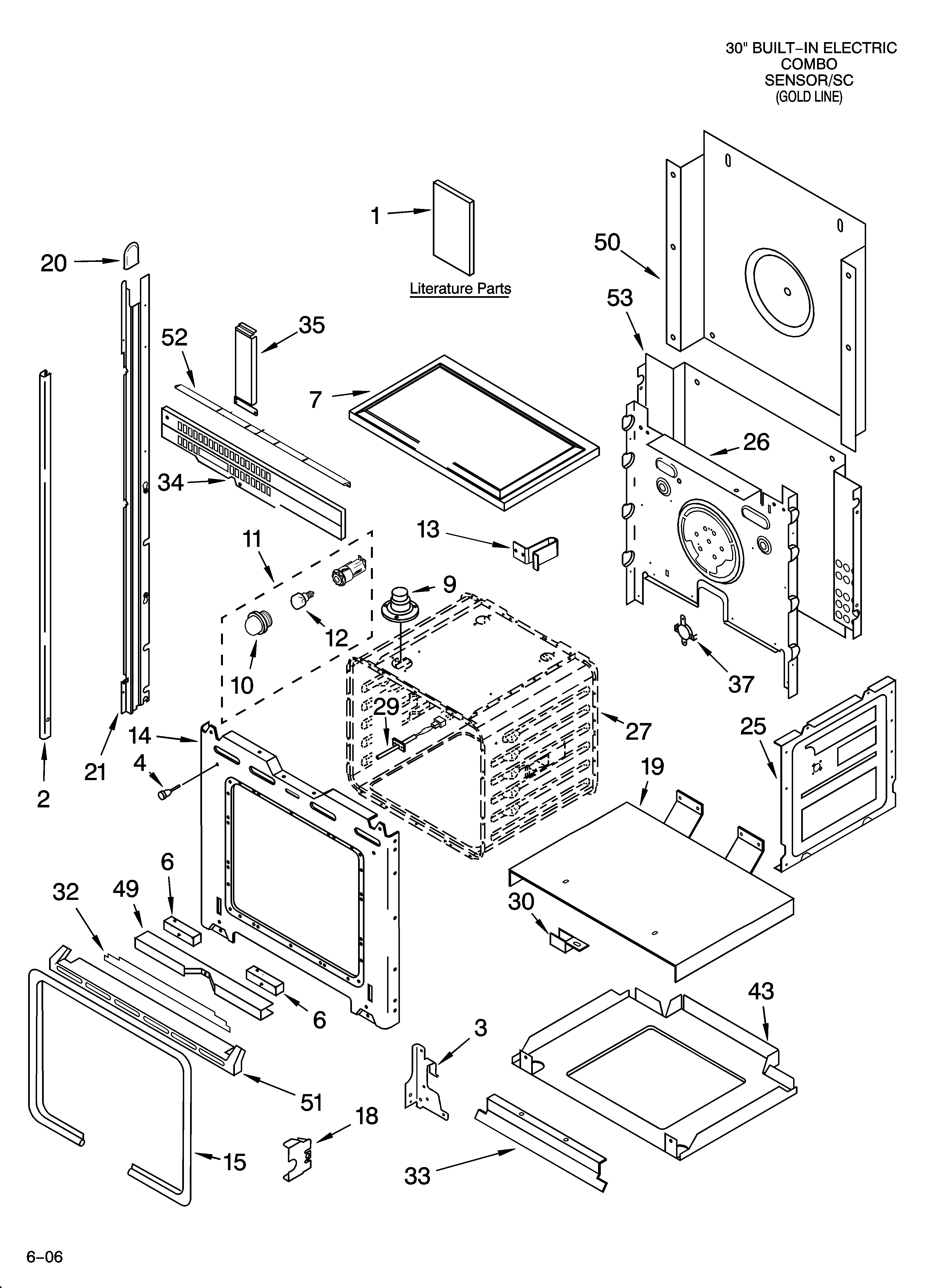

Oven parts diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$70.23
18% OFF MSRP : $86.00
In Stock
Oven Baseless Lamp 4375348
#53

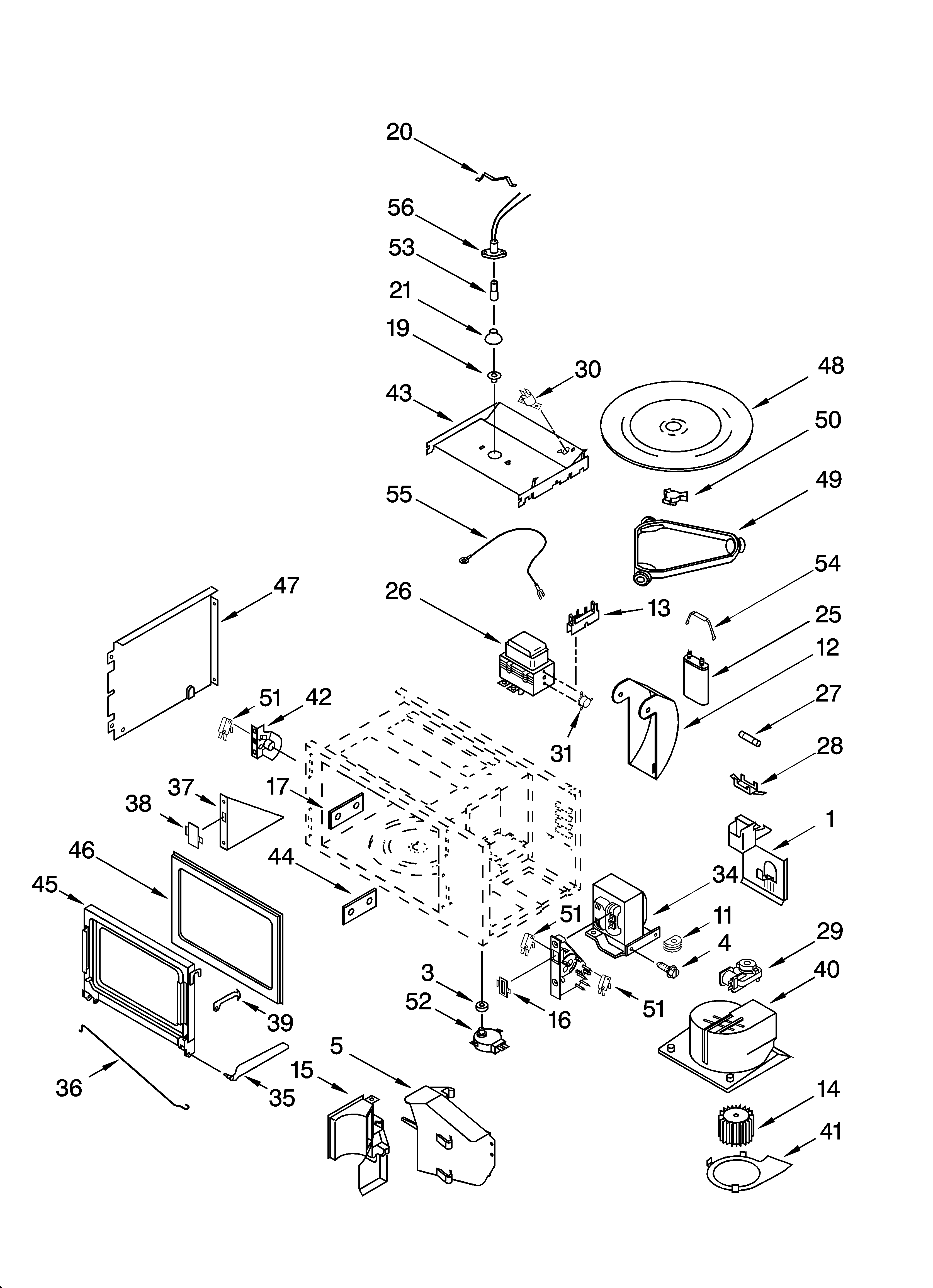

Cabinet and stirrer parts diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
$22.69
29% OFF MSRP : $32.00
In Stock
Range Screw 4449154
Range screw

Part #4449154

Replaced by #WP4449154

?
Manufacturer substitution
This part replaces 4449154. Substitute parts can look different from the original.
This item is not returnable
$3.95
20% OFF Phone Price : $4.95
In Stock
Screw 3400832
#NI

Top venting parts, optional parts diagram

Screw

Part #3400832

Replaced by #WP3400832

?
Manufacturer substitution
This part replaces 3400832. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Oven Rack 4448717
#6

Internal oven parts diagram

Oven rack

Part #4448717

Replaced by #WPW10179152

?
Manufacturer substitution
This part replaces 4448717. Substitute parts can look different from the original.
$69.71
8% OFF MSRP : $76.00
In Stock
Screw 8281179
#3A

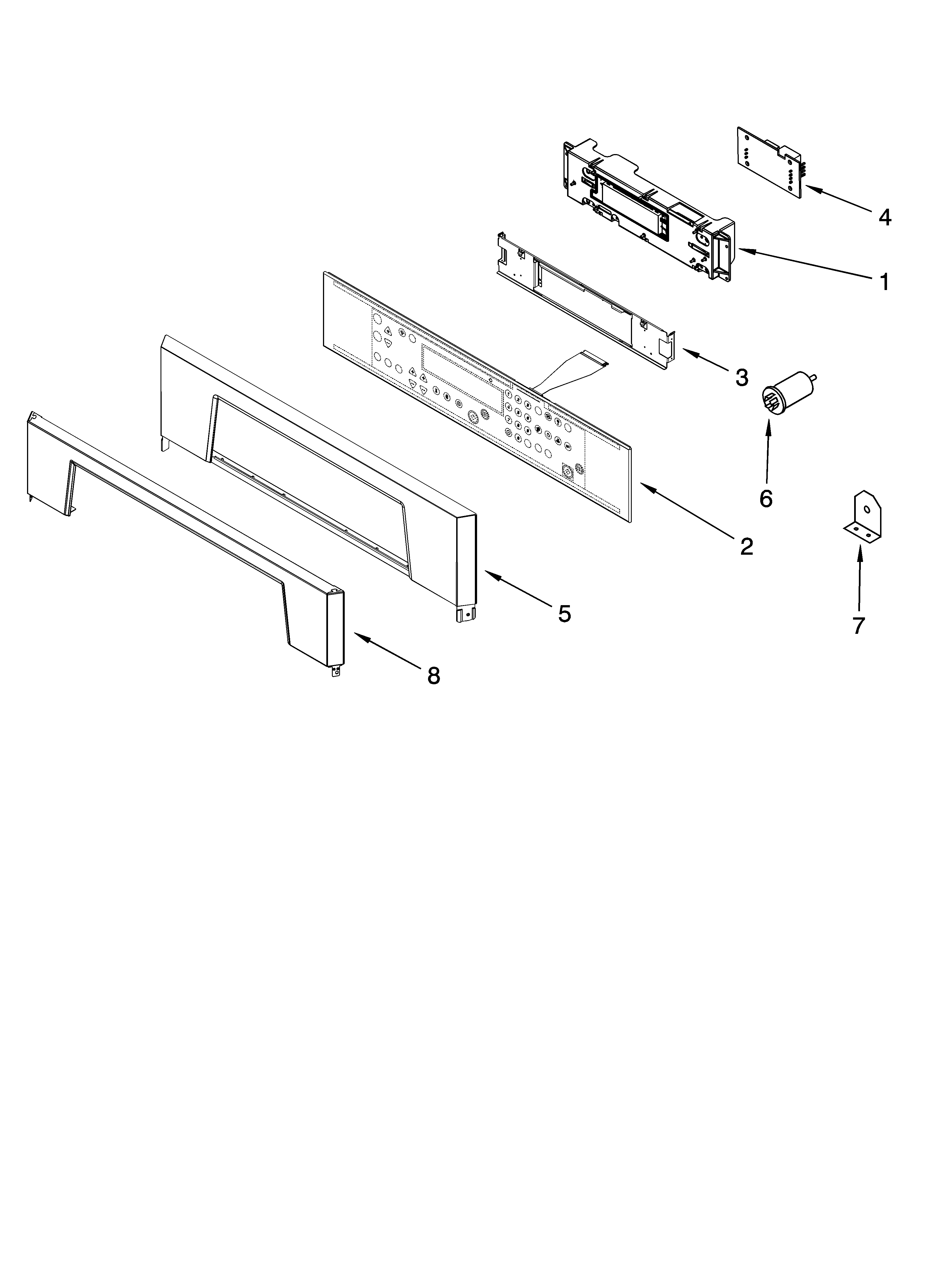

Control panel parts diagram

Screw

Part #8281179

Replaced by #WP3400832

?
Manufacturer substitution
This part replaces 8281179. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
