Model #HDR-CX220/B Sony camcorder

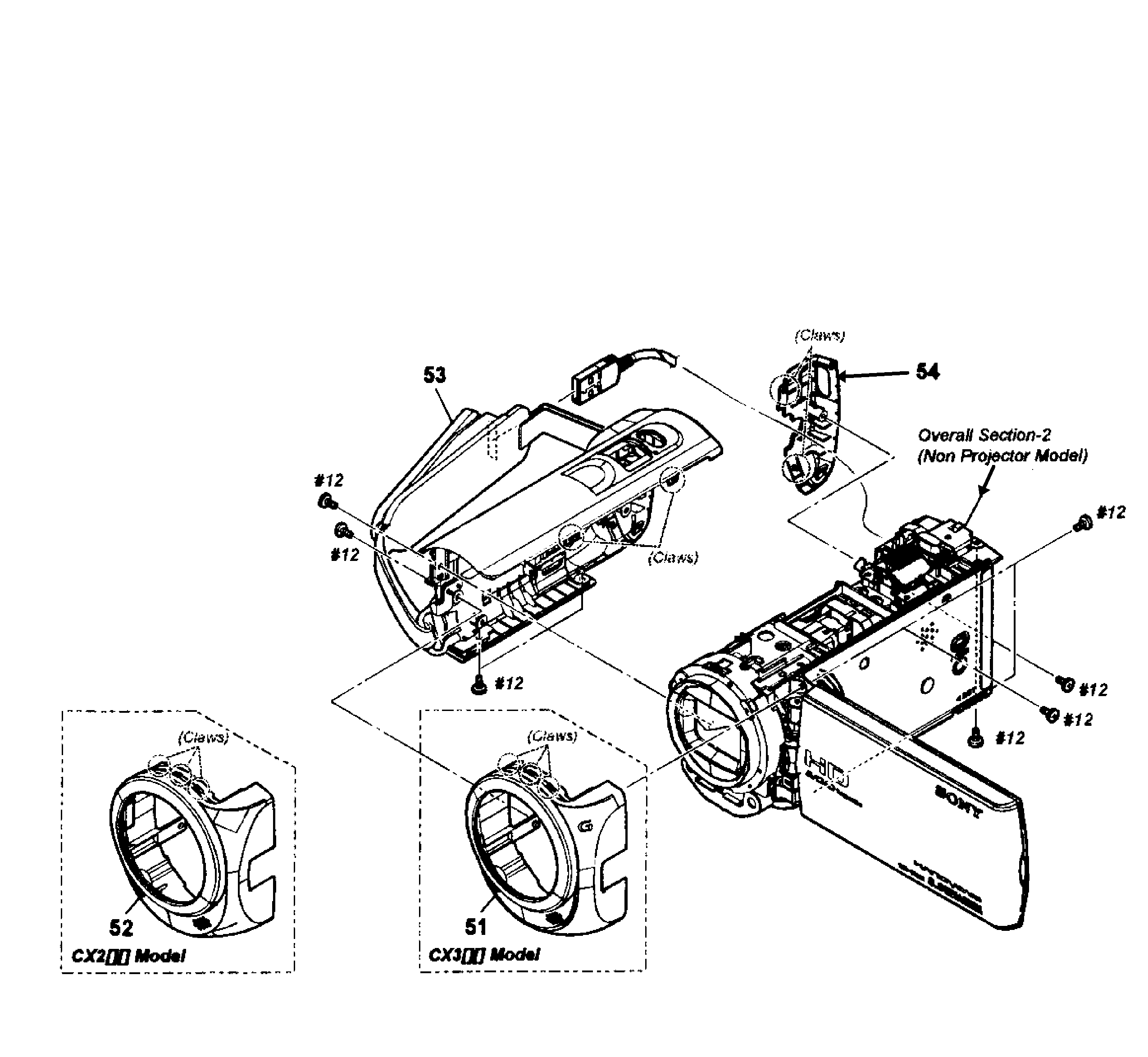

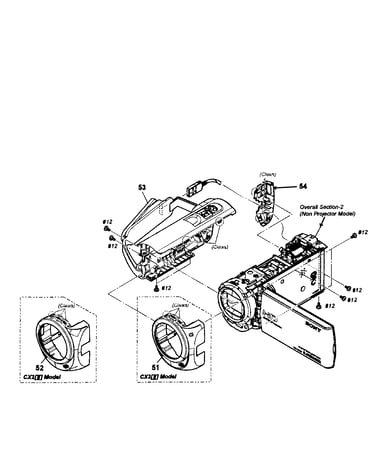

Here are the diagrams and repair parts for Sony HDR-CX220-B camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 43 parts

    Socket,bat

    #BH81

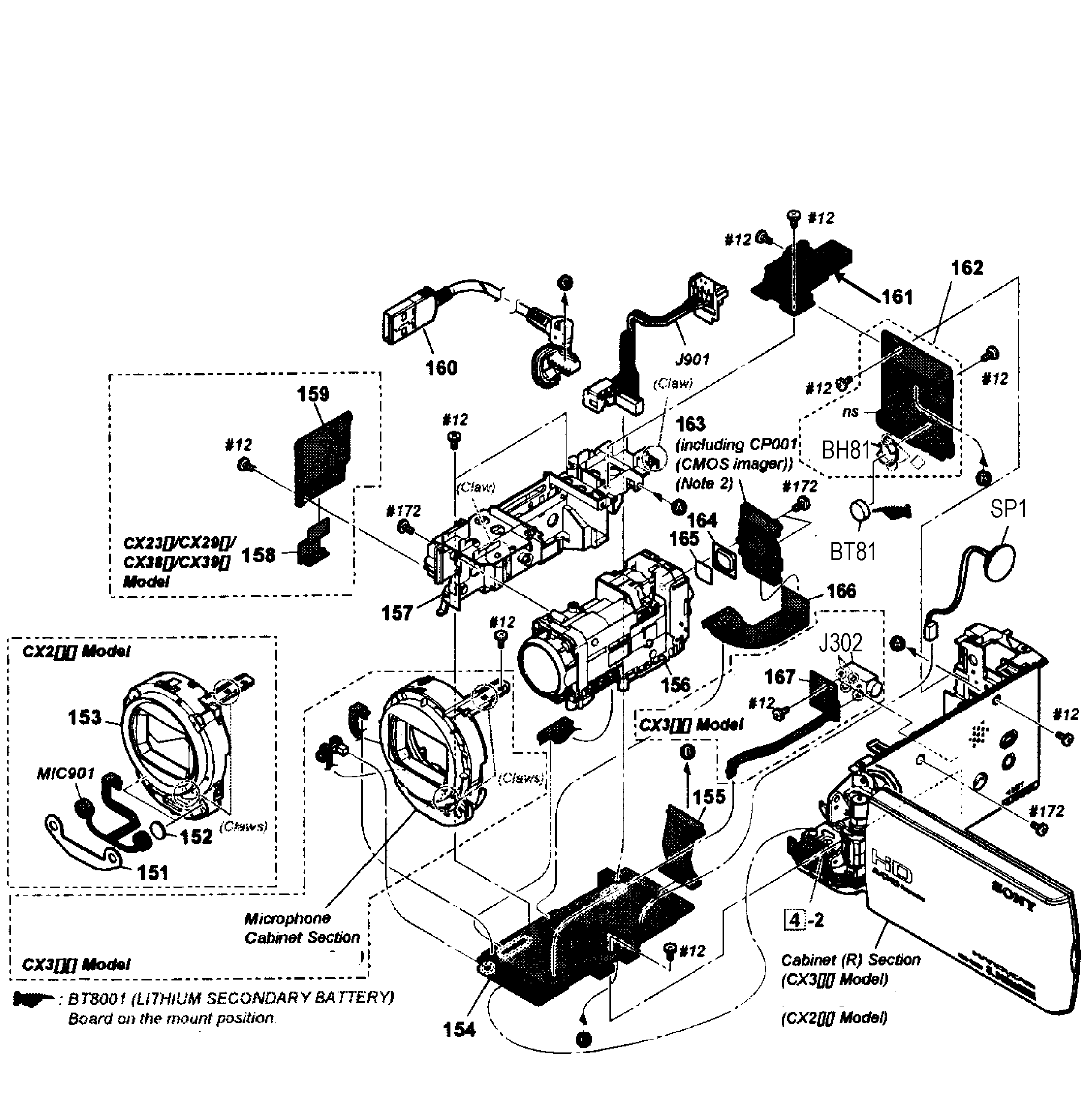

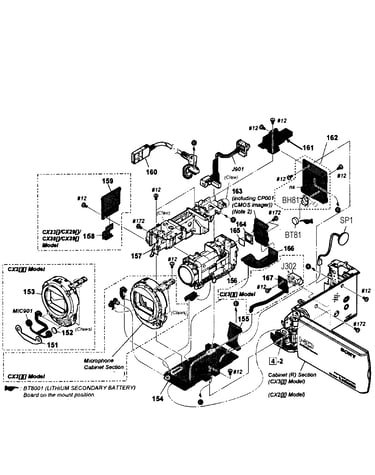

    Main assy Diagram

    Socket,bat

    Part #125192821
    This item is not returnable
    $7.22

    In Stock

    Insulation Sheet

    #458

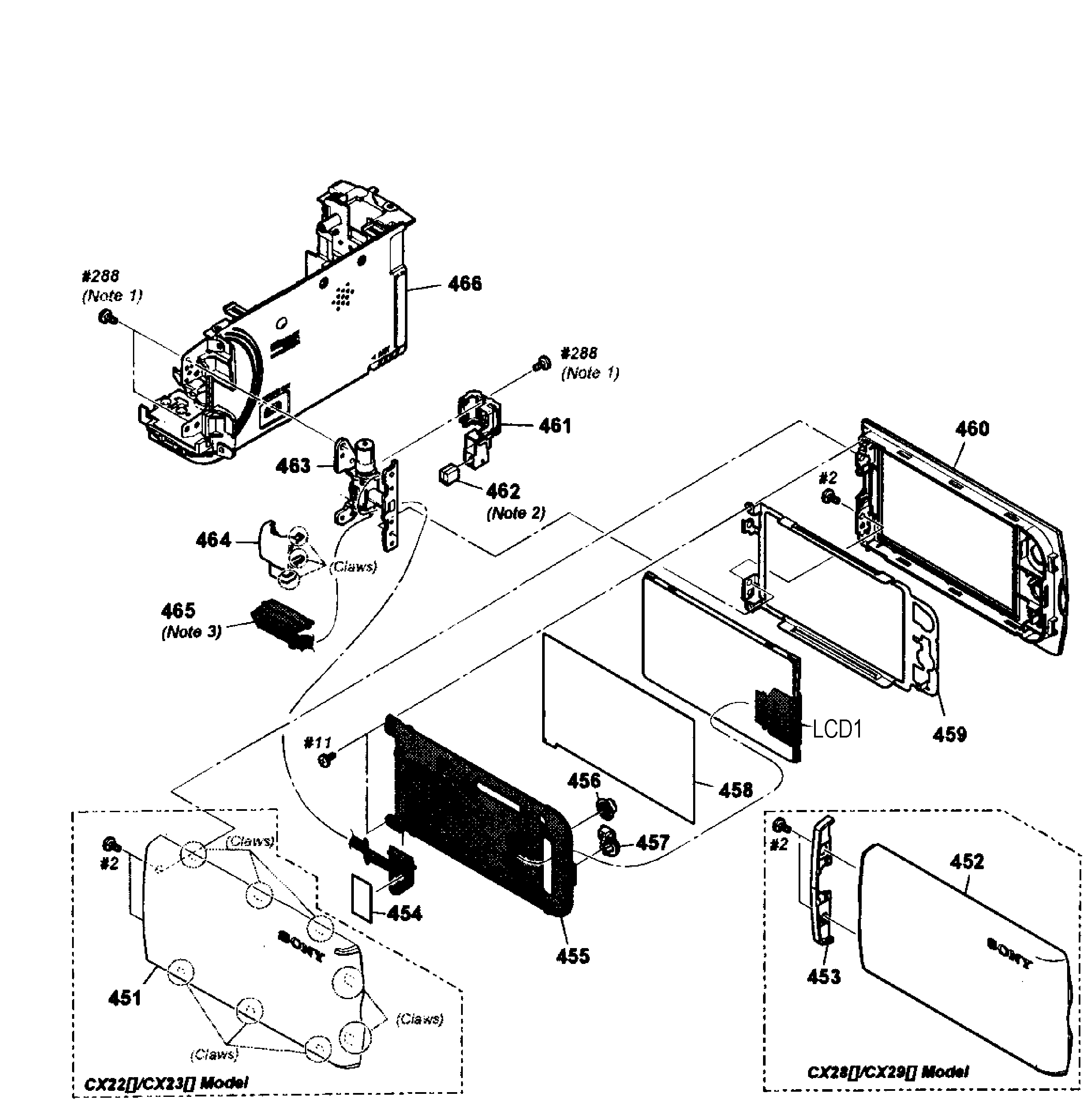

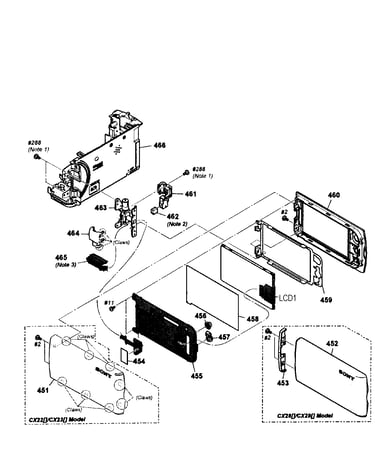

    Lcd assy Diagram

    Insulation sheet

    Part #444697001
    This item is not returnable
    $2.16

    In Stock

    Hinge Cover

    #464

    Lcd assy Diagram

    Hinge cover

    Part #444699701
    This item is not returnable
    $3.93

    In Stock

    Cabinet In

    #157

    Main assy Diagram

    Cabinet in

    Part #A1909337A
    $14.81

    In Stock

    Cabinet Block

    #451

    Lcd assy Diagram

    Cabinet block

    Part #444700201
    $19.87

    In Stock

    Tape

    #454

    Lcd assy Diagram

    Tape

    Part #427498701
    This item is not returnable
    $4.80

    In Stock

    Pcb Fp2053

    #167

    Main assy Diagram

    Pcb fp2053

    Part #188706611
    This item is not returnable
    $6.49

    In Stock

    Magnet

    #462

    Lcd assy Diagram

    Magnet

    Part #147157311
    $11.75

    In Stock

    Hinge Cover

    #461

    Lcd assy Diagram

    Hinge cover

    Part #444696001
    This item is not returnable
    $2.16

    In Stock

    Cabinet,mi

    #153

    Main assy Diagram

    Cabinet,mi

    Part #444698901
    This item is not returnable
    $7.22

    In Stock
