KitchenAid KEHC309JSS4 wall oven with microwave Parts

Here are the diagrams and repair parts for KitchenAid KEHC309JSS4 wall oven with microwave, as well as links to manuals and error code tables, if available.

KitchenAid KEHC309JSS4 wall oven with microwave
By Schematic
By Part

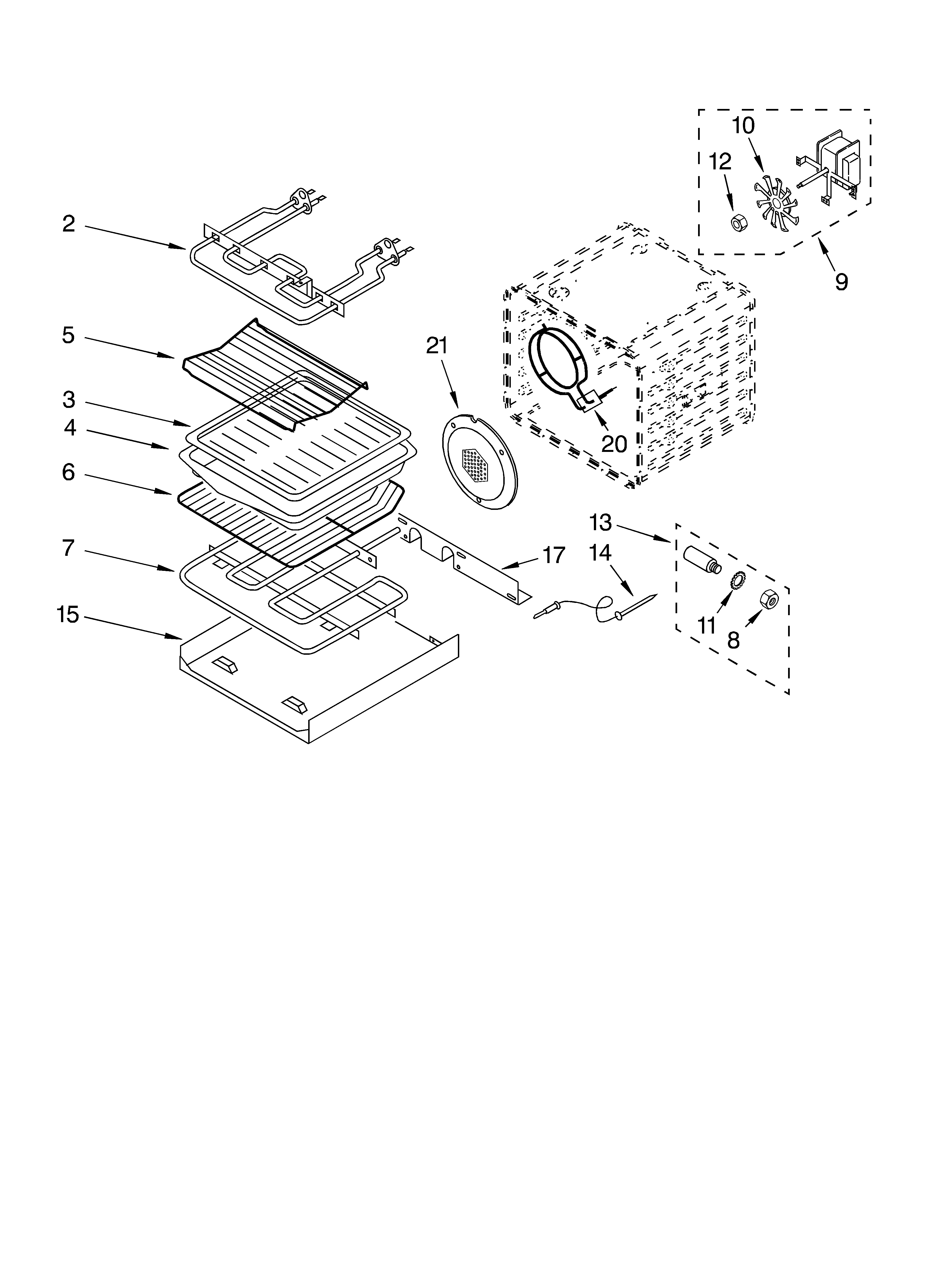

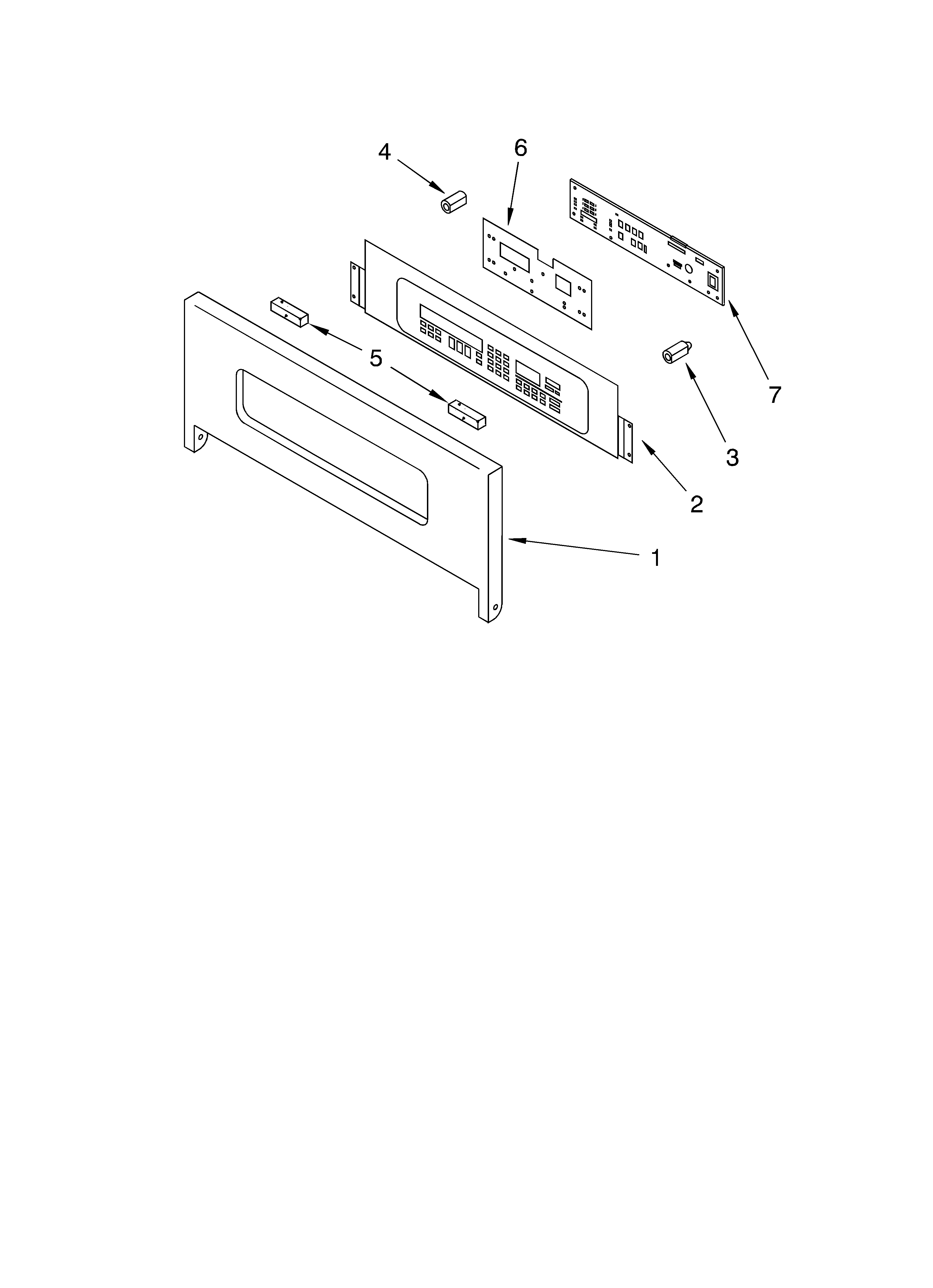

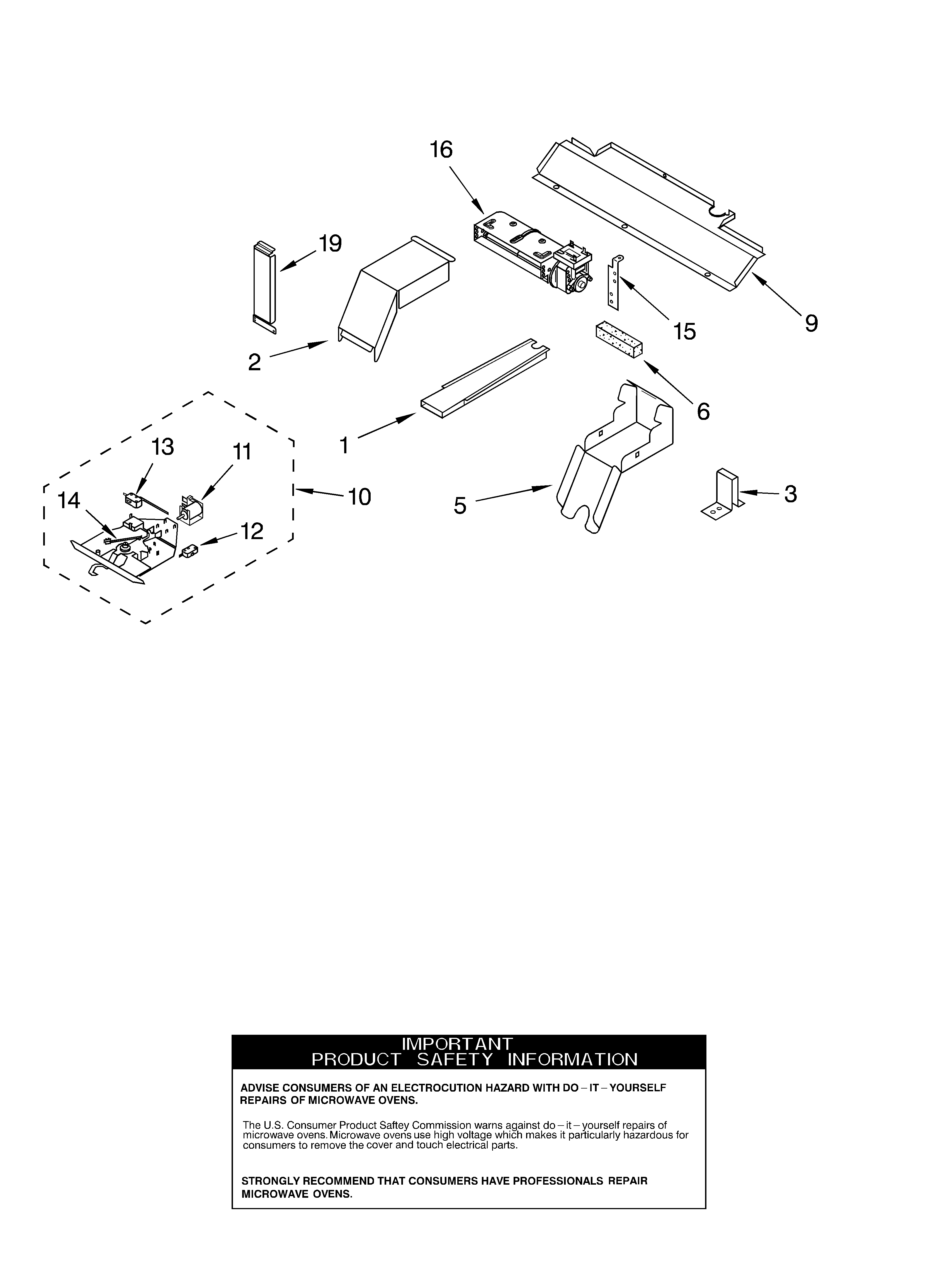

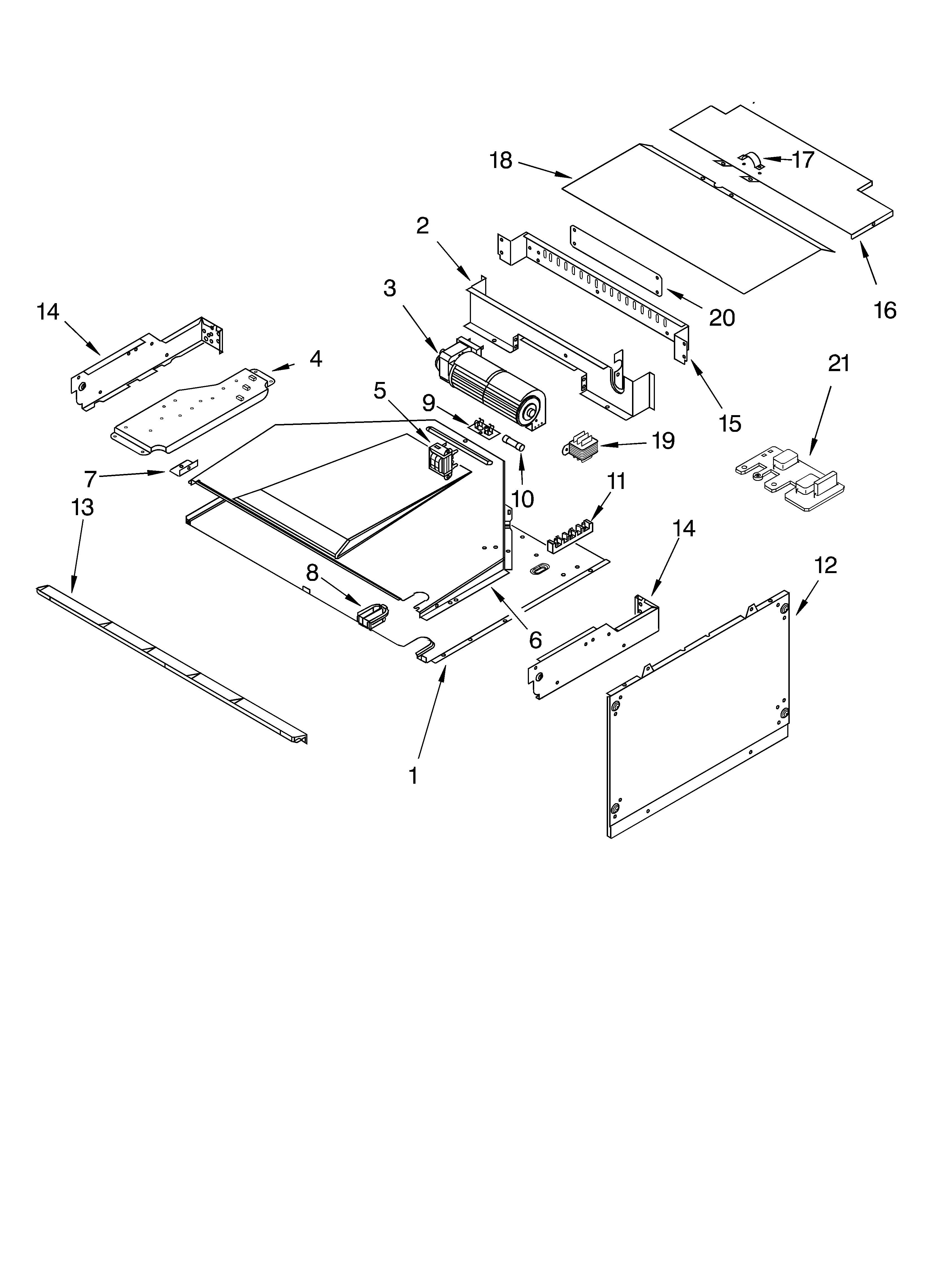

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEHC309JSS4 Wall Oven with Microwave

  • Appliance Silicone Sealant for KitchenAid KEHC309JSS4 - Part WP482338

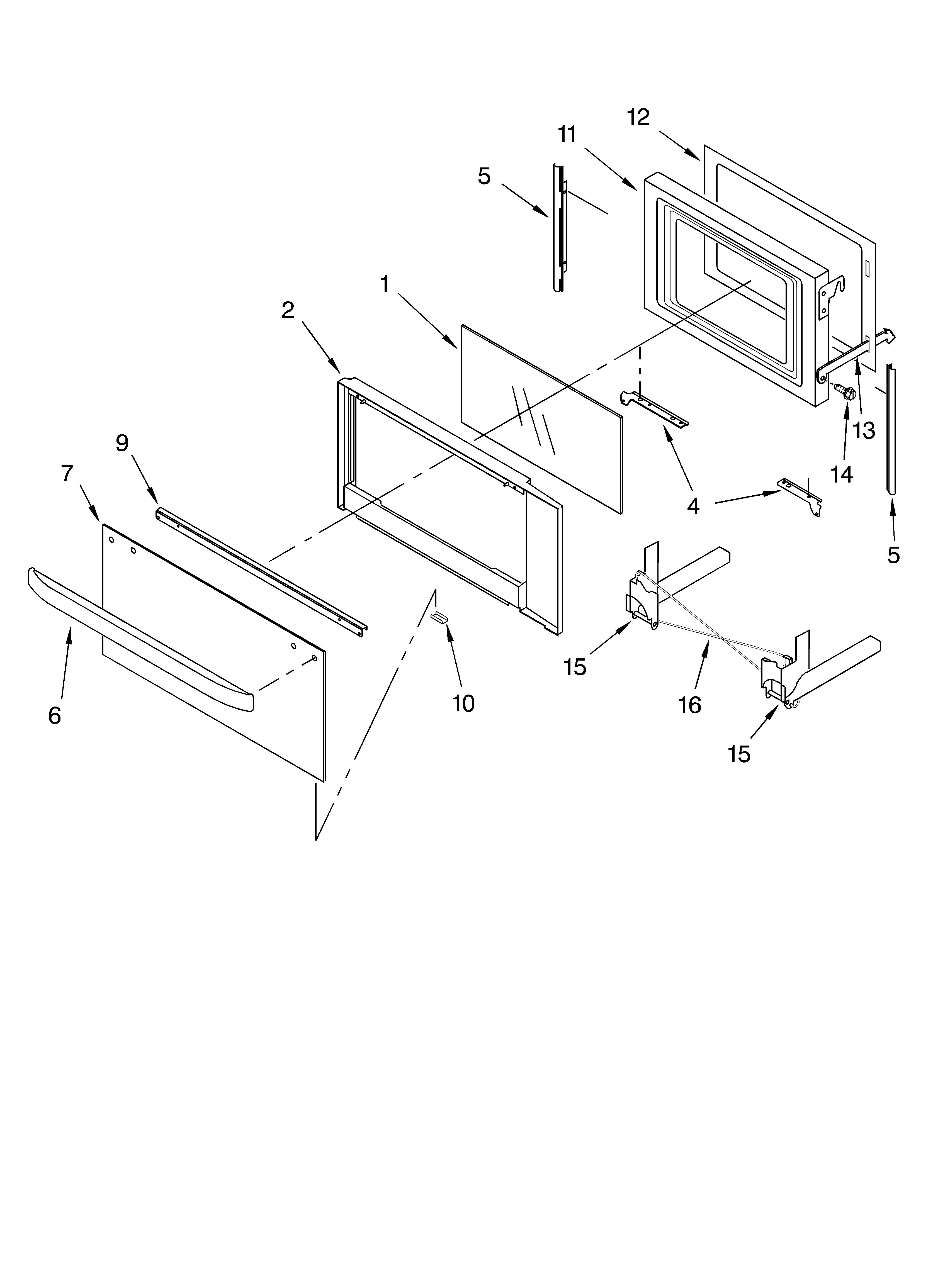

    Microwave door diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $33.32
    15% OFF Phone Price : $39.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Temperature Sensor for KitchenAid KEHC309JSS4 - Part WPW10131825

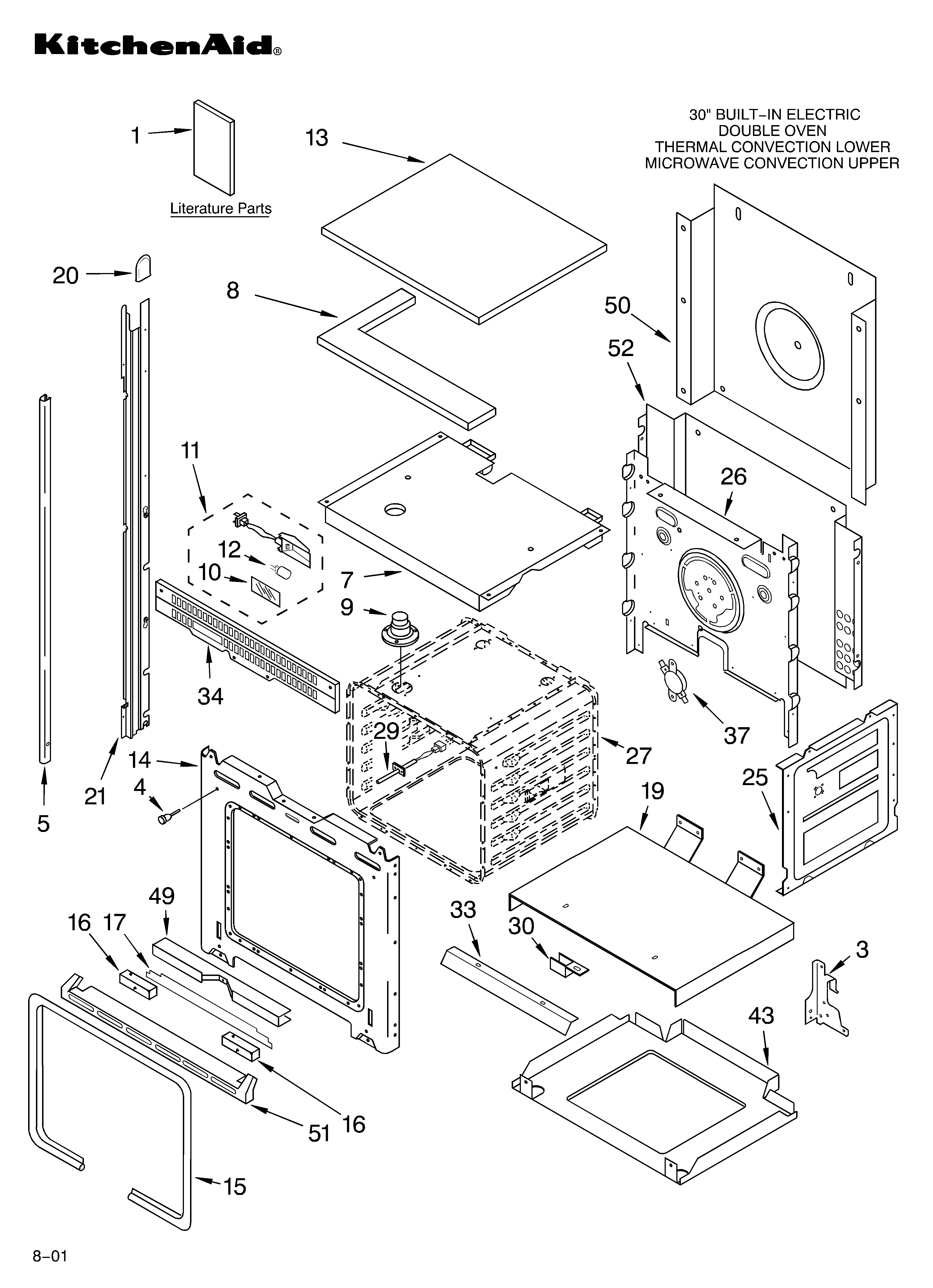

    Oven/literature diagram

    Wall Oven Temperature Sensor

    Part #4455636

    Replaced by #WPW10131825

    Info Icon
    Manufacturer substitution
    This part replaces 4455636. Substitute parts can look different from the original.
    In Stock
    $67.65
    8% OFF Phone Price : $73.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Door Inner Glass for KitchenAid KEHC309JSS4 - Part WP4449259

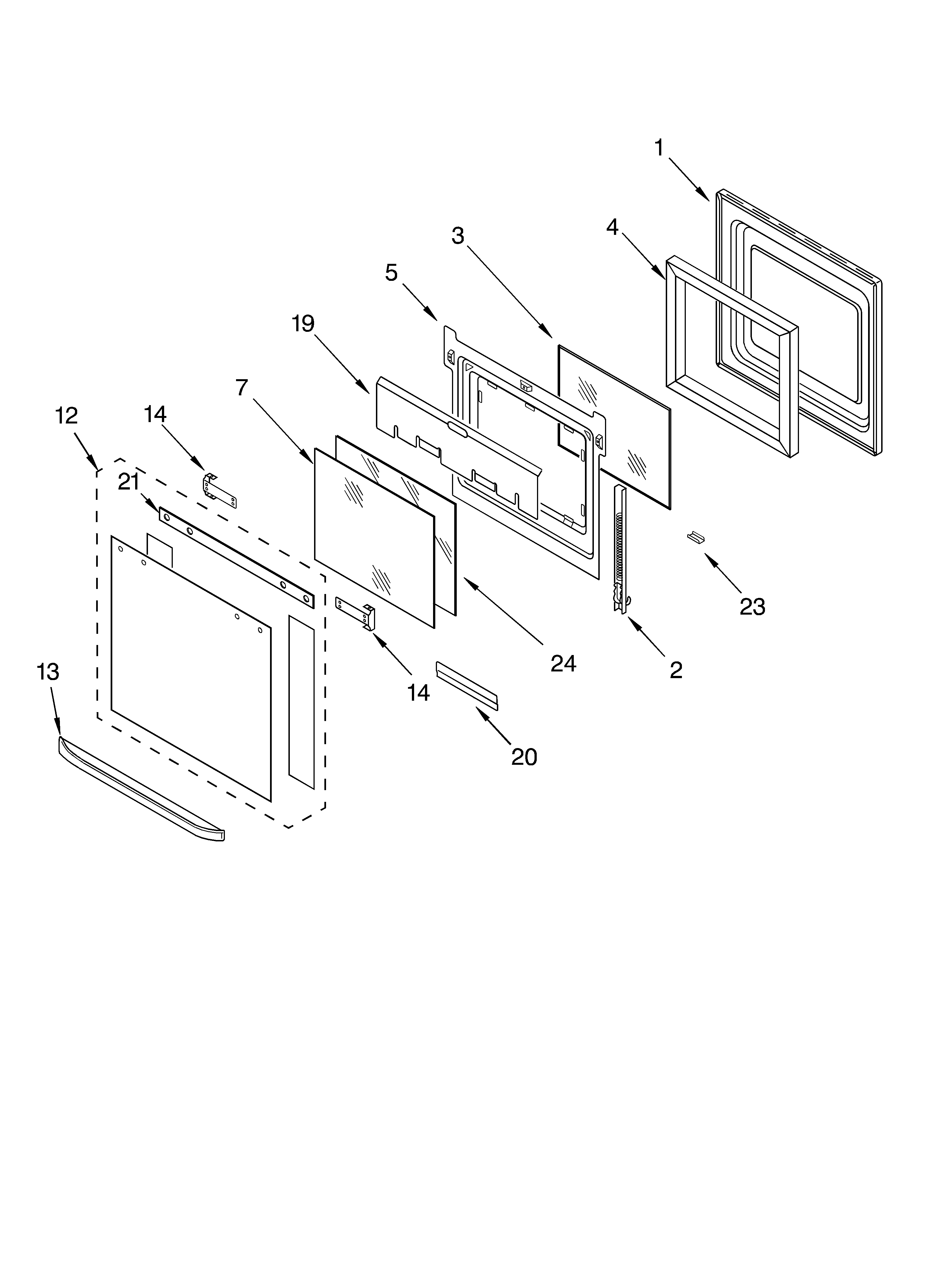

    Oven door diagram

    Wall Oven Door Inner Glass

    Part #4449259

    Replaced by #WP4449259

    Info Icon
    Manufacturer substitution
    This part replaces 4449259. Substitute parts can look different from the original.
    In Stock
    $105.60
    10% OFF Phone Price : $117.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Torsion Spring for KitchenAid KEHC309JSS4 - Part WP4452395

    Microwave door diagram

    Microwave Door Torsion Spring

    Part #4452395

    Replaced by #WP4452395

    Info Icon
    Manufacturer substitution
    This part replaces 4452395. Substitute parts can look different from the original.
    In Stock
    $86.13
    7% OFF Phone Price : $92.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for KitchenAid KEHC309JSS4 - Part 350930

    Microwave door diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Diode for KitchenAid KEHC309JSS4 - Part WPW10687786

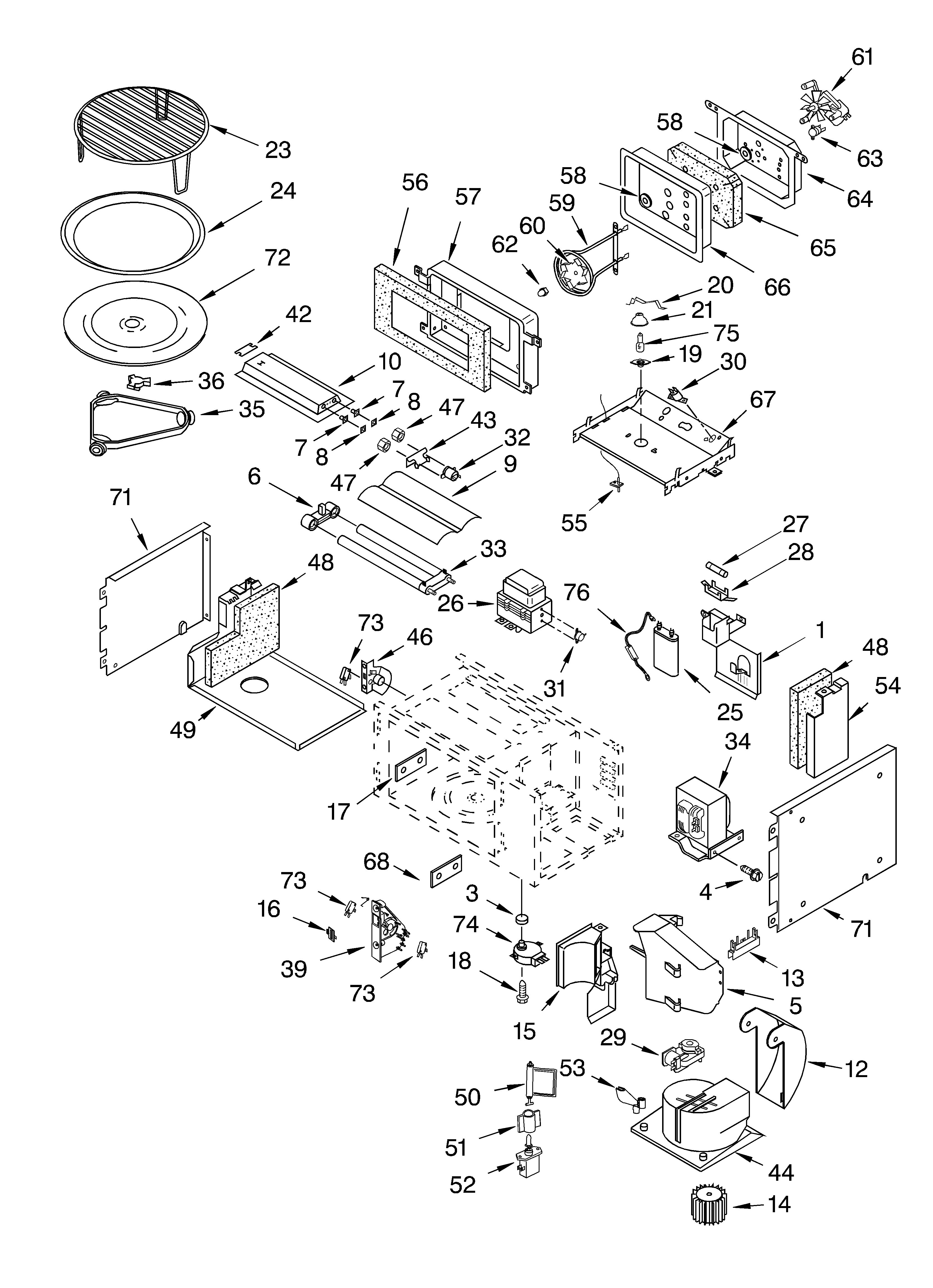

    Cabinet and stirrer diagram

    Diode

    Part #4375349

    Replaced by #WPW10687786

    Info Icon
    Manufacturer substitution
    This part replaces 4375349. Substitute parts can look different from the original.
    In Stock
    $22.72
    21% OFF Phone Price : $28.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for KitchenAid KEHC309JSS4 - Part WP9759243

    Oven/literature diagram

    Range High-limit Thermostat

    Part #4451442

    Replaced by #WP9759243

    Info Icon
    Manufacturer substitution
    This part replaces 4451442. Substitute parts can look different from the original.
    In Stock
    $48.90
    11% OFF Phone Price : $54.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Torsion Spring for KitchenAid KEHC309JSS4 - Part WP4451009

    Microwave door diagram

    Microwave Door Torsion Spring

    Part #4451009

    Replaced by #WP4451009

    Info Icon
    Manufacturer substitution
    This part replaces 4451009. Substitute parts can look different from the original.
    In Stock
    $72.02
    8% OFF Phone Price : $78.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Outer Panel for KitchenAid KEHC309JSS4 - Part W10401225

    Oven door diagram

    Oven Door Glass (black)

    Part #4452316

    Replaced by #W10401225

    Info Icon
    Manufacturer substitution
    This part replaces 4452316. Substitute parts can look different from the original.
    In Stock
    $192.78
    6% OFF Phone Price : $204.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for KitchenAid KEHC309JSS4 - Part 4375424

    Cabinet and stirrer diagram

    Microwave Magnetron

    Part #4375424

    The manufacturer no longer makes this part, and there's no substitute part
