Model #ZDP364LRP5SS GE dual fuel range

Here are the repair parts and diagrams for your GE ZDP364LRP5SS dual fuel range.

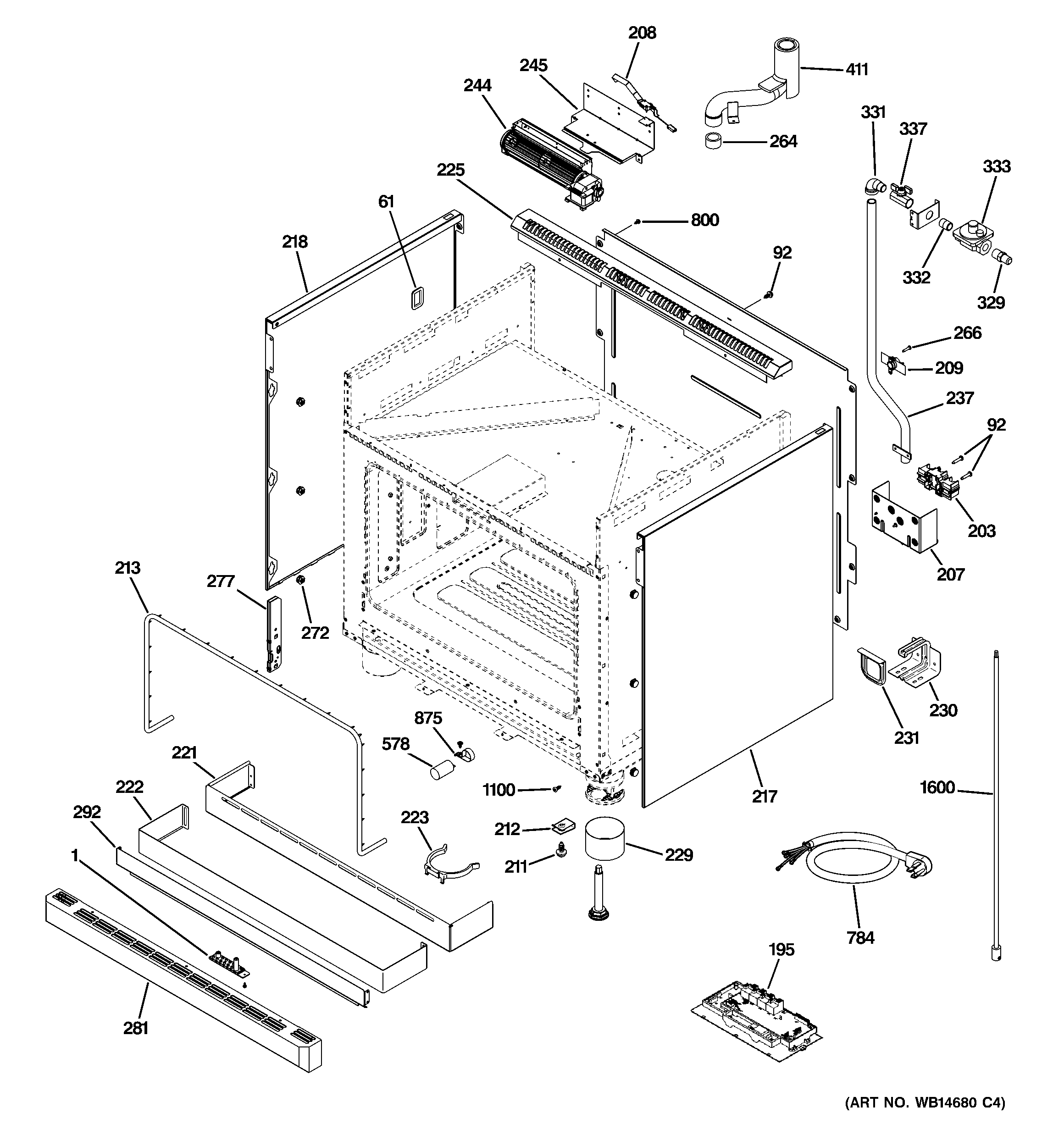

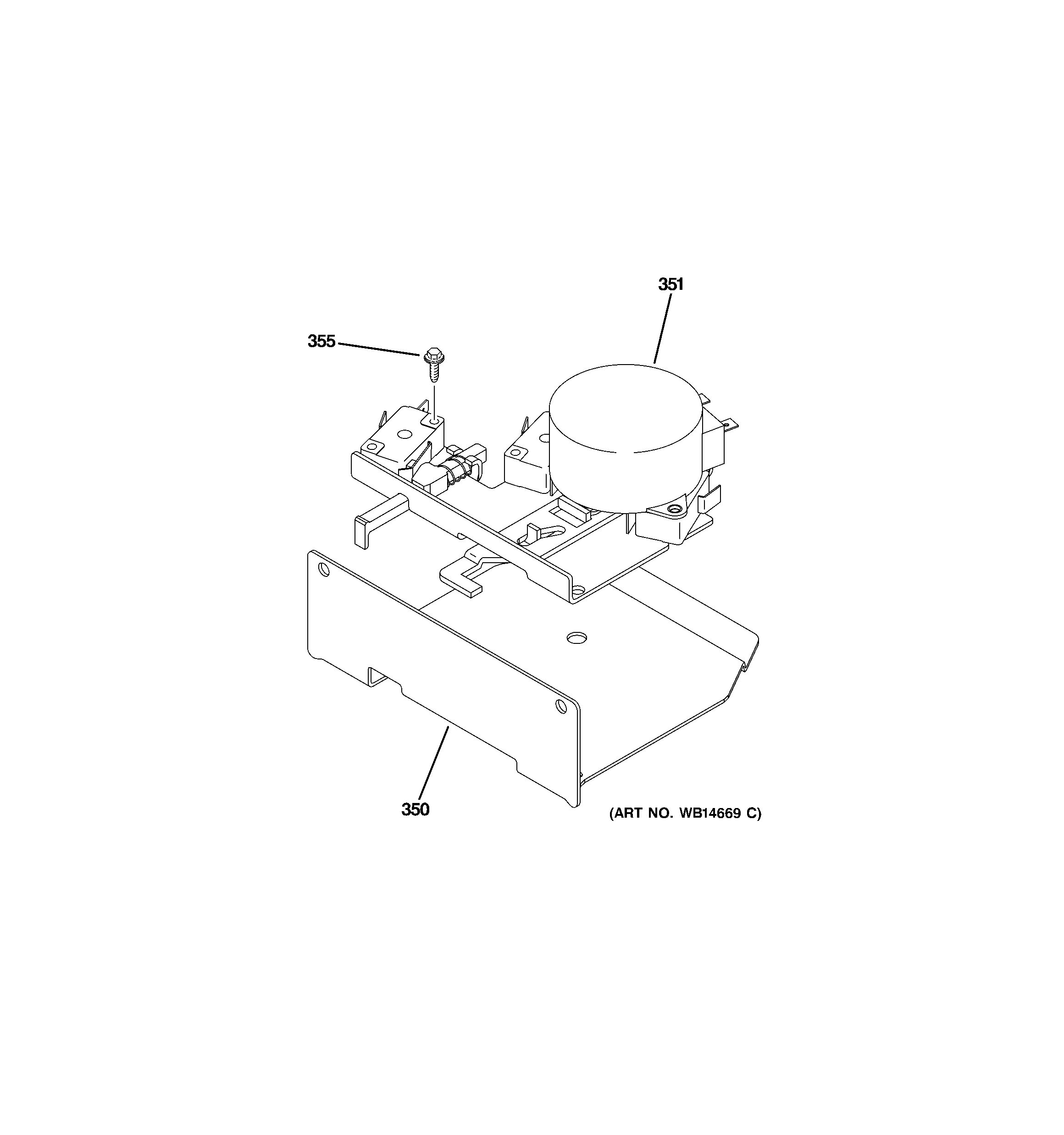

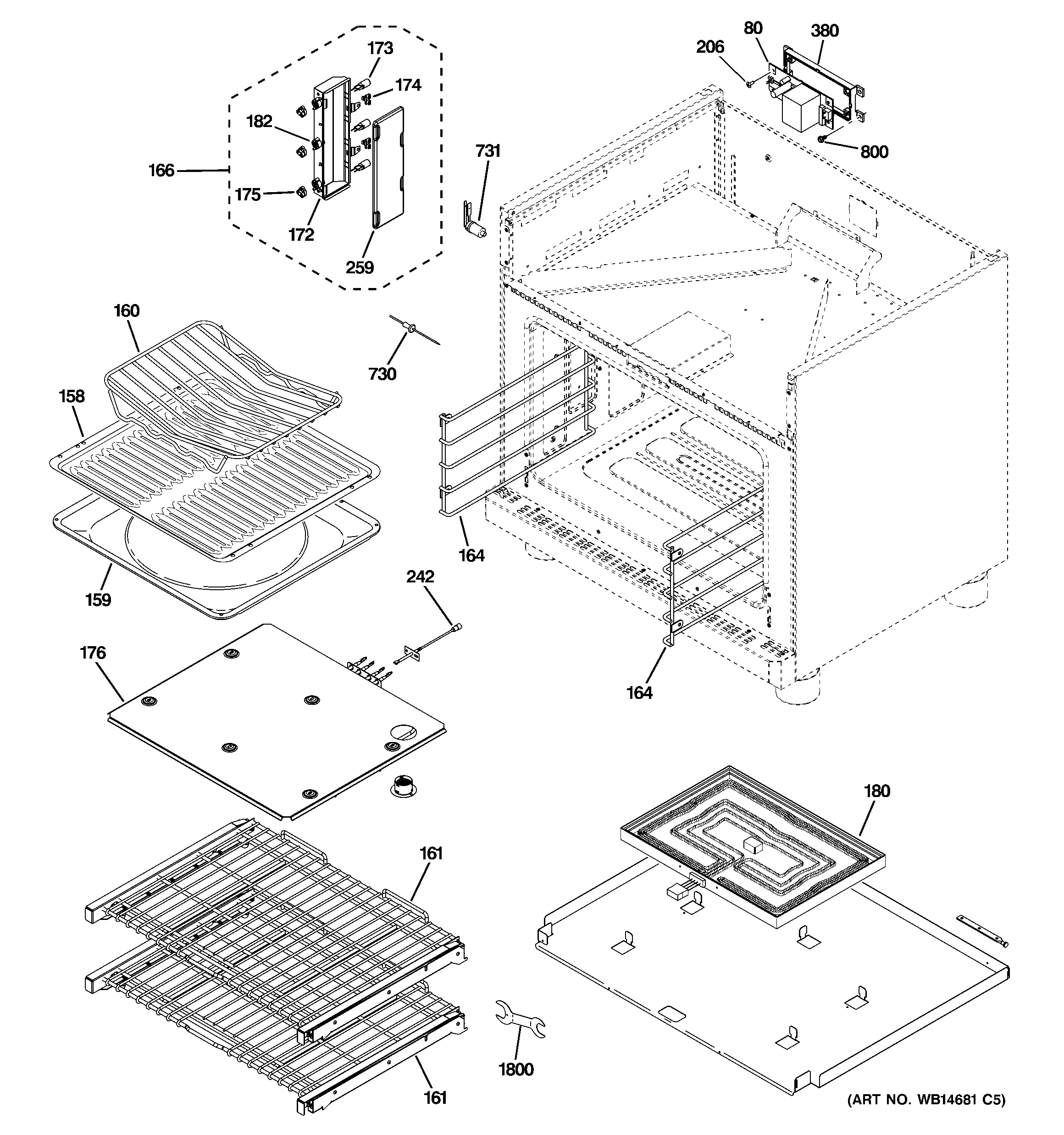

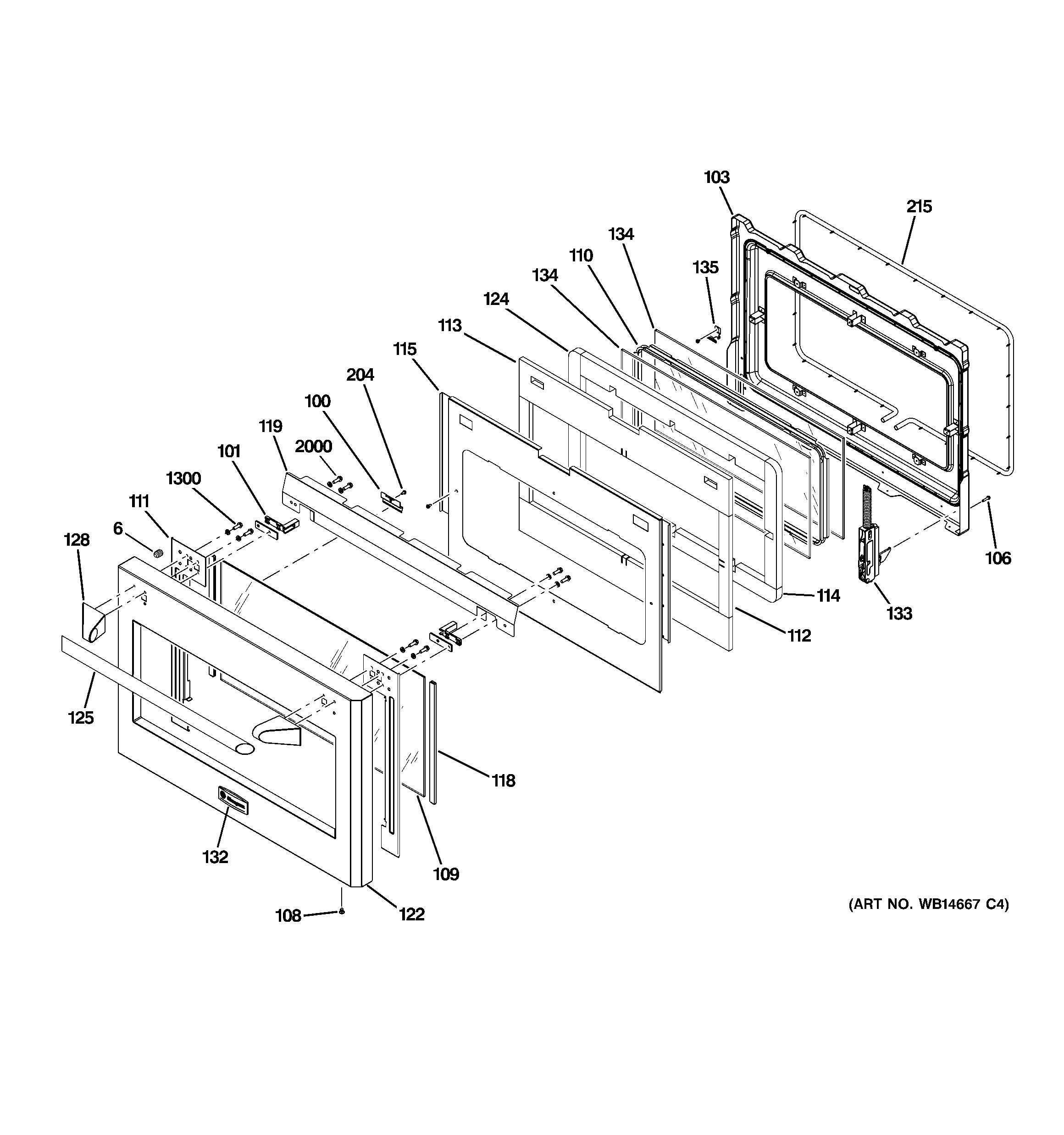

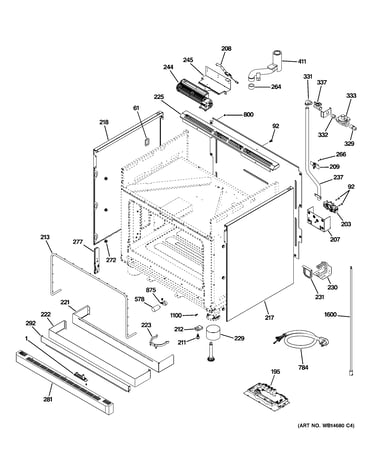

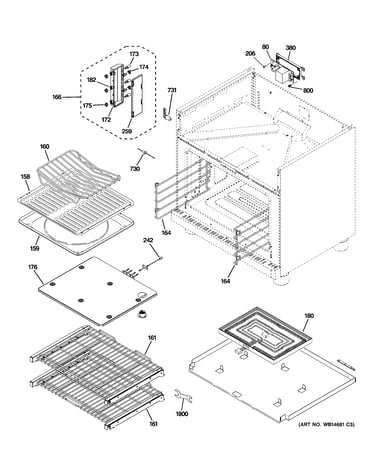

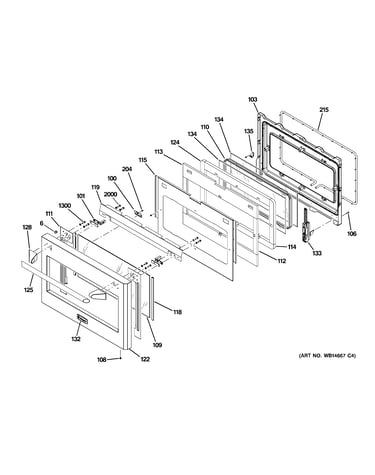

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 178 parts

Range Surface Burner Igniter

#450

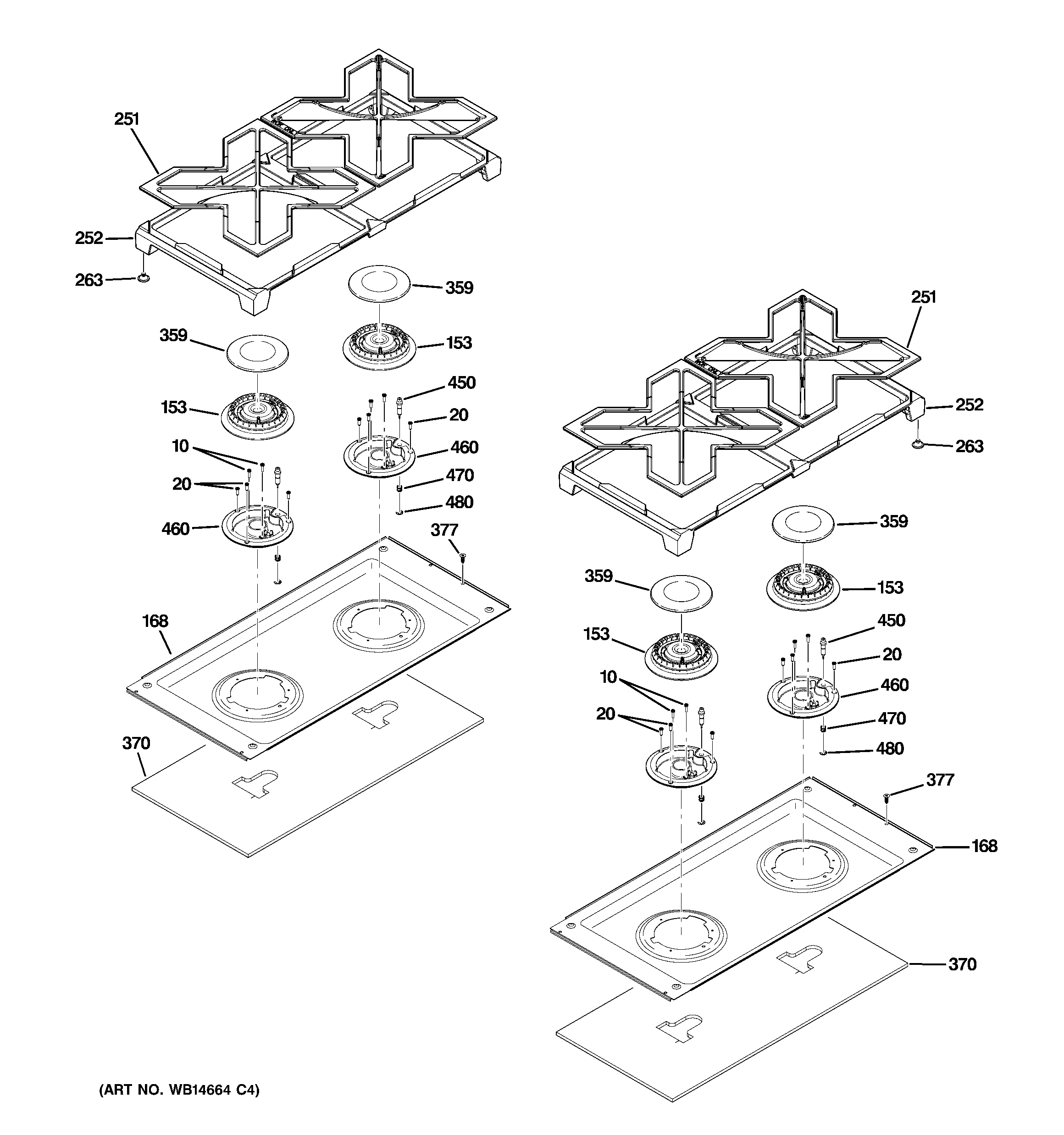

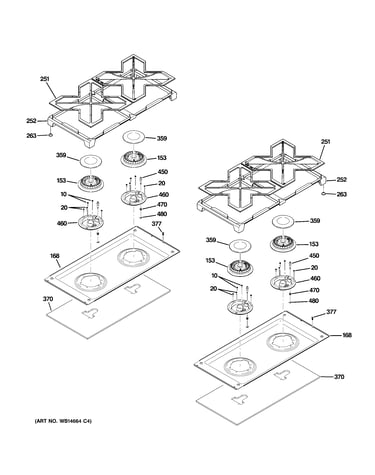

Cooktop Diagram

$19.19

In Stock

Nut

#404

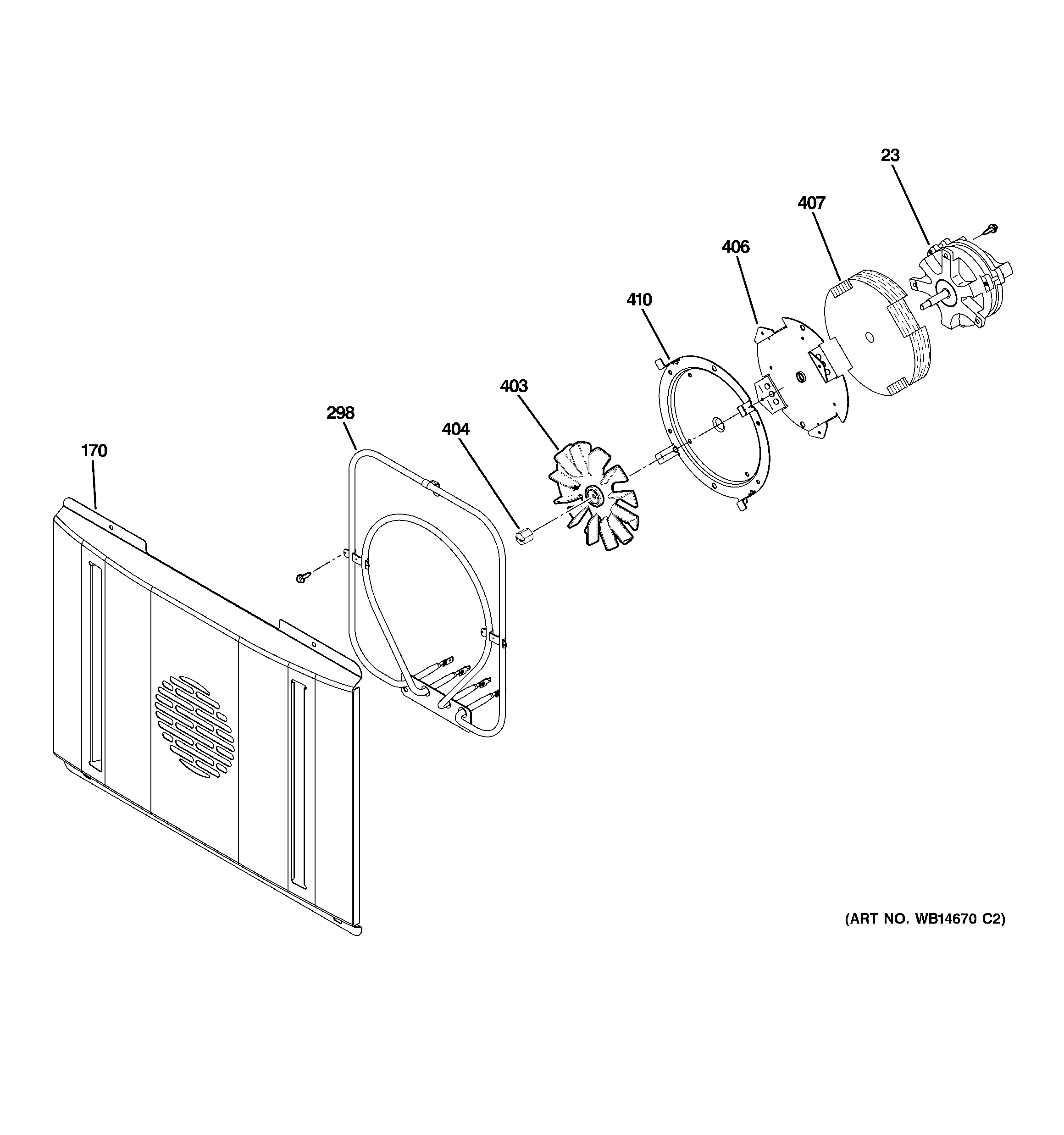

Convection fan Diagram

Nut

Part #WB02T10017
This item is not returnable

$6.89

In Stock

Range Surface Burner Igniter Clip

#480

Cooktop Diagram

Range surface burner igniter clip

Part #WB02T10323
This item is not returnable

$3.04

In Stock

Range Screw

#8

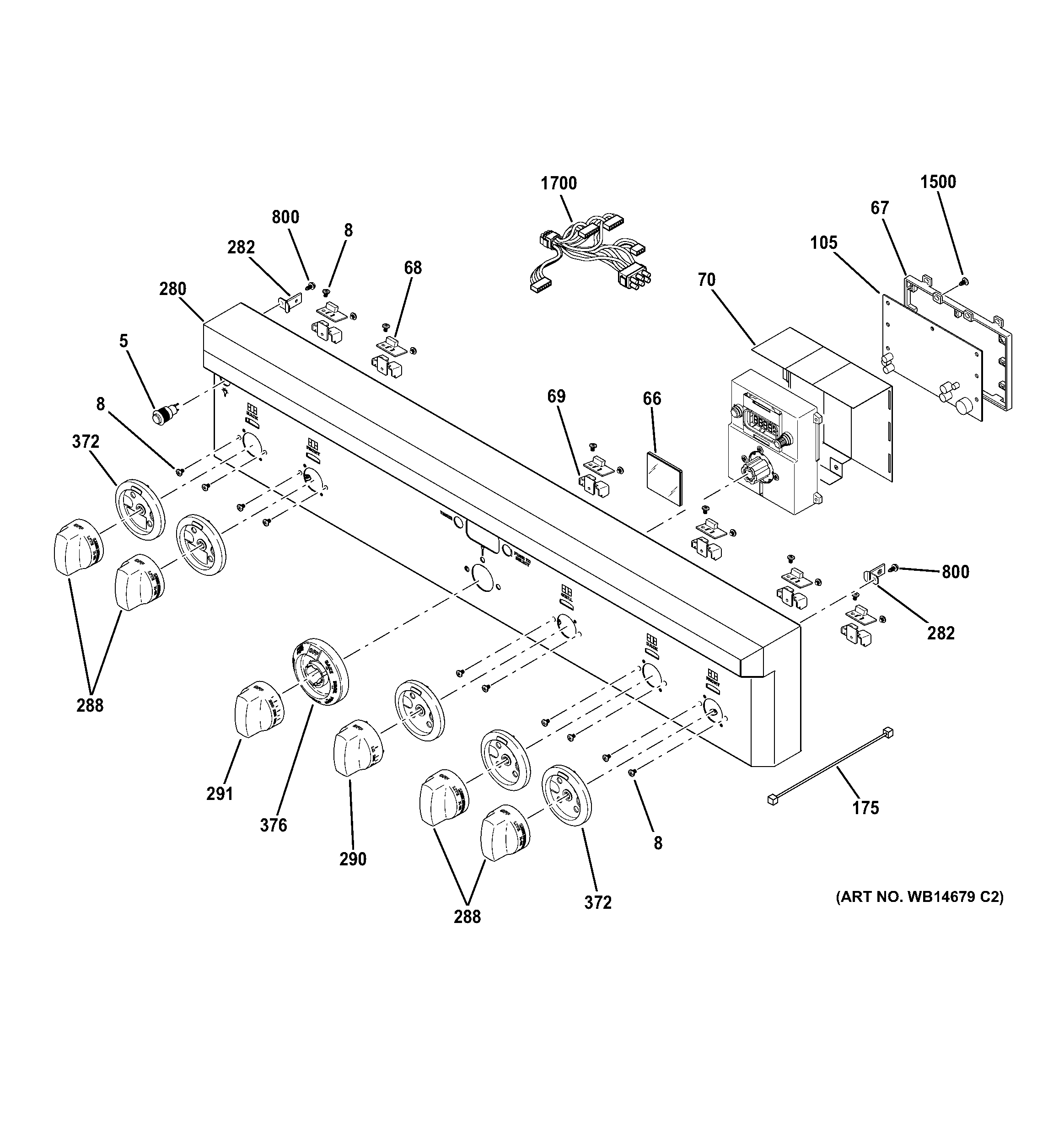

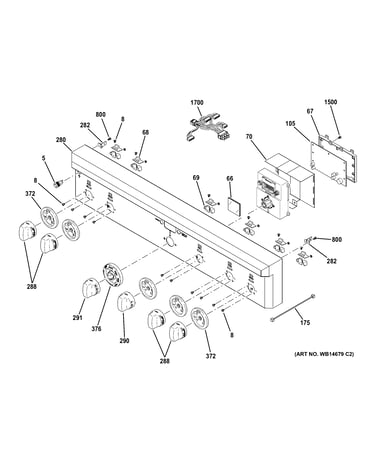

Control panel Diagram

Range screw

Part #WB01K10002
This item is not returnable

$1.51

In Stock

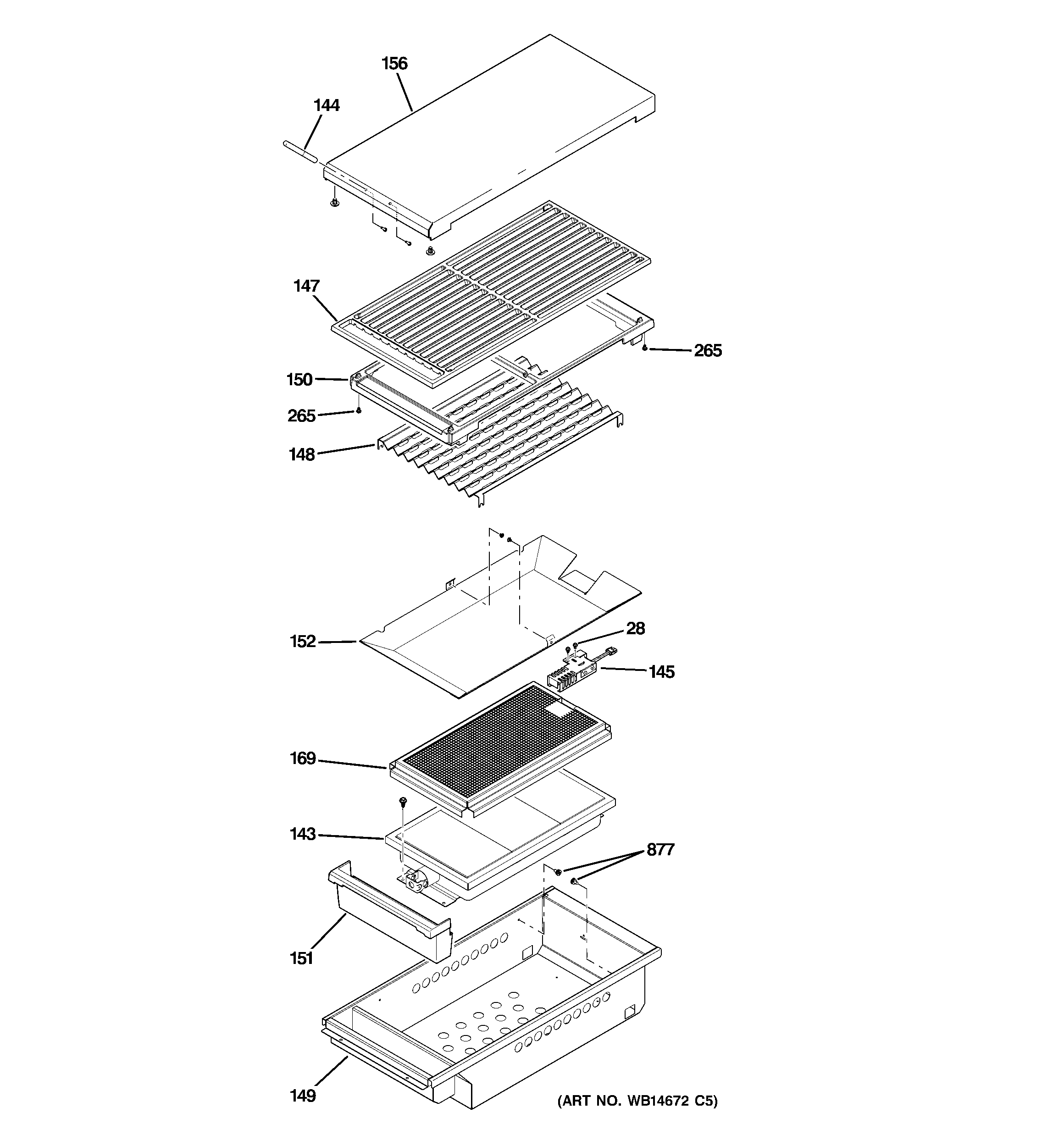

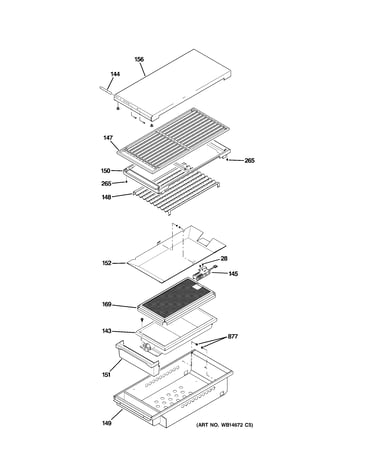

Range Grill Griddle Assembly Knob

#291

Control panel Diagram

$51.20

In Stock

Range Surface Burner Grate Support

#252

Cooktop Diagram

$178.49

In Stock

Range Convection Fan Blade

#403

Convection fan Diagram

$15.08

In Stock

Range Surface Burner Igniter Spring

#470

Cooktop Diagram

Range surface burner igniter spring

Part #WB09T10011
This item is not returnable

$3.04

In Stock

Cerama Bryte Stainless Steel Brightener

#1

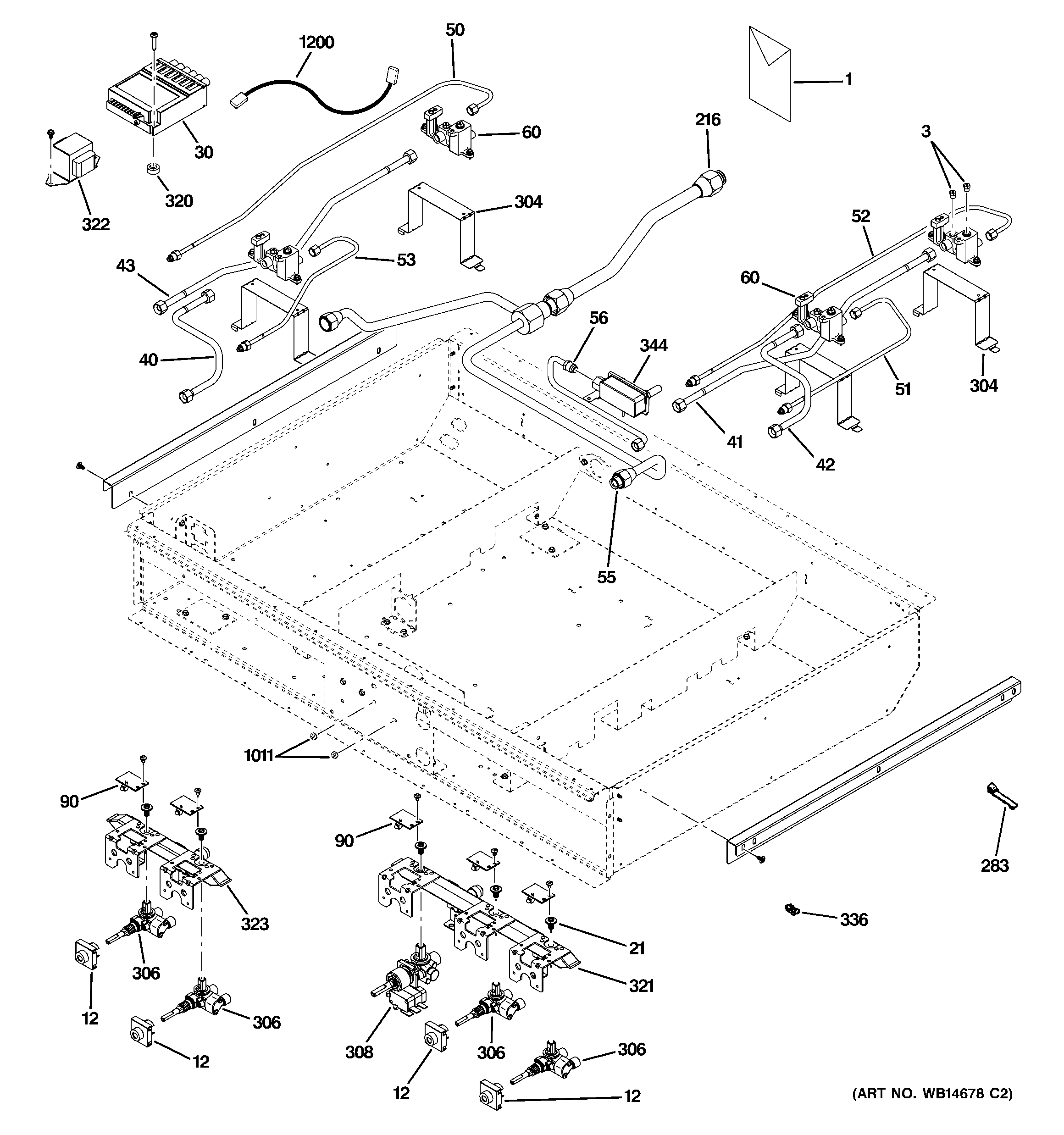

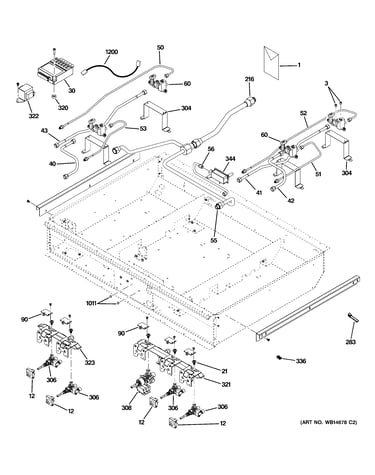

Gas & burner parts Diagram

$11.74

In Stock

Range Screw

#10

Cooktop Diagram

Range screw

Part #WB01T10104
This item is not returnable

$5.53

In Stock
