Model # 5-5767X1 Official Murray 20" girls' bicycle

Here are the diagrams and repair parts for Official Murray 5-5767X1 20" girls' bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

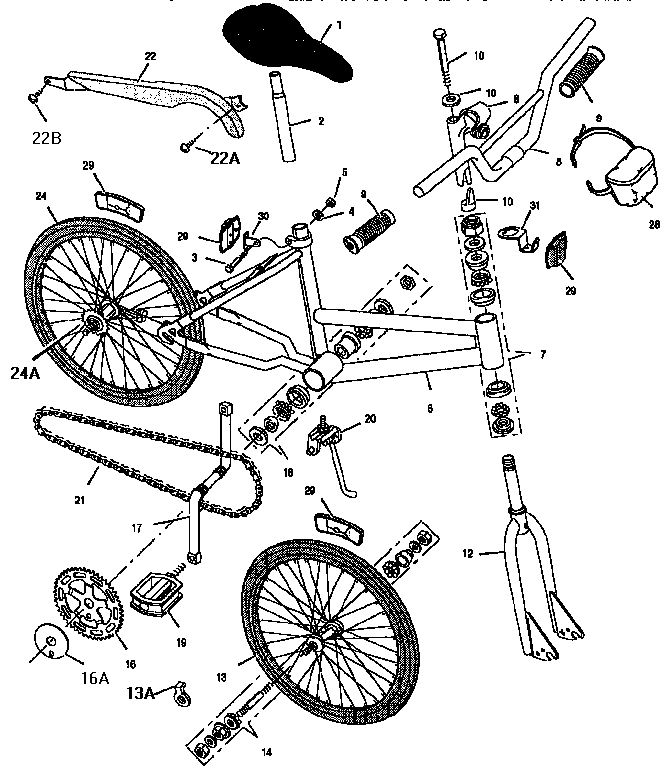

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Master Link 303476
#21A

Unit parts diagram

Master link

Part #303476

The manufacturer no longer makes this part, and there's no substitute part

Washer 17X47Z
#4

Unit parts diagram

Washer

Part #17X47Z

The manufacturer no longer makes this part, and there's no substitute part

Exp Bolt Wsh 40670
#10

Unit parts diagram

Exp bolt wsh

Part #40670

The manufacturer no longer makes this part, and there's no substitute part

Tube 20x21/8 139X4
#13C

Unit parts diagram

Tube 20x21/8

Part #139X4

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302335
#20

Unit parts diagram

Kickstand

Part #302335

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard 50678E266
#22

Unit parts diagram

Chain guard

Part #50678E266

The manufacturer no longer makes this part, and there's no substitute part

Hbar,lgbrstm 49321E266
#8

Unit parts diagram

Hbar,lgbrstm

Part #49321E266

The manufacturer no longer makes this part, and there's no substitute part

Bearing Set 303384
#7

Unit parts diagram

Bearing set

Part #303384

The manufacturer no longer makes this part, and there's no substitute part

F Axle 303588
#14

Unit parts diagram

F axle

Part #303588

The manufacturer no longer makes this part, and there's no substitute part

Screw 26X222
#22A

Unit parts diagram

Screw

Part #26X222

The manufacturer no longer makes this part, and there's no substitute part
