Sharp
Countertop Microwave

Model # R-120DR Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-120DR microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

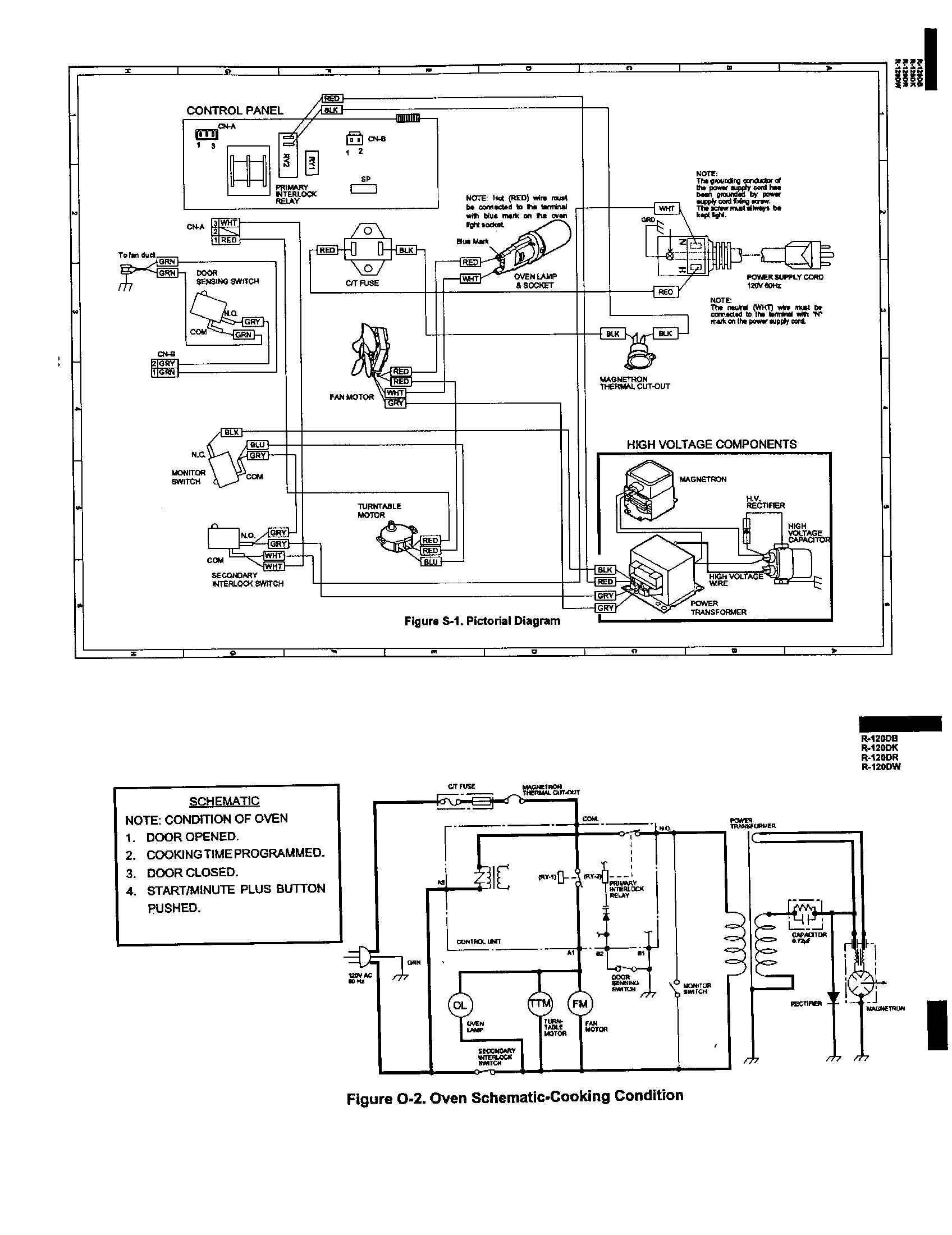

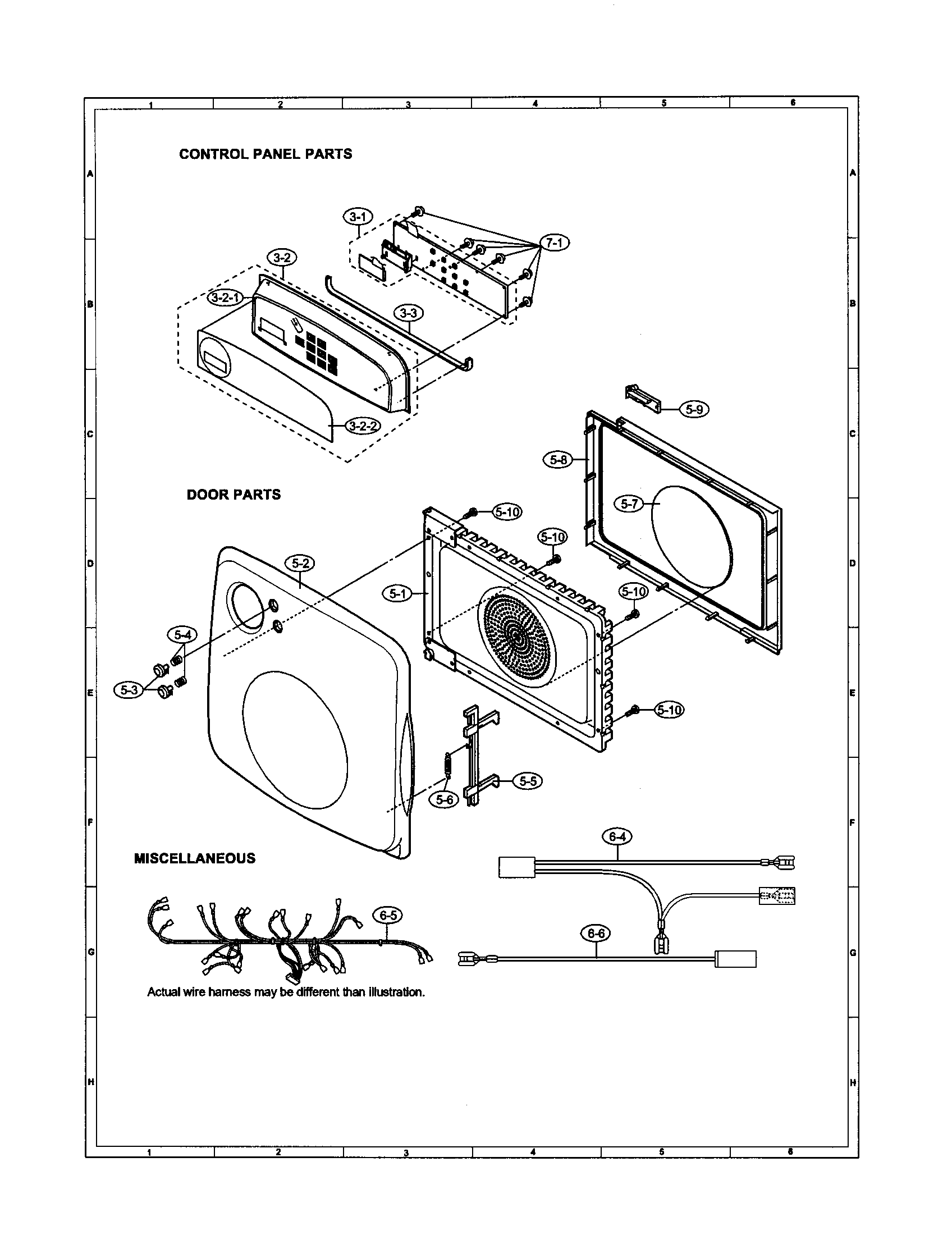

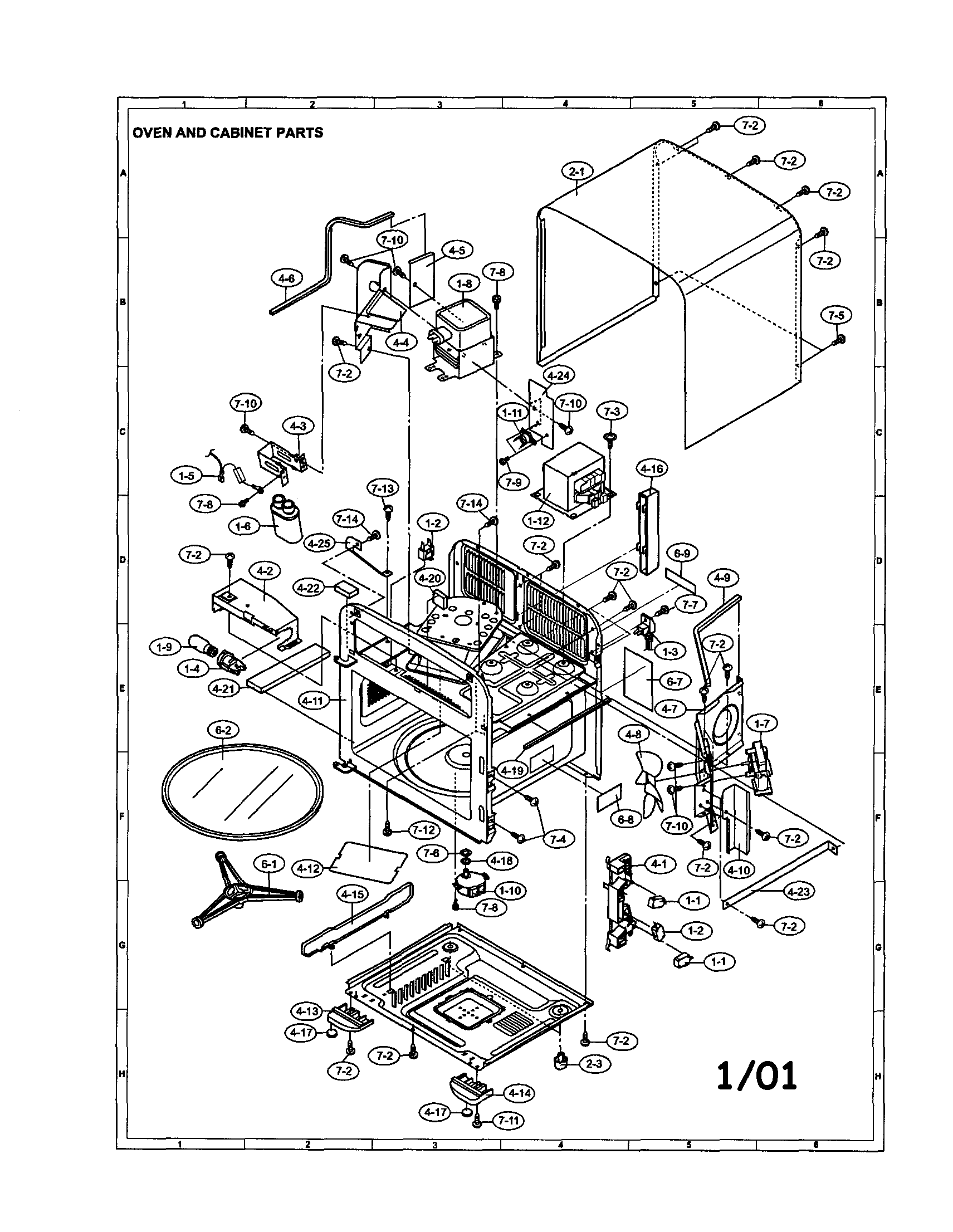

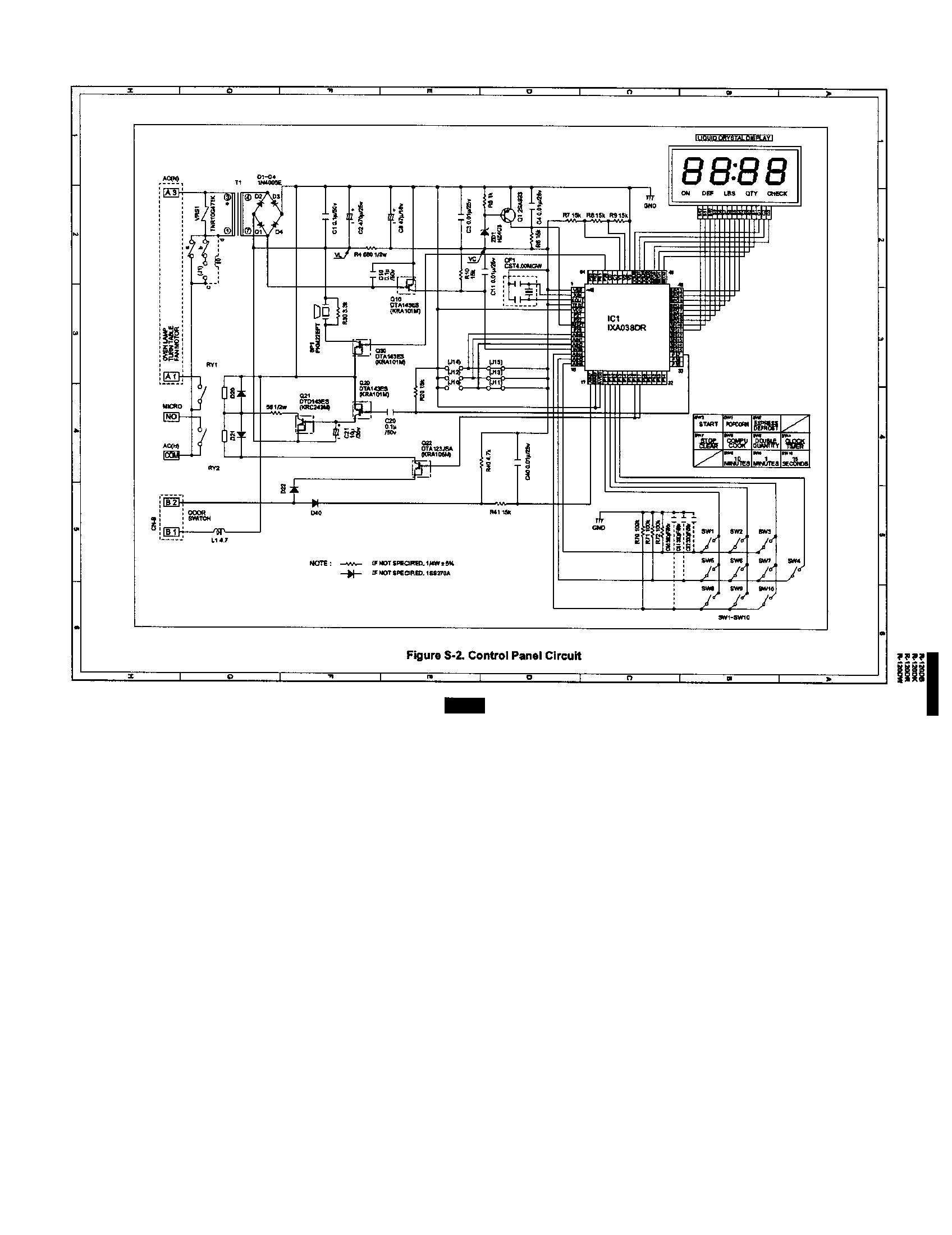

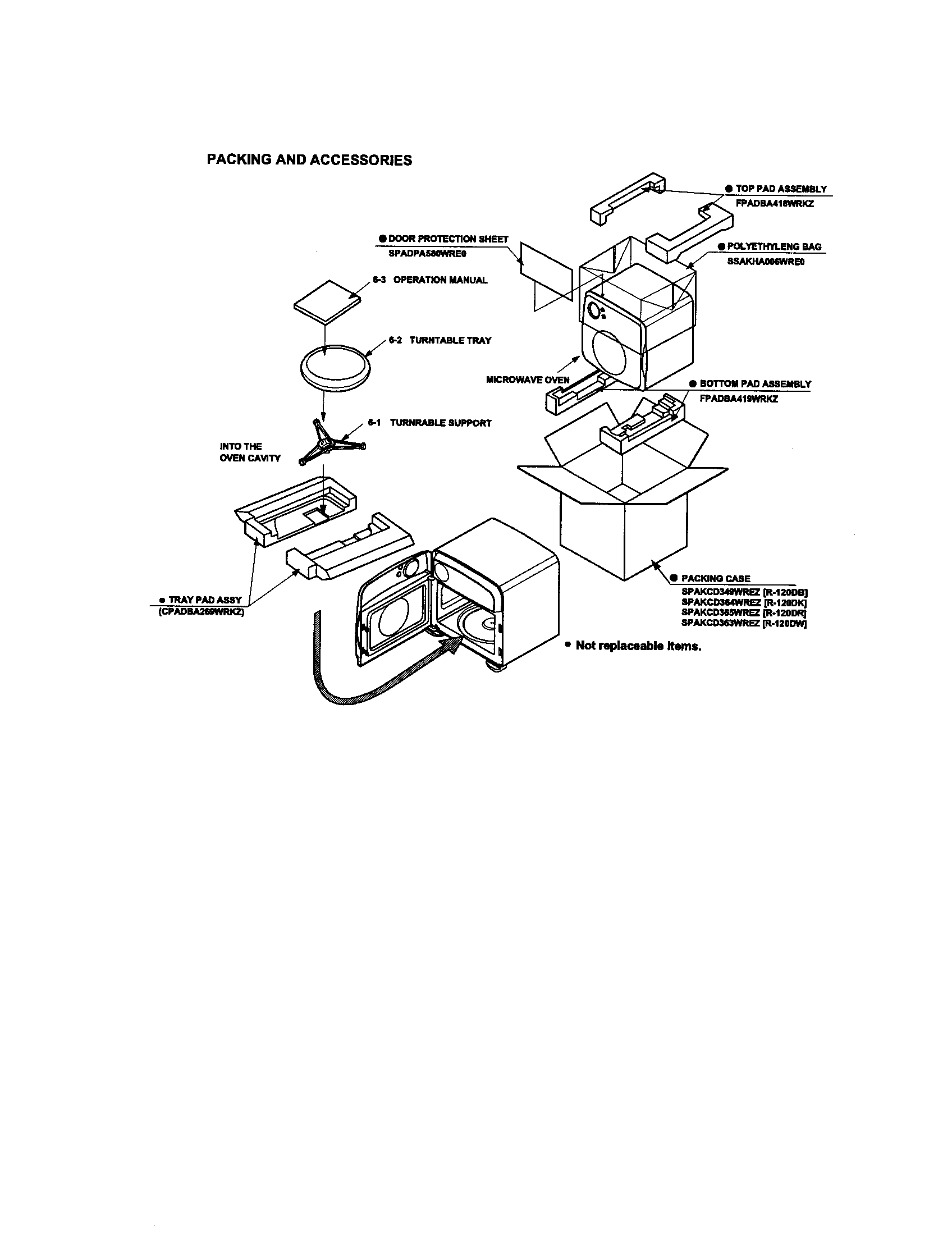

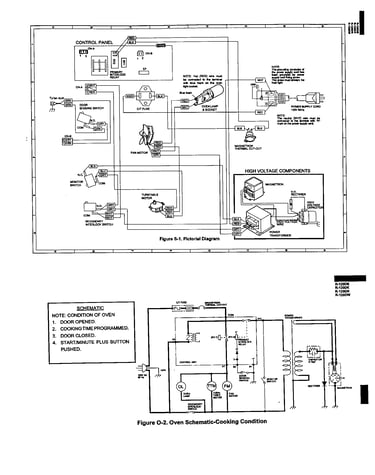

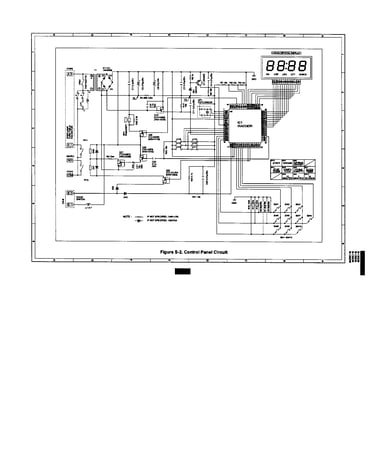

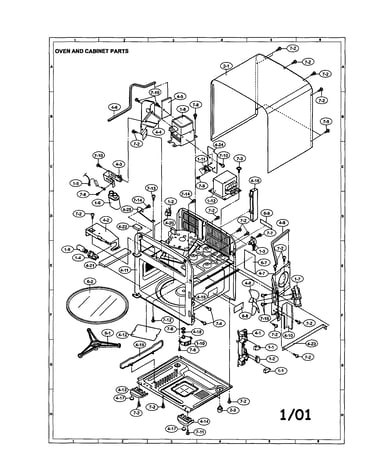

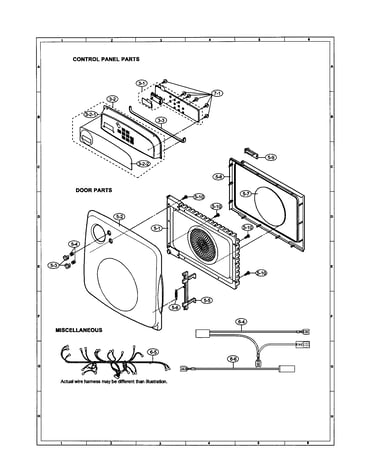

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Duct PDUC-A740WRWZ

#4-02

All parts diagram

Duct

Part #PDUC-A740WRWZ

The manufacturer no longer makes this part, and there's no substitute part

Angle LANGTA370WRPZ

#4-25

All parts diagram

Angle

Part #LANGTA370WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Support LANGTA369WRPZ

#4-23

All parts diagram

Support

Part #LANGTA369WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Cabinet GCABUA763WRPZ

#2-01A

All parts diagram

Cabinet

Part #GCABUA763WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Cabinet GCABUA754WRPZ

#2-01

All parts diagram

Cabinet

Part #GCABUA754WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Waveguide Cover PCOVPA359WREZ

#4-12

All parts diagram

Microwave waveguide cover

Part #PCOVPA359WREZ

The manufacturer no longer makes this part, and there's no substitute part

Thermal C/o RTHM-A117WRE0

#1-11

All parts diagram

Thermal c/o

Part #RTHM-A117WRE0

The manufacturer no longer makes this part, and there's no substitute part

O-ring PPACGA097WRE0

#4-18

All parts diagram

O-ring

Part #PPACGA097WRE0

The manufacturer no longer makes this part, and there's no substitute part

Air Duct PDUC-A736WRPZ

#4-04

All parts diagram

Air duct

Part #PDUC-A736WRPZ

The manufacturer no longer makes this part, and there's no substitute part

Socket QSOCLA021WRE0

#1-04

All parts diagram

Socket

Part #QSOCLA021WRE0

The manufacturer no longer makes this part, and there's no substitute part
