Model # EA22CT/P5819702C Official Amana upflow a-coil & housing assembly

Here are the diagrams and repair parts for Official Amana EA22CT-P5819702C upflow a-coil & housing assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Screw M0216544
#8B

Coil housing assembly (ea29x/p5819705c) (ea35x/p5819706c) (ea48xh/p5279905c) (ea58xh/p5279906c) diagram

Screw

Part #M0216544

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces M0216544. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Top Back Angle Assembly B5182104
#14D

(c58380-12) (c58380-16) (c58380-20) (c58380-24) diagram

Top back angle assembly

Part #B5182104

The manufacturer no longer makes this part, and there's no substitute part

Coil, Evaporator Assembly, R.h. C5811901
#3A

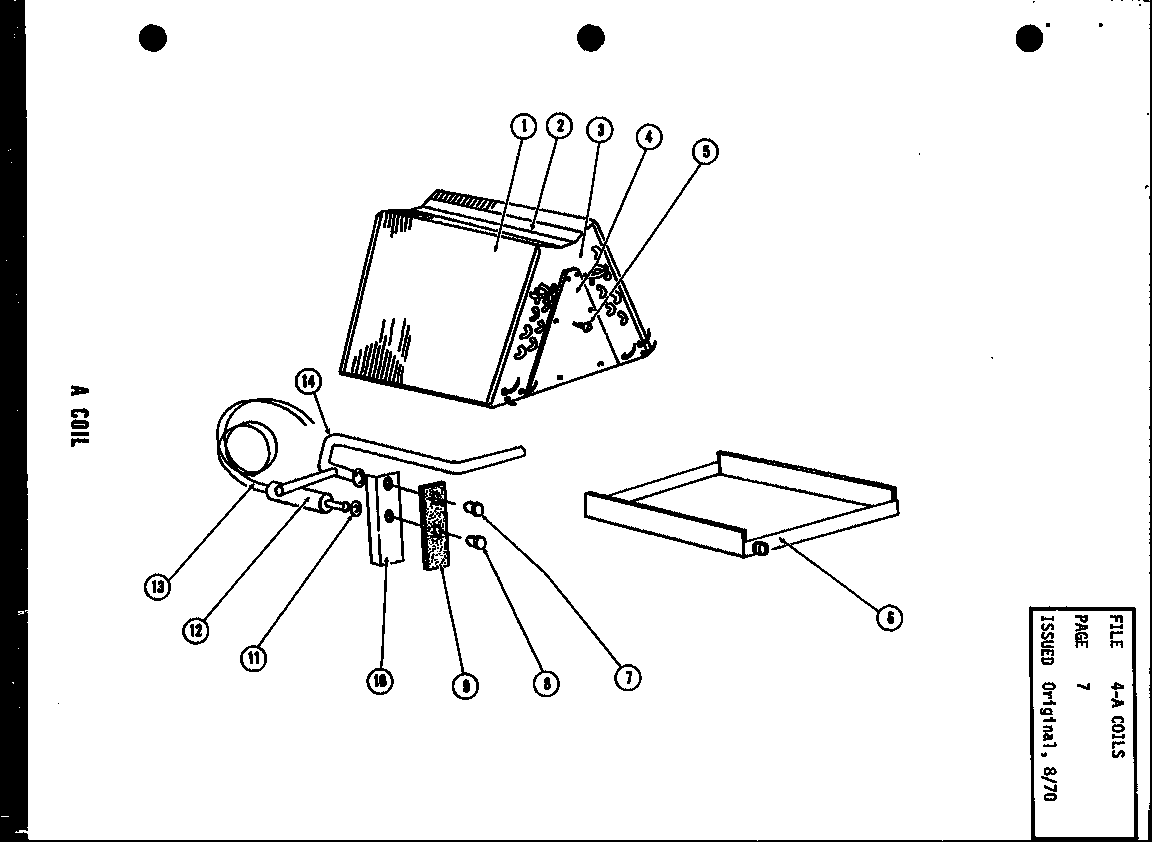

A coil (ea18ct/p5819701c) (ea22ct/p5819702c) (ea29ct/p5819704c) (ea35ct/p5819703c) diagram

Coil, evaporator assembly, r.h.

Part #C5811901

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Housing D5315301
#2A

Coil housing assembly (ea29x/p5819705c) (ea35x/p5819706c) (ea48xh/p5279905c) (ea58xh/p5279906c) diagram

Evaporator housing

Part #D5315301

The manufacturer no longer makes this part, and there's no substitute part

Plate, End Front And Rear B5160101
#4A

A coil (ea18ct/p5819701c) (ea22ct/p5819702c) (ea29ct/p5819704c) (ea35ct/p5819703c) diagram

Plate, end front and rear

Part #B5160101

The manufacturer no longer makes this part, and there's no substitute part

Manifold Assembly A4661502
#5A

Coil housing assembly (ea29x/p5819705c) (ea35x/p5819706c) (ea48xh/p5279905c) (ea58xh/p5279906c) diagram

Manifold assembly

Part #A4661502

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Cabinet Back C5206603
#1

Coil housing assembly (ea29x/p5819705c) (ea35x/p5819706c) (ea48xh/p5279905c) (ea58xh/p5279906c) diagram

Insulation, cabinet back

Part #C5206603

The manufacturer no longer makes this part, and there's no substitute part

Insulation B5177208
#4A

(c58380-12) (c58380-16) (c58380-20) (c58380-24) diagram

Insulation

Part #B5177208

The manufacturer no longer makes this part, and there's no substitute part

Base Pan Assembly C5285202
#12B

Coil housing assembly (ea29x/p5819705c) (ea35x/p5819706c) (ea48xh/p5279905c) (ea58xh/p5279906c) diagram

Base pan assembly

Part #C5285202

The manufacturer no longer makes this part, and there's no substitute part
