Model # LC-70LE734U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-70LE734U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Cord QCNW-M030WJQZ
#35

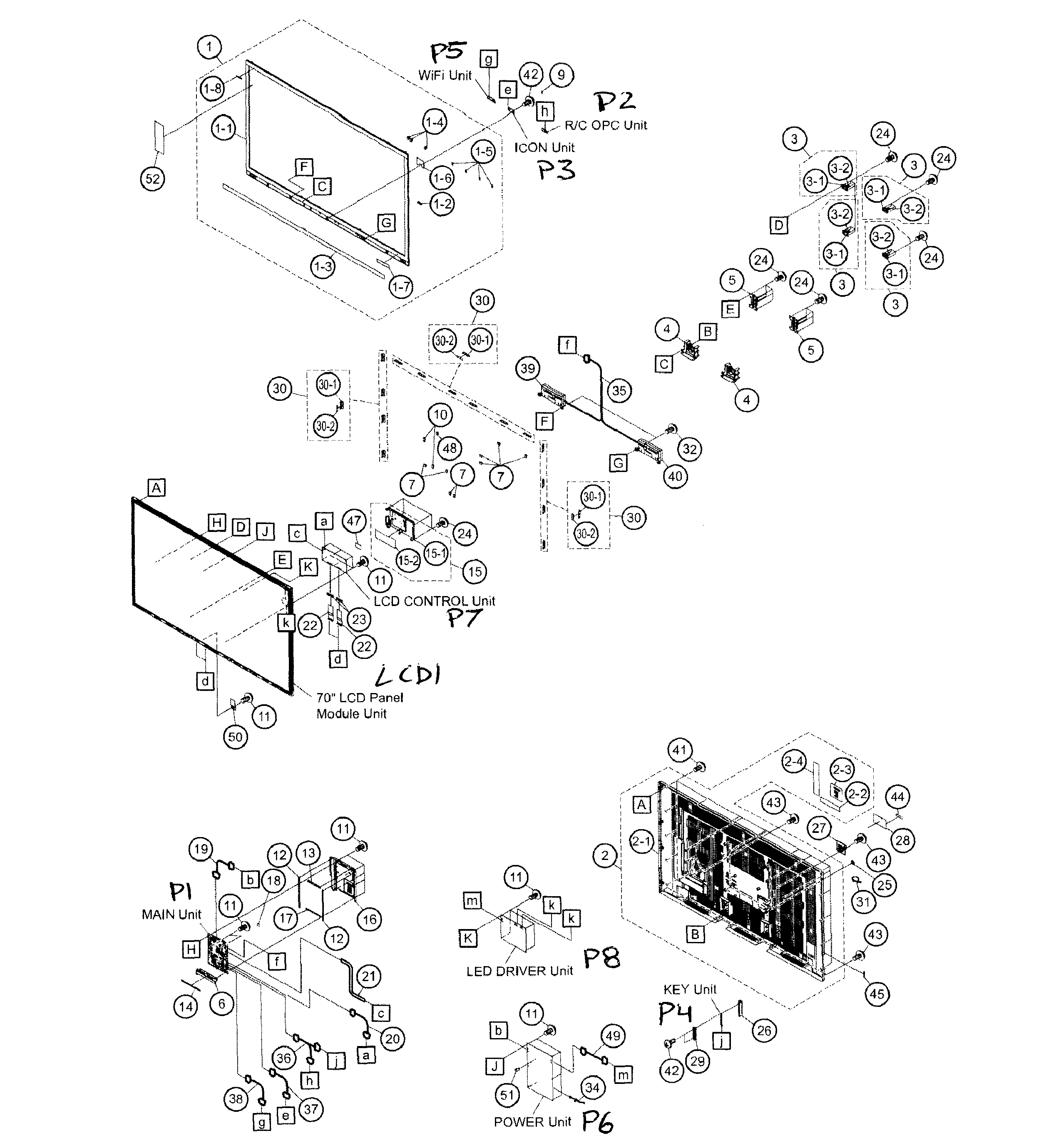

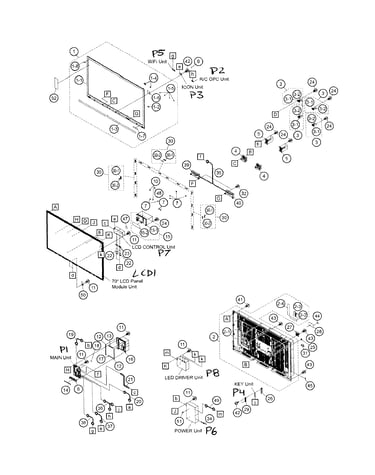

Cabinet parts diagram

Cord

Part #QCNW-M030WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Speaker,r RSP-ZA539WJQZ
#40

Cabinet parts diagram

Speaker,r

Part #RSP-ZA539WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Lcd-cnt Pc DUNTKF778FM11
#P7

Cabinet parts diagram

Lcd-cnt pc

Part #DUNTKF778FM11

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front CCABAC768WJ33
#1

Cabinet parts diagram

Cabinet front

Part #CCABAC768WJ33

The manufacturer no longer makes this part, and there's no substitute part

Bl Label ZLABL2018TPZZ
#3

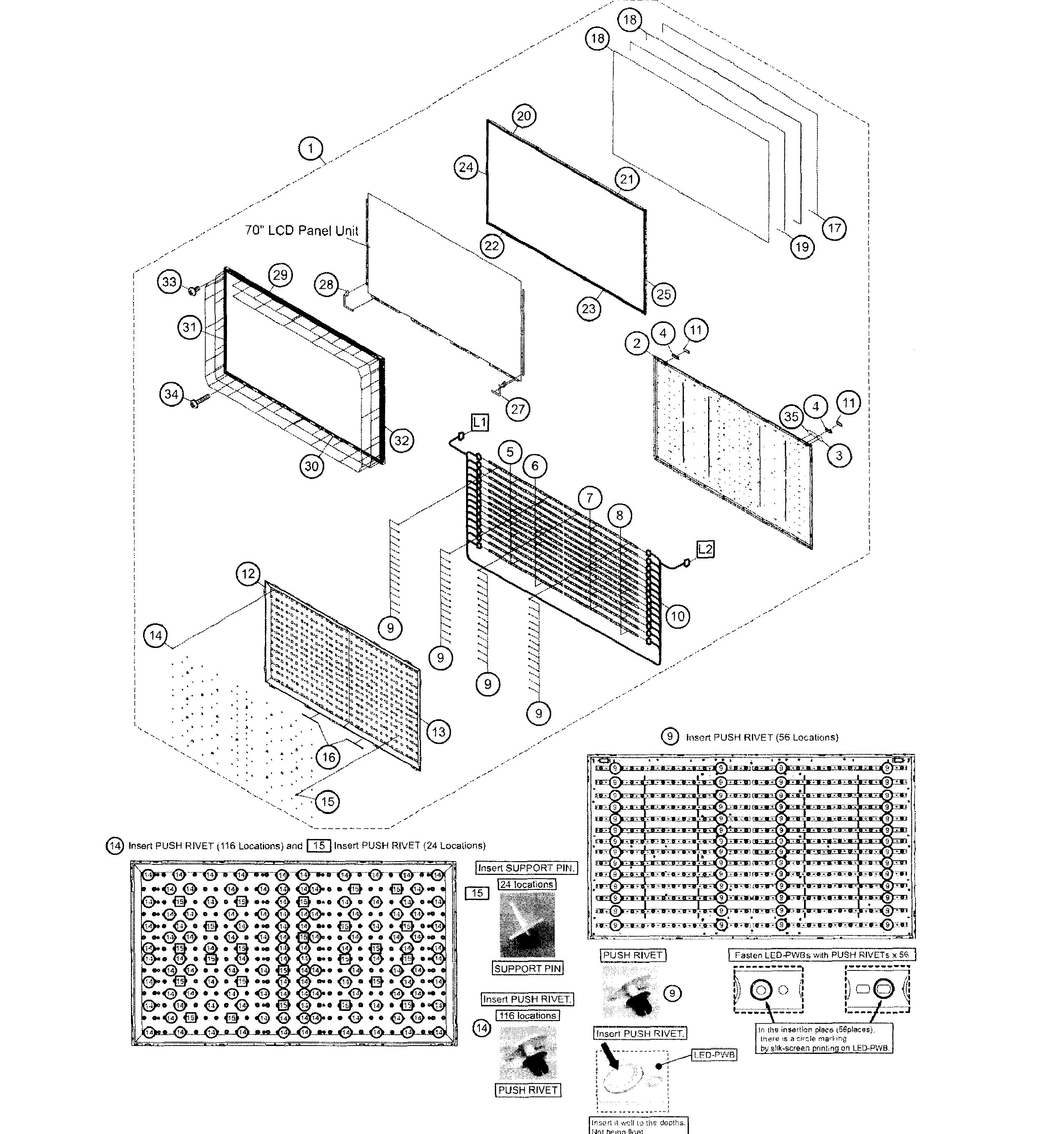

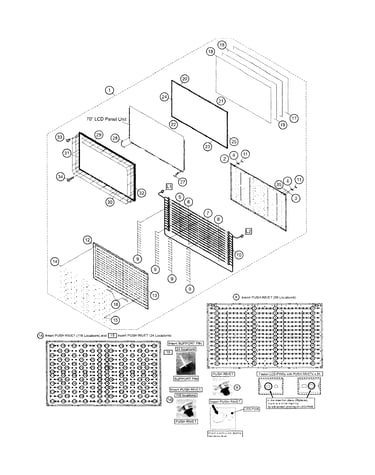

Lcd panel diagram

Bl label

Part #ZLABL2018TPZZ

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb DKEYMF733FM24
#P1

Cabinet parts diagram

Main pcb

Part #DKEYMF733FM24

The manufacturer no longer makes this part, and there's no substitute part

Fr Decorat HDECQB619WJ3C
#1-3

Cabinet parts diagram

Fr decorat

Part #HDECQB619WJ3C

The manufacturer no longer makes this part, and there's no substitute part

Television Power Supply Board RDENCA442WJQZ
#P6

Cabinet parts diagram

Television power supply board

Part #RDENCA442WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Mod Label HINDPE266WJSA
#28

Cabinet parts diagram

Mod label

Part #HINDPE266WJSA

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Neck CANGKD276WJ01
#X1

Cabinet parts diagram

Television stand neck

Part #CANGKD276WJ01

The manufacturer no longer makes this part, and there's no substitute part
