Lawn Edger

Model # 257796420 Official Craftsman electric lawn edger/trimmer

Here are the diagrams and repair parts for Official Craftsman 257796420 electric lawn edger/trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Cutter Blade 534205300
#59

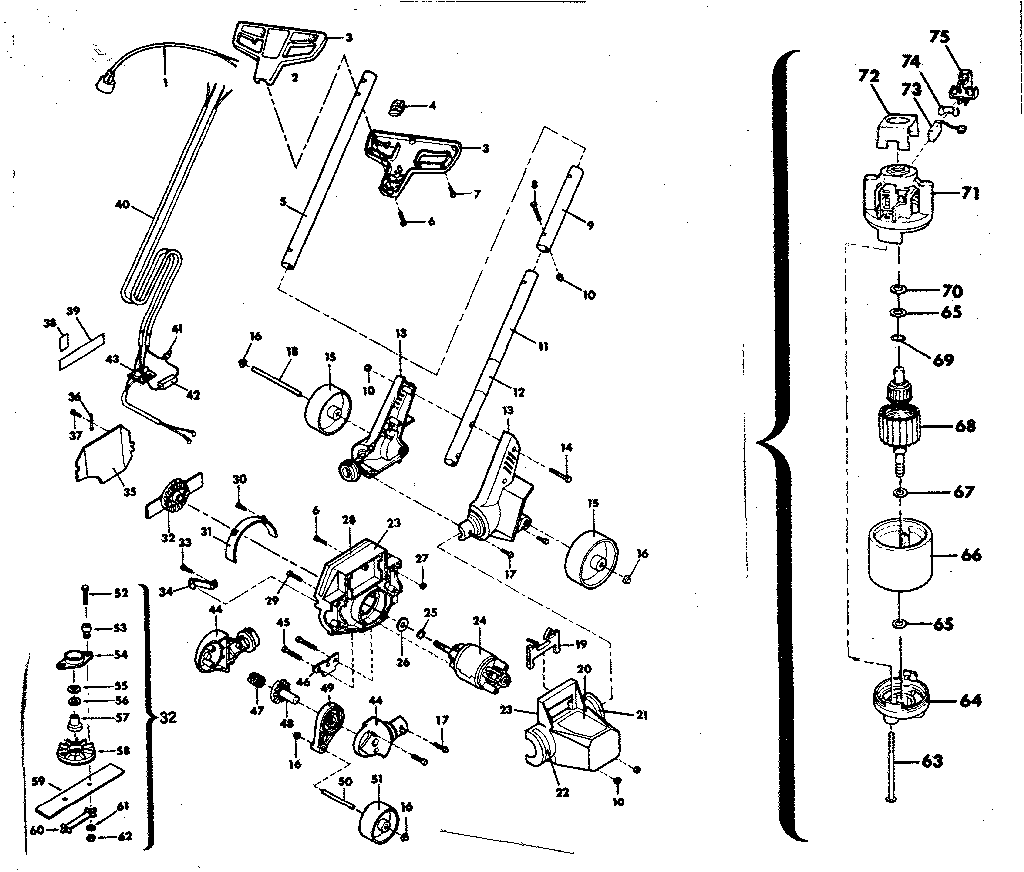

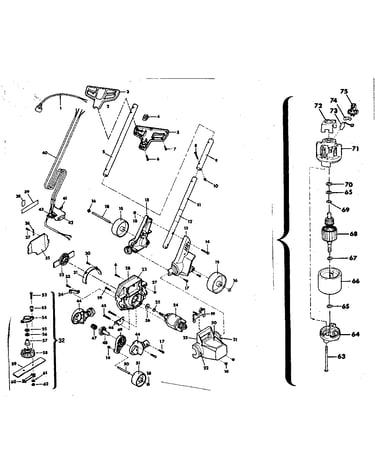

Replacement parts diagram

Cutter blade

Part #534205300

Replaced by #534205300

?
Manufacturer substitution
This part replaces 534205300. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$14.63 |
12% OFF Phone Price : $16.63
In Stock
Screw 2224-2
Screw

Part #2224-2

Replaced by #534222402

?
Manufacturer substitution
This part replaces 2224-2. Substitute parts can look different from the original.
This item is not returnable
$3.50
In Stock
Nut 1362
#62

Replacement parts diagram

Nut

Part #1362

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 1210
#16

Replacement parts diagram

Push nut

Part #1210

Replaced by #534121000

?
Manufacturer substitution
This part replaces 1210. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Wheel P24-3
#51

Replacement parts diagram

Wheel

Part #P24-3

Replaced by #534240003

?
Manufacturer substitution
This part replaces P24-3. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Lock Nut 2359-1
#10

Replacement parts diagram

Lock nut

Part #2359-1

Replaced by #534235901

?
Manufacturer substitution
This part replaces 2359-1. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Strap 1357
#60

Replacement parts diagram

Strap

Part #1357

Replaced by #534135700

?
Manufacturer substitution
This part replaces 1357. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Connector 561
#41

Replacement parts diagram

Connector

Part #561

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 3272
#36

Replacement parts diagram

Hinge pin

Part #3272

The manufacturer no longer makes this part, and there's no substitute part

Washer 1363
#55

Replacement parts diagram

Washer

Part #1363

The manufacturer no longer makes this part, and there's no substitute part
