Model # RTE113C Official Weed Eater line trimmer

Here are the diagrams and repair parts for Official Weed Eater RTE113C line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Line Trimmer Spool Retainer Clip (replaces 5304019-57, 530-401957) 530401957
#18

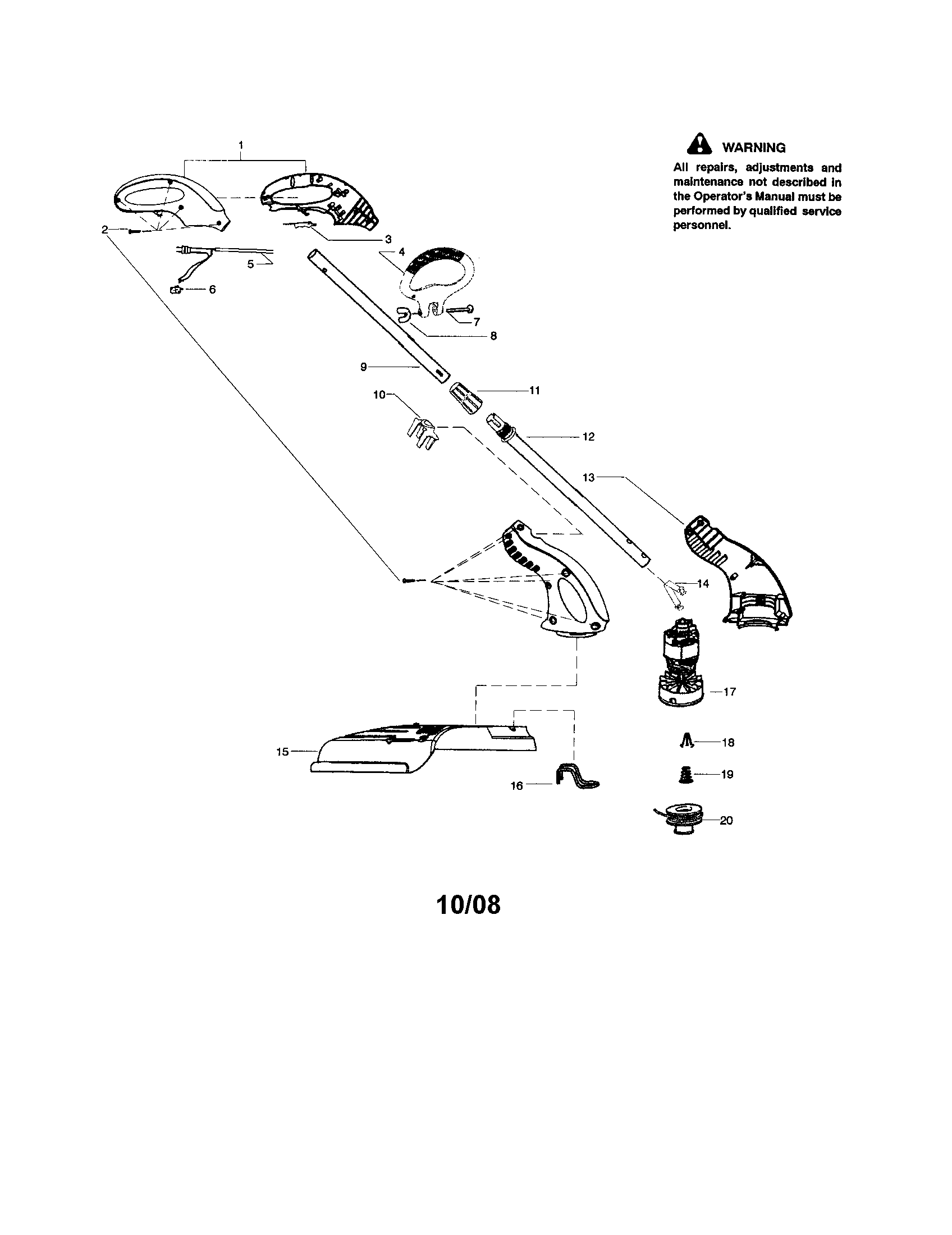

Line trimmer diagram

Line trimmer spool retainer clip (replaces 5304019-57, 530-401957)

Part #530401957

This item is not returnable
$3.76
In Stock
Line Trimmer On/off Switch 530402879
#6

Line trimmer diagram

Line trimmer on/off switch

Part #530402879

This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
Wing Nut Plate 530016152
#8

Line trimmer diagram

Wing nut plate

Part #530016152

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530016152. Substitute parts can look different from the original.
This item is not returnable
$3.76
In Stock
Line Trimmer Bolt 530403886
#7

Line trimmer diagram

Line trimmer bolt

Part #530403886

The manufacturer no longer makes this part, and there's no substitute part

Edging Guide 530403845
#16

Line trimmer diagram

Edging guide

Part #530403845

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 545090401
#5

Line trimmer diagram

Wire harness

Part #545090401

The manufacturer no longer makes this part, and there's no substitute part

Trigger 530403818
#3

Line trimmer diagram

Trigger

Part #530403818

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Cutting Shield 530404076
#15

Line trimmer diagram

Line trimmer cutting shield

Part #530404076

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 530016120
#2

Line trimmer diagram

Lawn & garden equipment screw

Part #530016120

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 545045101
#11

Line trimmer diagram

Collet nut

Part #545045101

The manufacturer no longer makes this part, and there's no substitute part
