Whirlpool WDE150LVT0 electric drop-in range Parts
Here are the diagrams and repair parts for Whirlpool WDE150LVT0 electric drop-in range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for WDE150LVT0 Ranges

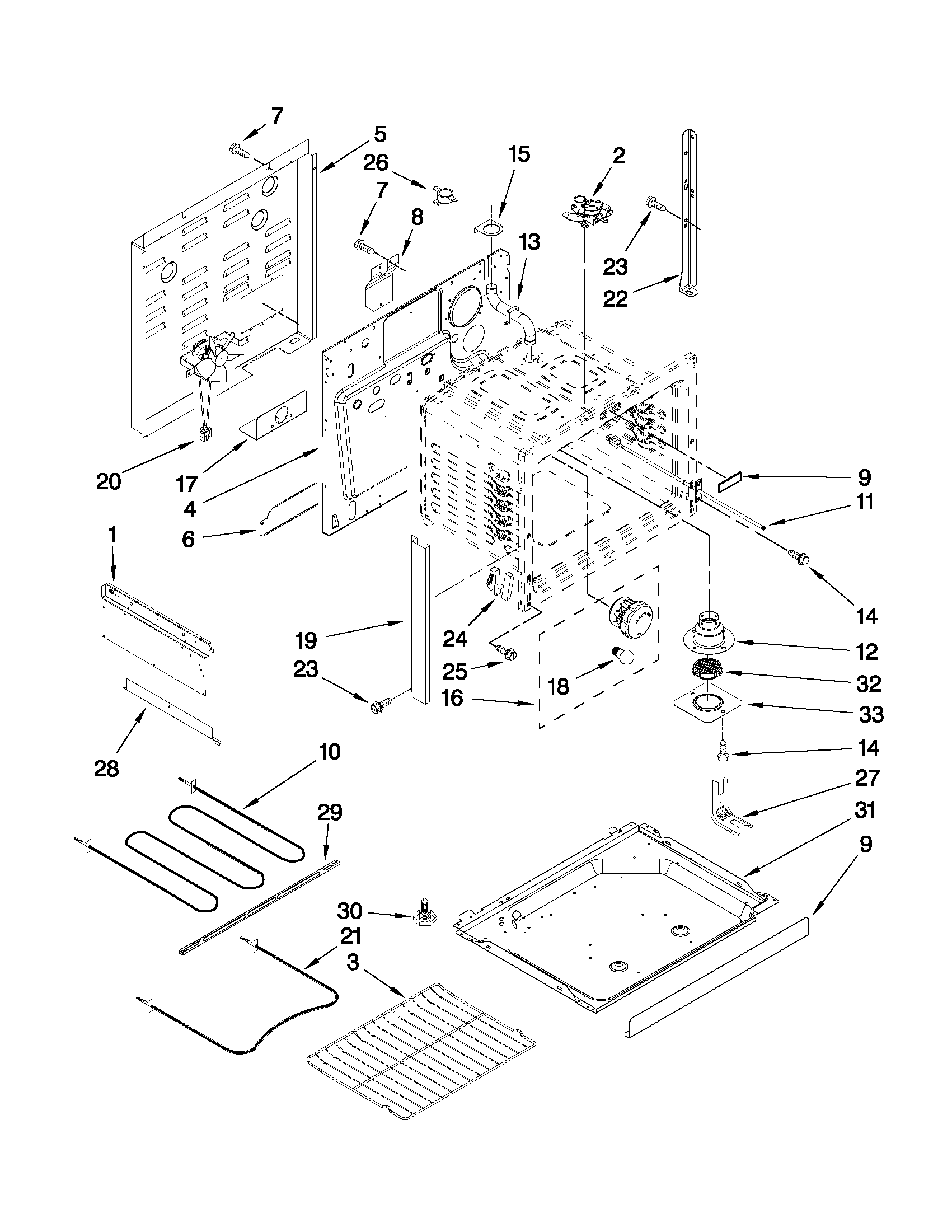

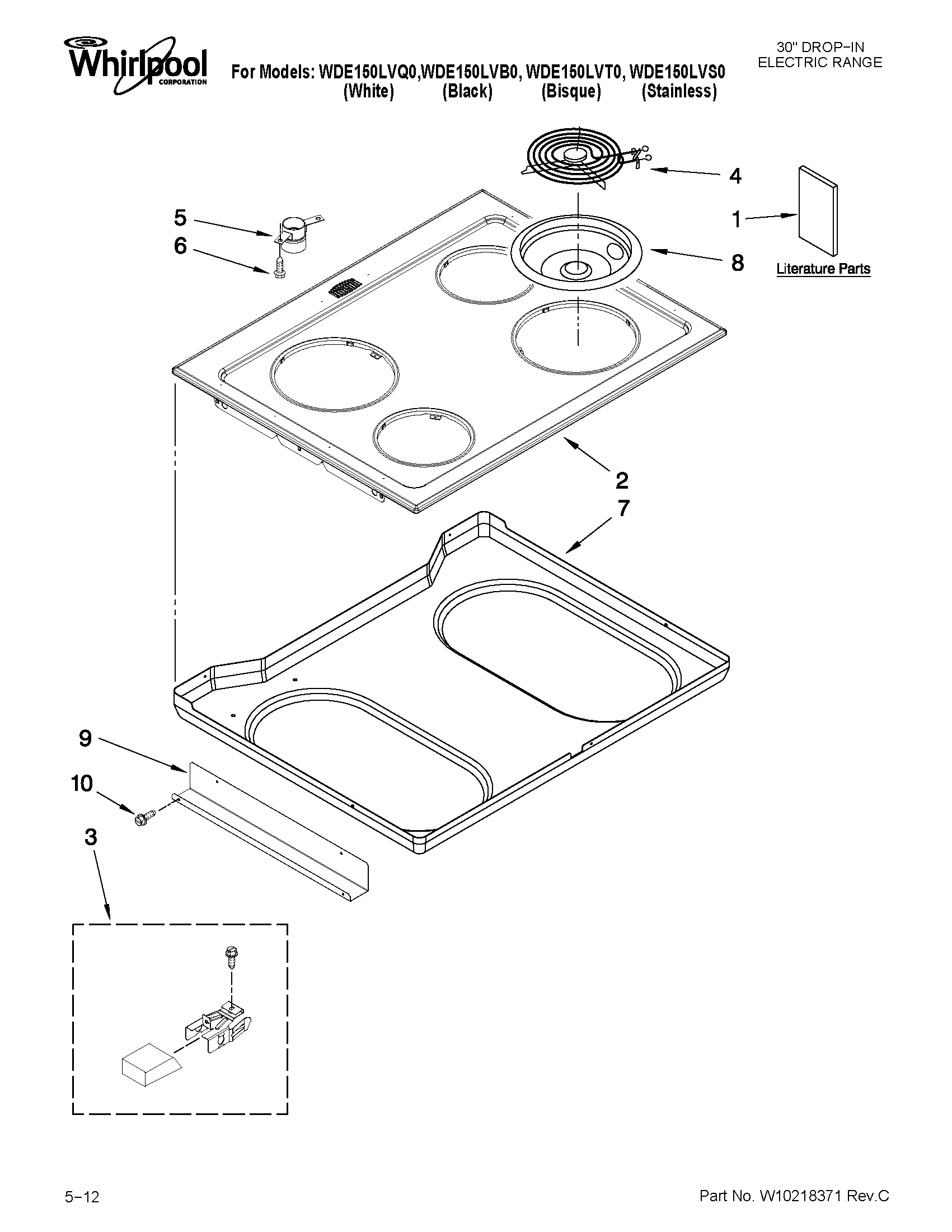

Chassis parts diagram
Oven Sensor
Part #74004943Replaced by #12001656
Manufacturer substitutionThis part replaces 74004943. Substitute parts can look different from the original.In Stock$22.6421% OFF Phone Price : $28.64
Qty

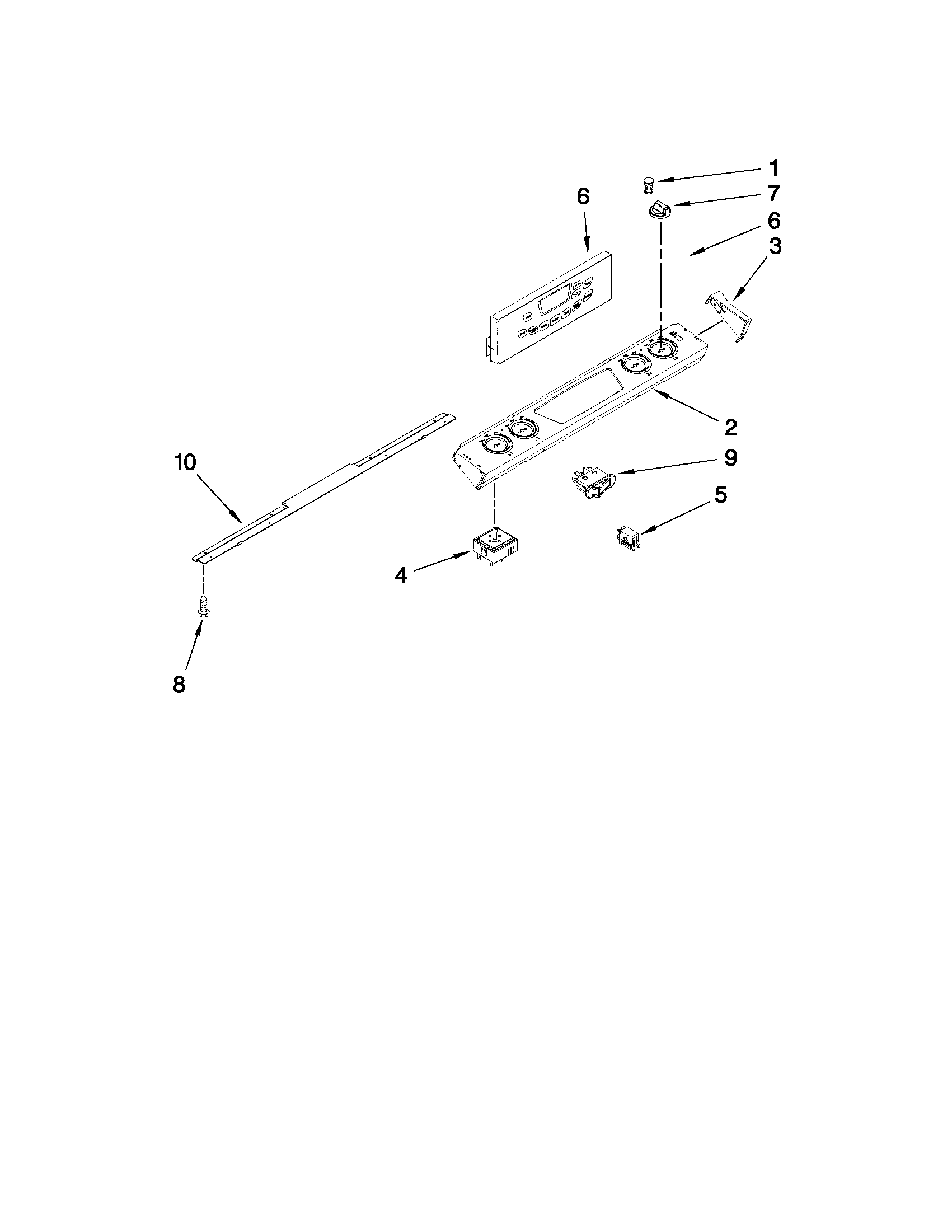

Control panel parts diagram
Range Surface Element Control Switch
Part #7403P238-60Replaced by #WP7403P238-60

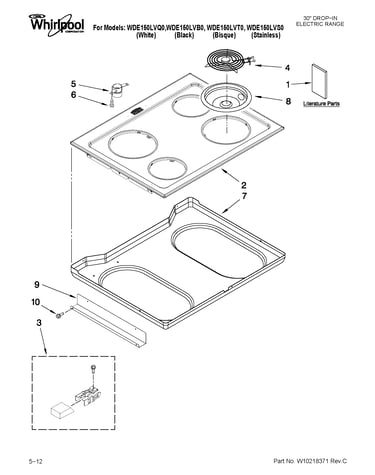

Manufacturer substitutionThis part replaces 7403P238-60. Substitute parts can look different from the original.In Stock$55.3010% OFF Phone Price : $61.30QtyCooktop parts diagram
Drip Bowl
Part #74001213Replaced by #WPW10196405
Manufacturer substitutionThis part replaces 74001213. Substitute parts can look different from the original.In Stock$6.8613% OFF Phone Price : $7.86QtyChassis parts diagram
Bake Element
Part #74010883Replaced by #WPW10310274
Manufacturer substitutionThis part replaces 74010883. Substitute parts can look different from the original.In Stock$98.4611% OFF Phone Price : $110.46QtyHex Head Bolt
Part #W10116760
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #Y700502
The manufacturer no longer makes this part, and there's no substitute part

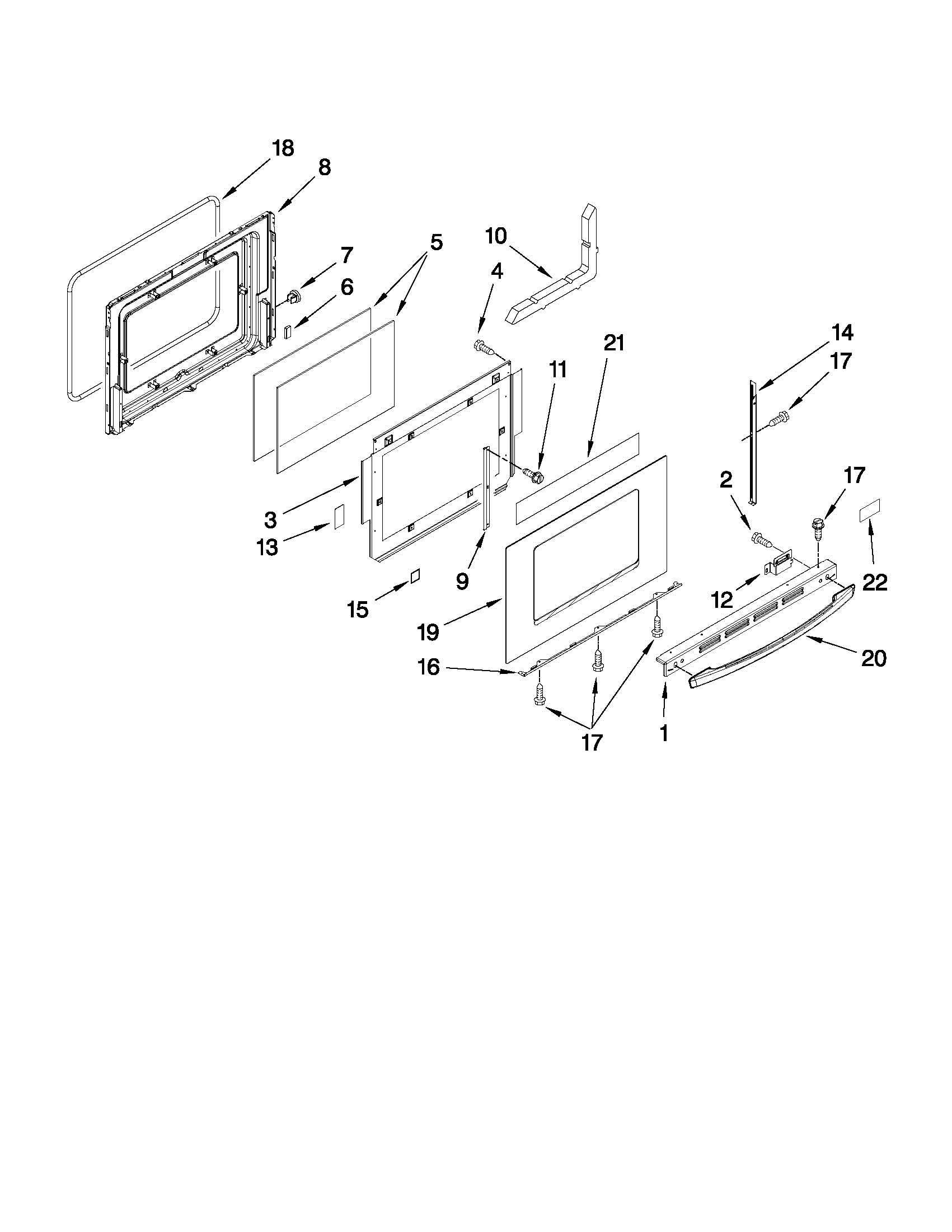

Door parts diagram
Screw Element
Part #74002979Replaced by #W11233072
Manufacturer substitutionThis part replaces 74002979. Substitute parts can look different from the original.In Stock$17.63QtyOptional parts (not included) diagram
Appliance Touch-up Paint, 2-oz (white)

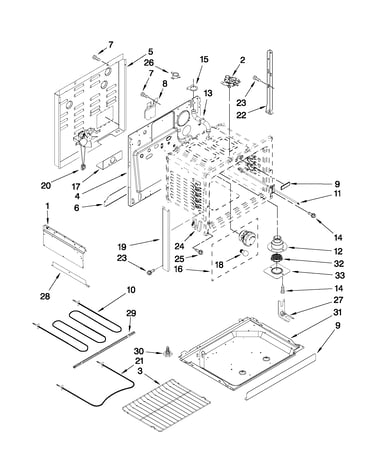

In Stock$31.0216% OFF Phone Price : $37.02QtyChassis parts diagram
Lamp
Part #74010885Replaced by #WP7407P182-60
Manufacturer substitutionThis part replaces 74010885. Substitute parts can look different from the original.In Stock$60.299% OFF Phone Price : $66.29QtyChassis parts diagram
Broiler Element
Part #74003040Replaced by #WP7406P218-60
Manufacturer substitutionThis part replaces 74003040. Substitute parts can look different from the original.In Stock$66.4938% OFF Was : $106.51Qty
