Kenmore 2539269010 upright freezer Parts

On Kenmore upright freezer model 2539269010, the model number is printed on a rating label that’s typically inside the cabinet (often on a side wall or near the top/ceiling). If you don’t see it inside, check the exterior back or behind the lower kick plate area.

Common places to check first

• Inside the freezer on the left or right interior wall
• Inside near the top liner (ceiling area)
• Behind the lower front kick plate or toe grille area
• On the exterior back panel near the bottom
• Along the door opening frame (around the gasket area)

What the label looks like

Most Kenmore upright freezer ID labels include:

• Model number (for example, 2539269010)
• Serial number
• Electrical rating (volts/amps)
• Refrigerant type and charge information

Location	How to access it	What to do
Interior side wall	Open door, scan walls with a flashlight	Look for a white or silver sticker
Interior ceiling	Look up along the top liner	Check near the light cover area
Behind kick plate	Look low on the front base	Use a flashlight; avoid forcing panels
Exterior back	Pull unit out carefully	Check near the compressor area

Why it matters

We use the exact model number to match the correct Kenmore parts and diagrams for your freezer, so you get the right fit the first time (especially for door hardware, shelves, and sealed-system components).

If you’re still not finding it

• Wipe frost or residue off interior surfaces; labels can blend in
• Use your phone camera and zoom to read small print
• If the label is damaged, match parts by comparing diagrams and known components from the parts list for model 2539269010 on Sears PartsDirect

Last updated: February 2026

Your Kenmore model 2539269010 is an upright freezer, and its cubic foot capacity is not encoded in the model number. Capacity is a physical spec that varies by design, so the reliable way to confirm it is to use the model’s rating label information or measure the interior and calculate cubic feet.

How to estimate cubic feet (quick method)

We use this approach when the capacity label is missing or unreadable:

• Empty the freezer so you can measure the usable interior space.
• Measure interior width, depth, and height in inches (ignore door bins if you want “main cavity” only).
• Multiply: width x depth x height to get cubic inches.
• Divide by 1,728 to convert cubic inches to cubic feet.
• Subtract a little for shelves, ducts, and the evaporator area to estimate “usable” space.

Capacity calculation example

Measurement	Example value	Notes
Interior width	24 in	Wall-to-wall inside
Interior depth	20 in	Front to back inside
Interior height	60 in	Floor to ceiling inside
Estimated capacity	16.7 cu ft	(24x20x60)/1728

Where to find the official capacity

Check these common spots on Kenmore upright freezers:

• Inside the cabinet on a side wall
• Near the bottom front edge of the liner
• Behind the toe grille or lower kick area
• On the back exterior panel

Why it matters

Knowing cubic feet helps us match the right shelf, door rail, and airflow parts, and it also helps you compare storage space accurately when replacing bins or reorganizing.

If you are restoring storage space (broken rails or shelves), we often see customers replace items like the shelf grid 216069300 or the freezer door shelf rail (white) 216274100 for this model.

Last updated: February 2026

To clean the coils on your Kenmore 2539269010 upright freezer, unplug the freezer, pull it out for access, then gently brush and vacuum dust from the condenser coil and nearby fan area. Keeping the coils clean helps the compressor run cooler and more efficiently.

Before you start (safety and access)

• Unplug the freezer (or switch off the breaker).
• Protect the floor with cardboard or a towel before sliding the unit out.
• Locate the condenser area; on many upright freezers it’s behind a lower rear access panel or near the bottom back.
• Use a flashlight so you can see the coil fins and the fan area clearly.

Cleaning steps (brush and vacuum)

• Remove the lower rear cover or grille if your model has one.
• Use a coil brush or stiff-bristle brush to loosen packed lint and dust (brush along the coil fins, not across them).
• Vacuum debris as you brush; a crevice tool helps around the compressor and fan shroud.
• Wipe the surrounding area so loosened dust does not get pulled back into the coil.
• Reinstall the cover/grille, slide the freezer back, and restore power.

What to use (and what to avoid)

Tool	Best for	Avoid because
Coil brush + vacuum	Most coil cleaning	Low risk of fin damage
Soft paintbrush	Tight spots near wiring	Less effective on heavy lint
Compressed air (carefully)	Blowing out light dust	Can drive dirt deeper if you do not vacuum

Avoid bending the coil fins, and do not spray water or cleaner onto electrical parts.

How often should we clean the coils?

• Every 6 months in homes with pets, heavy dust, or a laundry area nearby
• About once a year in cleaner environments

Why it matters

Dirty condenser coils trap heat, which makes the sealed system work harder. That can lead to warmer temperatures, longer run times, and extra wear on the compressor and start components.

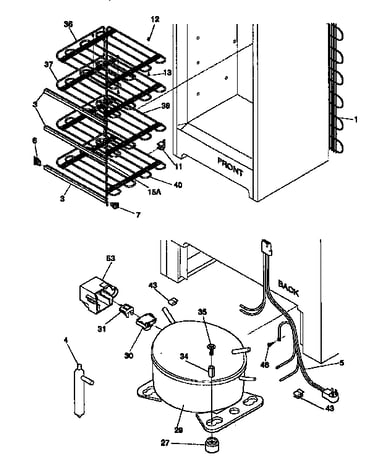

Parts that are commonly involved when airflow or cooling is poor

If cleaning does not improve performance, these model-specific parts are often checked during diagnosis:

• Air condenser 5303304537 (heat-rejection coil assembly)
• Ptc starter 5304410953 (compressor start relay)
• Compressor 5304443412 (main cooling component)

Last updated: February 2026

When a Kenmore upright freezer model 2539269010 stops freezing, the most common causes are poor airflow from heavy frost buildup, a door that is not sealing, or a failed start component that prevents the compressor from running. Start with simple checks before replacing parts.

Quick checks we recommend first

• Confirm the temperature control is set colder and the freezer is not in a “warm” setting.
• Make sure the door closes fully and nothing is holding it open.
• Look for heavy frost on the back wall or shelves (a defrost/airflow problem).
• Listen for the compressor: a steady hum is normal; repeated clicking often points to a start issue.
• Check that the condenser area is not blocked by dust or items pushed against the cabinet.

Common causes and what they look like

Symptom	Likely cause	What to do next
Warm freezer, heavy frost inside	Airflow blocked by frost (defrost issue)	Manually defrost, then monitor for refreezing patterns
Door hard to open, vacuum effect, or moisture/frost near door	Restricted air equalization	Inspect/replace the freezer breather valve 216403700
Clicking every few minutes, compressor not running	Failed start device	Consider replacing the ptc starter 5304410953
Runs constantly but still warm	Sealed system or compressor issue	Check for airflow issues first; sealed system repairs typically need a technician

Parts that commonly fix “not freezing” symptoms

If your troubleshooting points to a specific failure, these parts are commonly involved:

• Ptc starter 5304410953 (compressor start relay type component)
• Freezer breather valve 216403700 (helps equalize pressure and support proper airflow)
• Air breather 216390000 (airflow component that can contribute to circulation issues)

Why it matters

A freezer that is not freezing is often a simple airflow or door-seal problem at first. If the compressor cannot start (or short-cycles), food temperatures rise quickly and the compressor can be stressed by repeated start attempts.

Last updated: February 2026

Upright freezer dimensions depend on capacity; for Kenmore model 2539269010, use the size ranges below to plan space, then confirm by measuring your actual cabinet (handles and hinges can change the depth and width you need).

Typical upright freezer dimensions (by capacity)

These are common exterior ranges for freestanding upright freezers.

Size class	Capacity	Typical width	Typical height	Typical depth
Compact	3 to 5 cu. ft.	20 to 24 in.	31 to 37 in.	20 to 25 in.
Small	5 to 9 cu. ft.	21 to 25 in.	55 to 60 in.	22 to 26 in.
Medium	10 to 16 cu. ft.	23 to 31 in.	60 to 73 in.	27 to 30 in.
Large	17+ cu. ft.	27 to 34 in.	64 to 76 in.	29 to 30 in.

How we measure for a “fits first time” install

Measure in inches and use the largest number you find.

• Width: widest point (often the hinge side)
• Height: floor to top, including hinge cover
• Depth: include the door and handle projection
• Clearance: allow room for door swing and airflow

Why it matters

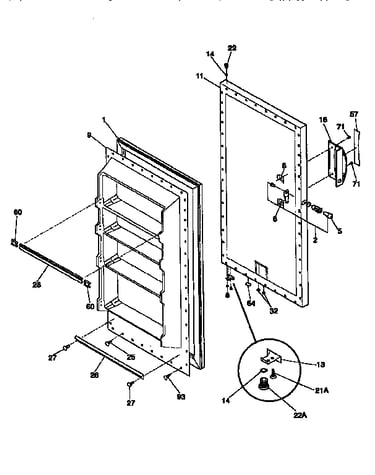

If the opening is too tight, the door may not open fully, airflow can be restricted, and the freezer can run longer and build frost faster. If your door is not stopping or closing correctly after moving the freezer, replacing worn hardware such as the freezer door stop 8016354 can restore proper door travel.

Last updated: February 2026
