Sharp CD-DVD500 tabletop audio system Parts

Here are the diagrams and repair parts for Sharp CD-DVD500 tabletop audio system, as well as links to manuals and error code tables, if available.

Sharp CD-DVD500 tabletop audio system
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CD-DVD500 Audio Equipment

  • Sharp Chassis for Sharp CD-DVD500 - Part LCHSM0132AWZZ

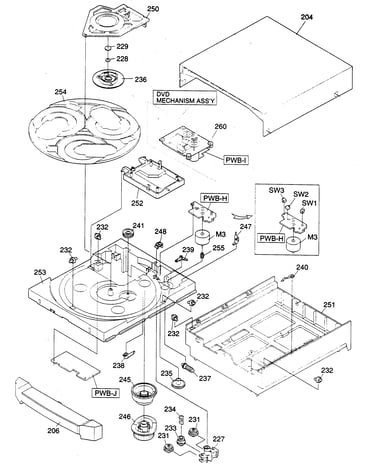

    Dvd mech assy diagram

    Sharp Chassis

    Part #LCHSM0132AWZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Sharp Net Frame for Sharp CD-DVD500 - Part CWAKP1055AWM2

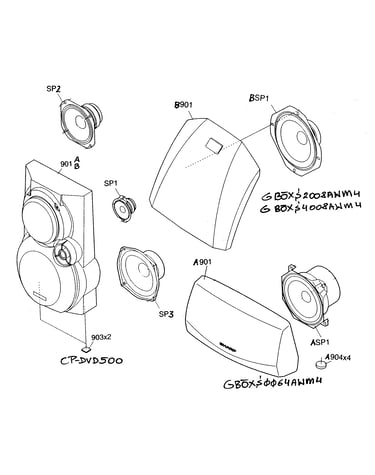

    Speakers diagram

    Sharp Net Frame

    Part #CWAKP1055AWM2

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for Sharp CD-DVD500 - Part VHISTK40224-1

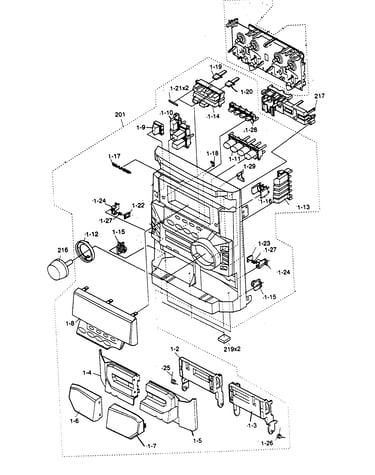

    Cabinet parts diagram

    Integrated Circuit

    Part #VHISTK40224-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Coil for Sharp CD-DVD500 - Part RCILZ0021AWZZ

    Cabinet parts diagram

    Coil

    Part #RCILZ0021AWZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for Sharp CD-DVD500 - Part VHIBA5984FP-1

    Cabinet parts diagram

    Integrated Circuit

    Part #VHIBA5984FP-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Sharp Badge Shar for Sharp CD-DVD500 - Part HBDGB1007AWSA

    Cabinet parts diagram

    Sharp Badge Shar

    Part #HBDGB1007AWSA

    The manufacturer no longer makes this part, and there's no substitute part

  • Sharp Cable for Sharp CD-DVD500 - Part QCNWG0022AWZZ

    Cabinet parts diagram

    Sharp Cable

    Part #QCNWG0022AWZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for Sharp CD-DVD500 - Part RCILI0019AWZZ

    Cabinet parts diagram

    Transformer

    Part #RCILI0019AWZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear Can for Sharp CD-DVD500 - Part MCAMP0011AWZZ

    Dvd mech assy diagram

    Gear Can

    Part #MCAMP0011AWZZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Sharp Panel for Sharp CD-DVD500 - Part CPNLS1032AW02

    Speakers diagram

    Sharp Panel

    Part #CPNLS1032AW02

    The manufacturer no longer makes this part, and there's no substitute part
