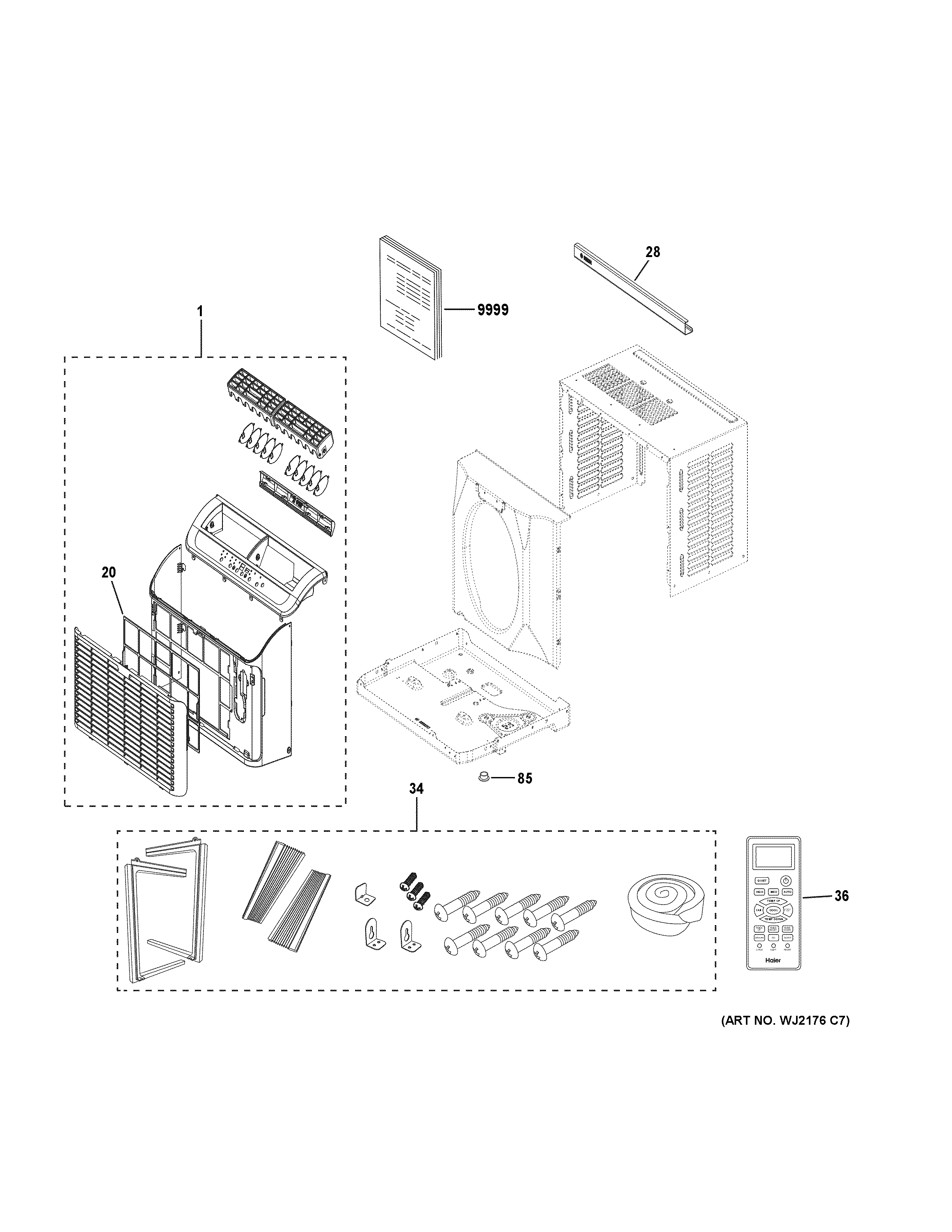

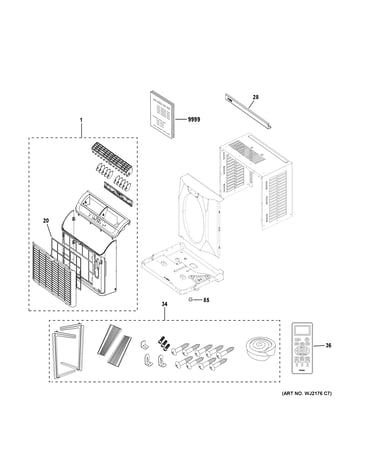

GE AHD08LZQ1 room air conditioner Parts

An 8,000 BTU room air conditioner (like GE model AHD08LZQ1) typically cools about 300 to 350 sq. ft. in average conditions. If the space is very sunny, poorly insulated, or has high ceilings, plan on less coverage; if it is shaded and well insulated, it can cover more.

Quick sizing guide (8,000 BTU)

• Typical room size: 300 to 350 sq. ft.
• Best fit rooms: medium bedroom, office, small living room
• Expect less coverage if: west-facing windows, lots of glass, poor insulation
• Expect more coverage if: shaded room, good insulation, limited air leakage
• Performance depends on airflow: a dirty filter can reduce cooling and cause icing

Adjust for real-world conditions

Use this as a practical rule-of-thumb for an 8,000 BTU window AC:

Room condition	What to expect	Practical target
Shaded, well insulated	Lower heat load	350 to 400 sq. ft.
Average home conditions	Typical heat load	300 to 350 sq. ft.
Very sunny or poorly insulated	Higher heat load	250 to 300 sq. ft.

Why it matters

If the room is too large, the AHD08LZQ1 will run longer, struggle to pull humidity, and may never reach the set temperature. If the room is too small, it can short-cycle and feel clammy.

Keep cooling capacity from dropping

A common reason an AC stops cooling like it used to is restricted airflow. We recommend:

• Clean the air filter regularly and replace it if it is torn or won’t come clean
• Keep the front grille and return air path clear (no curtains or furniture blocking it)
• Make sure the unit is level and installed securely to avoid air leaks around the window
• Use a reasonable set temperature (for example, 72 to 76°F) and a higher fan speed during peak heat

If you need a replacement filter for this model, use the exact part listed for AHD08LZQ1: filter net WJ85X22902.

Last updated: January 2026

The most common issues we see with the GE AHD08LZQ1 room air conditioner are weak or no cooling, poor airflow, water leaking indoors, and control or remote problems. Many of these start with basic maintenance (air filter and coils) or a simple power reset.

Common symptoms and what they usually mean

• Not cooling or cooling poorly: dirty filter, blocked condenser, incorrect mode/temperature, or low airflow
• Weak airflow: clogged filter net, dirty evaporator coil, or blower wheel buildup
• Water dripping inside: unit not level, clogged drain path, or iced coil melting rapidly
• Unit won’t turn on: tripped breaker, loose plug, or control reset needed
• Remote not working: weak batteries, blocked sensor line-of-sight, or failed remote

Quick checks we recommend first

1. Confirm settings: set to Cool, lowest temperature, and a higher fan speed.
2. Clean the air filter: remove and rinse the filter net; let it dry fully before reinstalling.
3. Check airflow outside: make sure the rear of the unit is not blocked by curtains, screens, or debris.
4. Reset power: unplug for 2 minutes, then plug back in (or reset the breaker).
5. Verify installation: the unit should tilt slightly to the outside so condensate drains outdoors.

Parts that commonly solve customer-reported problems

Problem	Part to check/replace	Why it matters
Weak airflow, musty odor	Filter net WJ85X22902	A clogged filter restricts airflow and reduces cooling efficiency
Remote won’t respond	Remote contr WJ26X23464	A failed remote prevents normal operation even when the unit is fine
Rattling or loose front	Front panel WJ71X25915	Loose panels can vibrate and affect air direction

Why it matters

Room air conditioners like the GE AHD08LZQ1 rely on steady airflow across the evaporator and condenser coils. When airflow drops, cooling performance falls fast, icing and leaks become more likely, and the compressor runs longer than it should.

Last updated: March 2026

The 3-minute rule means we wait at least 3 minutes after turning a room air conditioner off before turning it back on. For your GE AHD08LZQ1, this pause lets refrigerant pressures equalize so the compressor does not try to restart under heavy load, which helps prevent hard-start problems and premature compressor damage.

How to follow the 3-minute rule (simple steps)

• If you turn the unit off (or it loses power), wait 3 minutes before pressing ON.
• If you are adjusting settings, use temperature or fan changes instead of rapid ON/OFF cycling.
• If the unit shuts off and immediately tries to restart, let it sit; do not keep pressing buttons.
• If you use a timer or smart plug, set it to avoid rapid cycling.
• If the breaker trips, reset it once, then wait 3 minutes before restarting.

Why the wait protects the compressor

When an air conditioner stops, high and low side refrigerant pressures need time to balance. Restarting too quickly can cause:

• Compressor “humming” with no start
• Higher inrush current (extra electrical stress)
• Overload protector trips and repeated shutdowns
• Reduced cooling performance right after restart

What you may notice on modern GE window units

Many electronic controls include a built-in restart delay, so the unit may appear unresponsive for a few minutes after power is restored.

Situation	What we recommend	What to avoid
Power flicker or unplugged	Wait 3 minutes, then restart	Rapidly pressing ON/OFF
Not cooling well	Check airflow and filter first	Short-cycling the compressor
Repeated restart delays	Clean filter and verify airflow	Forcing restarts repeatedly

Why it matters for maintenance

Short-cycling often goes hand-in-hand with restricted airflow. Keeping the filter clean helps the GE AHD08LZQ1 run longer cycles and reduces strain. If your filter is torn or will not clean up well, replace it with the correct part for this model: filter net WJ85X22902.

For related troubleshooting, use GE error codes to interpret display or blink codes before replacing parts.

Last updated: January 2026
