Kenmore Elite
Washer

Model # 79631422411 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79631422411 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Washer Washplate AGZ72909701
#K020

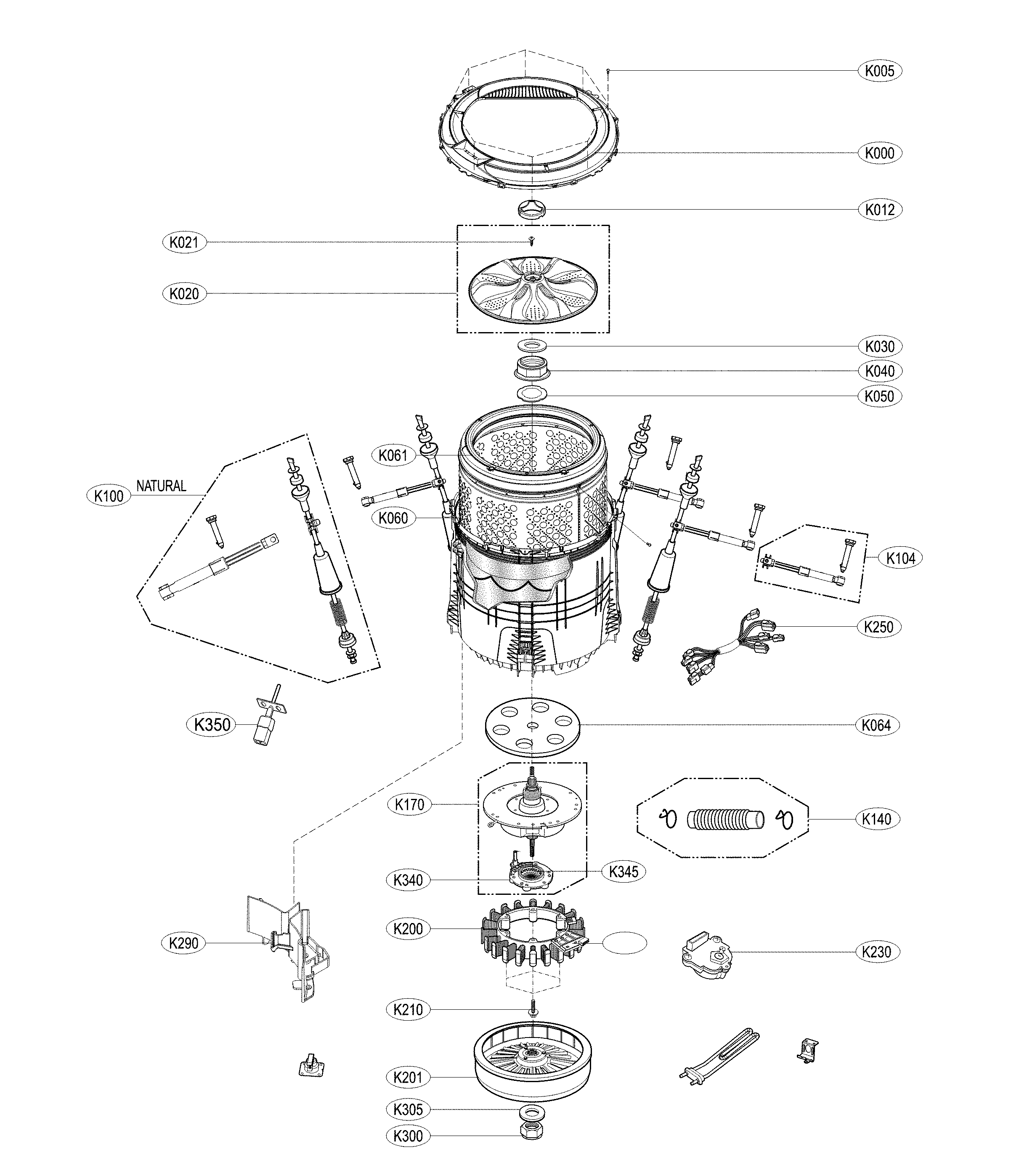

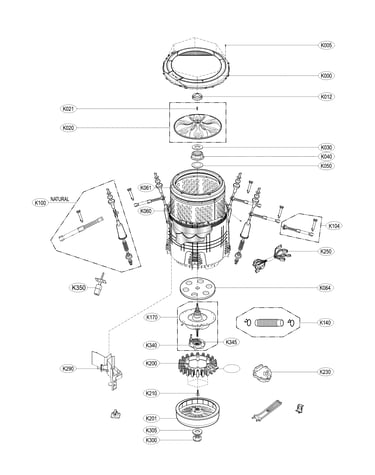

Tub diagram

Washer washplate

Part #AGZ72909701

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909701. Substitute parts can look different from the original.
BEST SELLER
$172.91
5% OFF Phone Price : $182.91
In Stock
Washer Drive Shaft And Shifter Assembly AEN73131403
#K170

Tub diagram

Washer drive shaft and shifter assembly

Part #AEN73131403

Replaced by #AEN73131406

?
Manufacturer substitution
This part replaces AEN73131403. Substitute parts can look different from the original.
BEST SELLER
$202.17
5% OFF Phone Price : $212.17
In Stock
Washer Water-level Pressure Switch 6501EA1001R
#A200

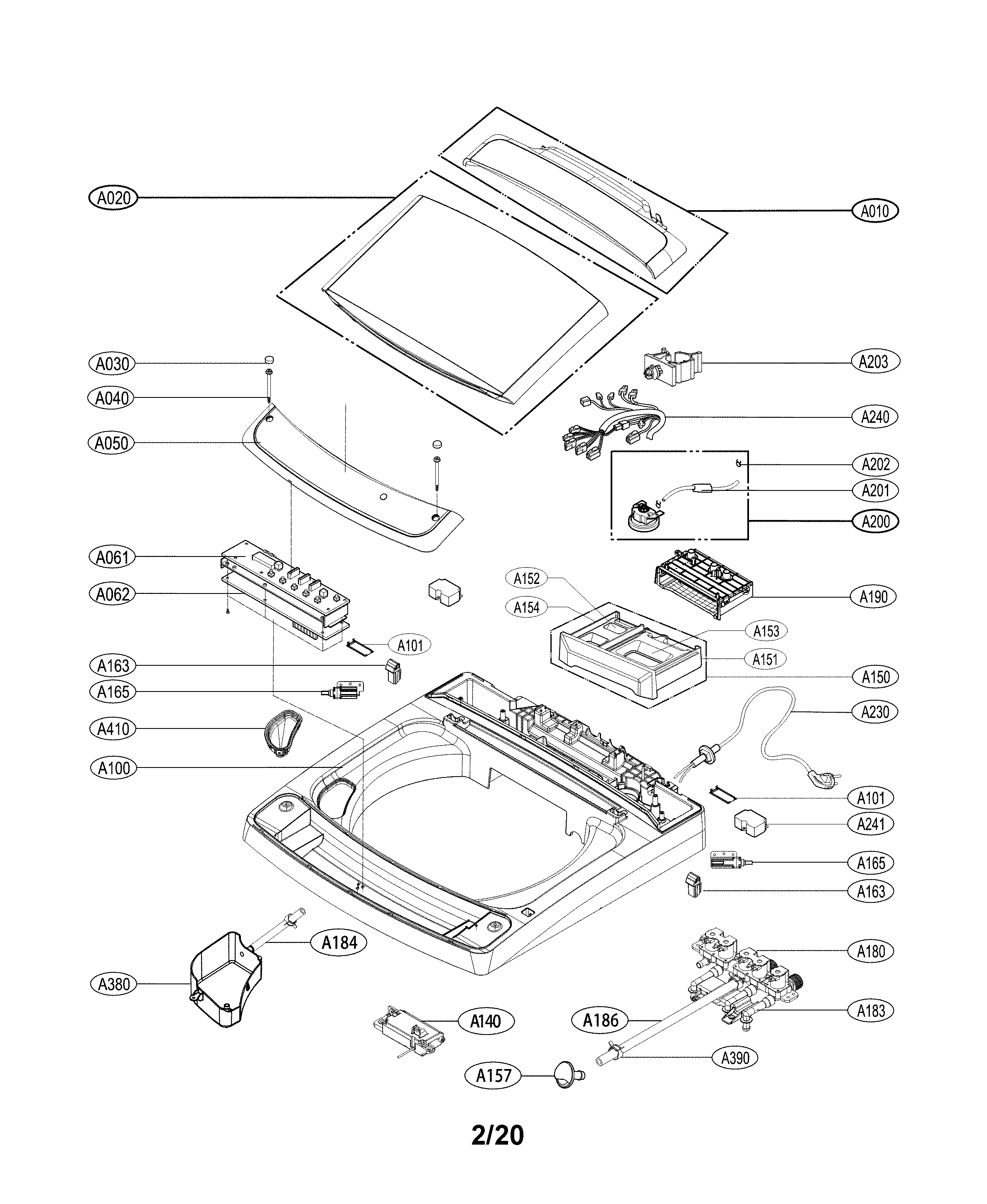

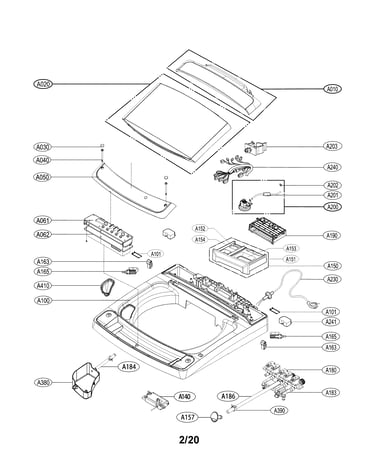

Top cover diagram

Washer water-level pressure switch

Part #6501EA1001R

BEST SELLER
$41.84
11% OFF Phone Price : $46.84
In Stock
Washer Drain Pump Assembly AHA74333301
#F080

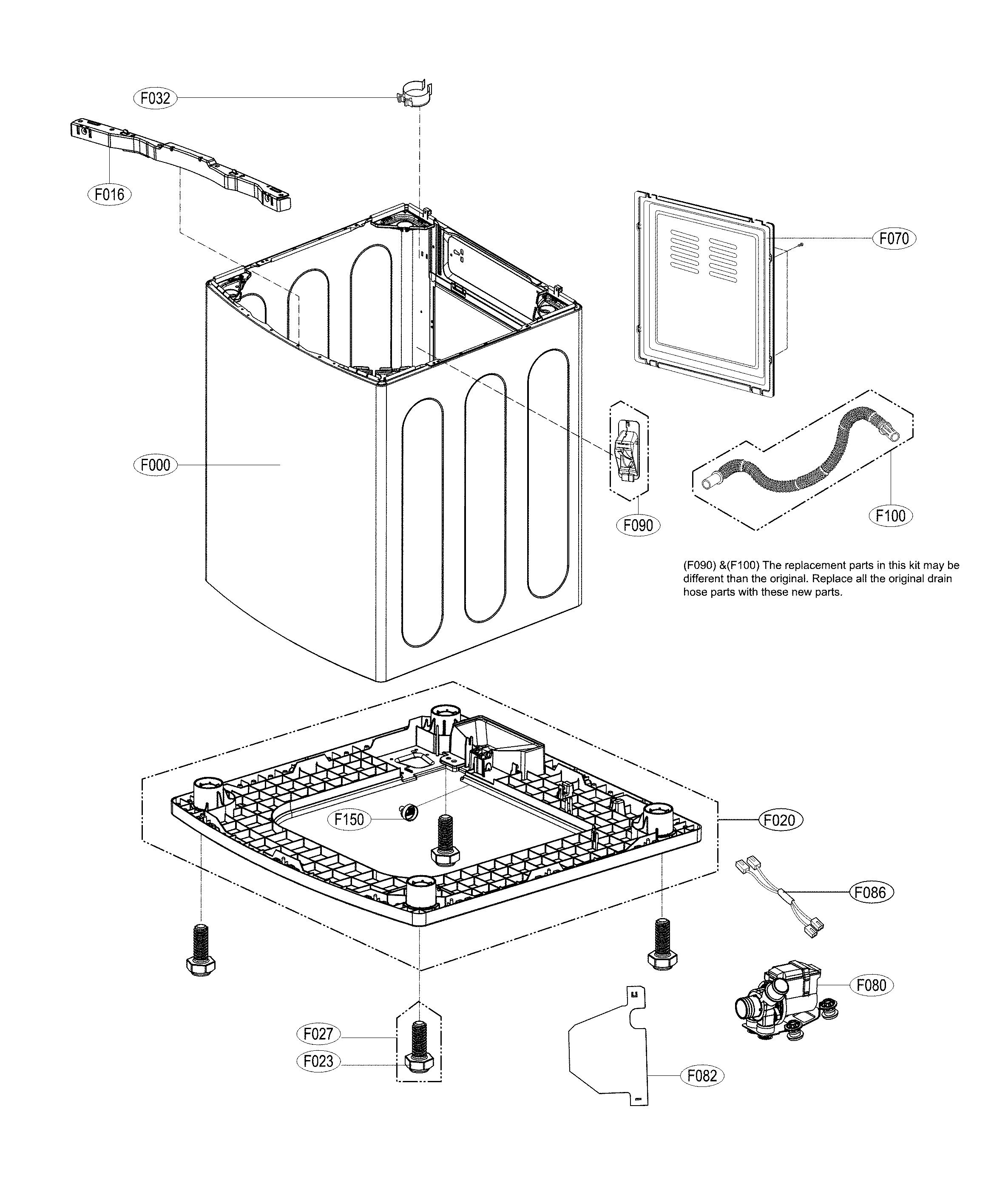

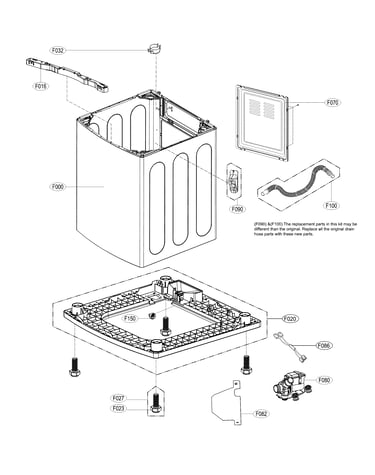

Outer case diagram

Washer drain pump assembly

Part #AHA74333301

Replaced by #5859EA1004F

?
Manufacturer substitution
This part replaces AHA74333301. Substitute parts can look different from the original.
BEST SELLER
$81.92
6% OFF Phone Price : $86.92
In Stock
Washer Washplate Cap MBL65219301
#K012

Tub diagram

Washer washplate cap

Part #MBL65219301

Replaced by #5006EA3009B

?
Manufacturer substitution
This part replaces MBL65219301. Substitute parts can look different from the original.
BEST SELLER
$28.01
15% OFF Phone Price : $33.01
In Stock
Washer Drive Motor (replaces 4417fa1994g) 4417EA1002Y
#K200

Tub diagram

Washer drive motor (replaces 4417fa1994g)

Part #4417EA1002Y

BEST SELLER
$181.38
5% OFF Phone Price : $191.38
In Stock
Washer Drain Hose AEM73652901
#K140

Tub diagram

Washer drain hose

Part #AEM73652901

Replaced by #AEM73213001

?
Manufacturer substitution
This part replaces AEM73652901. Substitute parts can look different from the original.
BEST SELLER
$38.38
12% OFF Phone Price : $43.38
In Stock
Washer Drain Hose (replaces 5215ea1001a, Aem73653001, Aem73732903, Aem74053001, Mej62685201) AEM73732901
#F100

Outer case diagram

Washer drain hose (replaces 5215ea1001a, aem73653001, aem73732903, aem74053001, mej62685201)

Part #AEM73732901

BEST SELLER
$37.29
12% OFF Phone Price : $42.29
In Stock
Washer Water Inlet Valve 5221EA1008F
#A180

Top cover diagram

Washer water inlet valve

Part #5221EA1008F

BEST SELLER
$120.23
8% OFF Phone Price : $130.23
In Stock
Washer Clutch Band MCJ61941202
#K345

Tub diagram

Washer clutch band

Part #MCJ61941202

Replaced by #MCJ61861201

?
Manufacturer substitution
This part replaces MCJ61941202. Substitute parts can look different from the original.
BEST SELLER
$22.36
18% OFF Phone Price : $27.36
In Stock
