Model # MV-1304B Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1304B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Microwave High-voltage Diode 6021W3B001M
#605

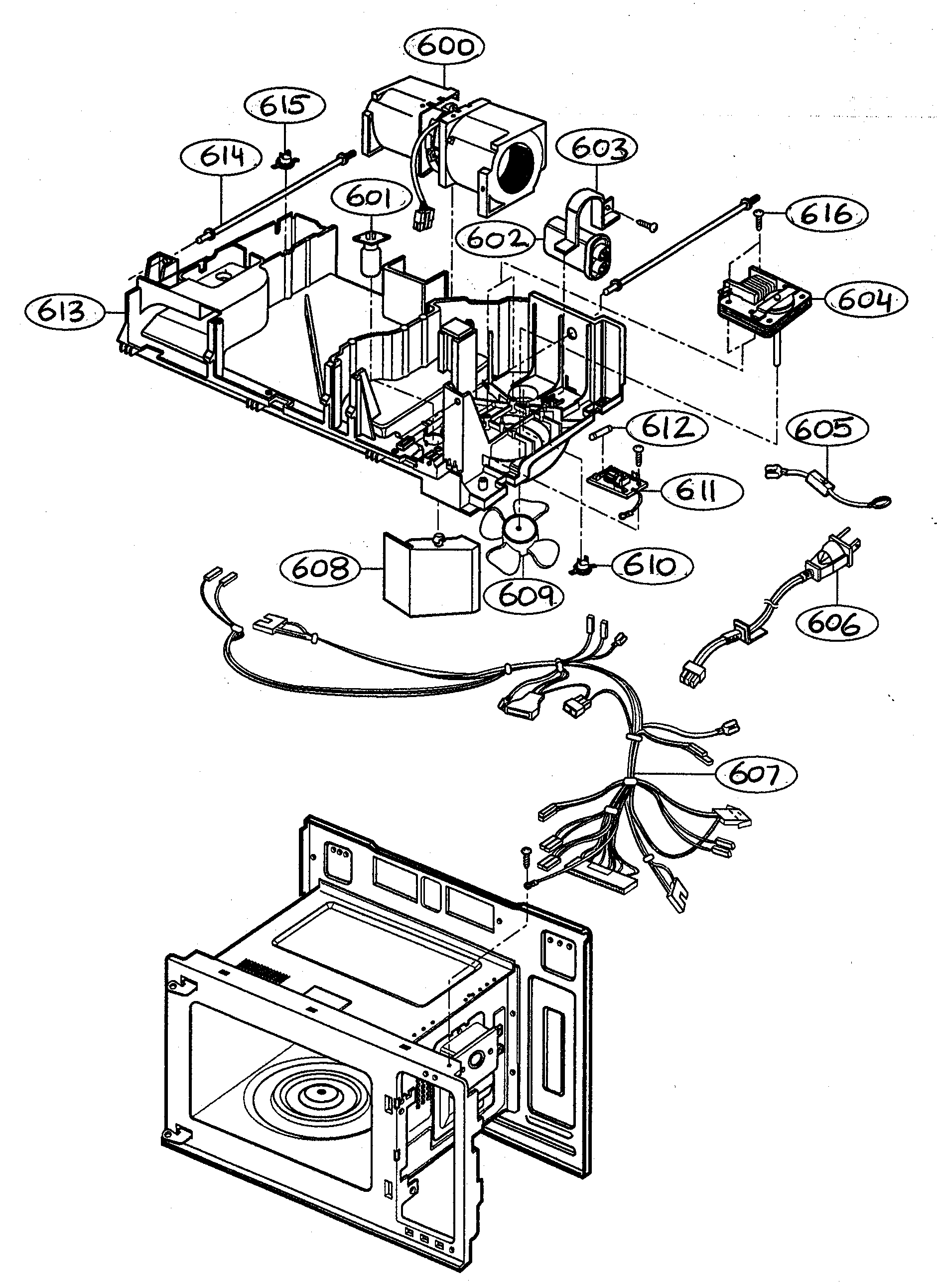

Interior parts 2 diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Oven Switch 503387
#401

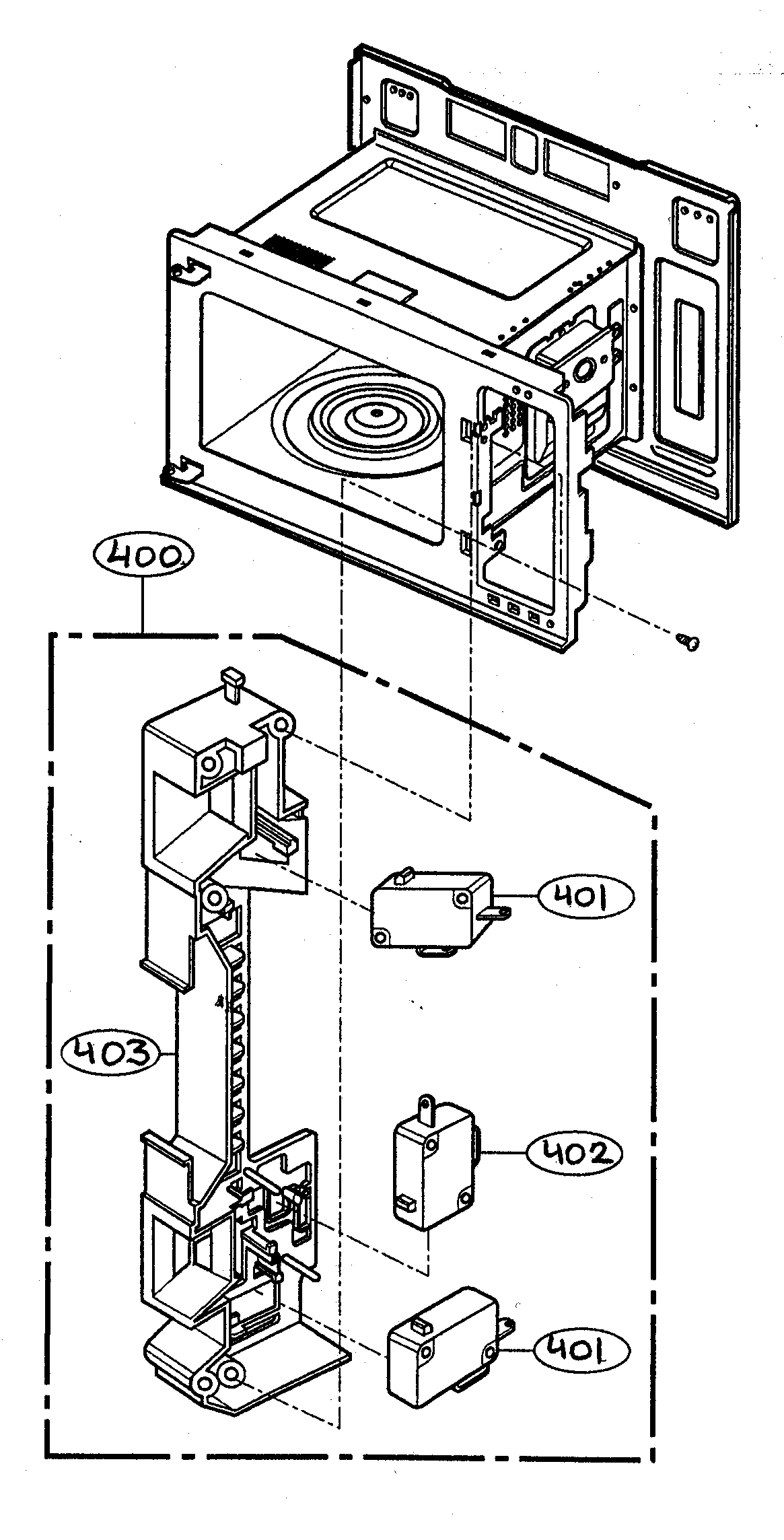

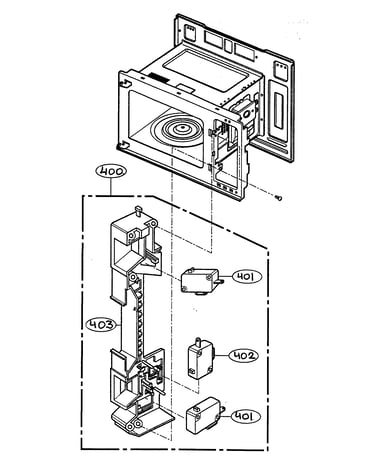

Latch board parts diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Lamp 6912W3B002G
#601

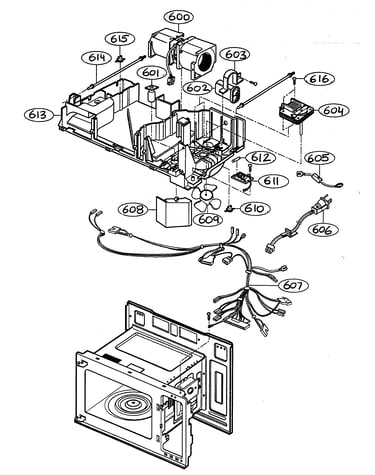

Interior parts 2 diagram

Lamp

Part #6912W3B002G

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#311

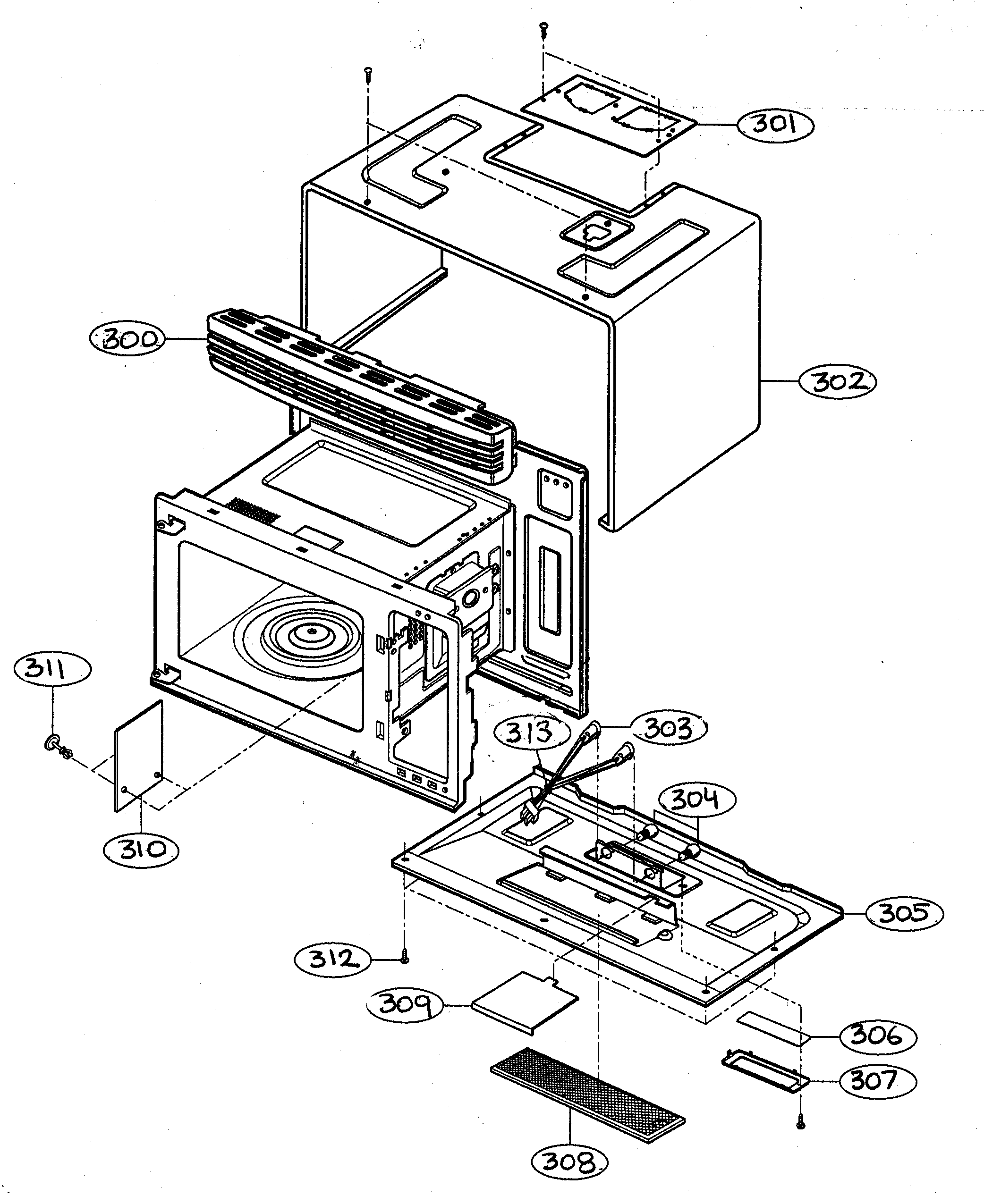

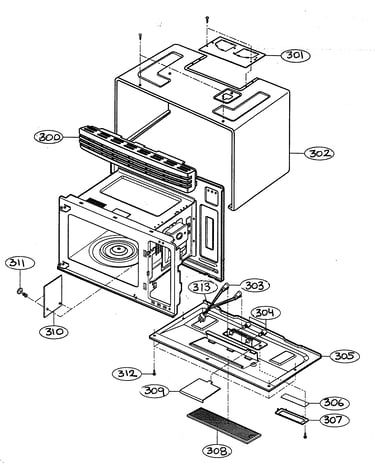

Oven cavity diagram

Microwave waveguide cover rivet

Part #4051W3A001A

BEST SELLER
This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Latch Board 3501W1A003H
#400

Latch board parts diagram

Latch board

Part #3501W1A003H

Replaced by #3501W1A053A

?
Manufacturer substitution
This part replaces 3501W1A003H. Substitute parts can look different from the original.
BEST SELLER
$21.40 |
19% OFF Phone Price : $26.40
In Stock
Latch 4026W2A012A
#107

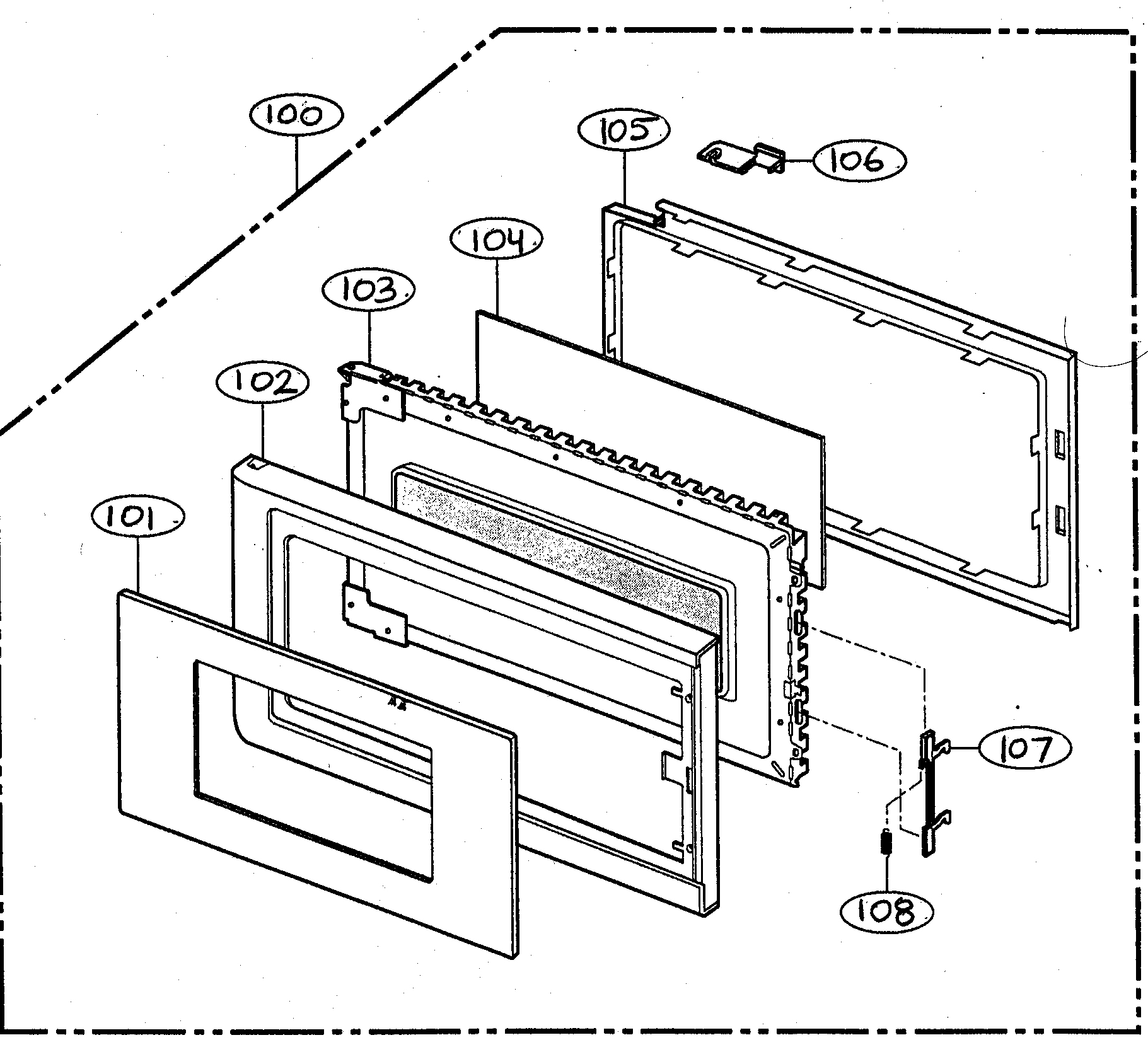

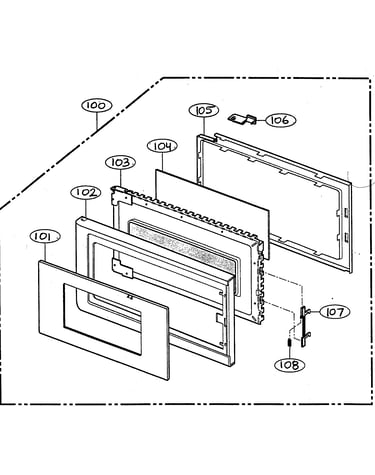

Door parts diagram

Latch

Part #4026W2A012A

Replaced by #4026W2A016A

?
Manufacturer substitution
This part replaces 4026W2A012A. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Glass Turntable Tray 3390W1G004A
#500

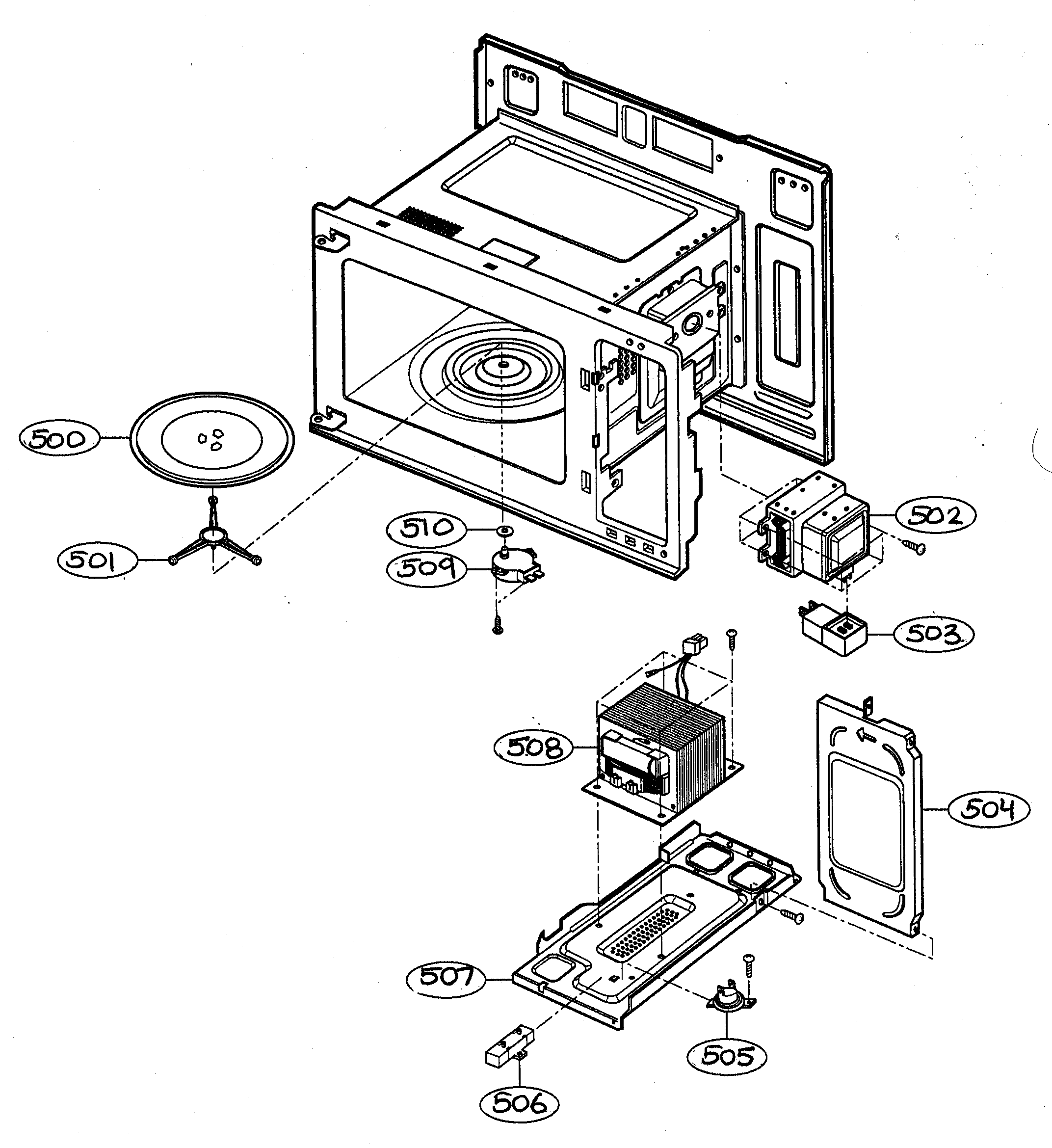

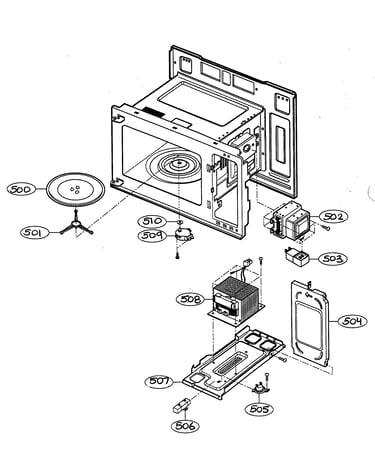

Interior parts 1 diagram

Microwave glass turntable tray

Part #3390W1G004A

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004A. Substitute parts can look different from the original.
$23.92 |
17% OFF Phone Price : $28.92
In Stock
Bolt 4B72059B
#705

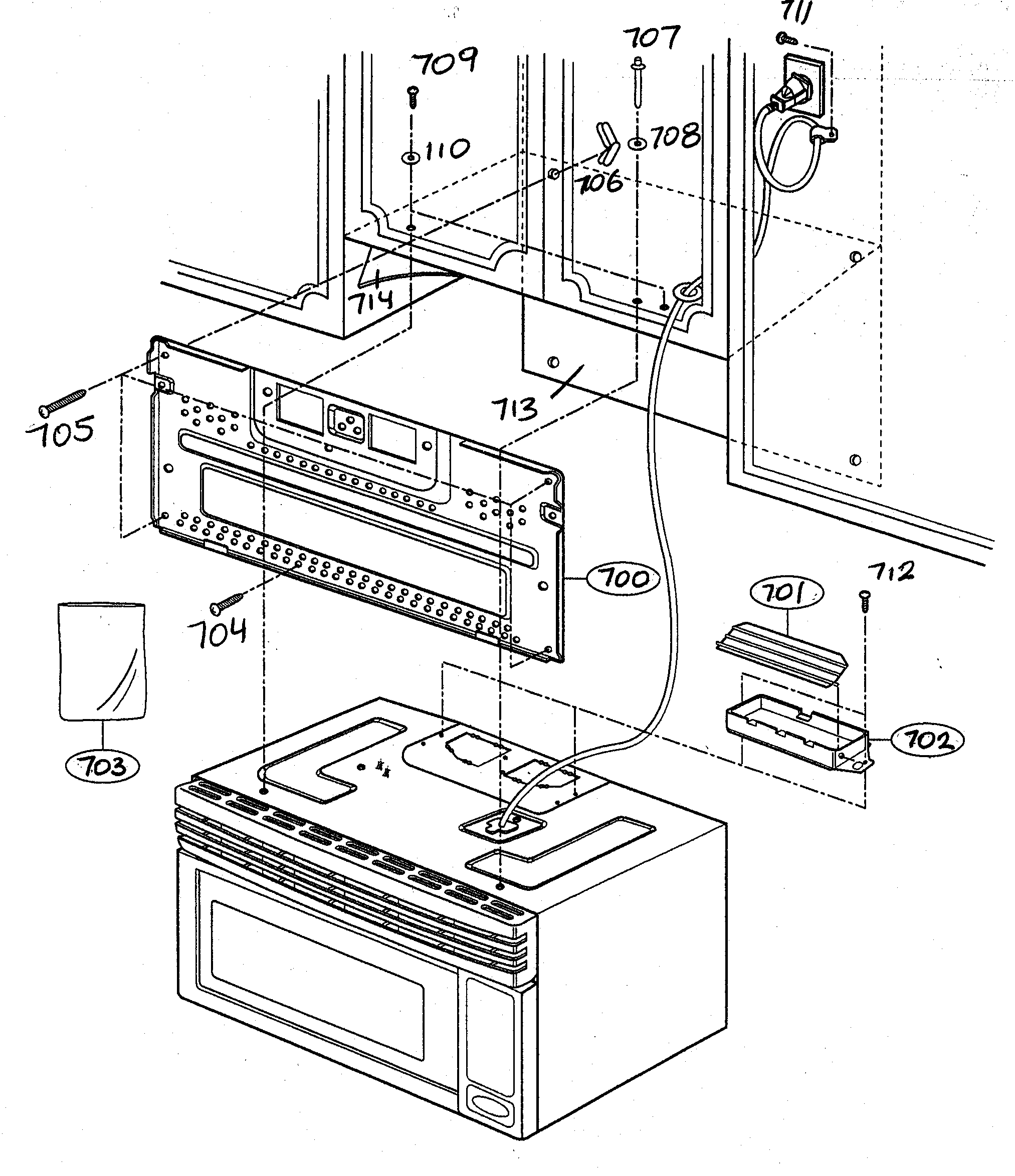

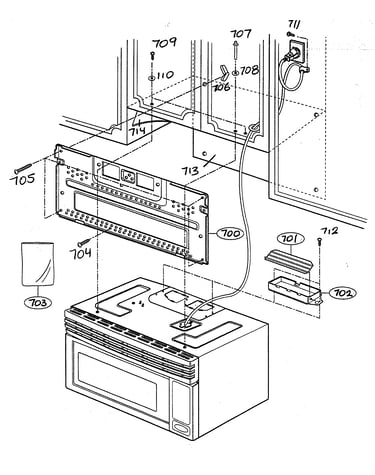

Installation parts diagram

Bolt

Part #4B72059B

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 4B72059B. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
17% OFF Phone Price : $28.98
In Stock
Microwave Mounting Bolt (replaces 500797) 4B72059C
#706

Installation parts diagram

Microwave mounting bolt (replaces 500797)

Part #4B72059C

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 4B72059C. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
17% OFF Phone Price : $28.98
In Stock
Lever 4510W3L002A
#205

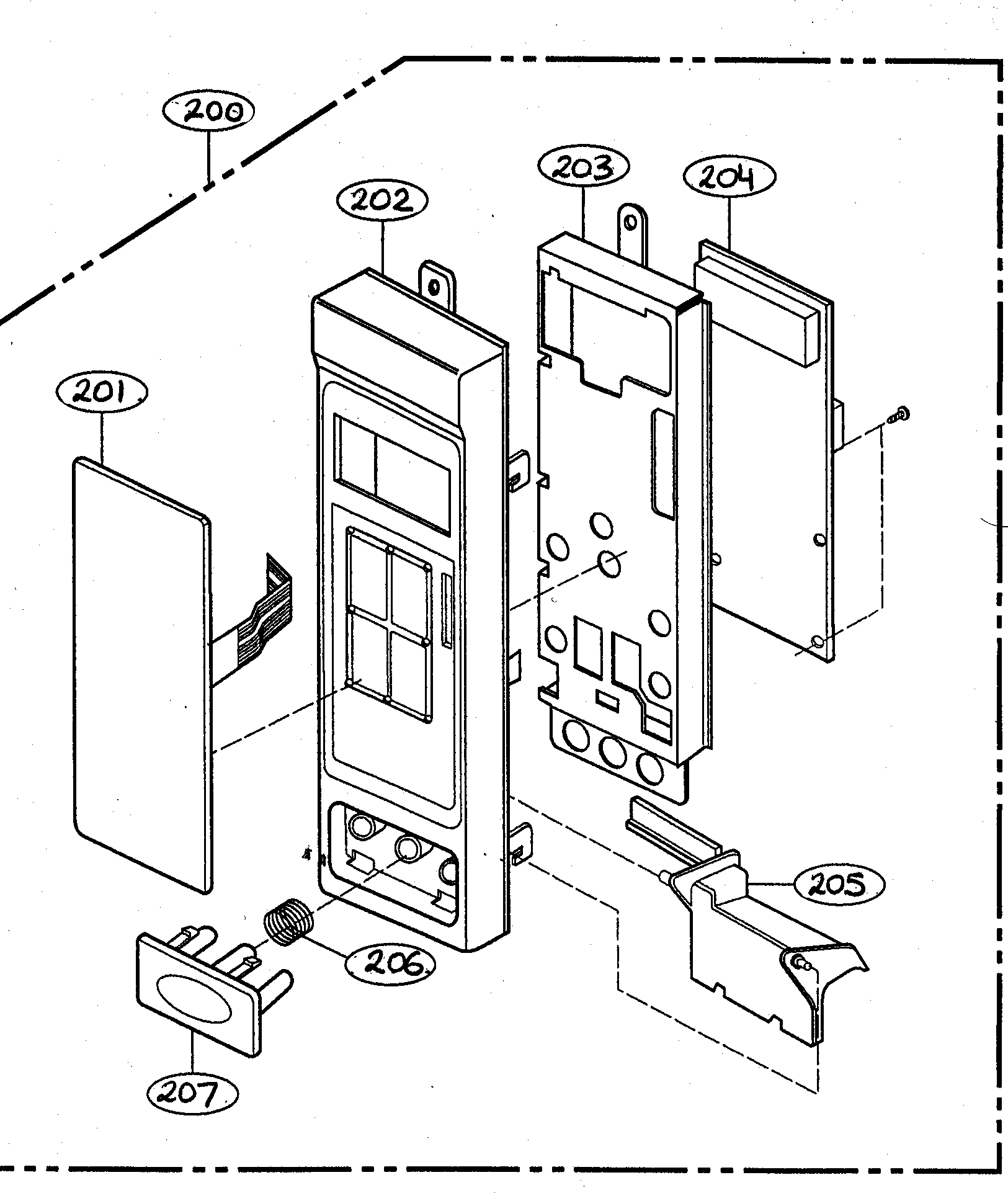

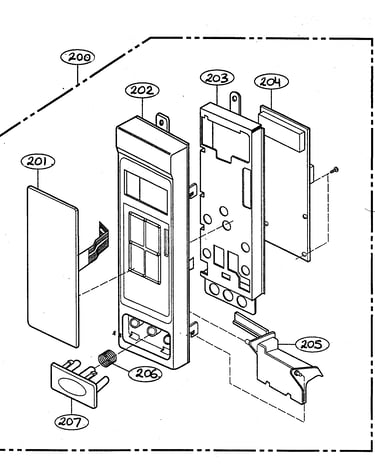

Controller parts diagram

Lever

Part #4510W3L002A

Replaced by #4510W3L003A

?
Manufacturer substitution
This part replaces 4510W3L002A. Substitute parts can look different from the original.
This item is not returnable
$7.89
In Stock
