Kenmore
Countertop Microwave

Model #72169182990 Kenmore microwave

Here are the diagrams and repair parts for Kenmore 72169182990 microwave, as well as links to manuals and error code tables, if available.

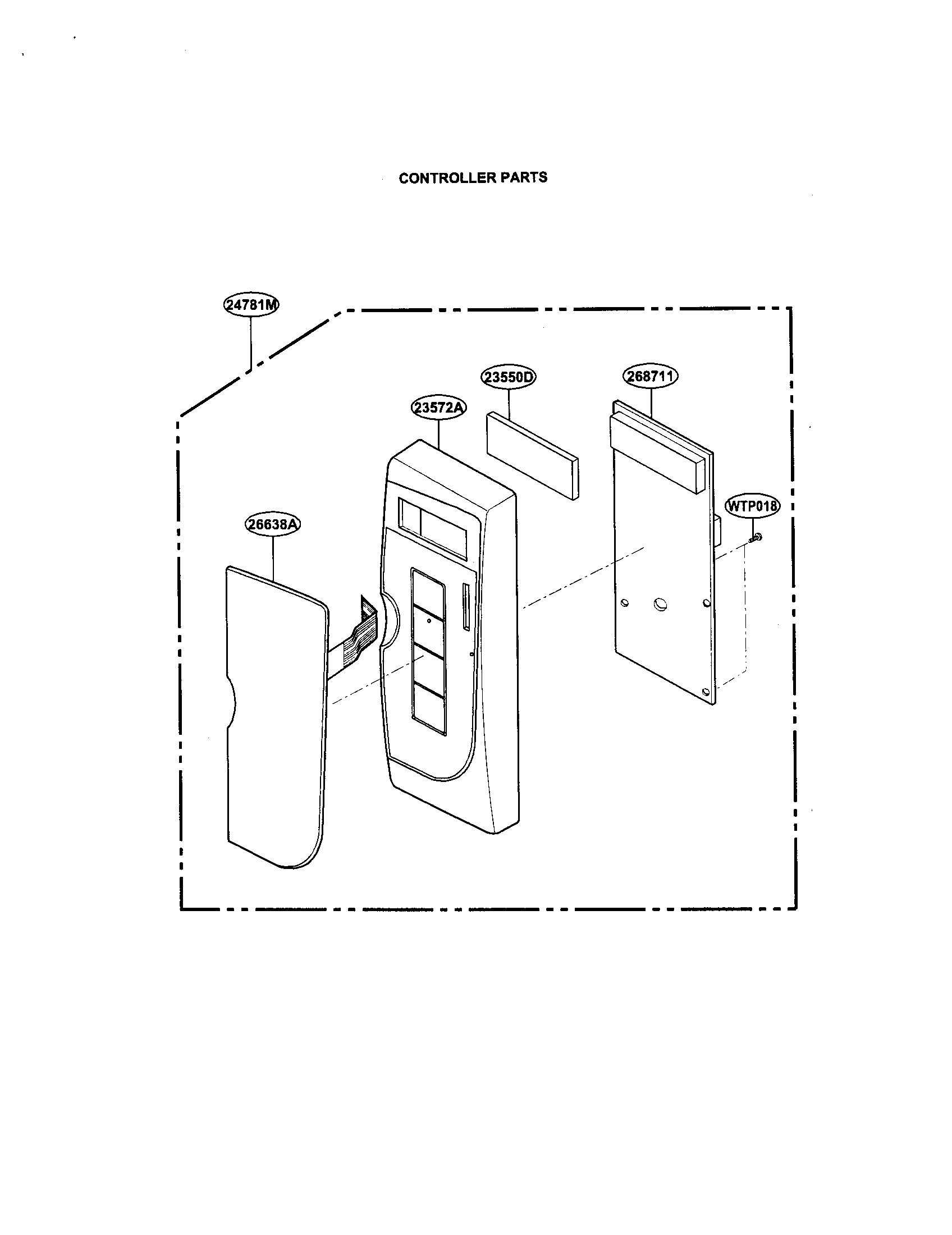

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 65 parts

    Microwave Turntable Support

    #35889A

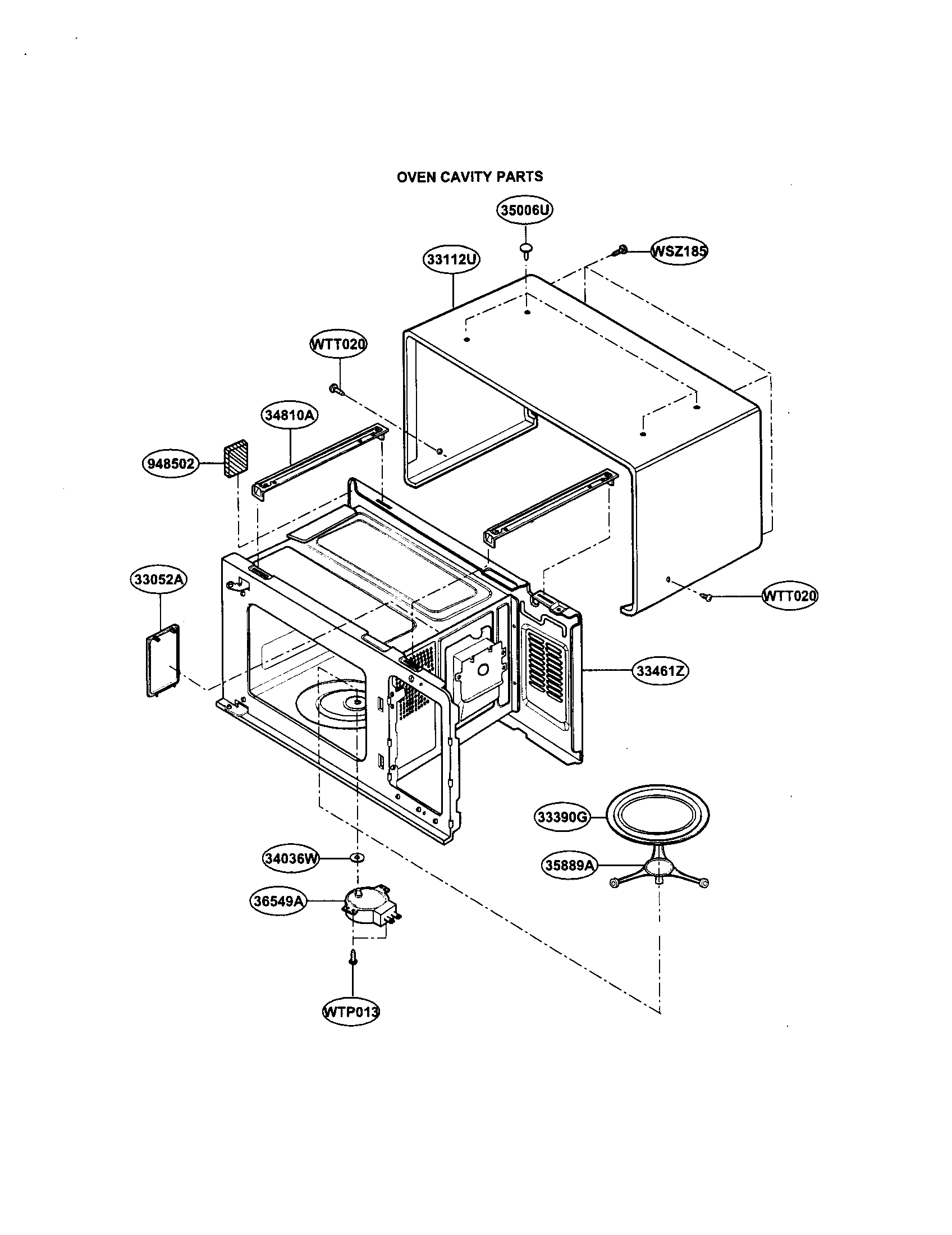

    Oven cavity Diagram

    Microwave turntable support

    Part #5889W2A009A
    $7.54

    In Stock

    Microwave Door Latch Lever

    #44510A

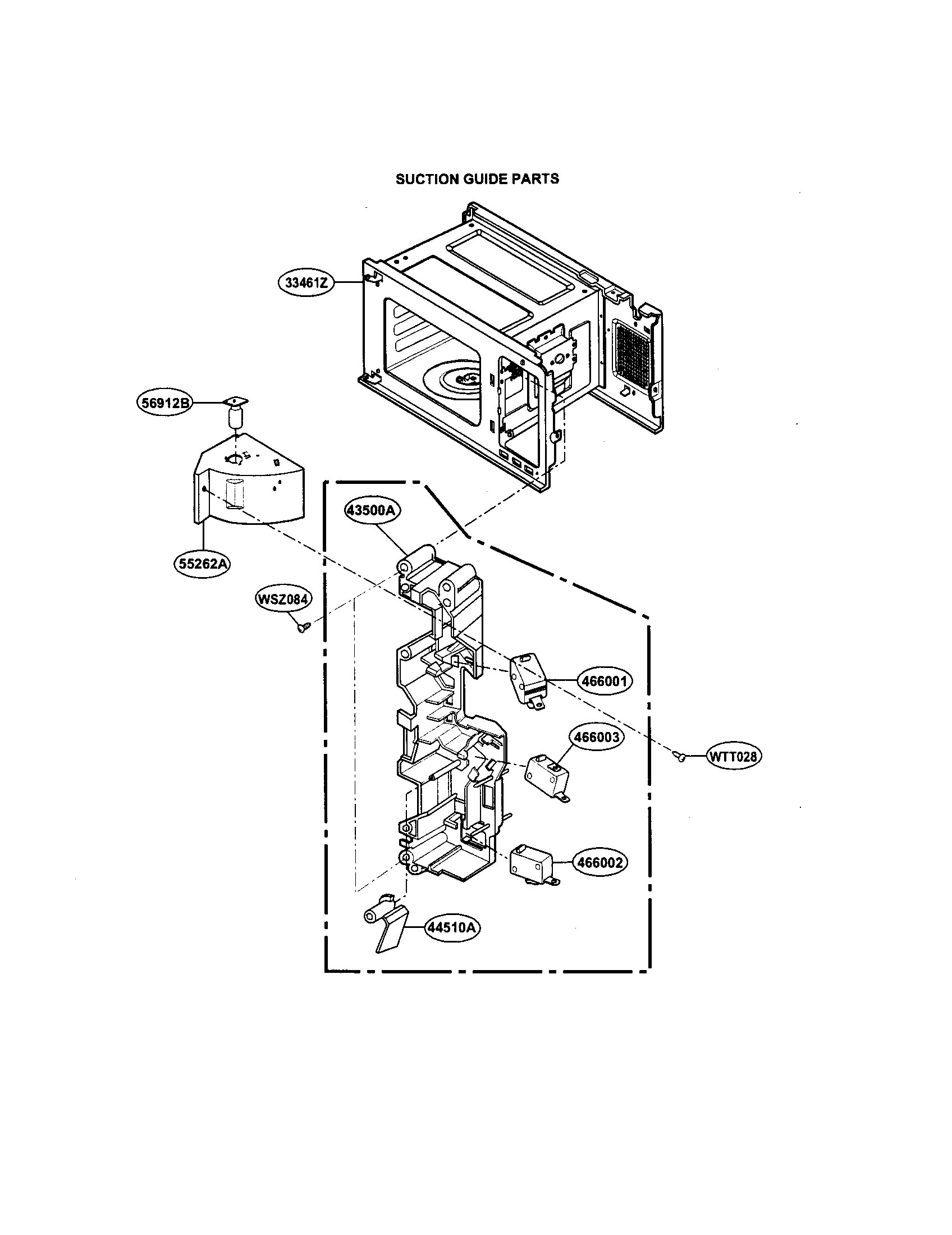

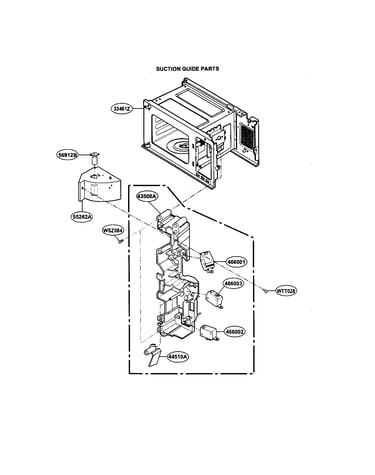

    Suction guide Diagram

    Microwave door latch lever

    Part #4510W4A005A
    This item is not returnable
    $2.99

    In Stock

    High-Voltage Diode

    #56021A

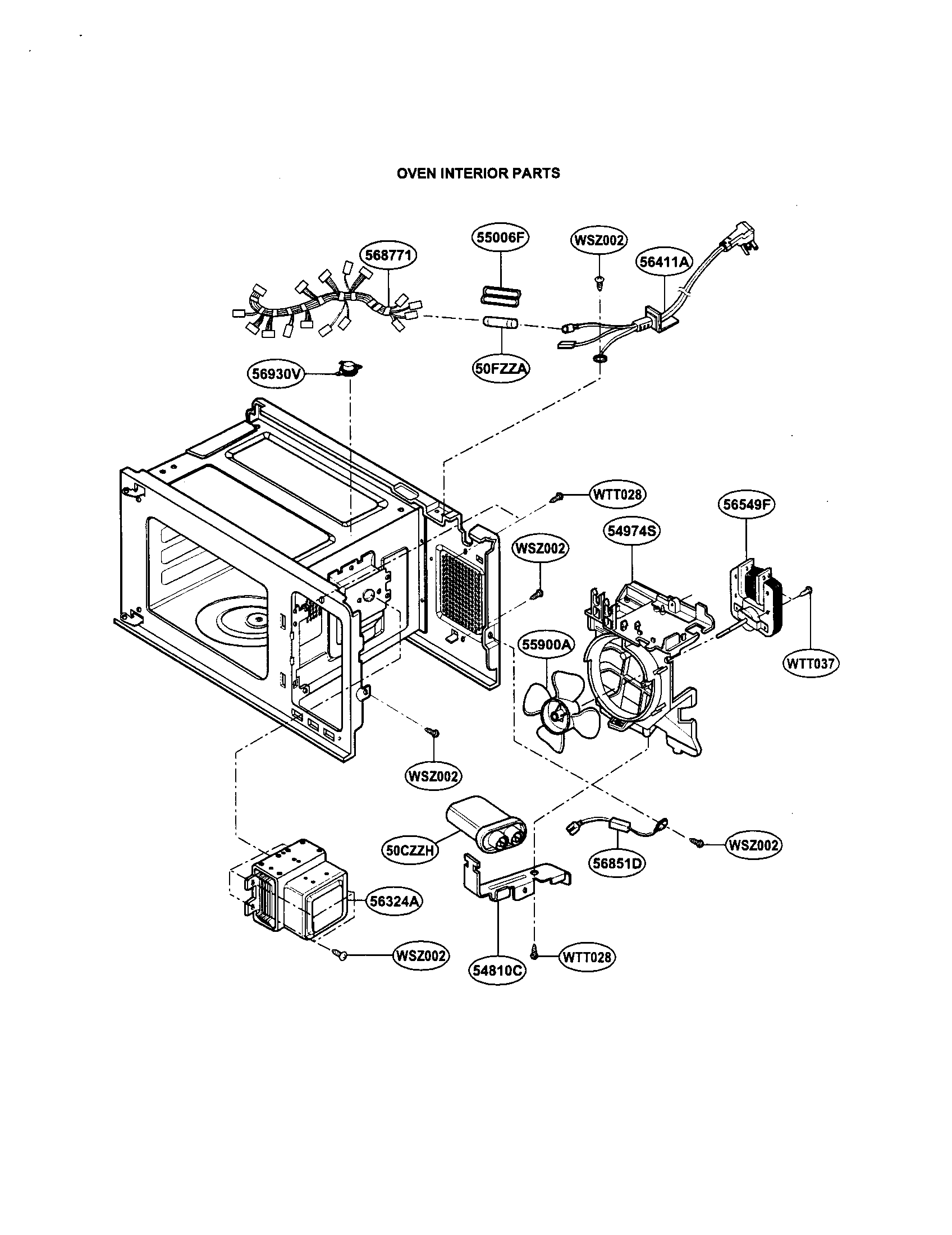

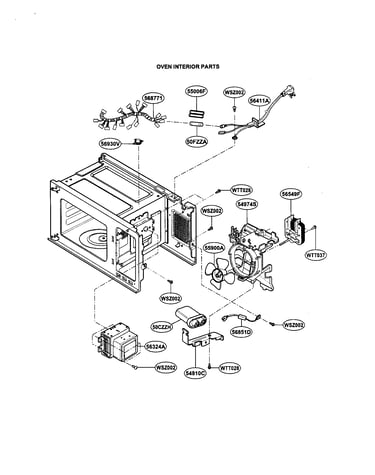

    Oven interior Diagram

    High-voltage diode

    Part #3B70460E
    This item is not returnable
    $6.88

    In Stock

    Latch Board

    #43501A

    Suction guide Diagram

    Latch board

    Part #3501W2A002G
    $30.99

    In Stock

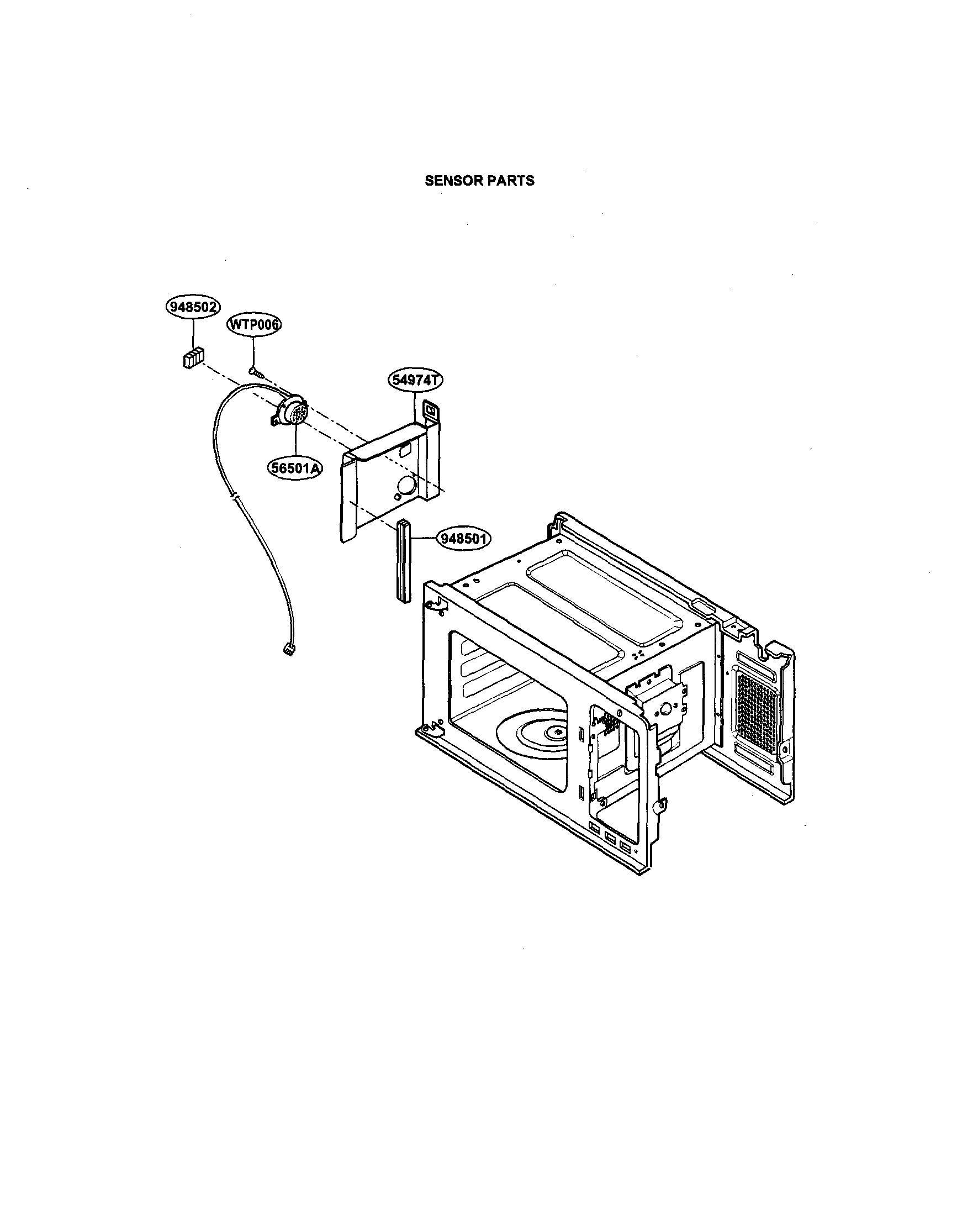

    Cushion

    #948501

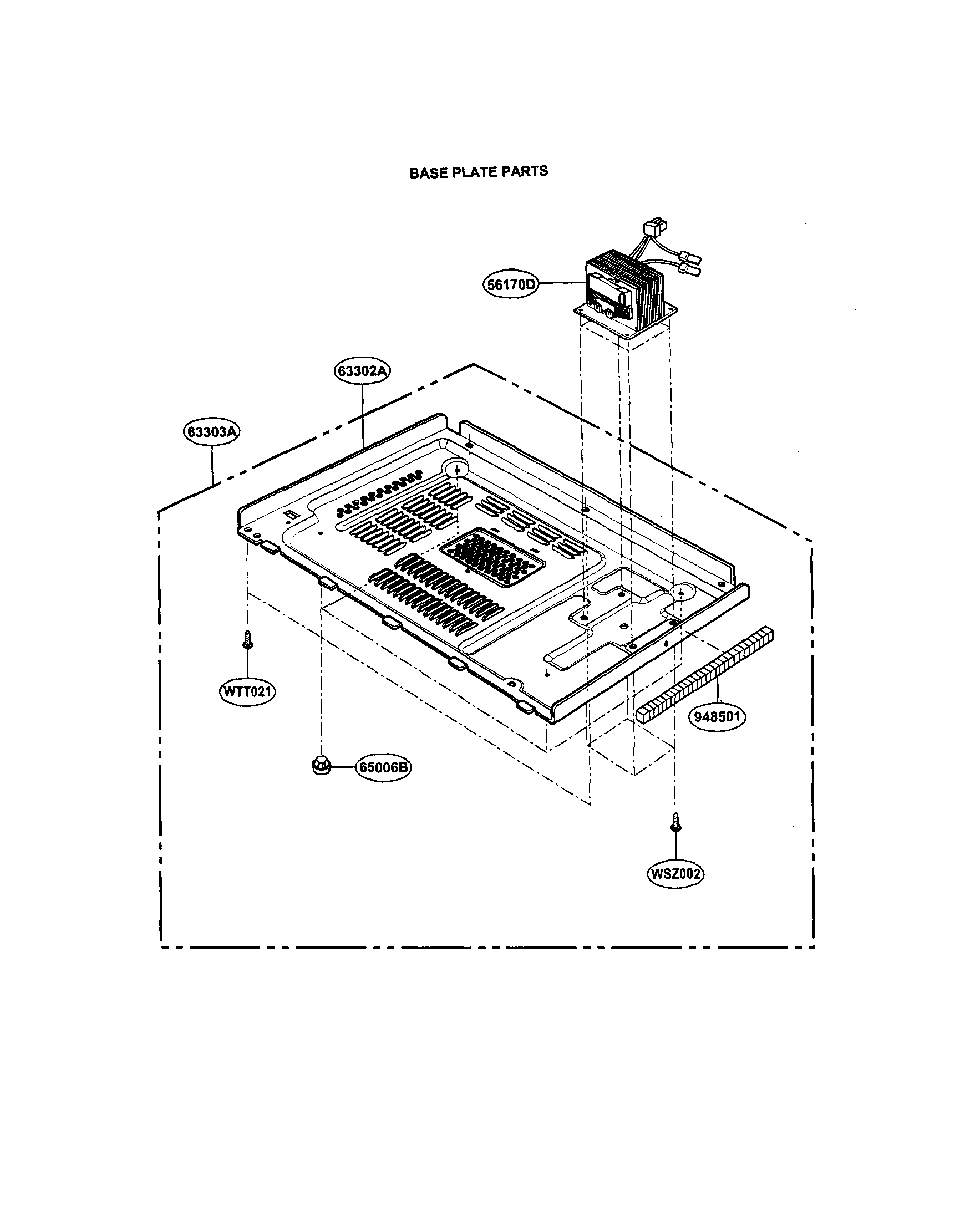

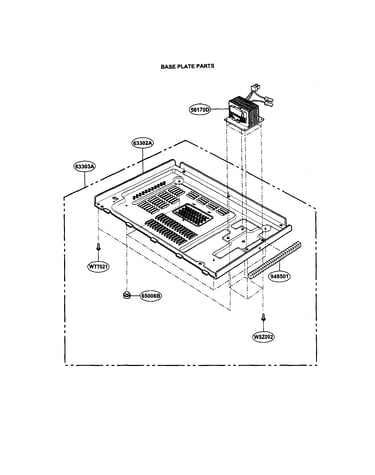

    Base plate Diagram

    Cushion

    Part #3B72244G
    This item is not returnable
    $3.99

    In Stock

    Canopy

    #33052A

    Oven cavity Diagram

    Canopy

    Part #3052W3A015A
    This item is not returnable
    $3.62

    In Stock

    Resistor

    #NI

    All parts Diagram

    Resistor

    Part #0RZ1503G610
    This item is not returnable
    $3.99

    In Stock

    Cushion

    #NI

    All parts Diagram

    Cushion

    Part #4850W4C001A
    This item is not returnable
    $3.99

    In Stock

    Microwave Door Latch Spring

    #14970A

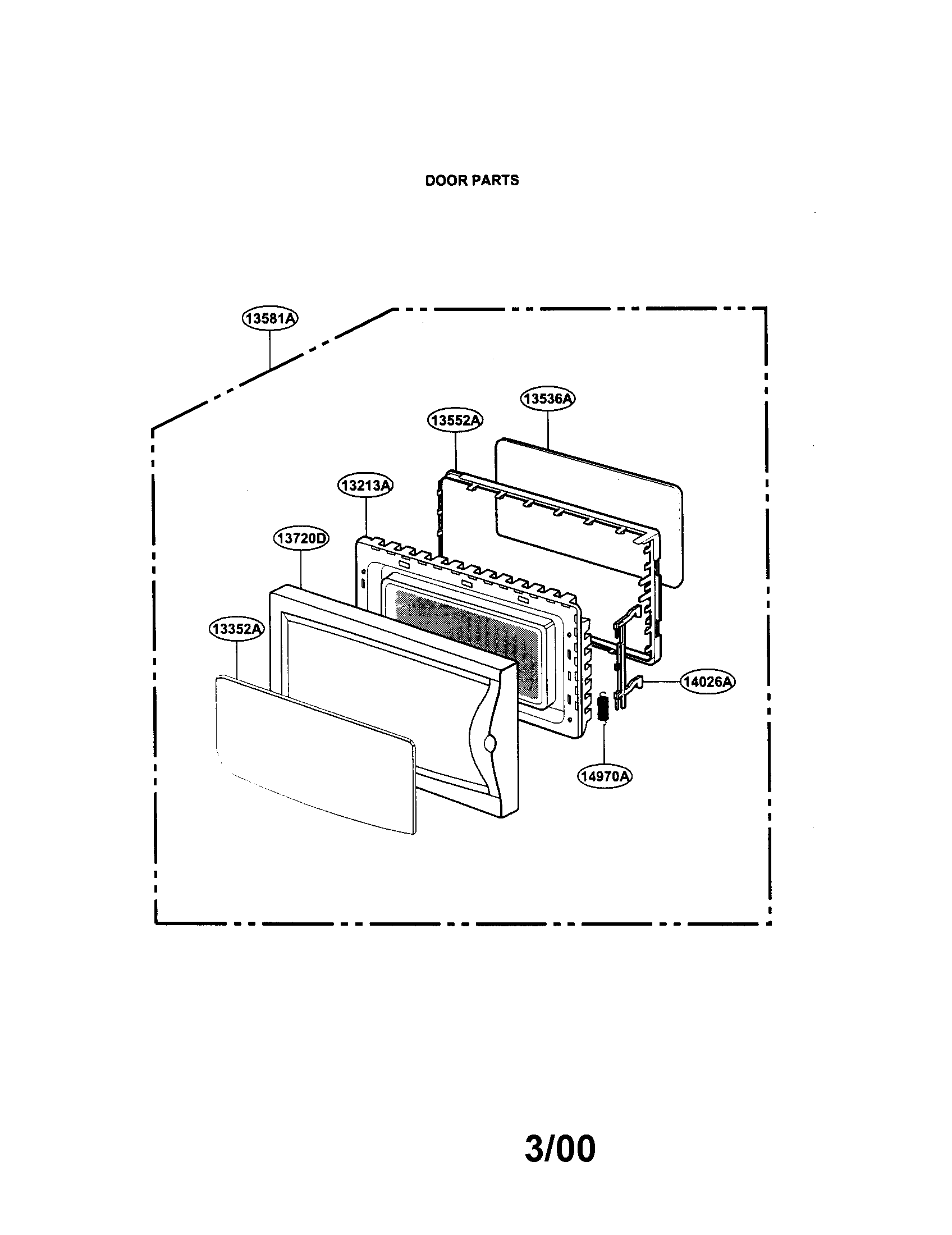

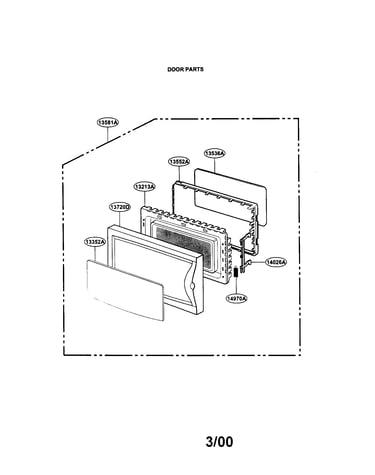

    Door Diagram

    Microwave door latch spring

    Part #4970WRA001B
    This item is not returnable
    $3.34

    In Stock

    Seal Tape

    #13536A

    Door Diagram

    Seal tape

    Part #3536WRA001J
    This item is not returnable
    $3.99

    In Stock
