Model # LMV2053SW/01 Official LG microwave

Here are the diagrams and repair parts for Official LG LMV2053SW-01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

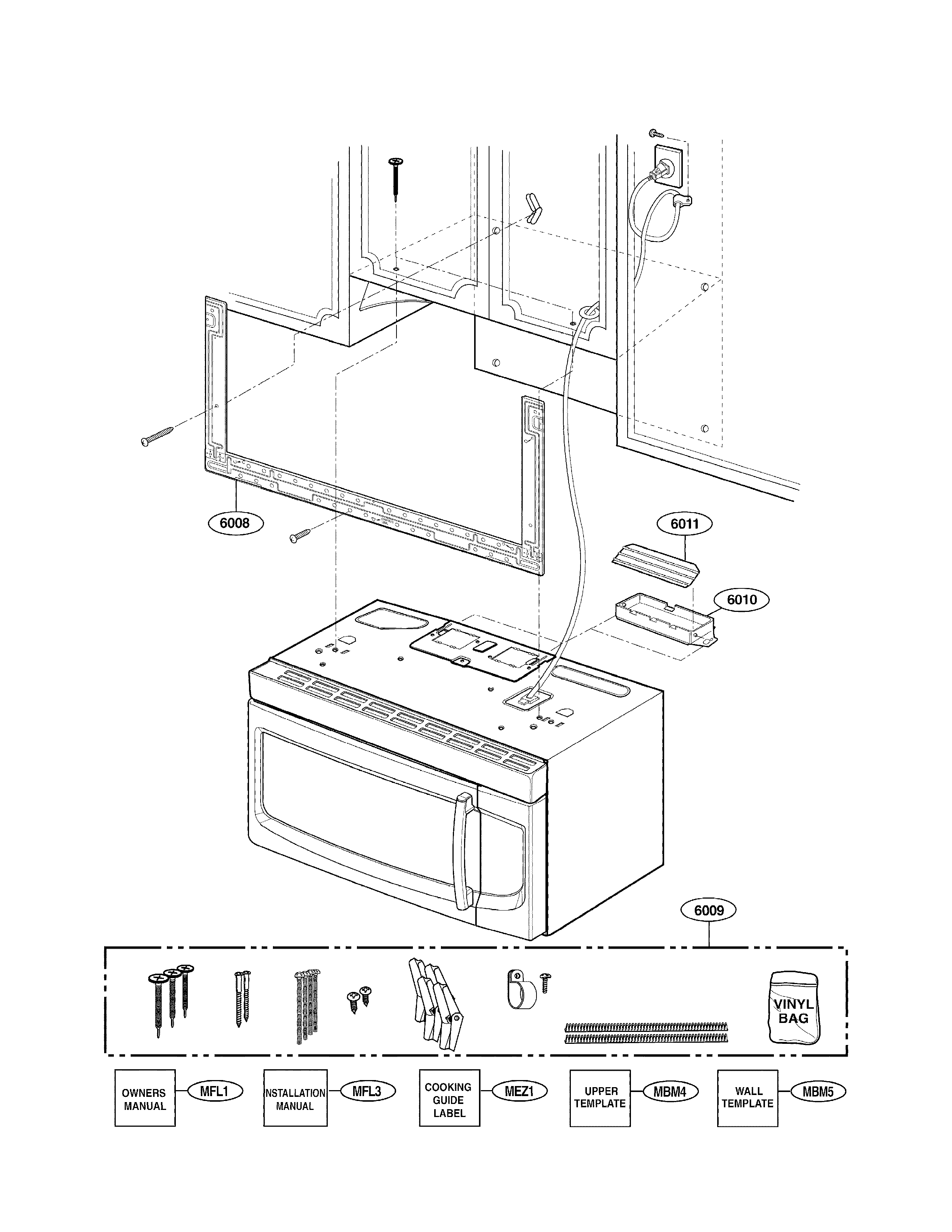

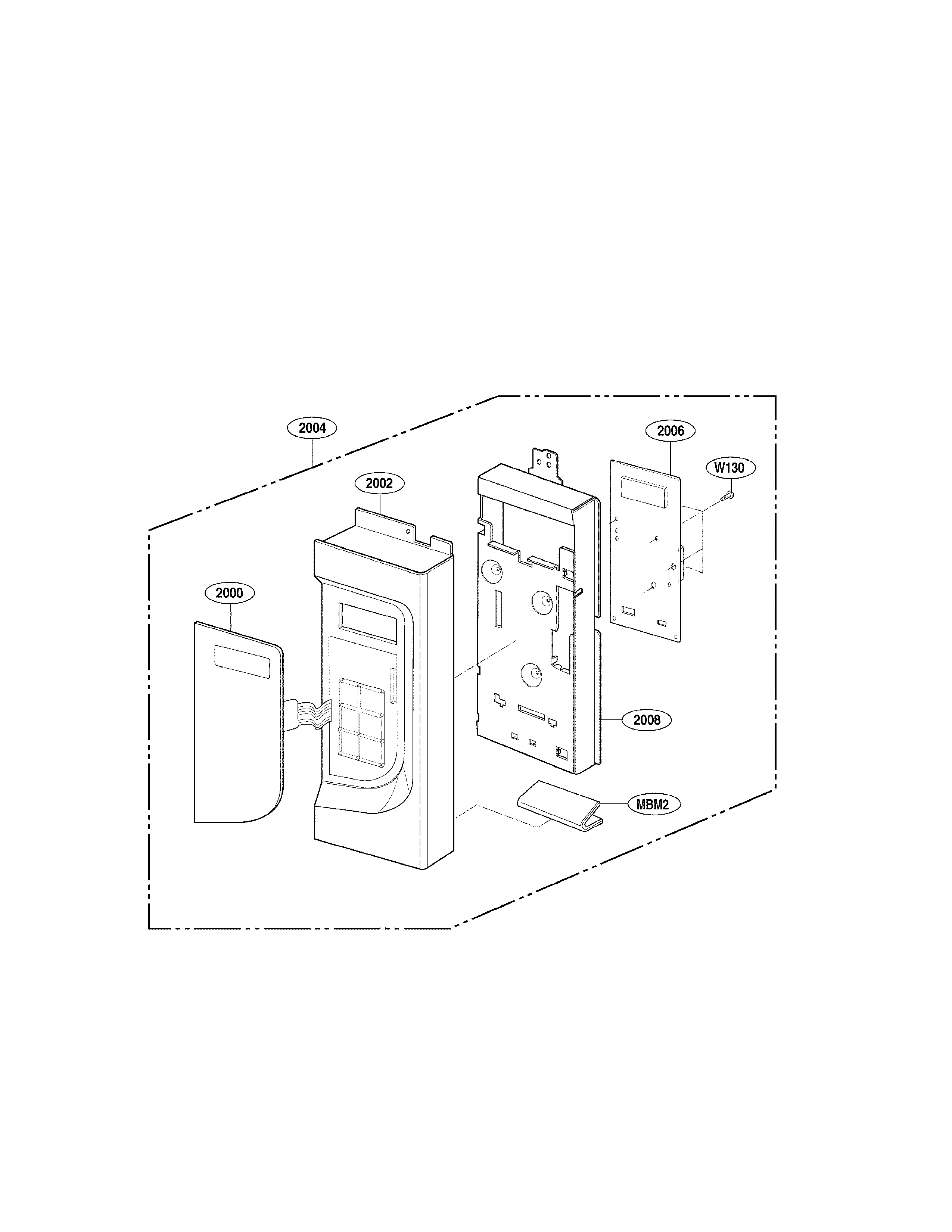

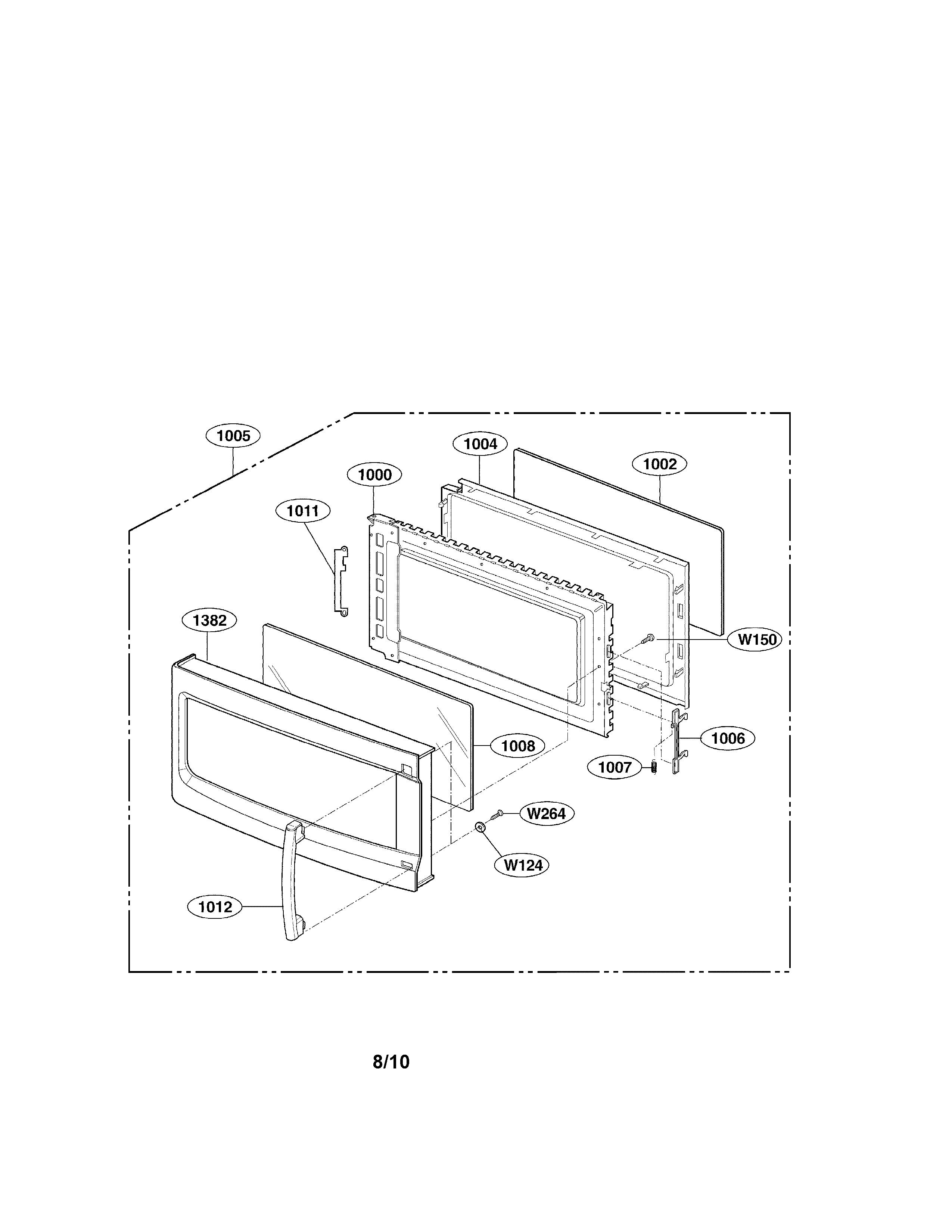

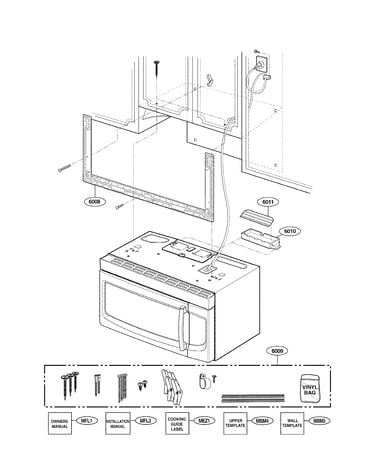

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

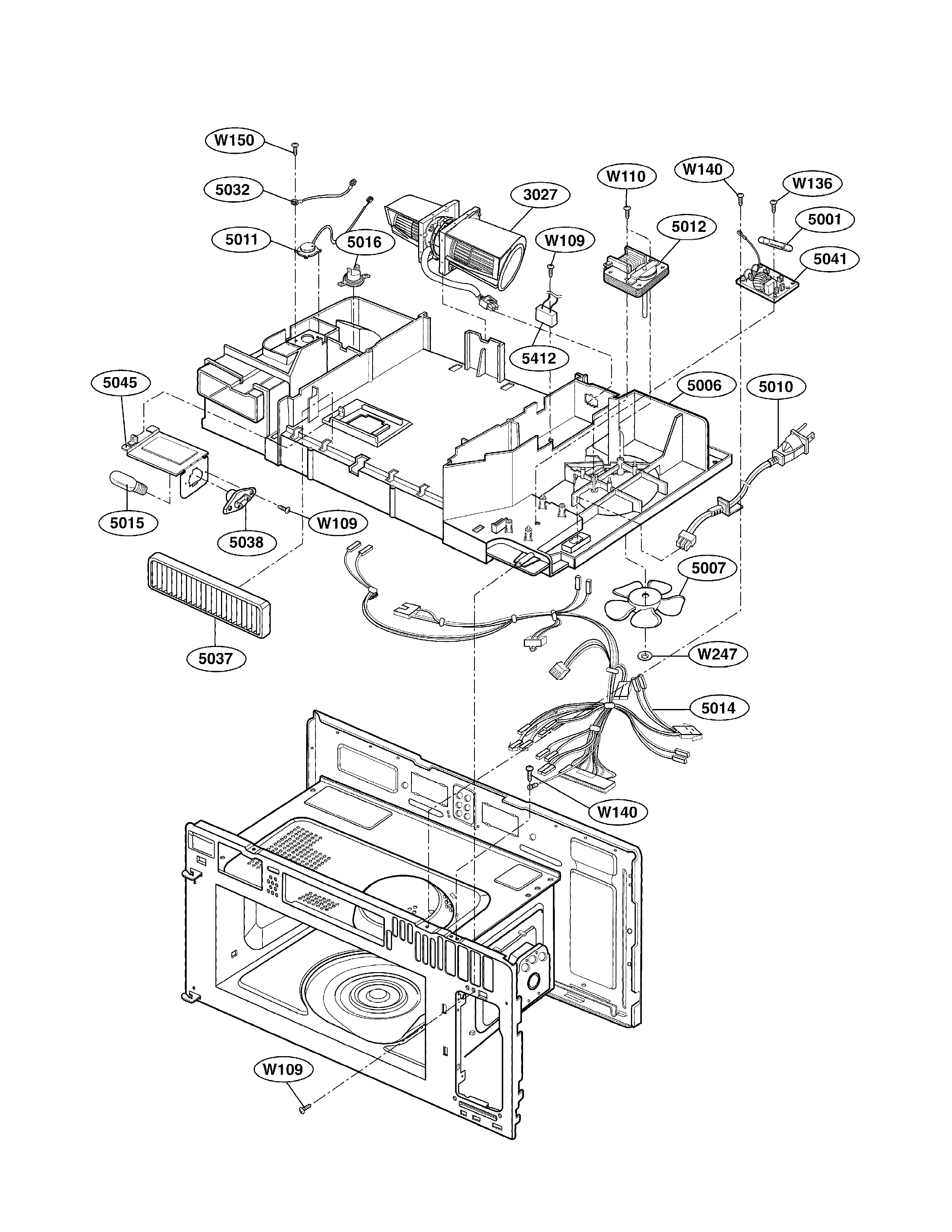

Interior parts(ii) diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19 |
15% OFF Phone Price : $33.19
In Stock
Grease Filter 2B72705B
#3026

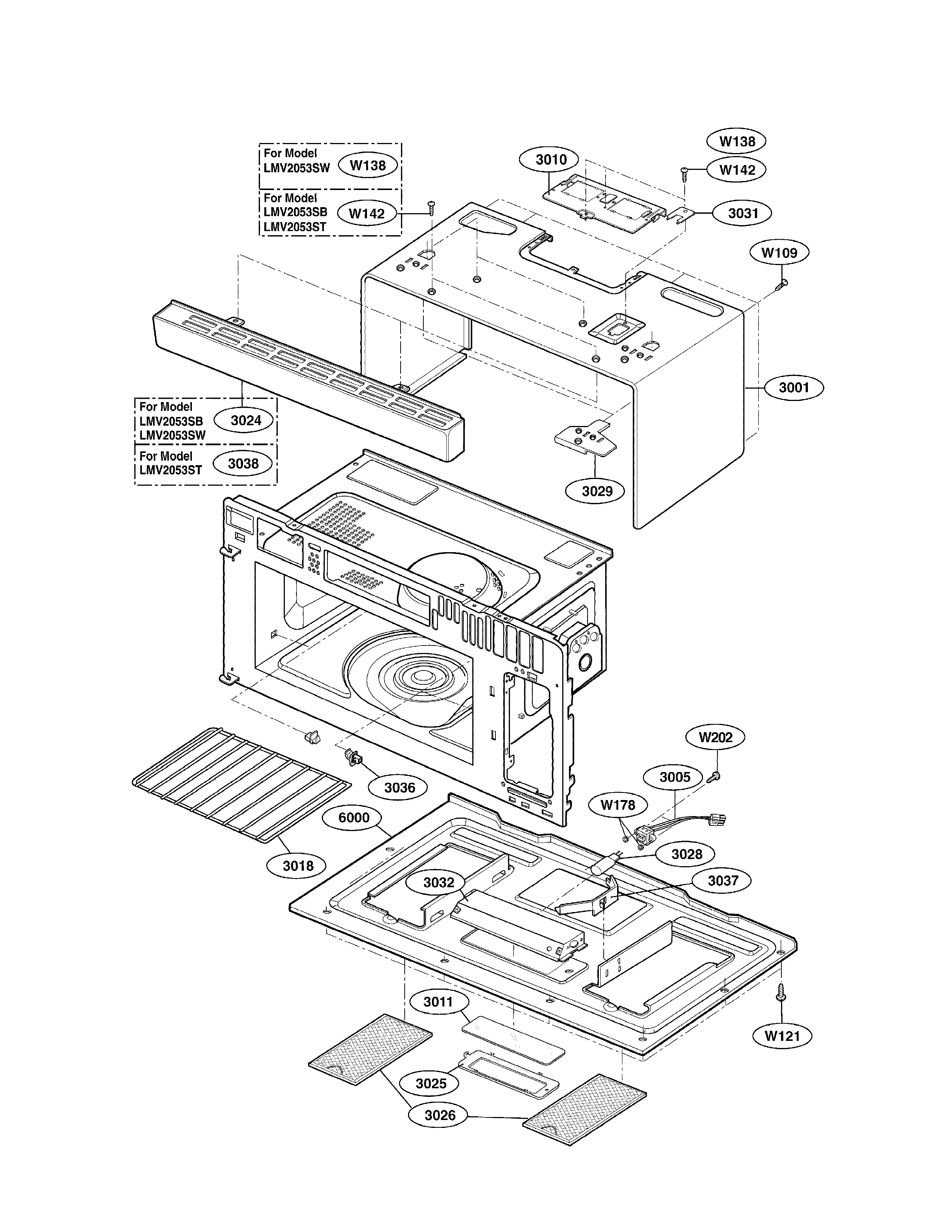

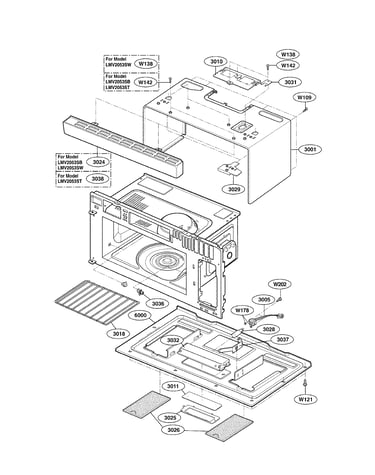

Oven cavity parts diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Microwave Magnetron 6324W1A001E
#5009

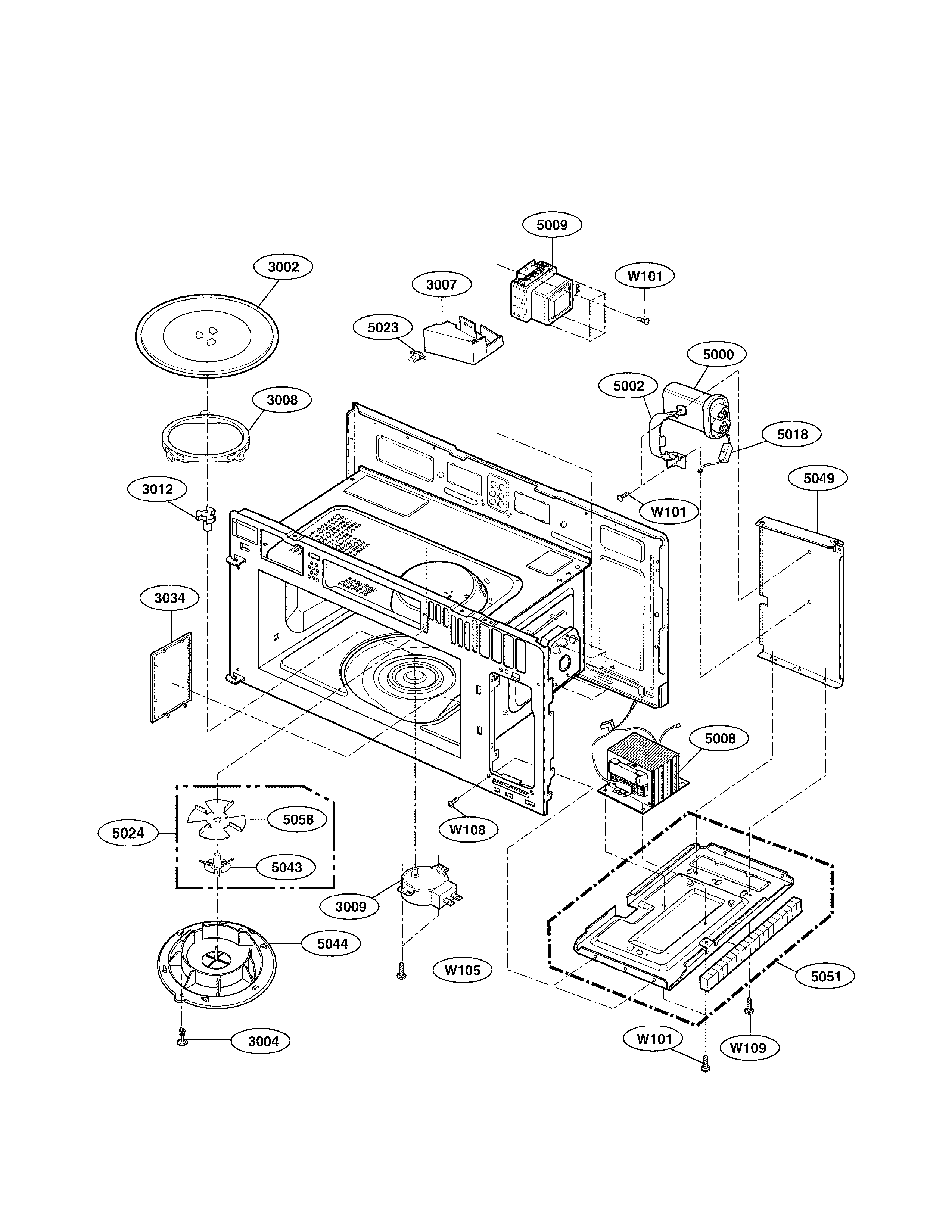

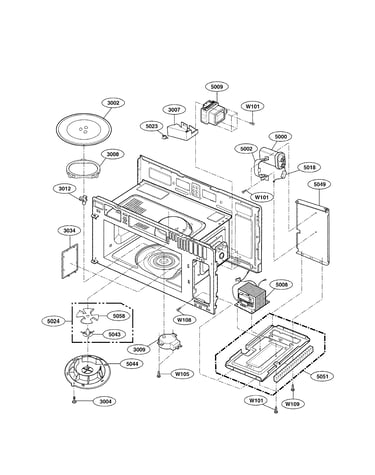

Interior parts(i) diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave/hood Lamp 6912W3Q001D
#5015A

Interior parts(ii) diagram

Microwave/hood lamp

Part #6912W3Q001D

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001D. Substitute parts can look different from the original.
BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Oven Lamp 6912W3Q001A
#5015

Interior parts(ii) diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Microwave Door Interlock Switch 3B73361E
#4003

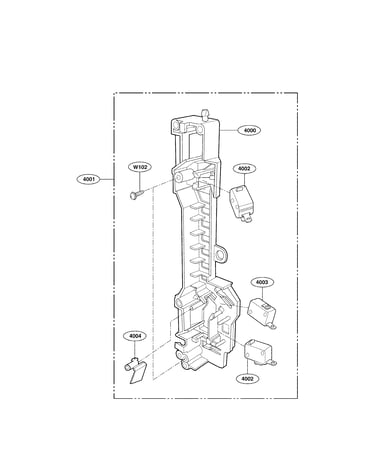

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
Microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

BEST SELLER
$17.81 |
10% OFF Phone Price : $19.81
In Stock
Capacitor 0CZZW1H002J
#5000

Interior parts(i) diagram

Capacitor

Part #0CZZW1H002J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002J. Substitute parts can look different from the original.
BEST SELLER
$17.81 |
10% OFF Phone Price : $19.81
In Stock
Capacitor 6120W3H003J
#5000A

Interior parts(i) diagram

Capacitor

Part #6120W3H003J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 6120W3H003J. Substitute parts can look different from the original.
BEST SELLER
$17.81 |
10% OFF Phone Price : $19.81
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A016M
#4001

Latch board parts diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A016M

The manufacturer no longer makes this part, and there's no substitute part
