Craftsman
Gas Pressure Washer

Model # 580752441 Official Craftsman power washer

Here are the diagrams and repair parts for Official Craftsman 580752441 power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Pressure Washer O-ring Kit (replaces 196002gs) 705001
Pressure washer o-ring kit (replaces 196002gs)

Part #705001

BEST SELLER
$26.82
16% OFF Phone Price : $31.82
In Stock
O-ring Kit 75116

#NI09

All parts diagram

O-ring kit

Part #75116

Replaced by #705001

?
Manufacturer substitution
This part replaces 75116. Substitute parts can look different from the original.
BEST SELLER
$26.82
16% OFF Phone Price : $31.82
In Stock
Pressure Washer Thermal Release Valve (replaces 194298gs) 208673GS
#64

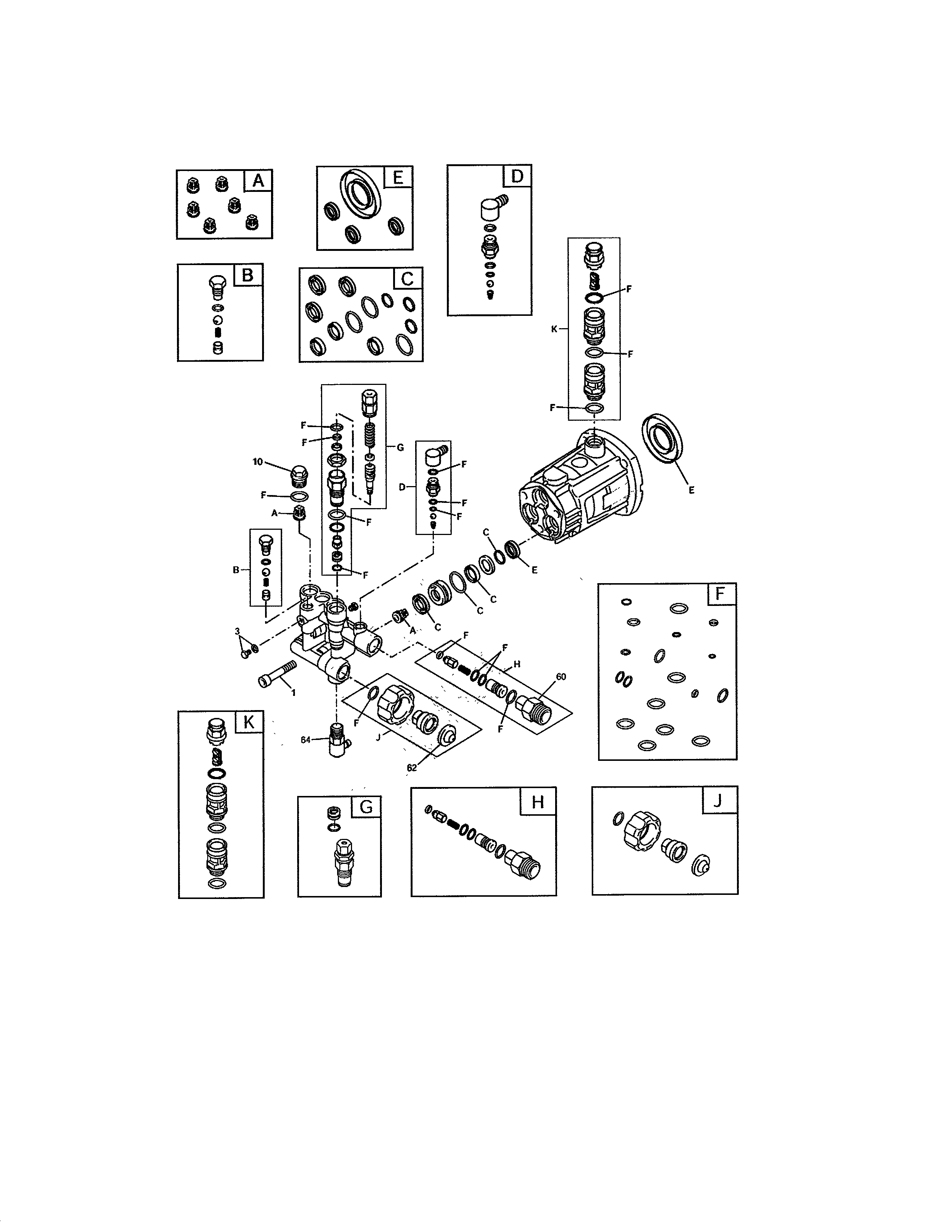

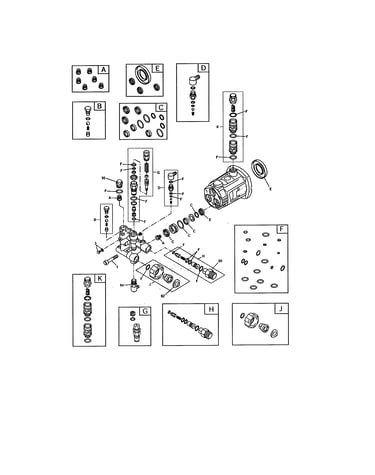

Pump diagram

Pressure washer thermal release valve (replaces 194298gs)

Part #208673GS

BEST SELLER
$20.84
19% OFF Phone Price : $25.84
In Stock
Pressure Washer Gun (replaces 199990gs) 704312
#5

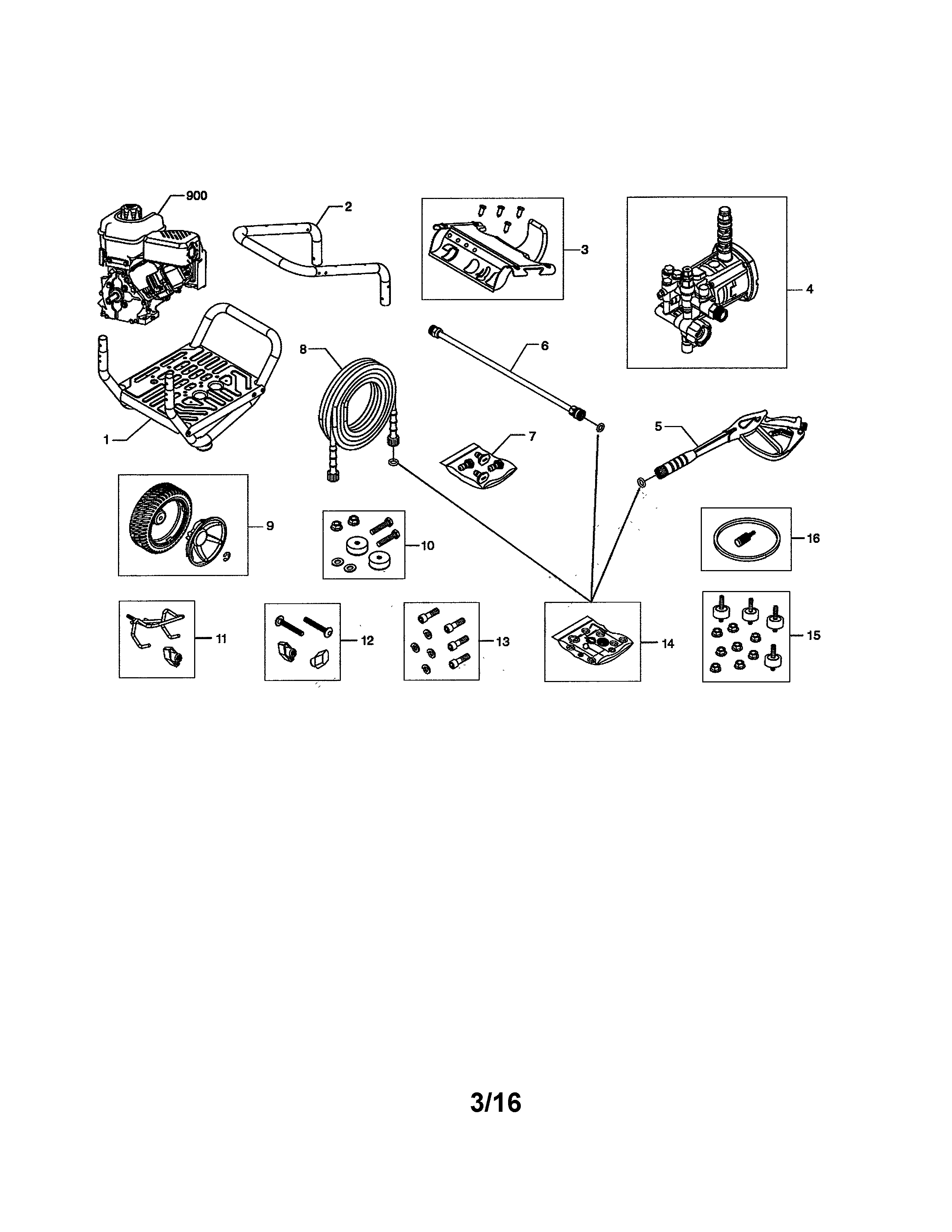

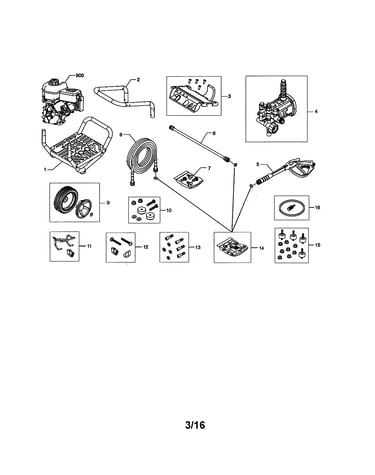

Main unit diagram

Pressure washer gun (replaces 199990gs)

Part #704312

BEST SELLER
$101.50
9% OFF Phone Price : $111.50
In Stock
Pressure Washer Water Inlet Screen (replaces 1266330gs, B2384) B2384GS
#62

Pump diagram

Pressure washer water inlet screen (replaces 1266330gs, b2384)

Part #B2384GS

BEST SELLER
This item is not returnable
$4.99
17% OFF Phone Price : $5.99
In Stock
Connector 75197

#NI07

All parts diagram

Connector

Part #75197

Replaced by #312981GS

?
Manufacturer substitution
This part replaces 75197. Substitute parts can look different from the original.
BEST SELLER
$42.29
11% OFF Phone Price : $47.29
In Stock
Pressure Washer Fastening Clip (replaces B1797) B1797GS
#3A

Main unit diagram

Pressure washer fastening clip (replaces b1797)

Part #B1797GS

This item is not returnable
$6.69
13% OFF Phone Price : $7.69
In Stock
Pressure Washer Handle Attachment Kit (replaces B2203) B2203GS
#12

Main unit diagram

Pressure washer handle attachment kit (replaces b2203)

Part #B2203GS

This item is not returnable
$8.89
10% OFF Phone Price : $9.89
In Stock
Pressure Washer Pump Mounting Hardware 192131GS
#13

Main unit diagram

Pressure washer pump mounting hardware

Part #192131GS

This item is not returnable
$10.19
16% OFF Phone Price : $12.19
In Stock
Pressure Washer Screw And Washer 200350GS
#3

Pump diagram

Pressure washer screw and washer

Part #200350GS

This item is not returnable
$19.79
9% OFF Phone Price : $21.79
In Stock

Symptoms for gas pressure washers

Choose a symptom to see related pressure washer repairs.

Main causes: faulty unloader valve, bad pressure regulator…

Main causes: stale fuel, gummed up carburetor, engine needs tune up, throttle and choke controls need adjustment, bad re…

Main causes: dirty air filter, stale fuel, clogged or dirty carburetor, bad unloader valve…

Main causes: broken recoil spring, damaged recoil starter…

Main causes: overfilling engine with oil, improper fuel/air mixture, choke system problems, dirty carburetor, engine nee…

Main causes: pump running for more than 5 minutes when the spray wand isn't being used, faulty pressure relief valve, ba…

Main causes: insufficient water supply, clogged water inlet screen, clogged pressure hose, faulty pump check valves, stu…

Main causes: using a high-pressure spray tip when applying detergent, clogged siphon tube, chemical injection system fai…

Main causes: damaged recoil starter, oil inside cylinder, locked up engine piston…
