Model # 50PG20-UAAUSLLJR Official LG plasma television

Here are the diagrams and repair parts for Official LG 50PG20-UAAUSLLJR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Television Power Cord EAD36401701
#NI

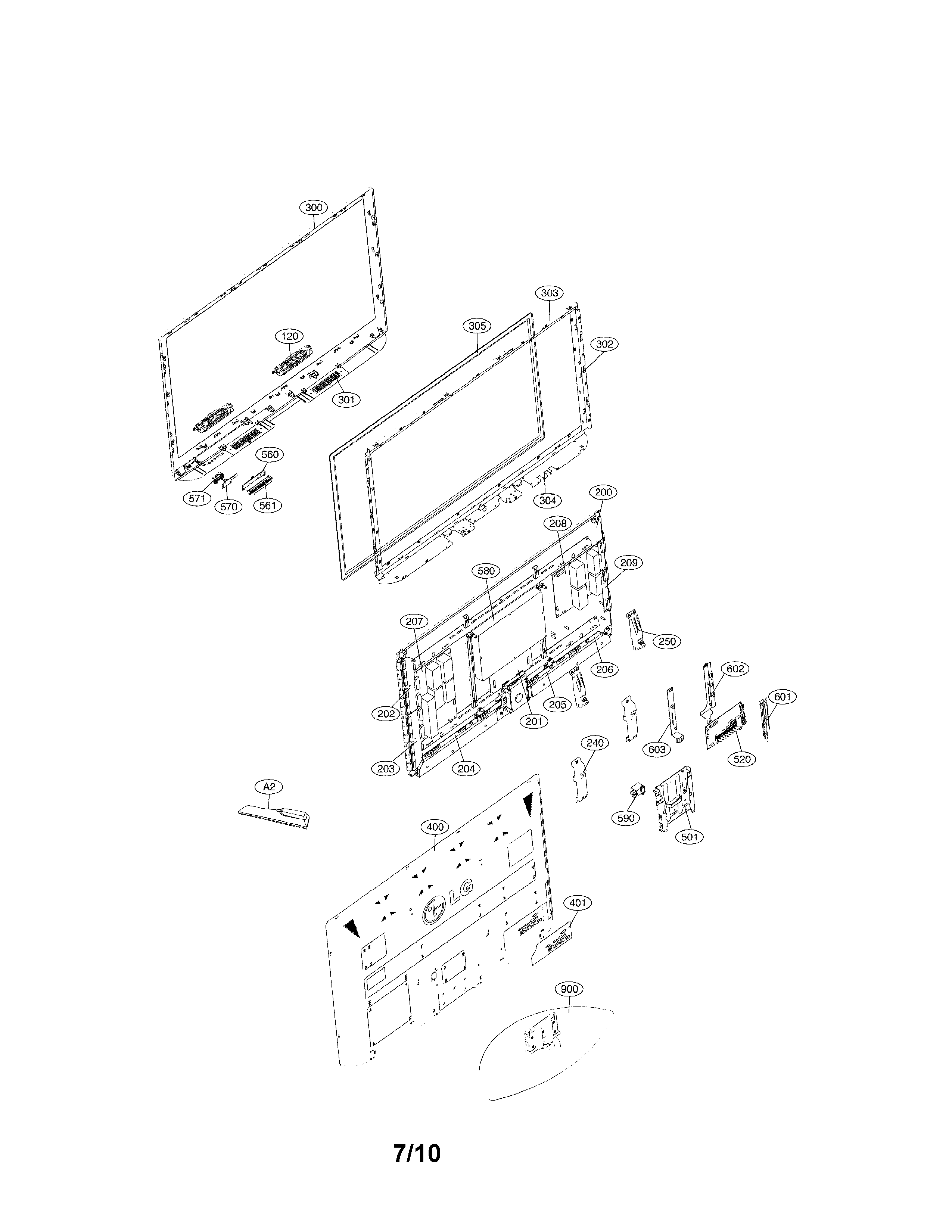

Tv pdp 50 diagram

Television power cord

Part #EAD36401701

In Stock
Button MBG41119902
#561

Tv pdp 50 diagram

Button

Part #MBG41119902

This item is not returnable
In Stock
Pcb Assembly EBR38299701
#206

Tv pdp 50 diagram

Pcb assembly

Part #EBR38299701

In Stock
Pcb Assembly EBR38374701
#202

Tv pdp 50 diagram

Pcb assembly

Part #EBR38374701

In Stock
Support AJJ35805302
#304

Tv pdp 50 diagram

Support

Part #AJJ35805302

In Stock
Pcb Insert EBR38374401
#207

Tv pdp 50 diagram

Pcb insert

Part #EBR38374401

In Stock
Insert Pcb EBR38301801
#201

Tv pdp 50 diagram

Insert pcb

Part #EBR38301801

In Stock
Pcb Assembly EBR38374501
#208

Tv pdp 50 diagram

Pcb assembly

Part #EBR38374501

In Stock
Plate MGJ41163807
#602

Tv pdp 50 diagram

Plate

Part #MGJ41163807

In Stock
Filter MDJ42351002
#305

Tv pdp 50 diagram

Filter

Part #MDJ42351002

The manufacturer no longer makes this part, and there's no substitute part
