Model # HBLG1200R Official LG room air conditioner

Here are the diagrams and repair parts for Official LG HBLG1200R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

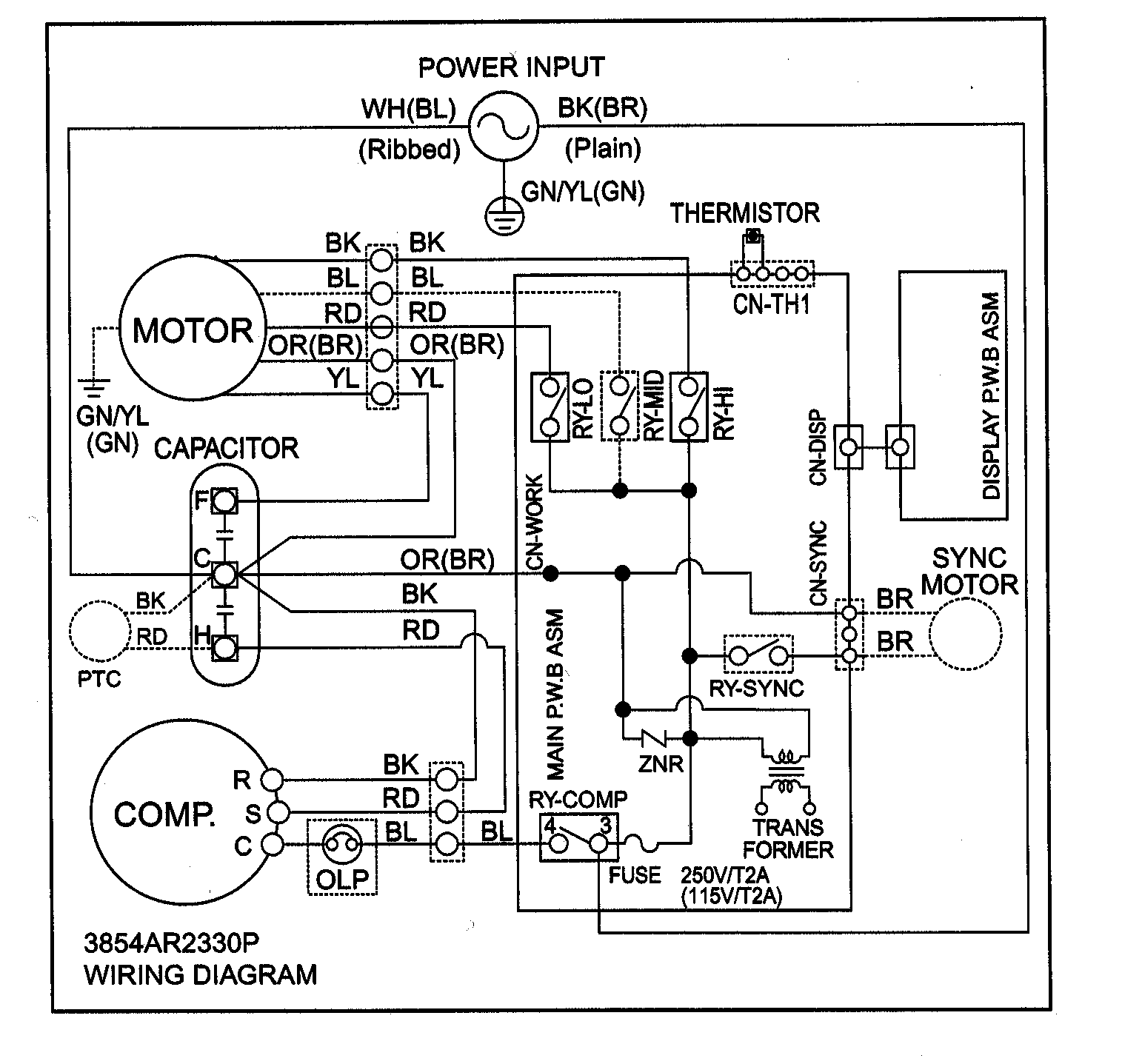

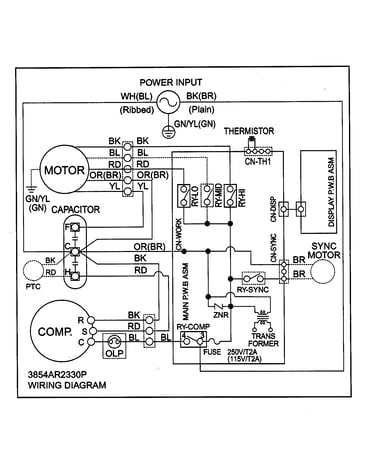

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Thermistor 6323A20003D
#3230

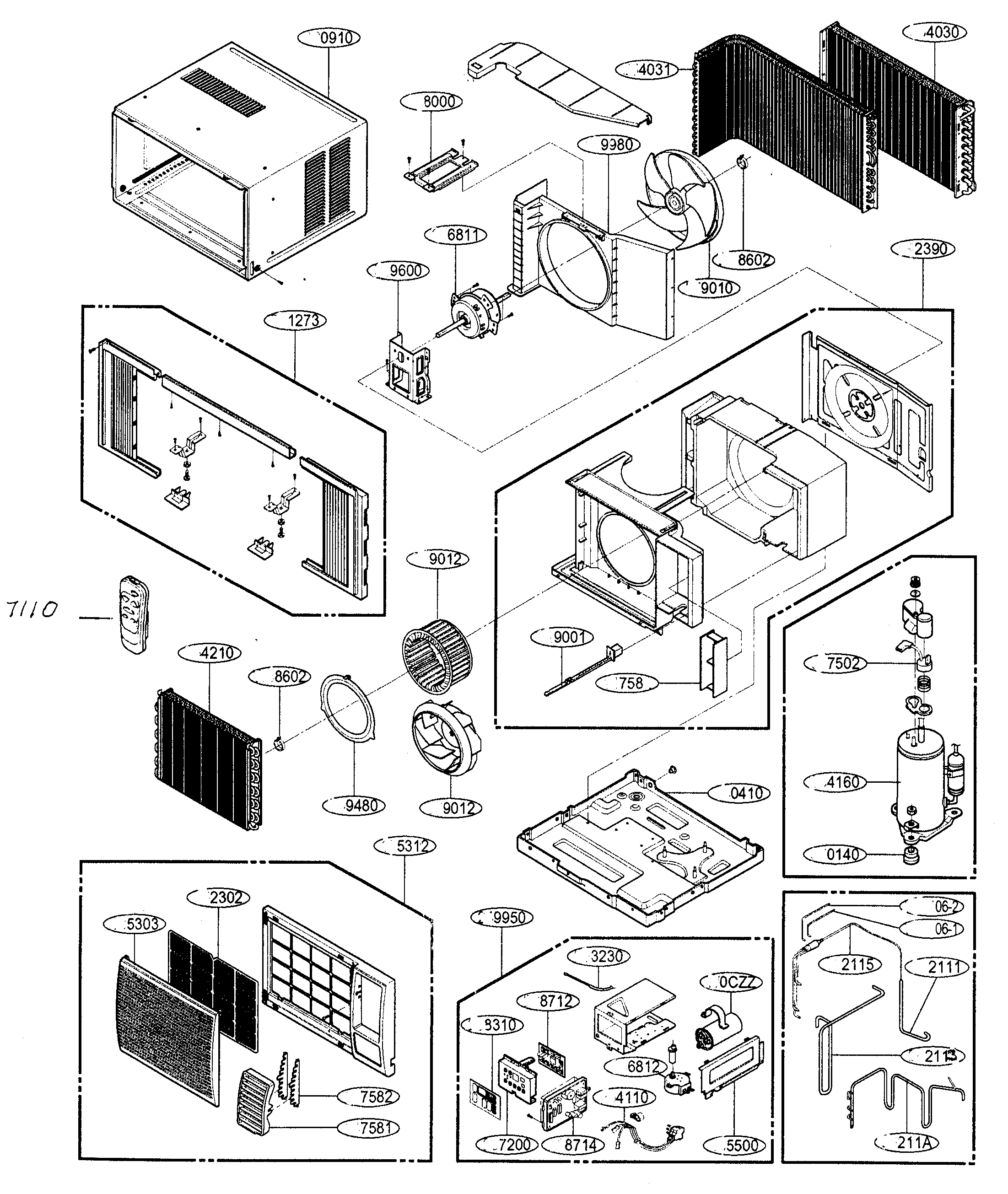

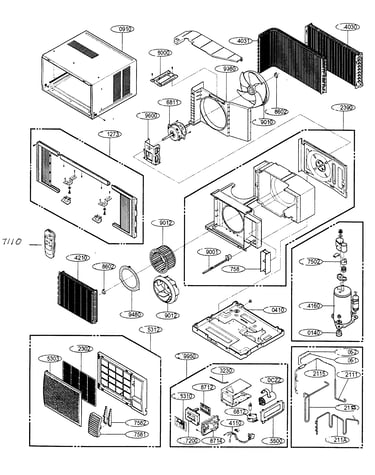

Cabinet parts diagram

Thermistor

Part #6323A20003D

Replaced by #6323A20003S

?
Manufacturer substitution
This part replaces 6323A20003D. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Room Air Conditioner Power Cord 2H00677S
#4110

Cabinet parts diagram

Room air conditioner power cord

Part #2H00677S

$43.07 |
10% OFF Phone Price : $48.07
In Stock
Cover 3550AR7032A
#5500

Cabinet parts diagram

Cover

Part #3550AR7032A

This item is not returnable
$4.51
In Stock
Tube Assembly 5211A20020S
#2111

Cabinet parts diagram

Tube assembly

Part #5211A20020S

This item is not returnable
$4.06
In Stock
Shroud 4998AR1496A
#9980

Cabinet parts diagram

Shroud

Part #4998AR1496A

$27.47
In Stock
Bushing 4830AR4335A
#140

Cabinet parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Louver,ver 4758AR7308A
#7582

Cabinet parts diagram

Louver,ver

Part #4758AR7308A

This item is not returnable
$4.51
In Stock
Tube 5211AR2930A
#2113

Cabinet parts diagram

Tube

Part #5211AR2930A

$24.09
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L029A
#7502

Cabinet parts diagram

Room air conditioner compressor overload protector

Part #6750U-L029A

This item is not returnable
$18.83
In Stock
Tube 5211AR7059B
#211B

Cabinet parts diagram

Tube

Part #5211AR7059B

$10.60
In Stock
