Thermador
Electric Cooktop

Model # TMH45 Official Thermador electric cooktop

Here are the diagrams and repair parts for Official Thermador TMH45 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Thermador Skewer 14-29-830
#15

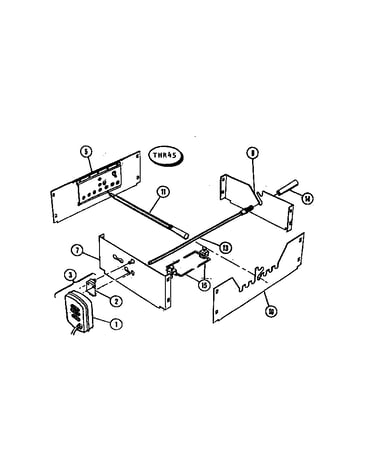

Frame diagram

Thermador skewer

Part #14-29-830

$7.99
In Stock
Thermador Handle 14-29-784
#14

Frame diagram

Thermador handle

Part #14-29-784

$17.99
In Stock
Thermador Spit 14-29-787
#12

Frame diagram

Thermador spit

Part #14-29-787

$45.99
In Stock
Rod 14-29-191-11
#29

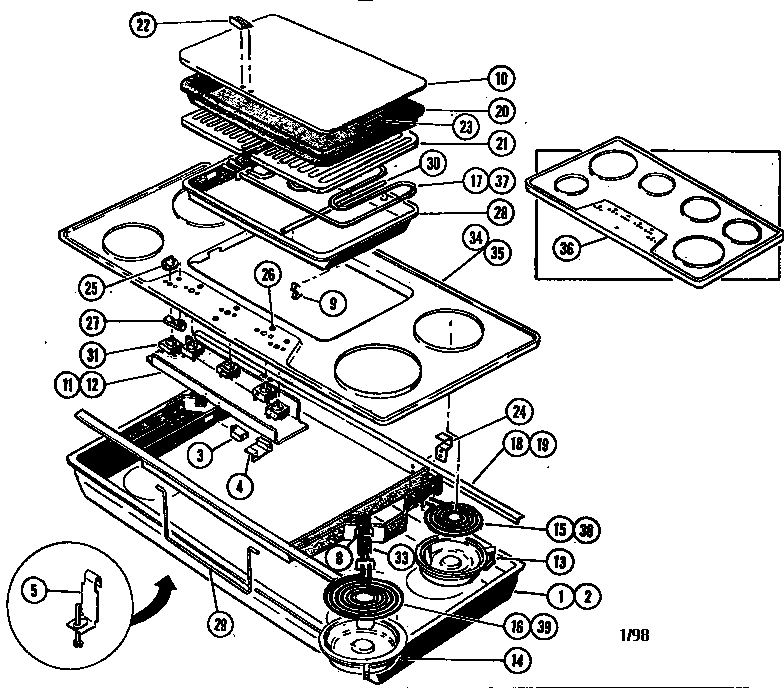

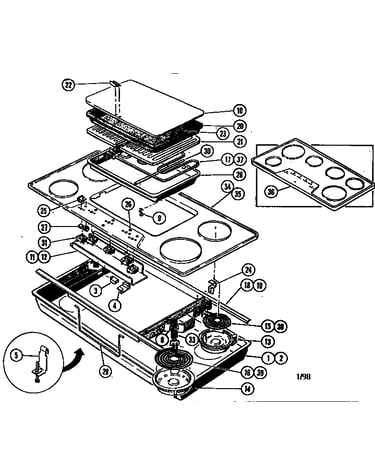

Cooktop diagram

Rod

Part #14-29-191-11

$20.49
In Stock
Thermador Motor 14-29-887
#1

Frame diagram

Thermador motor

Part #14-29-887

$175.49
In Stock
Thermador Spit 14-29-788
#13

Frame diagram

Thermador spit

Part #14-29-788

$55.99
In Stock
8" Surf Elem 14-29-999
#16

Cooktop diagram

8" surf elem

Part #14-29-999

Replaced by #00484791

?
Manufacturer substitution
This part replaces 14-29-999. Substitute parts can look different from the original.
$110.98
In Stock
Terminal 14-29-992
#33

Cooktop diagram

Terminal

Part #14-29-992

The manufacturer no longer makes this part, and there's no substitute part

Element 14-29-998
#15

Cooktop diagram

Element

Part #14-29-998

Replaced by #00484782

?
Manufacturer substitution
This part replaces 14-29-998. Substitute parts can look different from the original.
$105.18
In Stock
Front Panel 14-51-563-11
#9

Frame diagram

Front panel

Part #14-51-563-11

The manufacturer no longer makes this part, and there's no substitute part
