Ryobi
Router

Model # R-151 Official Ryobi router

Here are the diagrams and repair parts for Official Ryobi R-151 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Collet Sleev 6940132
#52-1

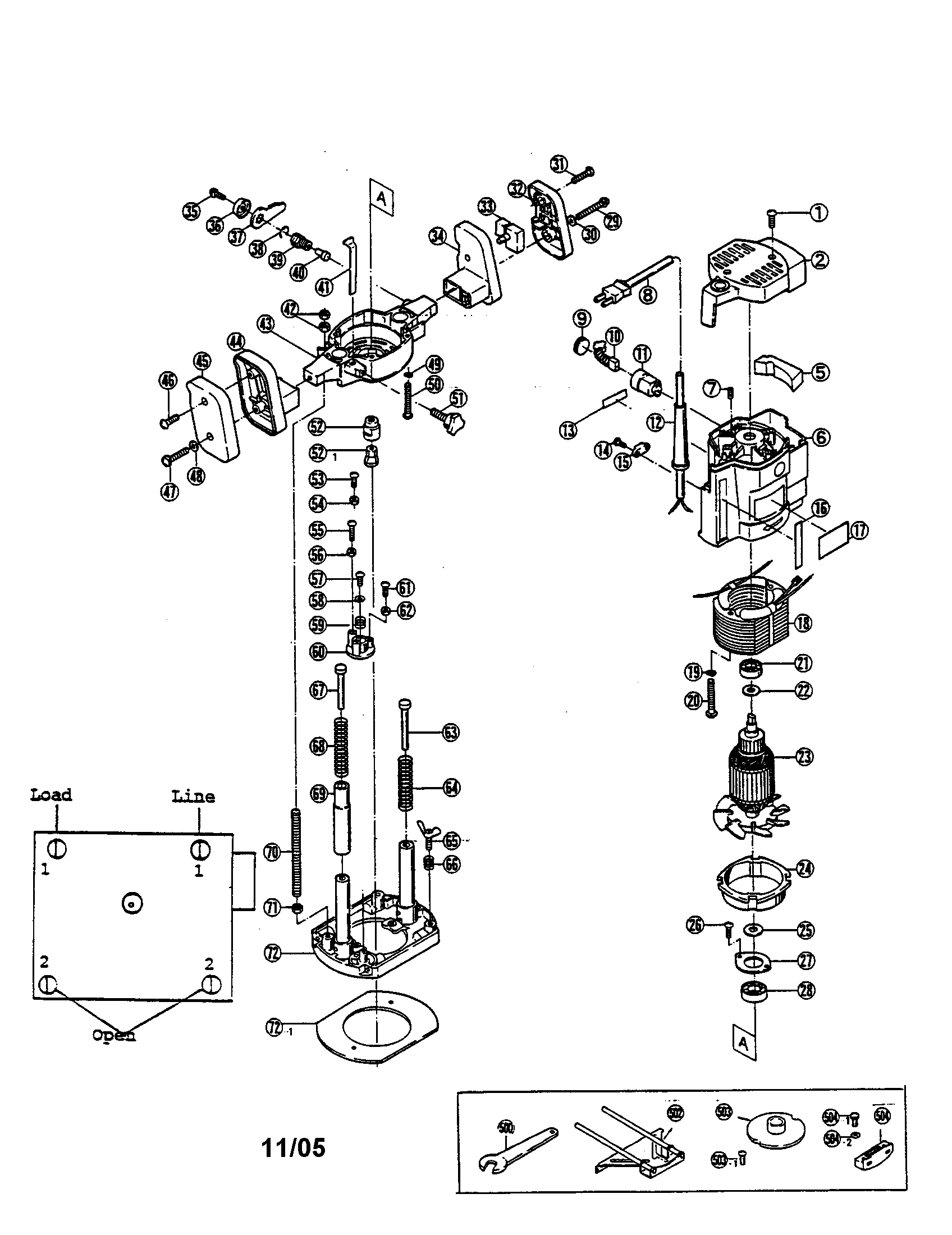

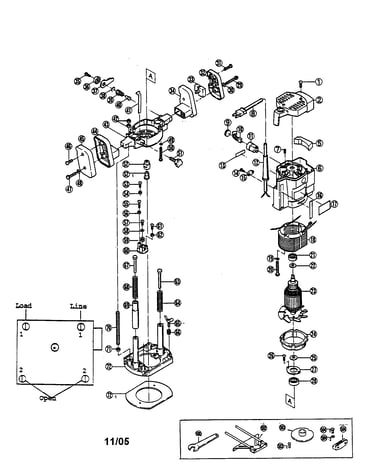

Router diagram

Collet sleev

Part #6940132

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 9674318

#NI02

All parts diagram

Lead wire

Part #9674318

The manufacturer no longer makes this part, and there's no substitute part

Stop Pole 6150462
#41

Router diagram

Stop pole

Part #6150462

The manufacturer no longer makes this part, and there's no substitute part

Cover 6800382
#2

Router diagram

Cover

Part #6800382

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 6130288
#39

Router diagram

Clamp screw

Part #6130288

The manufacturer no longer makes this part, and there's no substitute part

Compression Spring 6180063
Compression spring

Part #6180063

The manufacturer no longer makes this part, and there's no substitute part

Wing Bolt 6130395
#65

Router diagram

Wing bolt

Part #6130395

The manufacturer no longer makes this part, and there's no substitute part

Screw 9000512
#61

Router diagram

Screw

Part #9000512

The manufacturer no longer makes this part, and there's no substitute part

Washer 9570500
Washer

Part #9570500

The manufacturer no longer makes this part, and there's no substitute part

Screw 9040410
Screw

Part #9040410

The manufacturer no longer makes this part, and there's no substitute part
