Gas Cooktop

Model # JGP940SEK1SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP940SEK1SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Grate Rubber Foot WB02T10101
#45

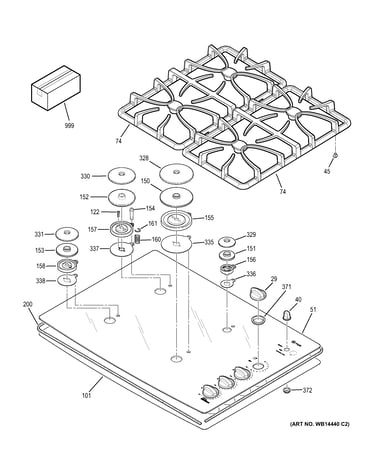

Control panel & cooktop diagram

Grate rubber foot

Part #WB02T10101

Replaced by #WB02T10461

?
Manufacturer substitution
This part replaces WB02T10101. Substitute parts can look different from the original.
BEST SELLER
$7.64
12% OFF Phone Price : $8.64
In Stock
Foam Tape WB06K5042
#200

Control panel & cooktop diagram

Foam tape

Part #WB06K5042

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB06K5042. Substitute parts can look different from the original.
$51.24
9% OFF Phone Price : $56.24
In Stock
Screw WB01K5150
#699

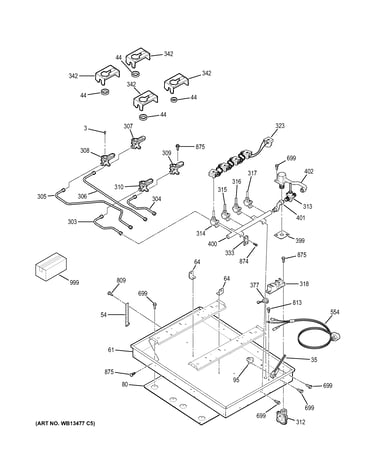

Gas & burner parts diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Cooktop Burner Igniter WB13T10010
#154

Control panel & cooktop diagram

Cooktop burner igniter

Part #WB13T10010

Replaced by #WB13X27058

?
Manufacturer substitution
This part replaces WB13T10010. Substitute parts can look different from the original.
$59.88
8% OFF Phone Price : $64.88
In Stock
Range Surface Burner Head WB16T10034
#151

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10034

$40.58
11% OFF Phone Price : $45.58
In Stock
Cooktop Spark Module (replaces Wb02x11172, Wb13t10038, Wb13t10079) WB13T10046
#318

Gas & burner parts diagram

Cooktop spark module (replaces wb02x11172, wb13t10038, wb13t10079)

Part #WB13T10046

$54.21
8% OFF Phone Price : $59.21
In Stock
Knob WB03T10220
#29

Control panel & cooktop diagram

Knob

Part #WB03T10220

Replaced by #WB03T10267

?
Manufacturer substitution
This part replaces WB03T10220. Substitute parts can look different from the original.
$27.99
15% OFF Phone Price : $32.99
In Stock
Cooktop Power Cord WB08T10015
#554

Gas & burner parts diagram

Cooktop power cord

Part #WB08T10015

$16.36
11% OFF Phone Price : $18.36
In Stock
Range Surface Burner Cap WB13T10061
#331

Control panel & cooktop diagram

Range surface burner cap

Part #WB13T10061

$29.61
14% OFF Phone Price : $34.61
In Stock
Range Surface Burner Base WB16T10030
#158

Control panel & cooktop diagram

Range surface burner base

Part #WB16T10030

This item is not returnable
$25.72
16% OFF Phone Price : $30.72
In Stock

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…

Repair guides for gas cooktops

How to replace a spark module on a gas cooktop

How to replace a spark module on a gas cooktop

No flame on your gas cooktop? Installing a new spark module could be the fix you need.…

Repair difficulty
Time required
 30 minutes or less
How to replace a spark igniter switch on a gas cooktop

How to replace a spark igniter switch on a gas cooktop

Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…

Repair difficulty
Time required
 45 minutes or less

Effective articles & videos to help repair your cooktops

Use the advice and tips in these articles and videos to get the most out of your cooktop.

Wiring schematic symbols explained video

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

How to use a multimeter to test electrical parts video

How to use a multimeter to test electrical parts video

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
