Model #T1244CH-12V Swisher 44" finish cut trail mower

Here are the diagrams and repair parts for Swisher T1244CH-12V 44" finish cut trail mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 143 parts

RIGHT BELT COVER (USE PAINT CODE: C=RED, G=GREEN, S=SILVER)

#2

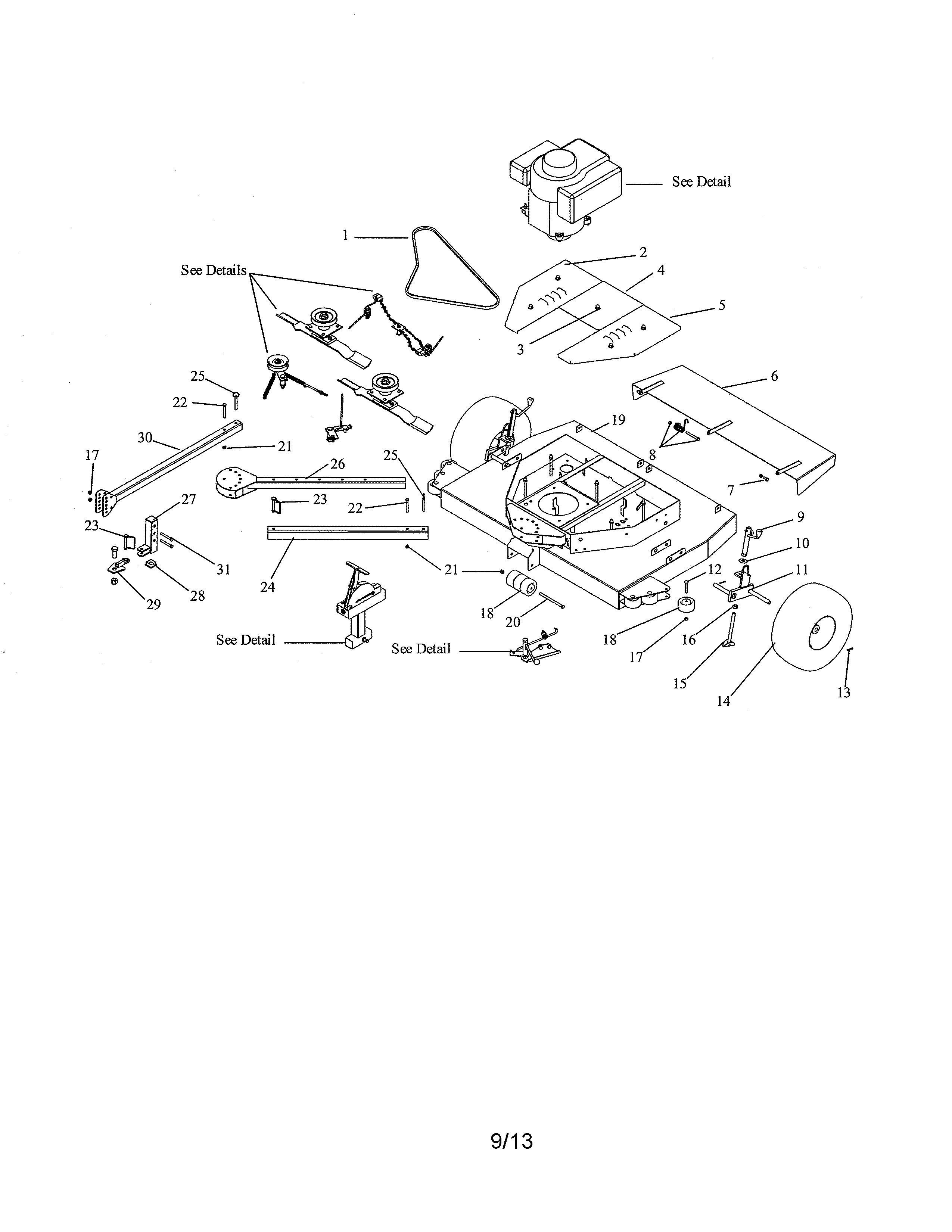

Dual height adjust Diagram

Right belt cover (use paint code: c=red, g=green, s=silver)

Part #A44155R

The manufacturer no longer makes this part, and there's no substitute part

RIGHT AXLE (USE PAINT CODE: C=RED, G=GREEN, S=SILVER)

#11A

Dual height adjust Diagram

Right axle (use paint code: c=red, g=green, s=silver)

Part #H6R44

The manufacturer no longer makes this part, and there's no substitute part

Wing Bolt

#68

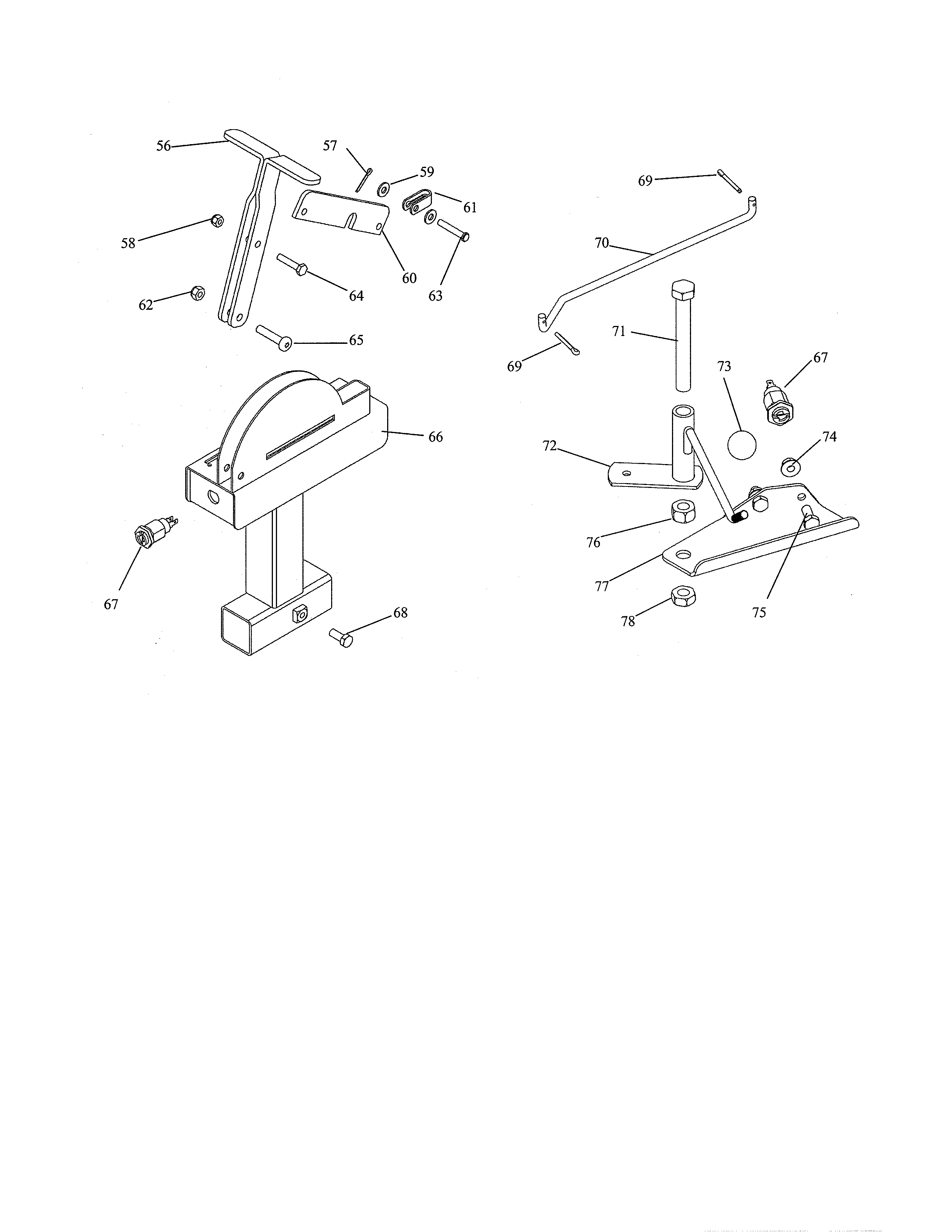

T-handle/standard engage Diagram

Wing bolt

Part #NB523

The manufacturer no longer makes this part, and there's no substitute part

UNIVERSAL MOUNT DECK (ADD PAINT COD: C=RED, G=GREEN, S=SILVER)

#129

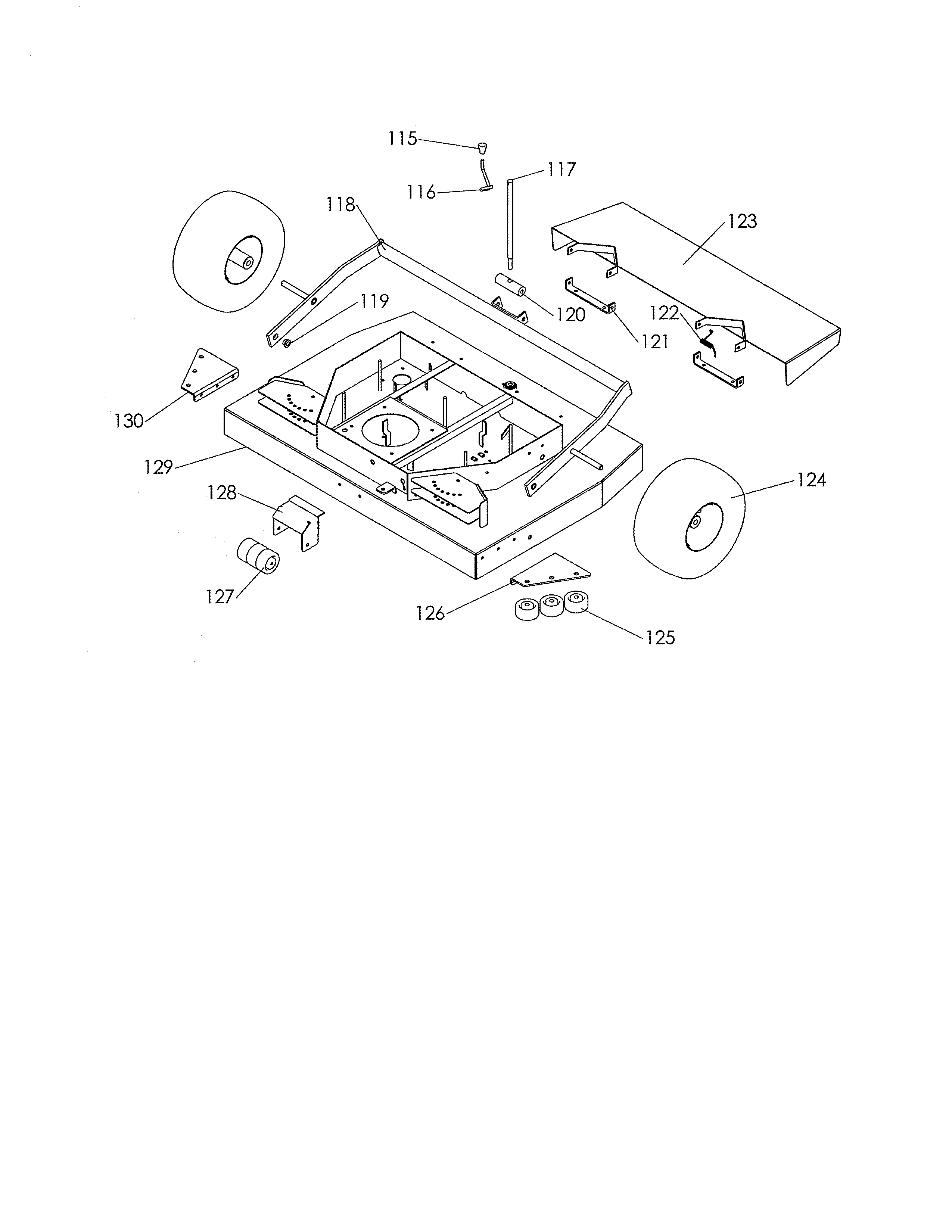

Single point height adjust Diagram

Universal mount deck (add paint cod: c=red, g=green, s=silver)

Part #4017

The manufacturer no longer makes this part, and there's no substitute part

FRONT HITCH (USE PAINT CODE: C=RED, G-GREEN, S=SILVER)

#30

Dual height adjust Diagram

Front hitch (use paint code: c=red, g-green, s=silver)

Part #4470

The manufacturer no longer makes this part, and there's no substitute part

DECK WELDMENT (USE PAINT CODE: C=RED, G=GREEN, S=SILVER)

#19

Dual height adjust Diagram

Deck weldment (use paint code: c=red, g=green, s=silver)

Part #4496

The manufacturer no longer makes this part, and there's no substitute part

ENGAGE LEVER (USE PAINT CODE: C=RED, G=GREEN, S=SILVER)

#72

T-handle/standard engage Diagram

Engage lever (use paint code: c=red, g=green, s=silver)

Part #4537

The manufacturer no longer makes this part, and there's no substitute part

Grass Chute

#123

Single point height adjust Diagram

Grass chute

Part #4019TK

The manufacturer no longer makes this part, and there's no substitute part

LEFT BELT COVER (USE PAINT CODE: C=RED, G=GREEN, S=SILVER)

#5

Dual height adjust Diagram

Left belt cover (use paint code: c=red, g=green, s=silver)

Part #A44155L

The manufacturer no longer makes this part, and there's no substitute part

"L" HITCH

#27

Dual height adjust Diagram

"l" hitch

Part #H1

The manufacturer no longer makes this part, and there's no substitute part
