Model # 875501152-1994 Official Craftsman hydraulic jack

Here are the diagrams and repair parts for Official Craftsman 875501152-1994 hydraulic jack, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

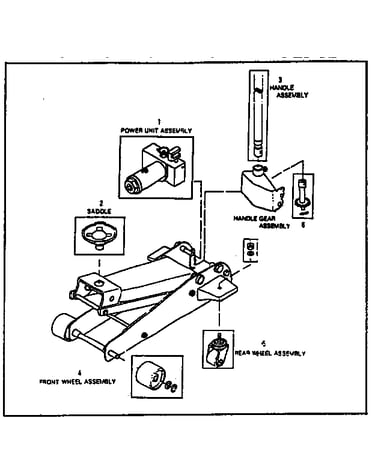

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |

Hydraulic Jack Torsion Spring 950115-25

#NI

All parts diagram

Hydraulic jack torsion spring

Part #950115-25

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 950115-02-03
#4

Unit parts diagram

Rear wheel

Part #950115-02-03

The manufacturer no longer makes this part, and there's no substitute part

Hydraulic Floor Jack Saddle 950115-12
#2

Unit parts diagram

Hydraulic floor jack saddle

Part #950115-12

The manufacturer no longer makes this part, and there's no substitute part

Handle 950115-36-38
#3

Unit parts diagram

Handle

Part #950115-36-38

The manufacturer no longer makes this part, and there's no substitute part

Hydraulic Floor Jack Owner's Manual IB-501152

#NI

All parts diagram

Hydraulic floor jack owner's manual

Part #IB-501152

The manufacturer no longer makes this part, and there's no substitute part

Handle Gear 950115-39-44
#6

Unit parts diagram

Handle gear

Part #950115-39-44

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 950115-45-57
#NI

Unit parts diagram

Handle assembly

Part #950115-45-57

The manufacturer no longer makes this part, and there's no substitute part

Floor Jack Castor Wheel, Rear 950115-04-06
#5

Unit parts diagram

Floor jack castor wheel, rear

Part #950115-04-06

The manufacturer no longer makes this part, and there's no substitute part

Powr Unit As 95Q115-07
#1

Unit parts diagram

Powr unit as

Part #95Q115-07

The manufacturer no longer makes this part, and there's no substitute part
