Whirlpool FXC43-135C-1 gas-fired counterflow furnace Parts

Here are the diagrams and repair parts for Whirlpool FXC43-135C-1 gas-fired counterflow furnace, as well as links to manuals and error code tables, if available.

Whirlpool FXC43-135C-1 gas-fired counterflow furnace
By Schematic

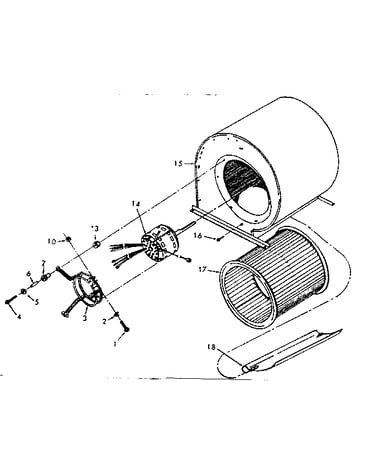

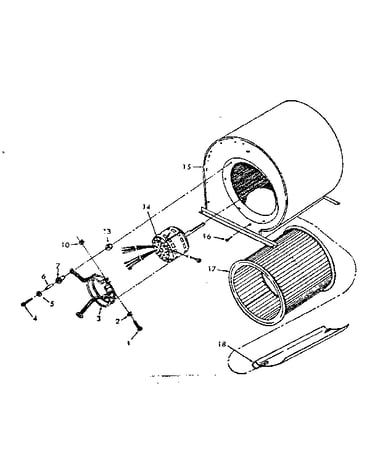

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFXC43-135C-1 Gas-Fired Counterflow Furnace

  • Flange for Whirlpool FXC43-135C-1 - Part 864368

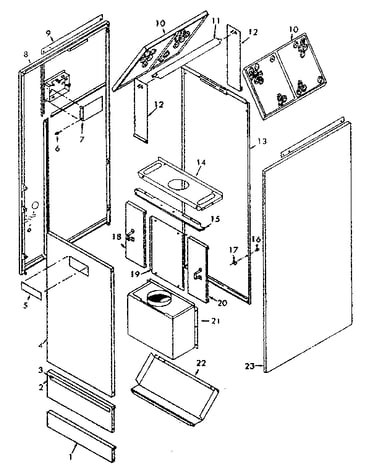

    Furnace casing diagram

    Flange

    Part #864368

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel for Whirlpool FXC43-135C-1 - Part H601369

    Furnace casing diagram

    Panel

    Part #H601369

    The manufacturer no longer makes this part, and there's no substitute part

  • Spud for Whirlpool FXC43-135C-1 - Part 862036

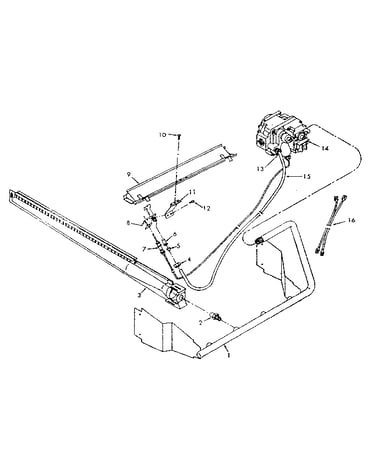

    Burner and manifold assembly diagram

    Spud

    Part #862036

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool FXC43-135C-1 - Part 457501

    Furnace casing diagram

    Screw

    Part #457501

    The manufacturer no longer makes this part, and there's no substitute part

  • Liner for Whirlpool FXC43-135C-1 - Part 862494

    Liner

    Part #862494

    The manufacturer no longer makes this part, and there's no substitute part

  • Ice Orifice for Whirlpool FXC43-135C-1 - Part 862724

    Burner and manifold assembly diagram

    Ice Orifice

    Part #862724

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover for Whirlpool FXC43-135C-1 - Part 863243

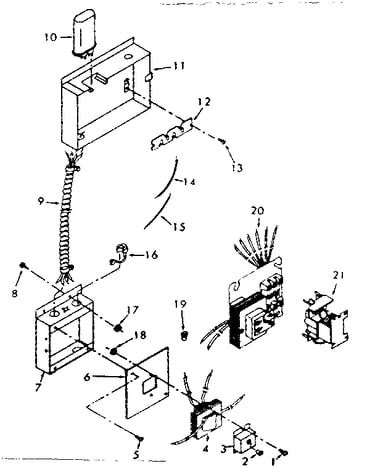

    Junction box diagram

    Cover

    Part #863243

    The manufacturer no longer makes this part, and there's no substitute part

  • Exchanger for Whirlpool FXC43-135C-1 - Part 862497

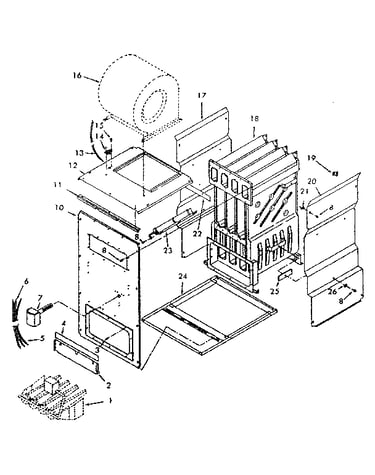

    Furnace body diagram

    Exchanger

    Part #862497

    The manufacturer no longer makes this part, and there's no substitute part

  • Grommet Ring for Whirlpool FXC43-135C-1 - Part 860266

    Grommet Ring

    Part #860266

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut for Whirlpool FXC43-135C-1 - Part 860091

    Furnace body diagram

    Nut

    Part #860091

    The manufacturer no longer makes this part, and there's no substitute part
