Model # 271798810 Official Craftsman power blower

Here are the diagrams and repair parts for Official Craftsman 271798810 power blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

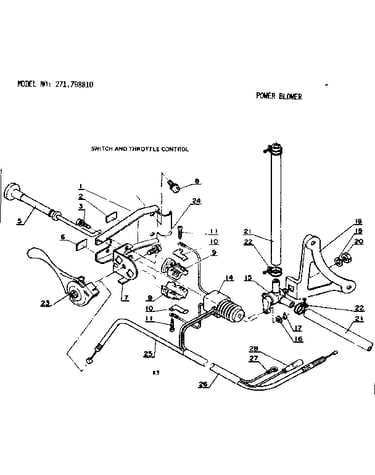

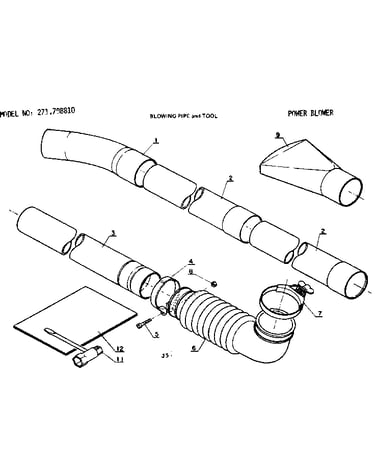

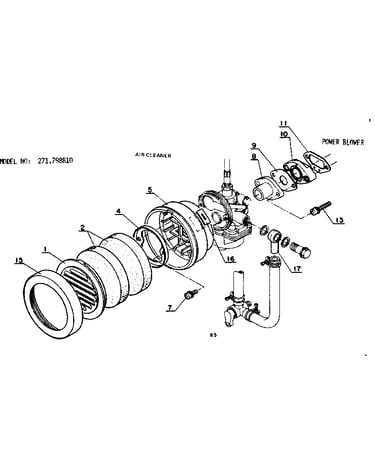

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Spark Plug 159010-00330
#3

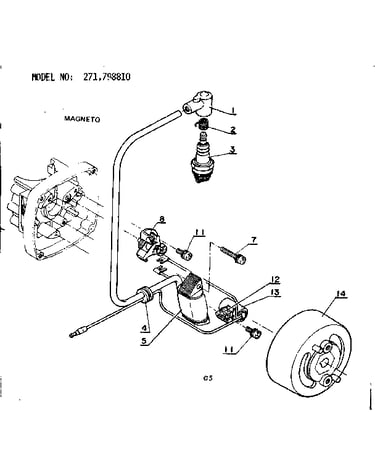

Magneto diagram

Spark plug

Part #159010-00330

Replaced by #CJ8

?
Manufacturer substitution
This part replaces 159010-00330. Substitute parts can look different from the original.
This item is not returnable
$2.15 |
55% OFF MSRP : $4.80
In Stock
Packing 100242-04630
#6

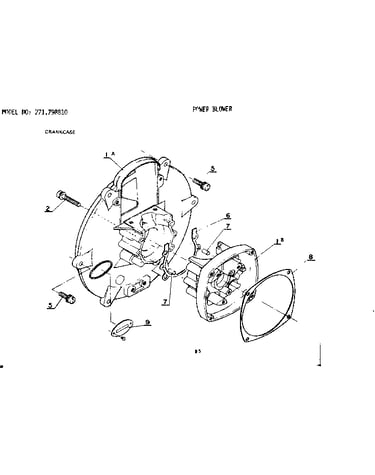

Crankcase diagram

Packing

Part #100242-04630

The manufacturer no longer makes this part, and there's no substitute part

Packing 101010-04630
#5

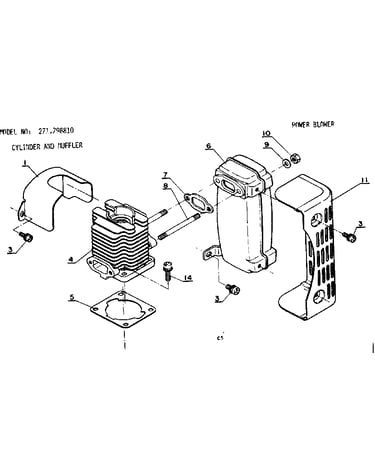

Cylinder and muffler diagram

Packing

Part #101010-04630

The manufacturer no longer makes this part, and there's no substitute part

Washer 900600-00005
Washer

Part #900600-00005

The manufacturer no longer makes this part, and there's no substitute part

Plug Clip 159011-00510
#2

Magneto diagram

Plug clip

Part #159011-00510

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank 131010-00660
#4

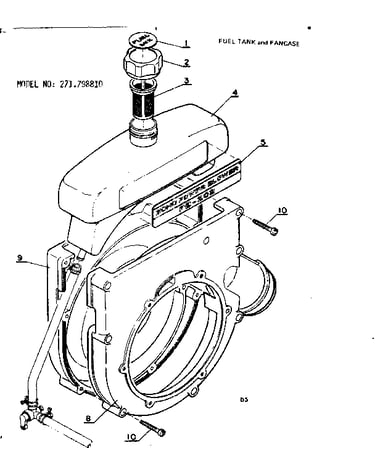

Fuel tankand fancase diagram

Fuel tank

Part #131010-00660

The manufacturer no longer makes this part, and there's no substitute part

O-ring 120123-10210
#13

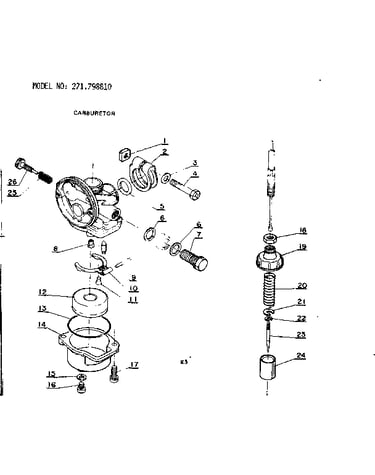

Carburetor diagram

O-ring

Part #120123-10210

The manufacturer no longer makes this part, and there's no substitute part

Button 300333-00310
#19

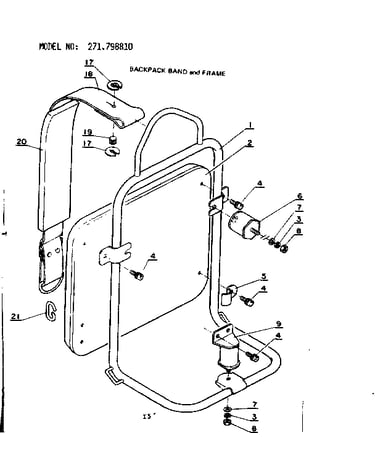

Backpack band and frame diagram

Button

Part #300333-00310

The manufacturer no longer makes this part, and there's no substitute part

Crankshaft 100100-10210
#7

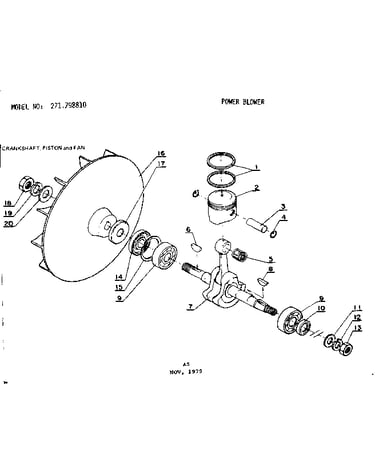

Crankshaft piston and fan diagram

Crankshaft

Part #100100-10210

The manufacturer no longer makes this part, and there's no substitute part

Starter Case 177209-04630
#20

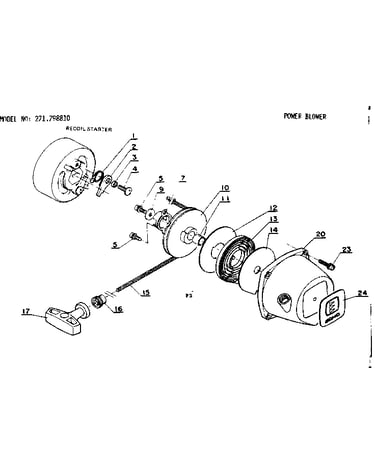

Recoil starter diagram

Starter case

Part #177209-04630

The manufacturer no longer makes this part, and there's no substitute part
