Model # KP532LD3 Official White-Westinghouse electric cooktop range - 5995237855

Here are the diagrams and repair parts for Official White-Westinghouse KP532LD3 electric cooktop range - 5995237855, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Range Coil Surface Element, 6-in 5303015210
#11A

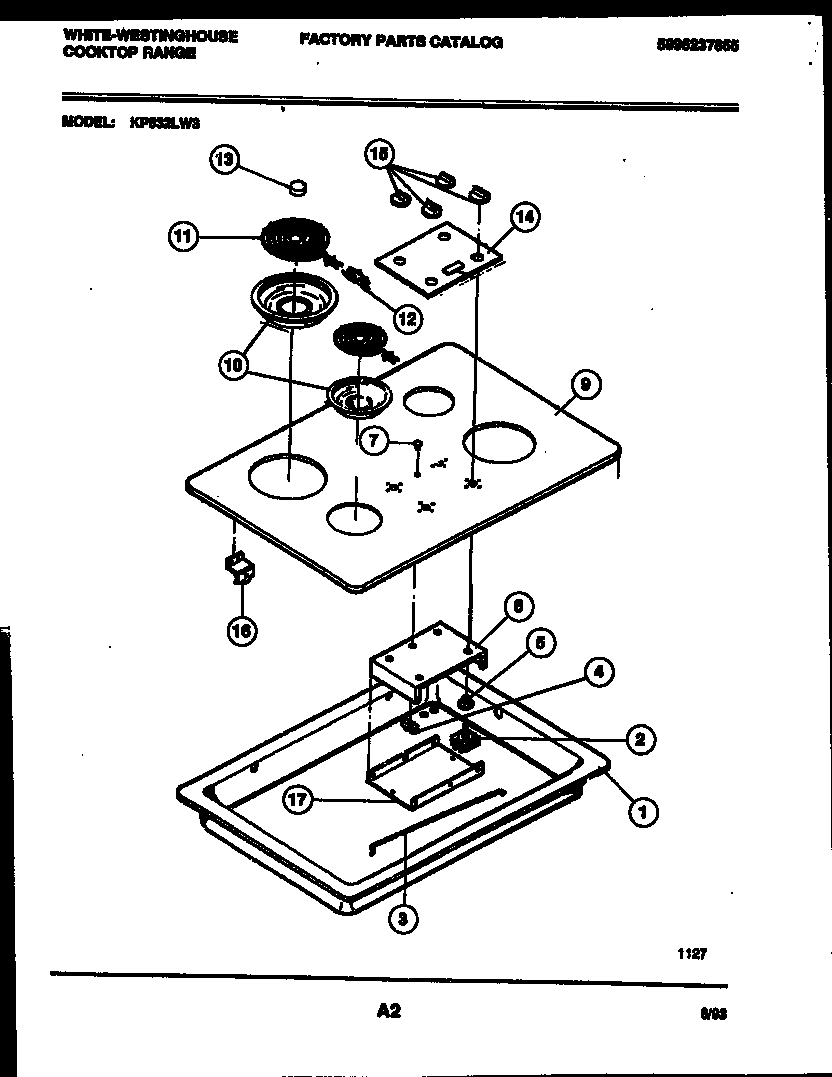

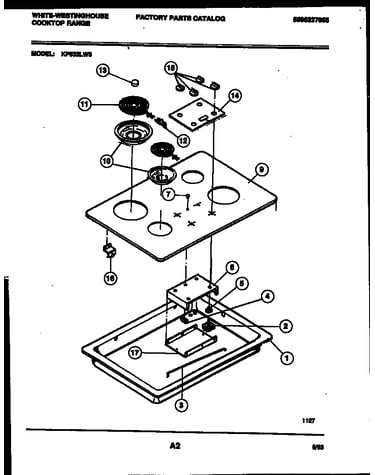

Cooktop parts diagram

Range coil surface element, 6-in

Part #5303015210

Replaced by #318372211

?
Manufacturer substitution
This part replaces 5303015210. Substitute parts can look different from the original.
BEST SELLER
$36.32
14% OFF Phone Price : $42.44
In Stock
Cooktop Element Center Medallion (black) (replaces 1505987, 246004, 3017715, 9178, 9566, A1505987, Ap246004, P246004) 5303017715
#13

Cooktop parts diagram

Cooktop element center medallion (black) (replaces 1505987, 246004, 3017715, 9178, 9566, a1505987, ap246004, p246004)

Part #5303017715

$48.99
9% OFF Phone Price : $53.99
In Stock
Bushing 08007822
#5

Cooktop parts diagram

Bushing

Part #08007822

Replaced by #318146010

?
Manufacturer substitution
This part replaces 08007822. Substitute parts can look different from the original.
In Stock
Main 5303296836
#9

Cooktop parts diagram

Main

Part #5303296836

In Stock
Range Coil Surface Element, 8-in 5308011964
#11

Cooktop parts diagram

Range coil surface element, 8-in

Part #5308011964

$153.29
6% OFF Phone Price : $163.29
In Stock
Switch-6"sur 5303299248
#2

Cooktop parts diagram

Switch-6"sur

Part #5303299248

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5303299248. Substitute parts can look different from the original.
$43.22
8% OFF Phone Price : $46.96
In Stock
Range Drip Pan 5303013588
#10

Cooktop parts diagram

Range drip pan

Part #5303013588

Replaced by #316048413

?
Manufacturer substitution
This part replaces 5303013588. Substitute parts can look different from the original.
This item is not returnable
$7.53
69% OFF MSRP : $24.00
In Stock
Range Drip Pan, 6-in 5303280336
#10A

Cooktop parts diagram

Range drip pan, 6-in

Part #5303280336

Replaced by #316048414

?
Manufacturer substitution
This part replaces 5303280336. Substitute parts can look different from the original.
This item is not returnable
$5.97
57% OFF MSRP : $14.00
In Stock
Switch-8"sur 5303299249
#2

Cooktop parts diagram

Switch-8"sur

Part #5303299249

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5303299249. Substitute parts can look different from the original.
$43.22
8% OFF Phone Price : $46.96
In Stock
Range Surface Element Receptacle 5301167733
#12

Cooktop parts diagram

Range surface element receptacle

Part #5301167733

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5301167733. Substitute parts can look different from the original.
$8.34
31% OFF MSRP : $12.00
In Stock
