Modern Maid
Gas Cooktop

Model # PGT136UD-P1131485ND Official Modern Maid gas cooktop

Here are the diagrams and repair parts for Official Modern Maid PGT136UD-P1131485ND gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Regulator 0304611
#22

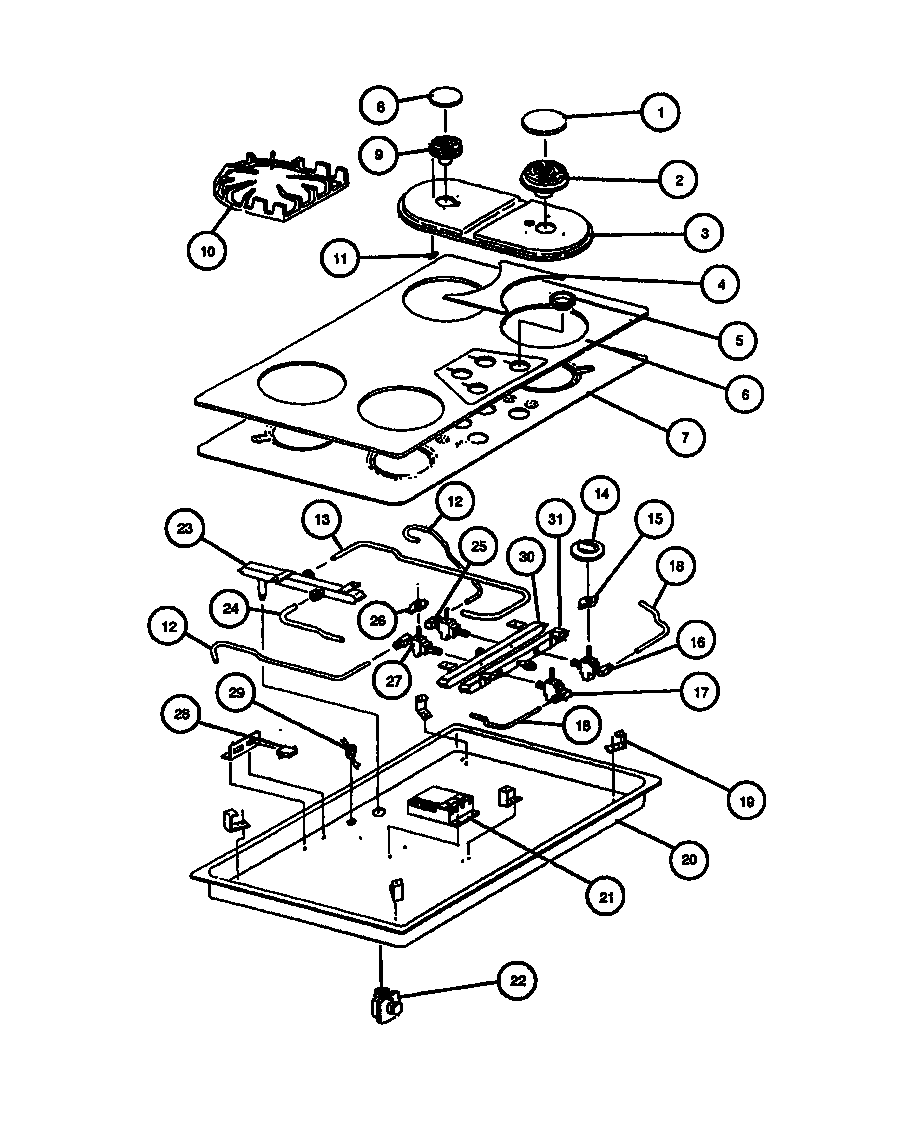

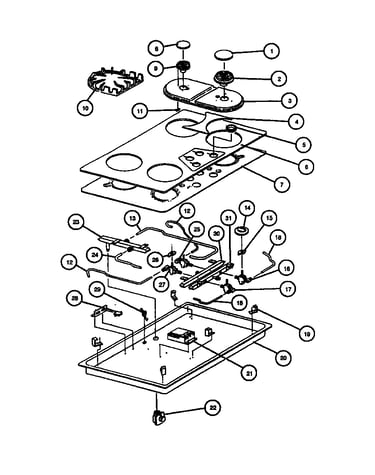

Page 2 diagram

Regulator

Part #0304611

The manufacturer no longer makes this part, and there's no substitute part

Assy, Electr 0304357
#9999

Page 2 diagram

Assy, electr

Part #0304357

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 0304357. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
13% OFF Phone Price : $39.99
In Stock
Tapng Scrw 8 0041792
#9999

Page 2 diagram

Tapng scrw 8

Part #0041792

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 0041792. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Range Spark Module 0302244
#21

Page 2 diagram

Range spark module

Part #0302244

The manufacturer no longer makes this part, and there's no substitute part

Electronic Clip 0304365
#9999

Page 2 diagram

Electronic clip

Part #0304365

The manufacturer no longer makes this part, and there's no substitute part

Screw #8 - 1 0061164
#9999

Page 2 diagram

Screw #8 - 1

Part #0061164

The manufacturer no longer makes this part, and there's no substitute part

Rear Tubing 0305258
#12

Page 2 diagram

Rear tubing

Part #0305258

The manufacturer no longer makes this part, and there's no substitute part

Burner 0304908
#2

Page 2 diagram

Burner

Part #0304908

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve Knob 0304800
#14

Page 2 diagram

Gas valve knob

Part #0304800

The manufacturer no longer makes this part, and there's no substitute part

Inst Instr Pgt130/136 0304627
#9999

Page 2 diagram

Inst instr pgt130/136

Part #0304627

The manufacturer no longer makes this part, and there's no substitute part
