GE JTP86SF2SS wall oven/microwave combo Parts

Here are the diagrams and repair parts for GE JTP86SF2SS wall oven/microwave combo, as well as links to manuals and error code tables, if available.

GE JTP86SF2SS wall oven/microwave combo
By Schematic
By Part

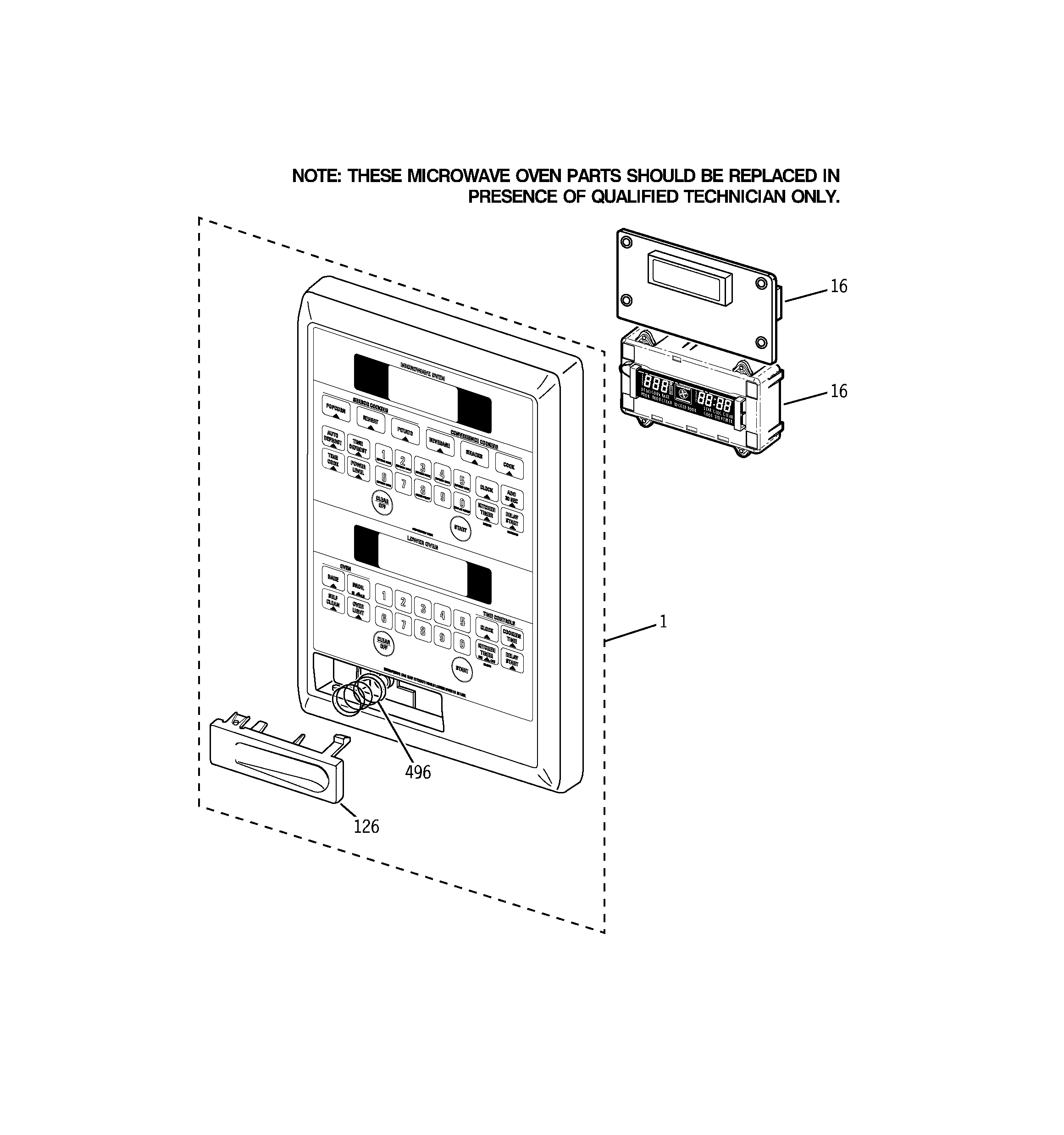

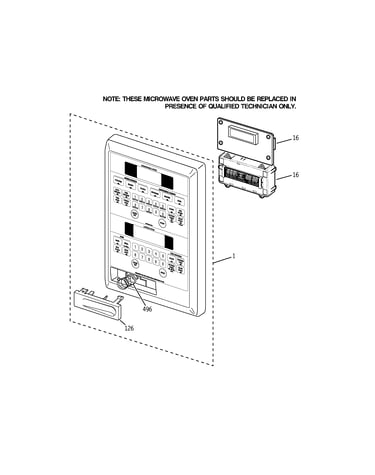

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JTP86SF2SS Wall Oven/Microwave Combo

  • Microwave Fuse for GE JTP86SF2SS - Part WB27X10928

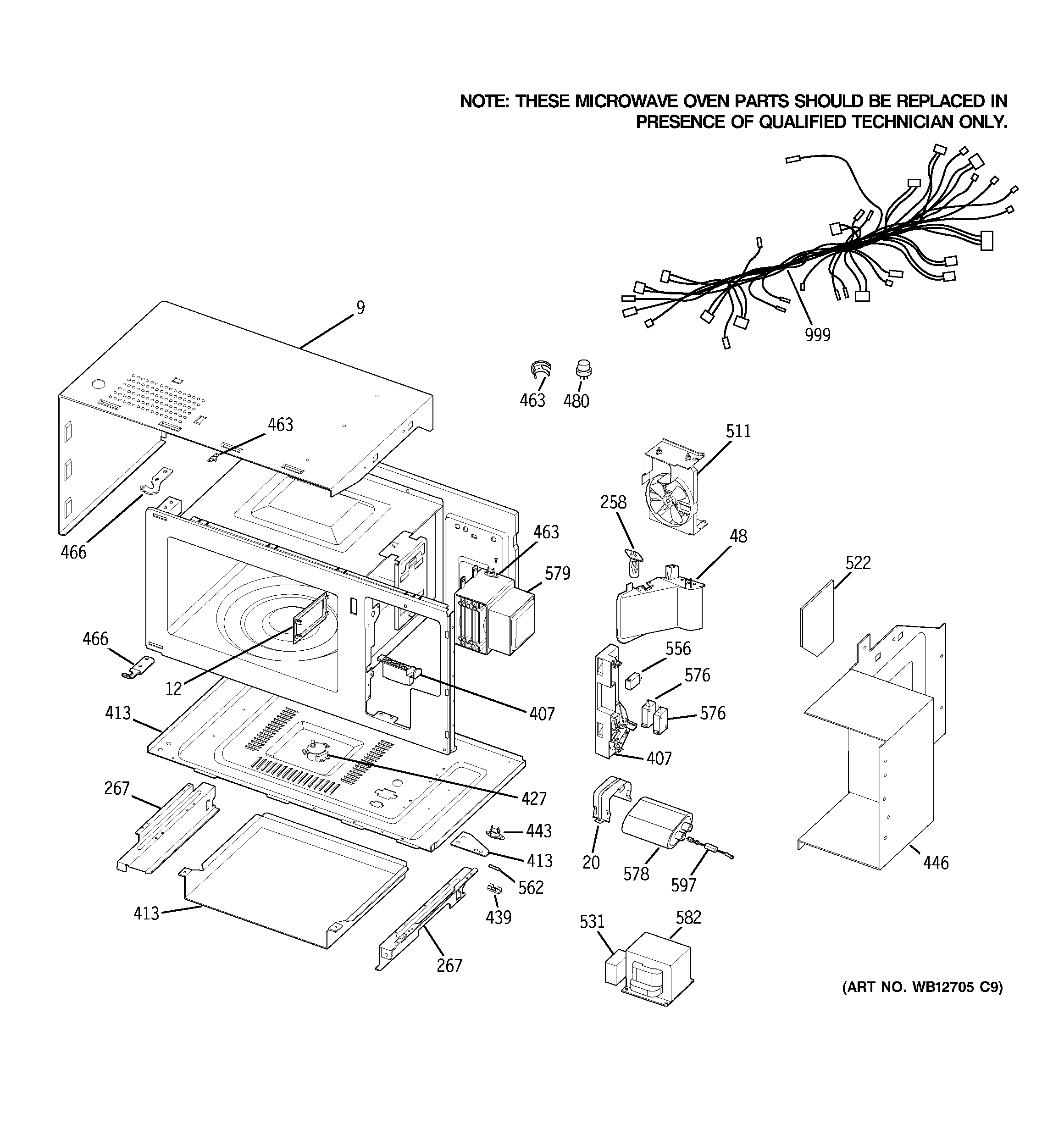

    Microwave body parts diagram

    Fuse Cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    In Stock
    $12.92
    13% OFF Phone Price : $14.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for GE JTP86SF2SS - Part WB24X830

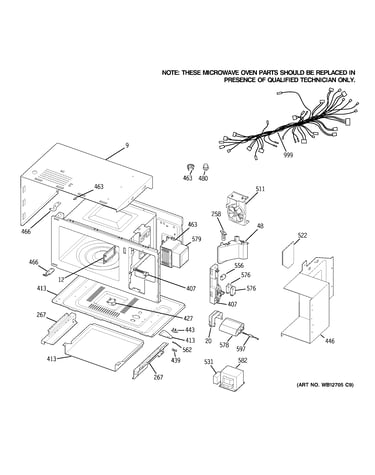

    Microwave body parts diagram

    Monitor Switch

    Part #WB24X0830

    Replaced by #WB24X830

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0830. Substitute parts can look different from the original.
    In Stock
    $36.05
    14% OFF Phone Price : $42.05Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE JTP86SF2SS - Part 40A15

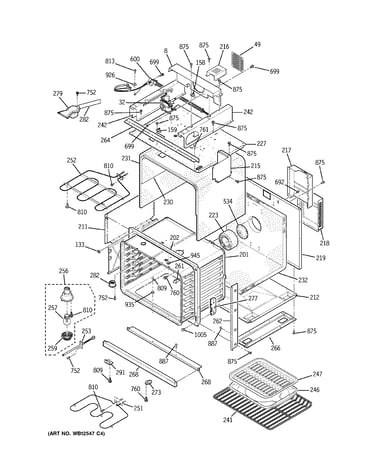

    Body with microwave support diagram

    Oven Lamp

    Part #WB08T10022

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10022. Substitute parts can look different from the original.
    In Stock
    $15.40
    11% OFF Phone Price : $17.40Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Bake Element for GE JTP86SF2SS - Part WB44T10018

    Body with microwave support diagram

    G.e. Range Bake Element

    Part #WB44T10018
    In Stock
    $90.31
    6% OFF Phone Price : $96.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Diode for GE JTP86SF2SS - Part WB27X10597

    Microwave body parts diagram

    High-voltage Diode

    Part #WB27X10169

    Replaced by #WB27X10597

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10169. Substitute parts can look different from the original.
    In Stock
    $55.83
    10% OFF Phone Price : $61.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for GE JTP86SF2SS - Part WB27X10516

    Microwave body parts diagram

    Microwave Magnetron

    Part #WB27X10516
    In Stock
    $327.07
    $12.00 OFF Phone Price : $339.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooking Appliance Screw, #10-32 for GE JTP86SF2SS - Part WB01T10008

    Cooking Appliance Screw, #10-32

    Part #WB01T10008
    This item is not returnable
    In Stock
    $10.87
    16% OFF Phone Price : $12.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Assembly for GE JTP86SF2SS - Part WB08T10002

    Body with microwave support diagram

    Oven Lamp Holder

    Part #WB08T10002

    Replaced by #WB08T10002

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10002. Substitute parts can look different from the original.
    In Stock
    $35.01
    15% OFF Phone Price : $41.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for GE JTP86SF2SS - Part WB27X10073

    Microwave body parts diagram

    Microwave High-voltage Capacitor

    Part #WB27X10073
    In Stock
    $91.89
    6% OFF Phone Price : $97.89Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Oven Door Middle Glass for GE JTP86SF2SS - Part WB56T10105

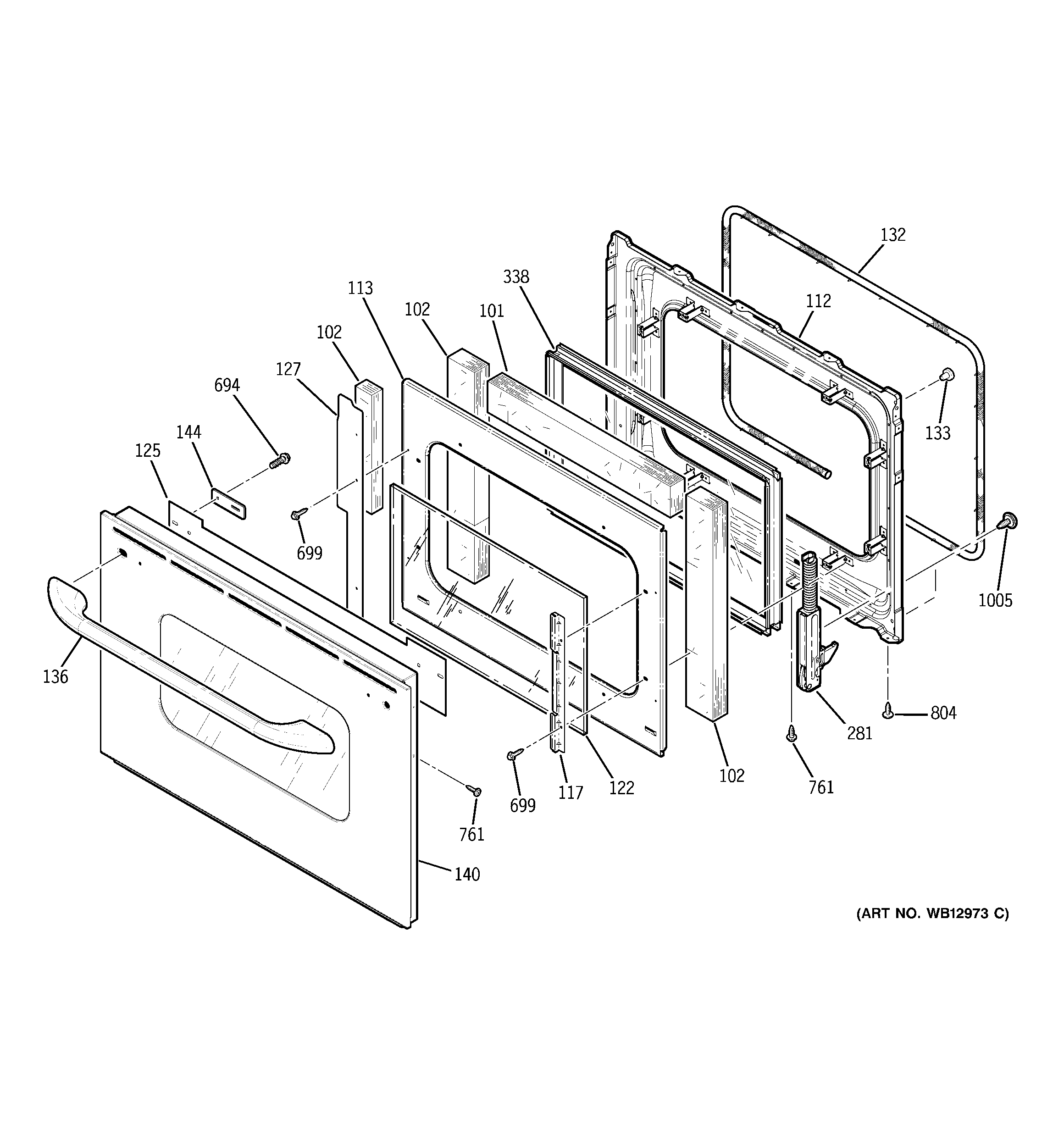

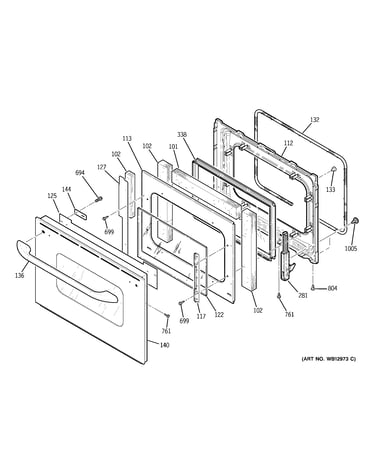

    Door diagram

    G.e. Range Oven Door Middle Glass

    Part #WB56T10105
    In Stock
    $136.26
    8% OFF Phone Price : $148.26Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Foam Tape WB01T10052

Foam Tape

Part #WB01T10052
In Stock
$9.01
10% OFF Phone Price : $10.01Info Icon
Minus Item
Qty
Plus Item
Foam Tape WB01T10055

Foam Tape

Part #WB01T10055
In Stock
$7.98
11% OFF Phone Price : $8.98Info Icon
Minus Item
Qty
Plus Item
