Model # 315797600 Official Craftsman 14" hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 315797600 14" hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Blade Assembly 968359-001
#9

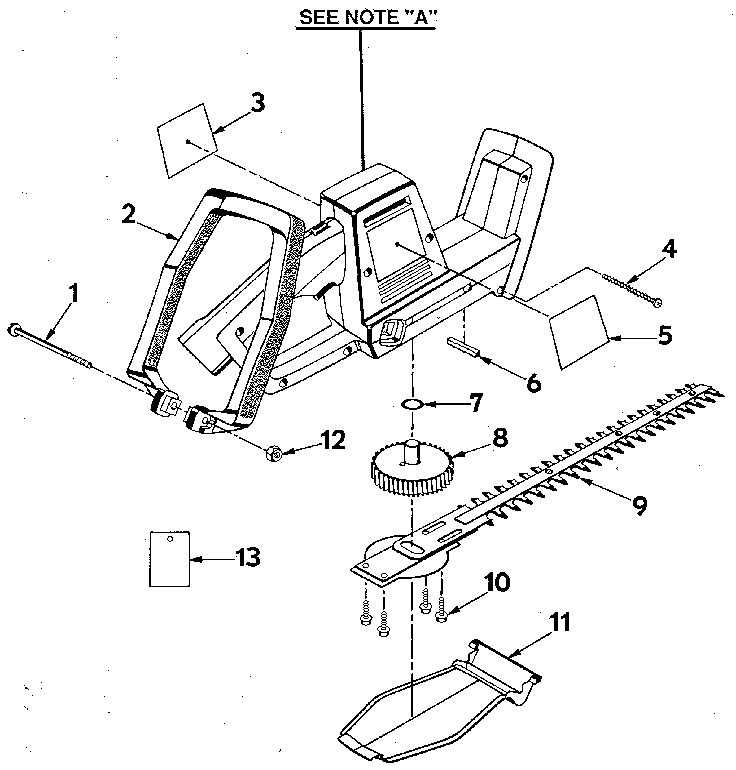

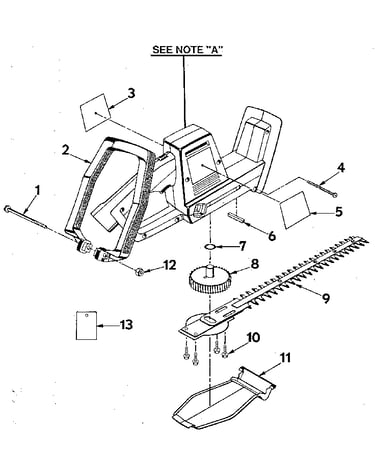

Main frame diagram

Blade assembly

Part #968359-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 968353-001
#3

Main frame diagram

Logo plate

Part #968353-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 968352-001
#5

Main frame diagram

Data plate

Part #968352-001

The manufacturer no longer makes this part, and there's no substitute part

Spacer Washer 620789-013
#16

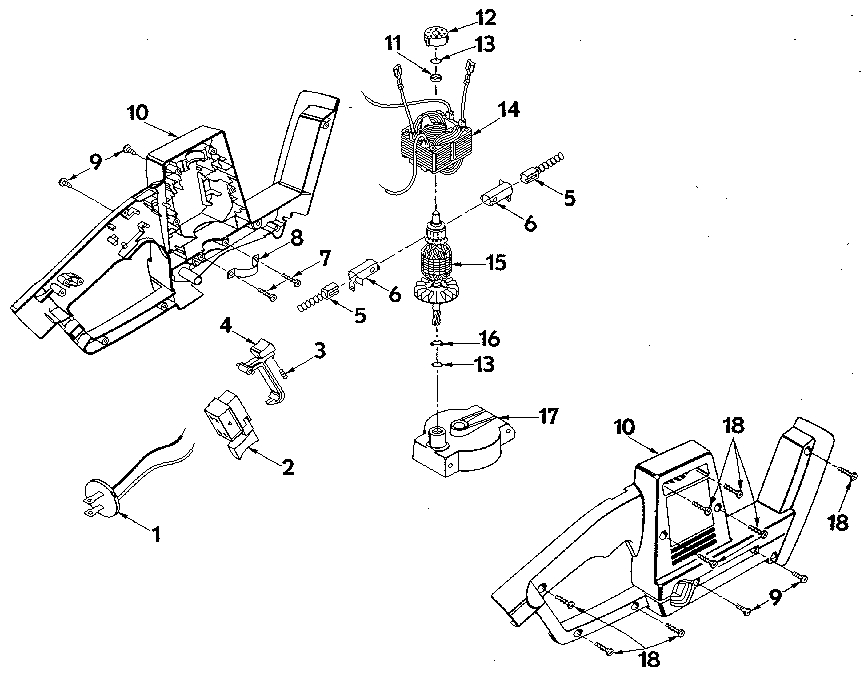

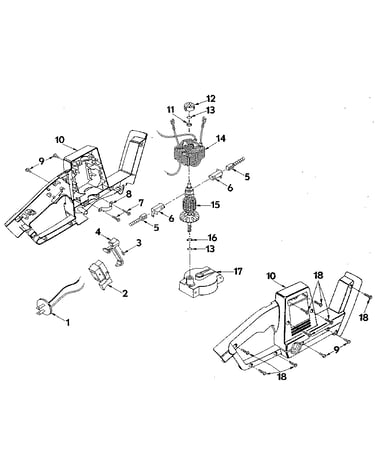

Motor diagram

Spacer washer

Part #620789-013

The manufacturer no longer makes this part, and there's no substitute part

Armature 989933-021
#15

Motor diagram

Armature

Part #989933-021

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 967818-001
#8

Main frame diagram

Gear assembly

Part #967818-001

The manufacturer no longer makes this part, and there's no substitute part

Gr Hsg W/b 968153-004
#17

Motor diagram

Gr hsg w/b

Part #968153-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 643526-003
#7

Motor diagram

Screw

Part #643526-003

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 929058-005
#12

Main frame diagram

Hex nut

Part #929058-005

The manufacturer no longer makes this part, and there's no substitute part

Disc Assembly 967781-001
#1

Motor diagram

Disc assembly

Part #967781-001

The manufacturer no longer makes this part, and there's no substitute part
