Kenmore
Electric Cooktop

Model #10143321 Kenmore electric counter insert

Here are the diagrams and repair parts for Kenmore 10143321 electric counter insert, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 33 parts

    Adapter Ring

    #7

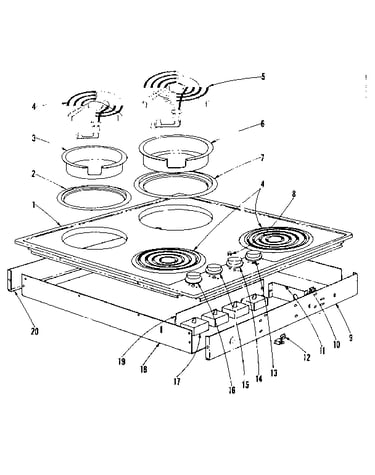

    Cooktop Diagram

    Adapter ring

    Part #33797

    The manufacturer no longer makes this part, and there's no substitute part

    Reflect Pan

    #6

    Cooktop Diagram

    Reflect pan

    Part #31197

    The manufacturer no longer makes this part, and there's no substitute part

    Reflect Pan

    #3

    Cooktop Diagram

    Reflect pan

    Part #31194

    The manufacturer no longer makes this part, and there's no substitute part

    Switch

    #17

    Cooktop Diagram

    Switch

    Part #40714

    The manufacturer no longer makes this part, and there's no substitute part

    Adapter Ring

    #2

    Cooktop Diagram

    Adapter ring

    Part #33796

    The manufacturer no longer makes this part, and there's no substitute part

    Unit

    #4

    Cooktop Diagram

    Unit

    Part #42081

    The manufacturer no longer makes this part, and there's no substitute part

    Unit

    #5

    Cooktop Diagram

    Unit

    Part #42082

    The manufacturer no longer makes this part, and there's no substitute part

    Counter

    #1E

    Cooktop Diagram

    Counter

    Part #41258

    The manufacturer no longer makes this part, and there's no substitute part

    Switch Knob

    #16

    Cooktop Diagram

    Switch knob

    Part #40801

    The manufacturer no longer makes this part, and there's no substitute part

    Counter

    #1C

    Cooktop Diagram

    Counter

    Part #41256

    The manufacturer no longer makes this part, and there's no substitute part
