Craftsman 315101050 drill Parts

Here are the diagrams and repair parts for Craftsman 315101050 drill, as well as links to manuals and error code tables, if available.

Craftsman 315101050 drill

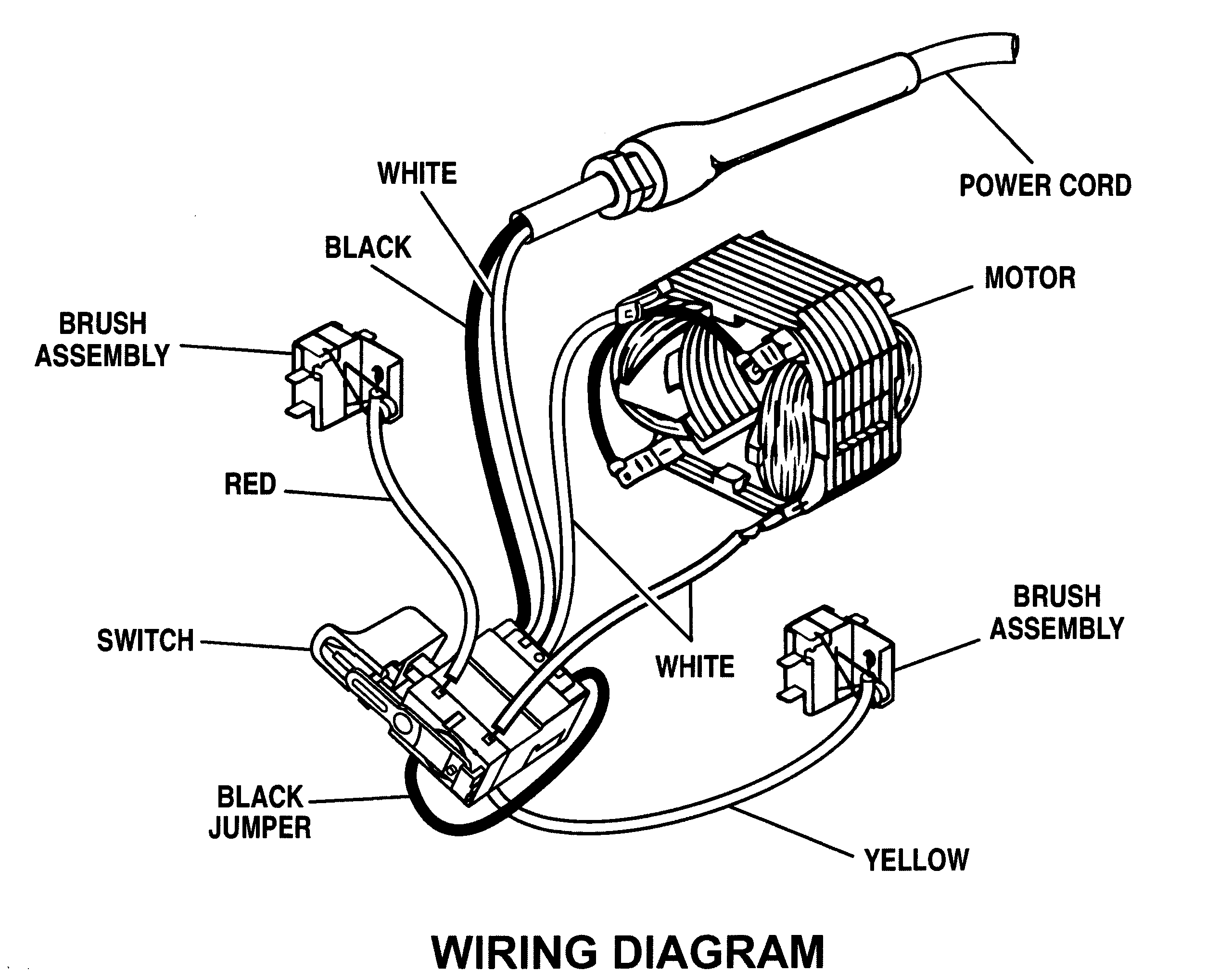

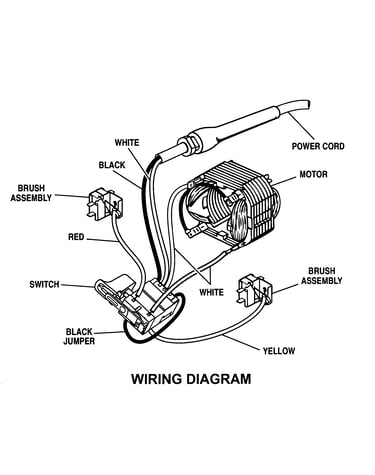

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315101050 Power Tools

  • Switch for Craftsman 315101050 - Part 7619703

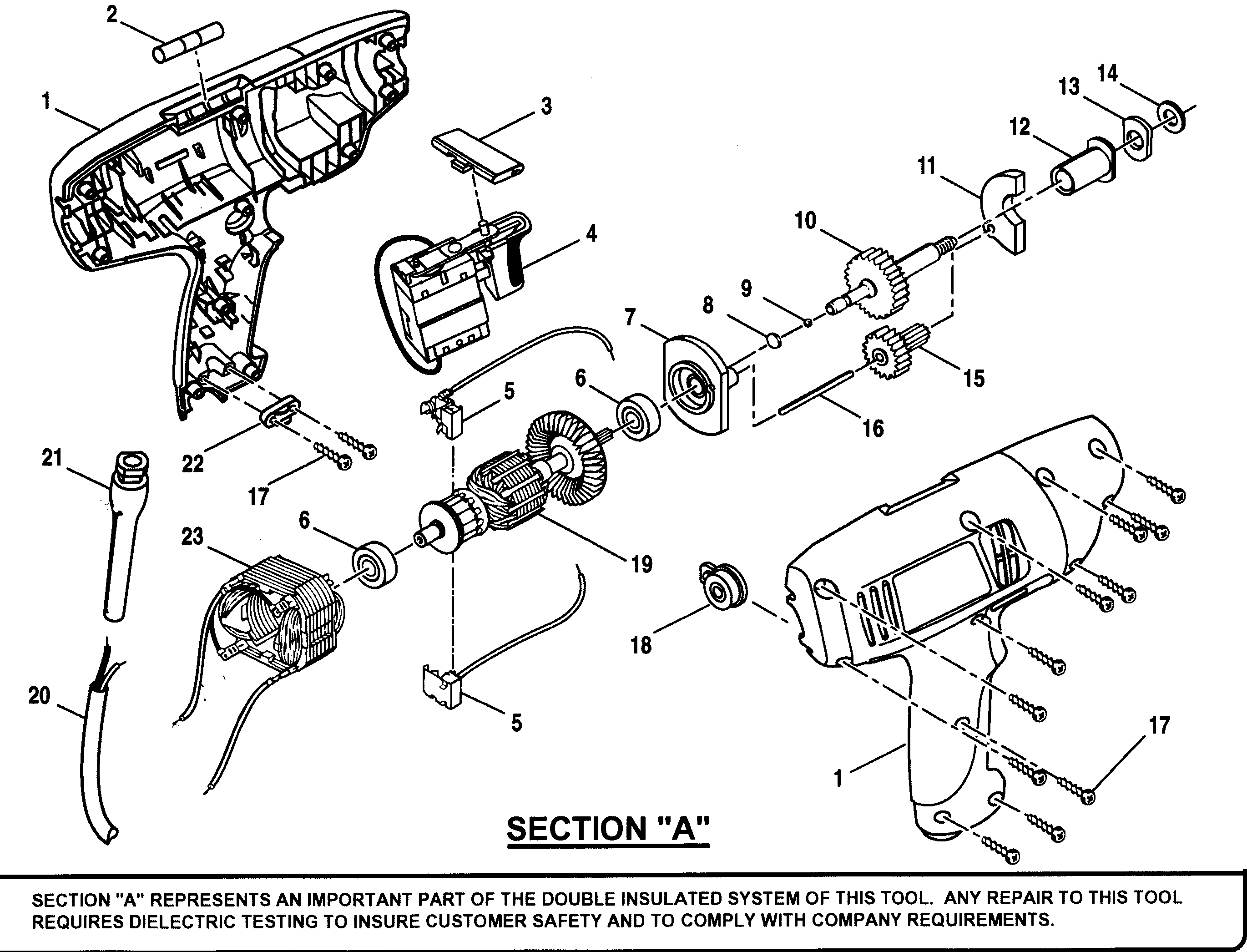

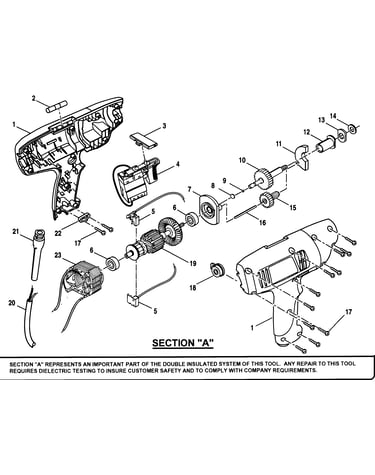

    Motor assy diagram

    Switch

    Part #7619703

    The manufacturer no longer makes this part, and there's no substitute part

  • Sleeve for Craftsman 315101050 - Part 6861402

    Motor assy diagram

    Sleeve

    Part #6861402

    The manufacturer no longer makes this part, and there's no substitute part

  • Armature for Craftsman 315101050 - Part 984590-001

    Motor assy diagram

    Armature

    Part #984590-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Brush Assembly for Craftsman 315101050 - Part 2906906

    Motor assy diagram

    Brush Assembly

    Part #2906906

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw M3.5 X 16mm for Craftsman 315101050 - Part 6620606

    Motor assy diagram

    Screw M3.5 X 16mm

    Part #6620606

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing for Craftsman 315101050 - Part 984420-001

    Motor assy diagram

    Housing

    Part #984420-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear for Craftsman 315101050 - Part 3072301

    Motor assy diagram

    Gear

    Part #3072301

    The manufacturer no longer makes this part, and there's no substitute part

  • Bearing for Craftsman 315101050 - Part 6710903

    Motor assy diagram

    Bearing

    Part #6710903

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Chuck Key for Craftsman 315101050 - Part 9-2053

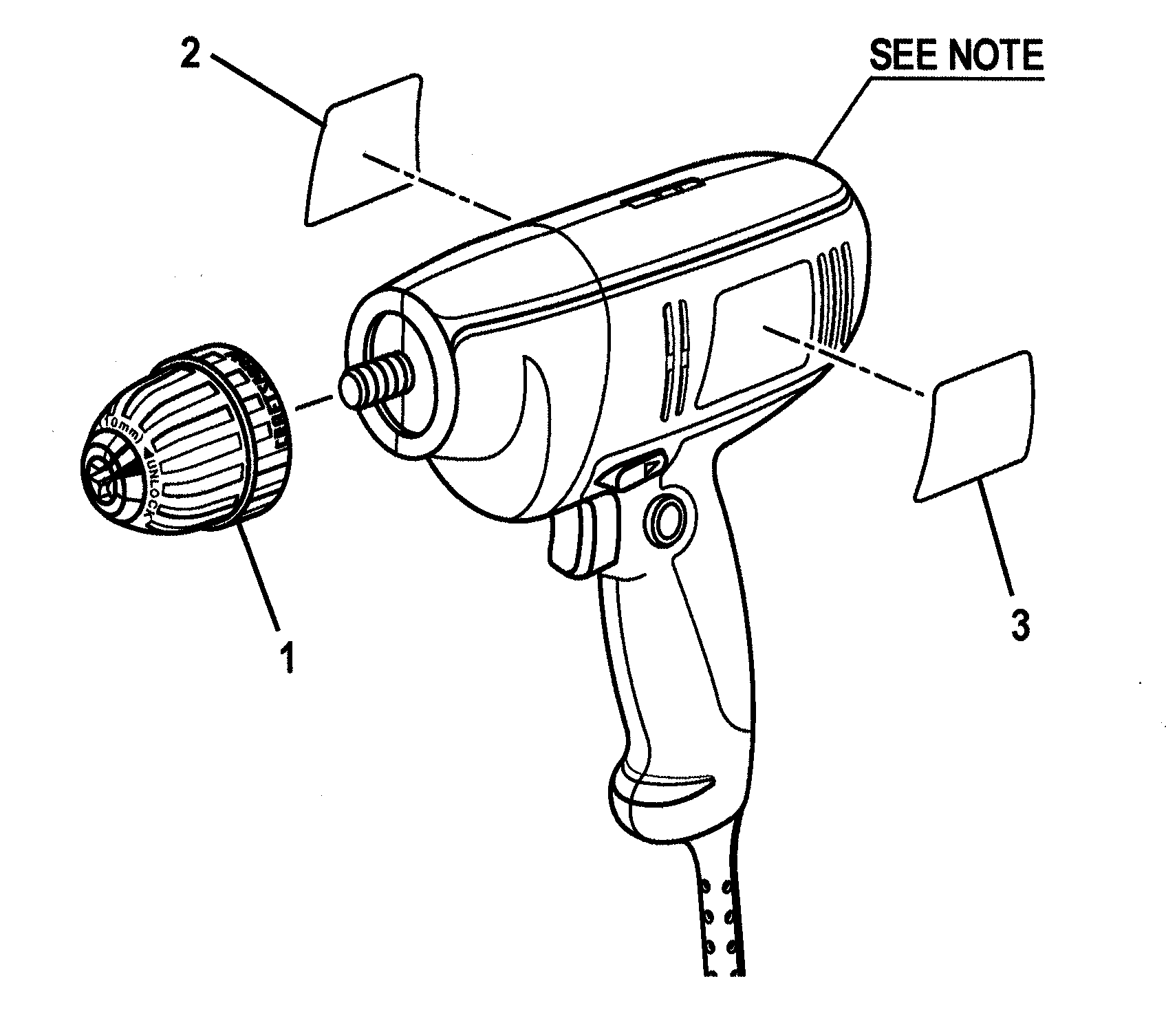

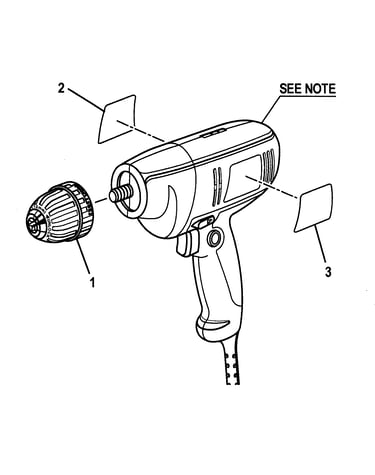

    Drill diagram

    Drill Chuck Key

    Part #9-2053

    The manufacturer no longer makes this part, and there's no substitute part

  • Selector for Craftsman 315101050 - Part 3878701

    Motor assy diagram

    Selector

    Part #3878701

    The manufacturer no longer makes this part, and there's no substitute part
