Kenmore
Countertop Microwave

Model # 56568380790 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 56568380790 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

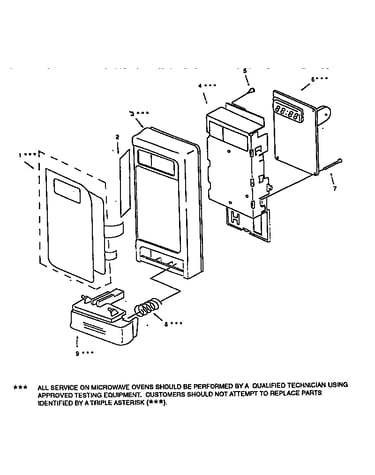

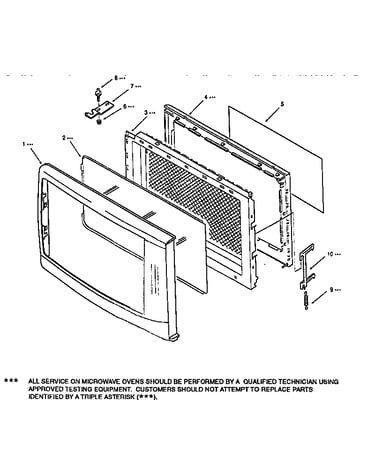

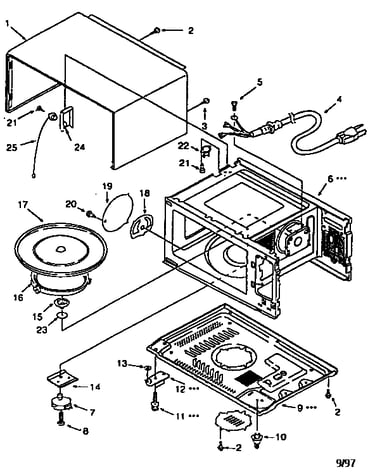

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |

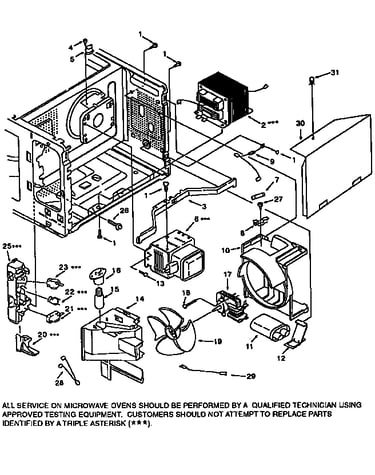

Switch 617-152-4741
Switch

Part #617-152-4741

The manufacturer no longer makes this part, and there's no substitute part

Ic C358c V 409-057-3000
#IC12

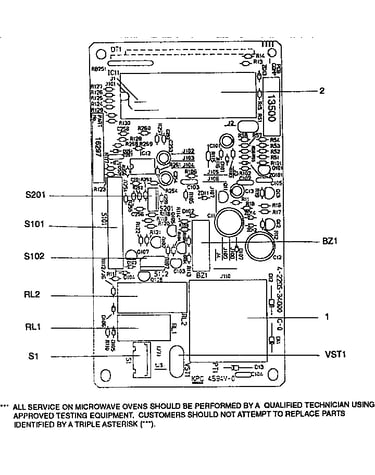

Power/control circuit board16297 diagram

Ic c358c v

Part #409-057-3000

The manufacturer no longer makes this part, and there's no substitute part

1n4007-di 407-012-0309
1n4007-di

Part #407-012-0309

The manufacturer no longer makes this part, and there's no substitute part

Diode 407-057-0500
#ZD11

Power/control circuit board16297 diagram

Diode

Part #407-057-0500

The manufacturer no longer makes this part, and there's no substitute part

47mfd 10v 403-147-8609
#C13

Power/control circuit board16297 diagram

47mfd 10v

Part #403-147-8609

The manufacturer no longer makes this part, and there's no substitute part

S Cap Dis 403-069-8305
S cap dis

Part #403-069-8305

The manufacturer no longer makes this part, and there's no substitute part

Transistor 405-000-5602
#Q103

Power/control circuit board16297 diagram

Transistor

Part #405-000-5602

The manufacturer no longer makes this part, and there's no substitute part

Transistor 405-000-1802
Transistor

Part #405-000-1802

The manufacturer no longer makes this part, and there's no substitute part

Resistor 401-014-5102
Resistor

Part #401-014-5102

The manufacturer no longer makes this part, and there's no substitute part

Resistor 401-020-1907
Resistor

Part #401-020-1907

The manufacturer no longer makes this part, and there's no substitute part
