GE JBS23BC1AD electric range

GE JBS23BC1AD electric range Parts

Here are the diagrams and repair parts for GE JBS23BC1AD electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JBS23BC1AD Ranges

  • G.e. Range Surface Element Control Switch for GE JBS23BC1AD - Part WB24T10025

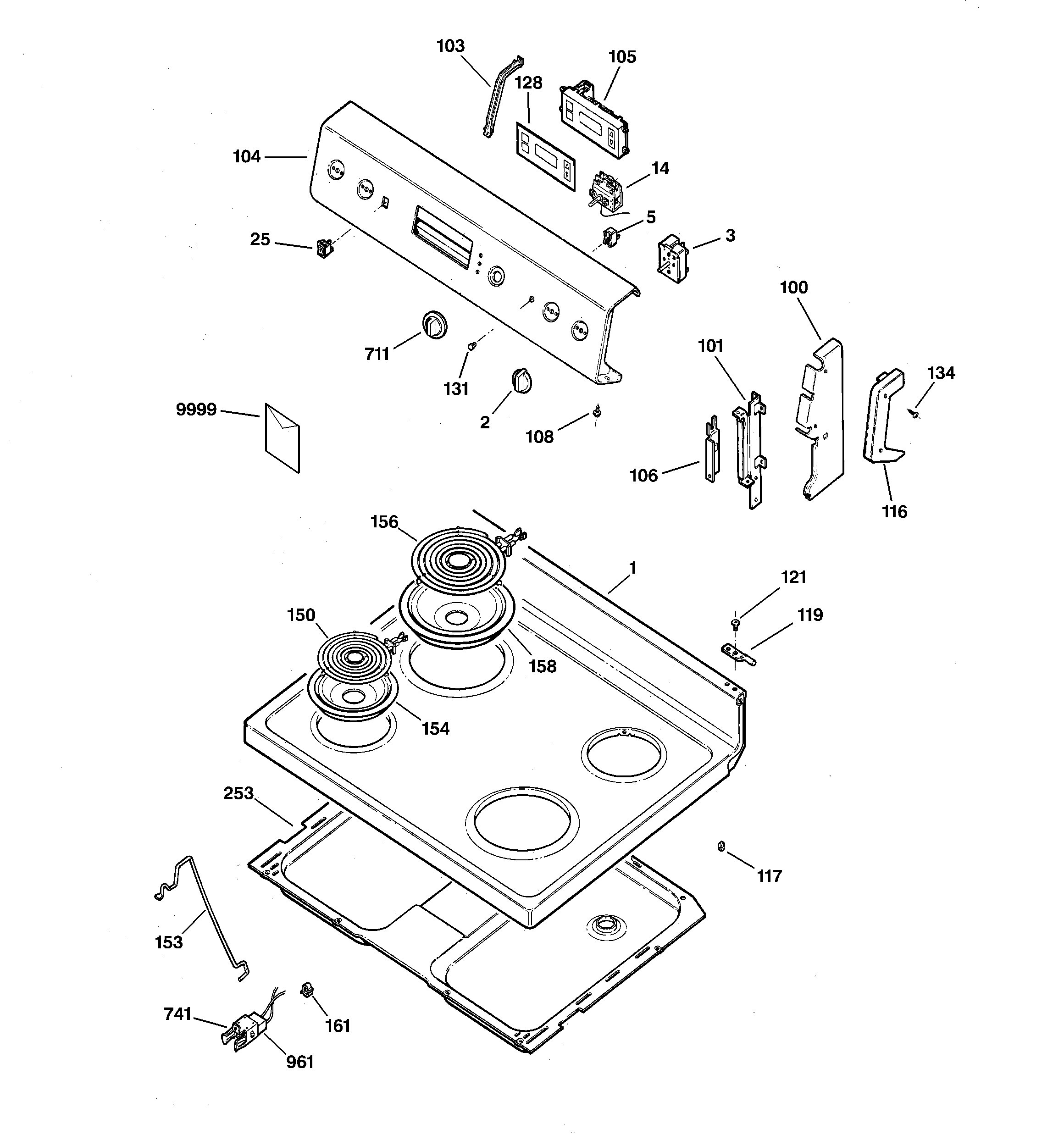

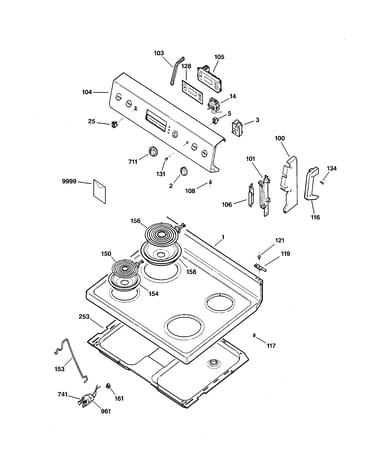

    Control panel & cooktop diagram

    G.e. Range Surface Element Control Switch

    Part #WB24T10025
    In Stock
    $28.69
    17% OFF Phone Price : $34.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch, 1,500-watt for GE JBS23BC1AD - Part WB24T10029

    Control panel & cooktop diagram

    Range Surface Element Control Switch, 1,500-watt

    Part #WB24T10029
    In Stock
    $48.17
    11% OFF Phone Price : $54.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Hotpoint Range Surface Element Receptacle for GE JBS23BC1AD - Part WB17T10006

    Control panel & cooktop diagram

    Terminal Block

    Part #WB17T10001

    Replaced by #WB17T10006

    Info Icon
    Manufacturer substitution
    This part replaces WB17T10001. Substitute parts can look different from the original.
    In Stock
    $24.09
    20% OFF Phone Price : $30.09Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Bake Element for GE JBS23BC1AD - Part WB30X46987

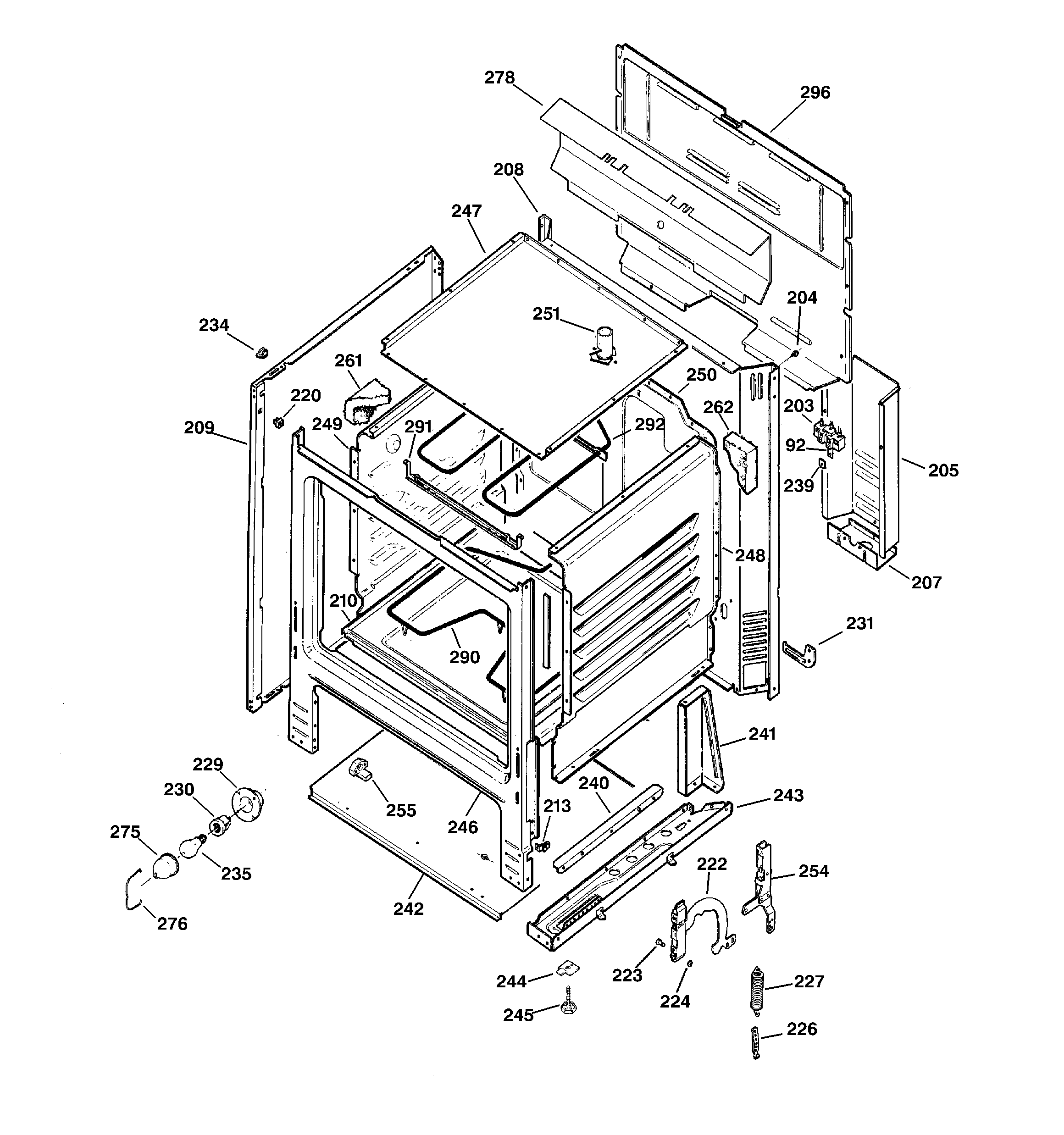

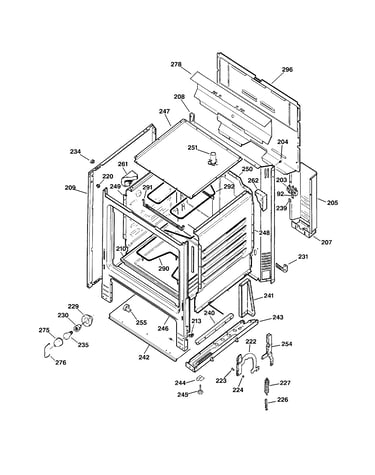

    Body parts diagram

    Range Bake Element

    Part #WB44K10005

    Replaced by #WB30X46987

    Info Icon
    Manufacturer substitution
    This part replaces WB44K10005. Substitute parts can look different from the original.
    In Stock
    $162.87
    7% OFF Phone Price : $174.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Drip Pan for GE JBS23BC1AD - Part WB31T10011

    Control panel & cooktop diagram

    Range Drip Pan

    Part #WB31T10011
    In Stock
    $17.25
    10% OFF Phone Price : $19.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Gasket for GE JBS23BC1AD - Part WB35X29720

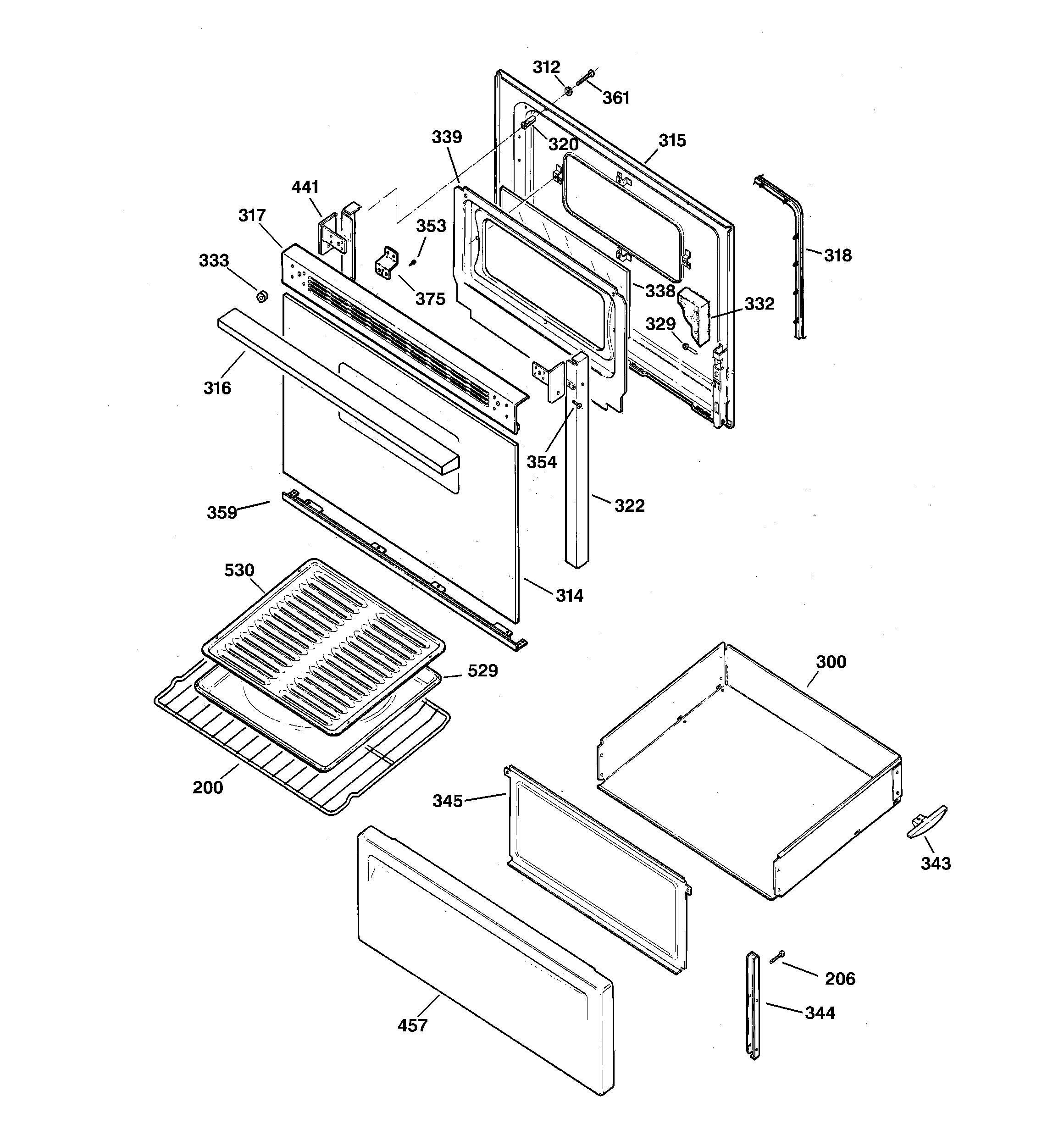

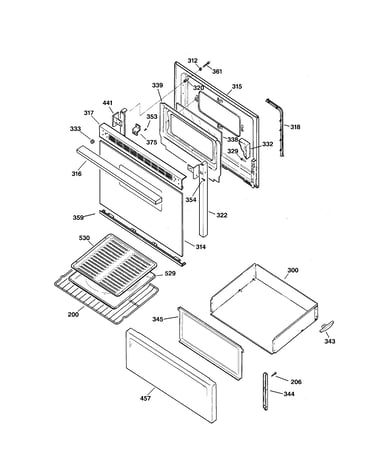

    Door & drawer parts diagram

    Door Gasket

    Part #WB32K0003

    Replaced by #WB35X29720

    Info Icon
    Manufacturer substitution
    This part replaces WB32K0003. Substitute parts can look different from the original.
    In Stock
    $28.47
    17% OFF Phone Price : $34.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 6-in for GE JBS23BC1AD - Part WB30X24401

    Control panel & cooktop diagram

    Surface Unit

    Part #WB30T10027

    Replaced by #WB30X24401

    Info Icon
    Manufacturer substitution
    This part replaces WB30T10027. Substitute parts can look different from the original.
    In Stock
    $93.23
    6% OFF Phone Price : $99.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Control Board for GE JBS23BC1AD - Part WB27T10469

    Control panel & cooktop diagram

    Clock Tod Le

    Part #WB27K10028

    Replaced by #WB27T10469

    Info Icon
    Manufacturer substitution
    This part replaces WB27K10028. Substitute parts can look different from the original.
    In Stock
    $113.05
    10% OFF Phone Price : $125.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Indicator Light for GE JBS23BC1AD - Part WB25K10002

    Control panel & cooktop diagram

    Range Indicator Light

    Part #WB25K10002
    In Stock
    $16.74
    11% OFF Phone Price : $18.74Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Oven Control Thermostat for GE JBS23BC1AD - Part WB20K10004

    Control panel & cooktop diagram

    G.e. Range Oven Control Thermostat

    Part #WB20K10004
    In Stock
    $159.21
    7% OFF Phone Price : $171.21Info Icon
    Minus Item
    Qty
    Plus Item
