Model # 58074156400 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074156400 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Room Air Conditioner Drain Pipe 3H02773A
#19-C

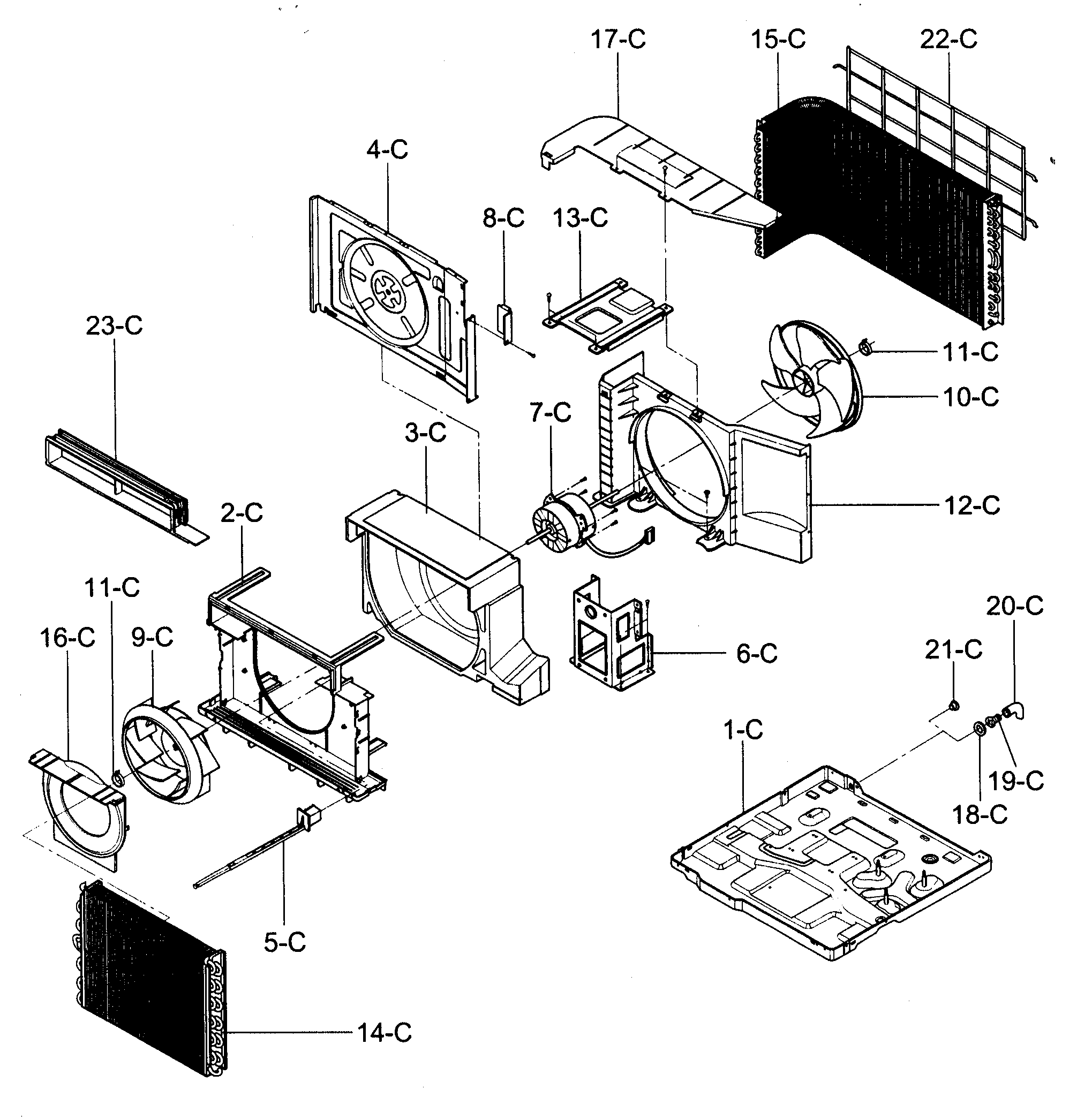

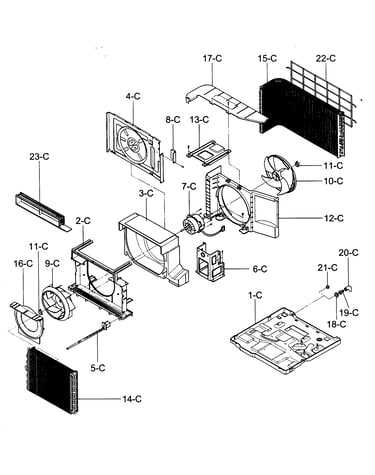

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Axial Fan 5901A20010A
#10-C

Air handling/cycle parts diagram

Axial fan

Part #5901A20010A

Replaced by #5900AR1508B

?
Manufacturer substitution
This part replaces 5901A20010A. Substitute parts can look different from the original.
$38.76 |
11% OFF Phone Price : $43.76
In Stock
Room Air Conditioner Fan Motor Capacitor 0CZZA20001L
#6-B

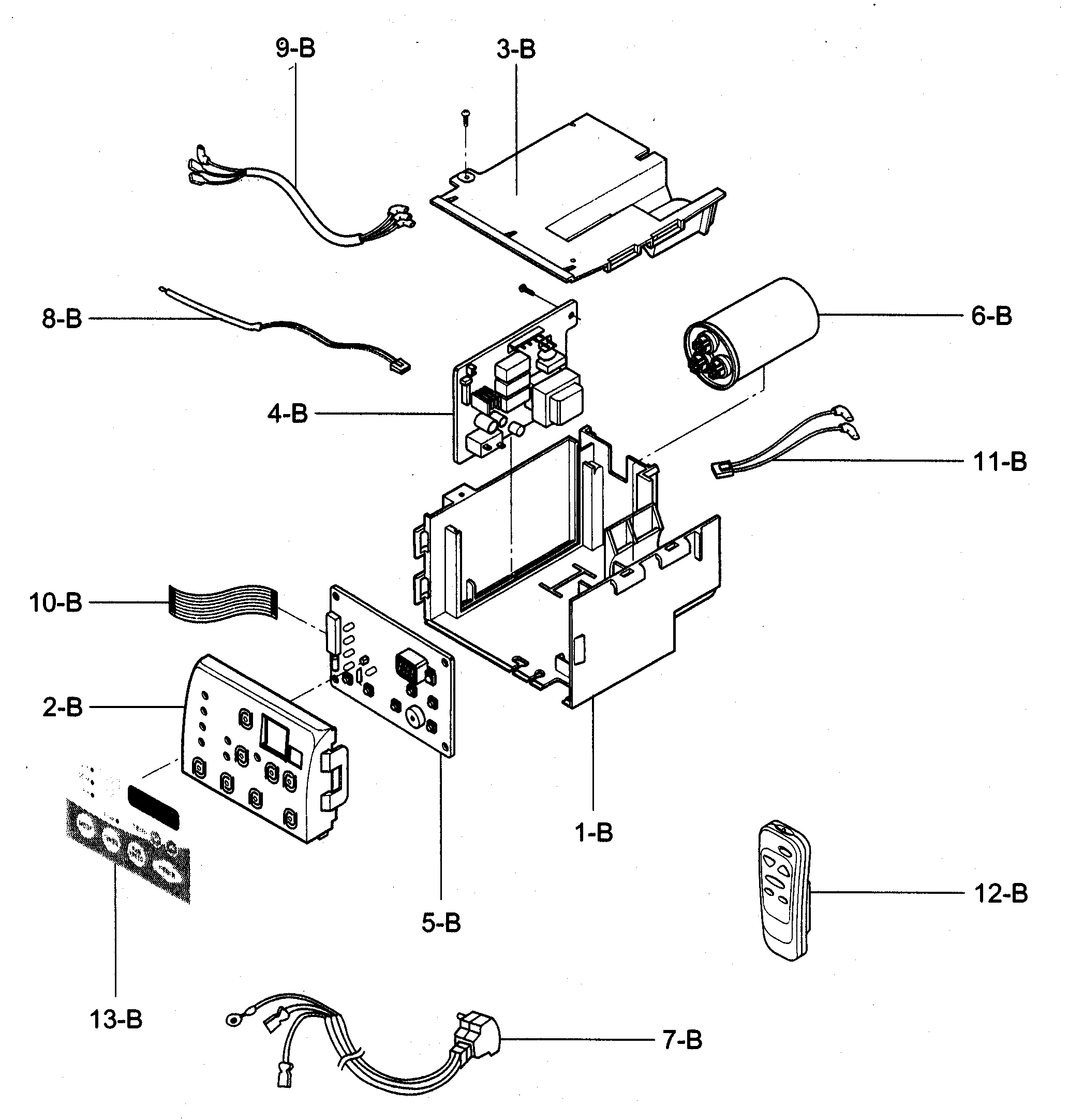

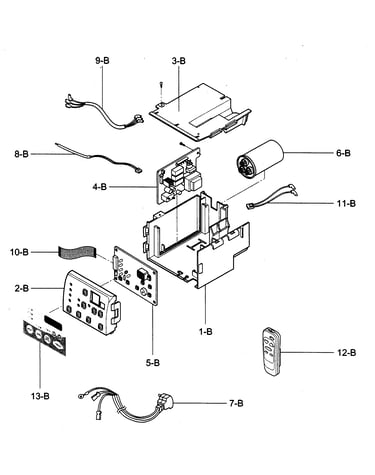

Control box assy diagram

Room air conditioner fan motor capacitor

Part #0CZZA20001L

$43.07 |
10% OFF Phone Price : $48.07
In Stock
Room Air Conditioner Evaporator Fan Blade 5901A20009A
#9-C

Air handling/cycle parts diagram

Room air conditioner evaporator fan blade

Part #5901A20009A

This item is not returnable
$20.55 |
20% OFF Phone Price : $25.55
In Stock
Bracket Support 3H01479D
#4-E

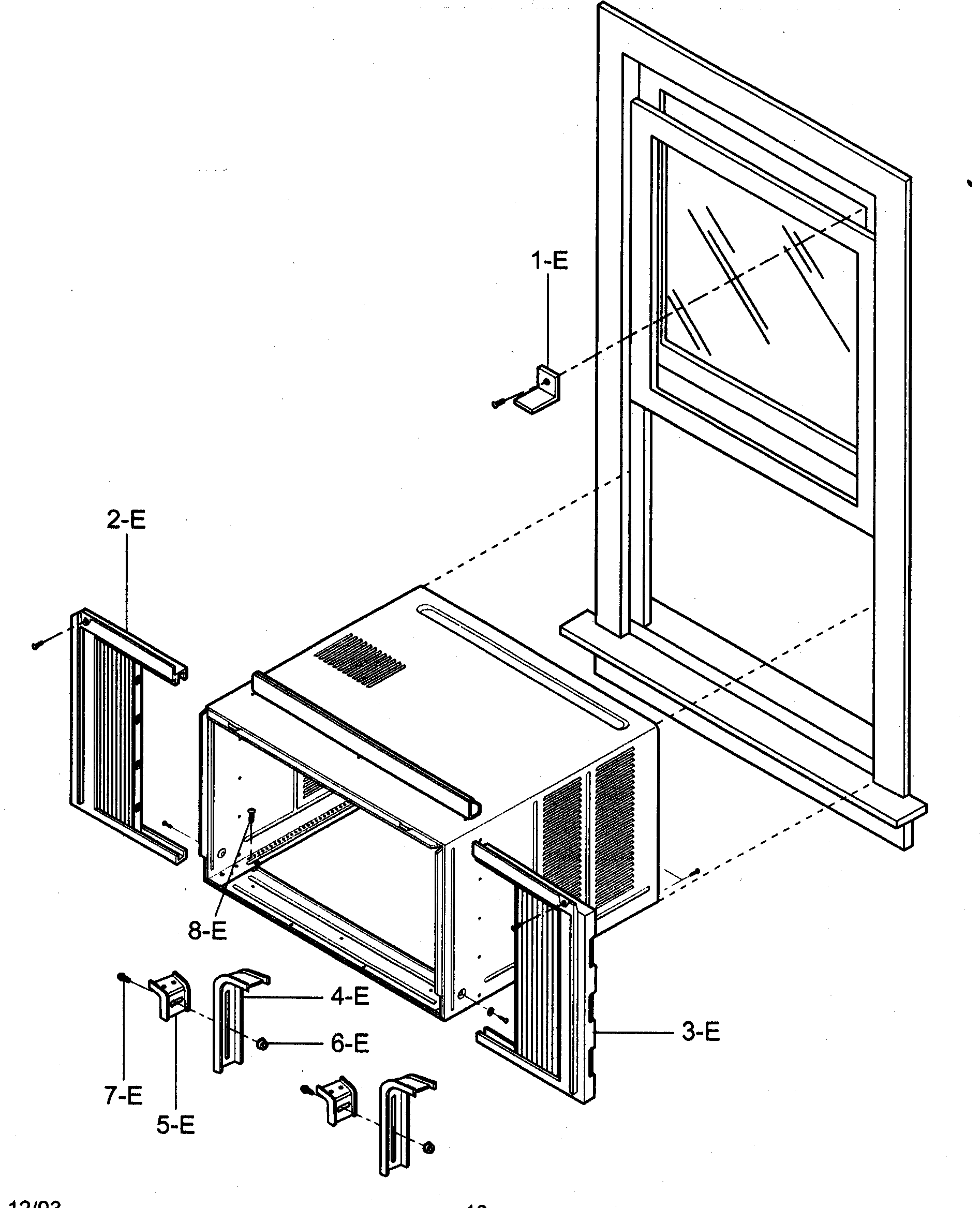

Installation kit assy diagram

Bracket support

Part #3H01479D

Replaced by #AET73691402

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$72.05 |
6% OFF Phone Price : $77.05
In Stock
Sill Bracket 3H01395C
#5-E

Installation kit assy diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691402

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$72.05 |
6% OFF Phone Price : $77.05
In Stock
Room Air Conditioner Compressor Grommet 4H00982C
#1-D

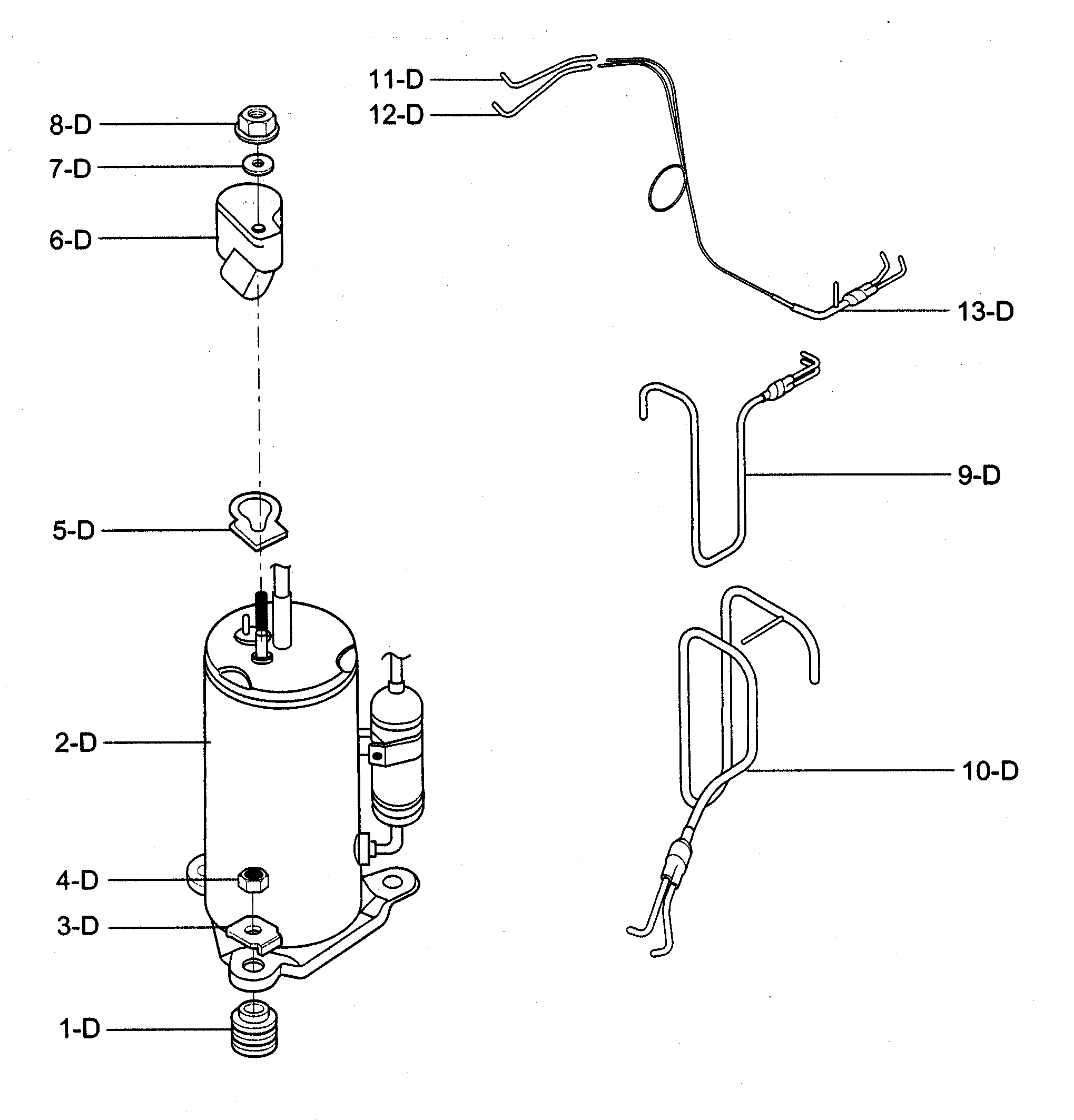

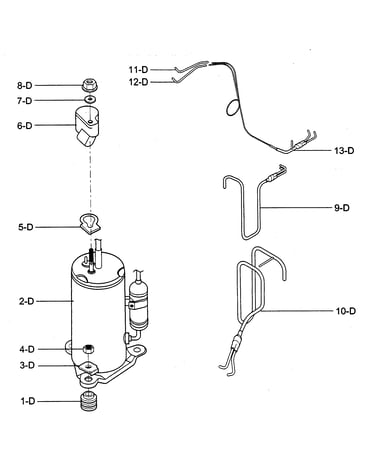

Compressor parts diagram

Room air conditioner compressor grommet

Part #4H00982C

Replaced by #4H00982E

?
Manufacturer substitution
This part replaces 4H00982C. Substitute parts can look different from the original.
This item is not returnable
$3.46 |
22% OFF Phone Price : $4.46
In Stock
M-screw 4H01482A
#8-E

Installation kit assy diagram

M-screw

Part #4H01482A

Replaced by #AET73691402

?
Manufacturer substitution
This part replaces 4H01482A. Substitute parts can look different from the original.
$72.05 |
6% OFF Phone Price : $77.05
In Stock
Curtain 4959AR3402F
#3-E

Installation kit assy diagram

Curtain

Part #4959AR3402F

Replaced by #AET73371401

?
Manufacturer substitution
This part replaces 4959AR3402F. Substitute parts can look different from the original.
$64.66 |
7% OFF Phone Price : $69.66
In Stock
Room Air Conditioner Louver 4758A30050A
#5-A

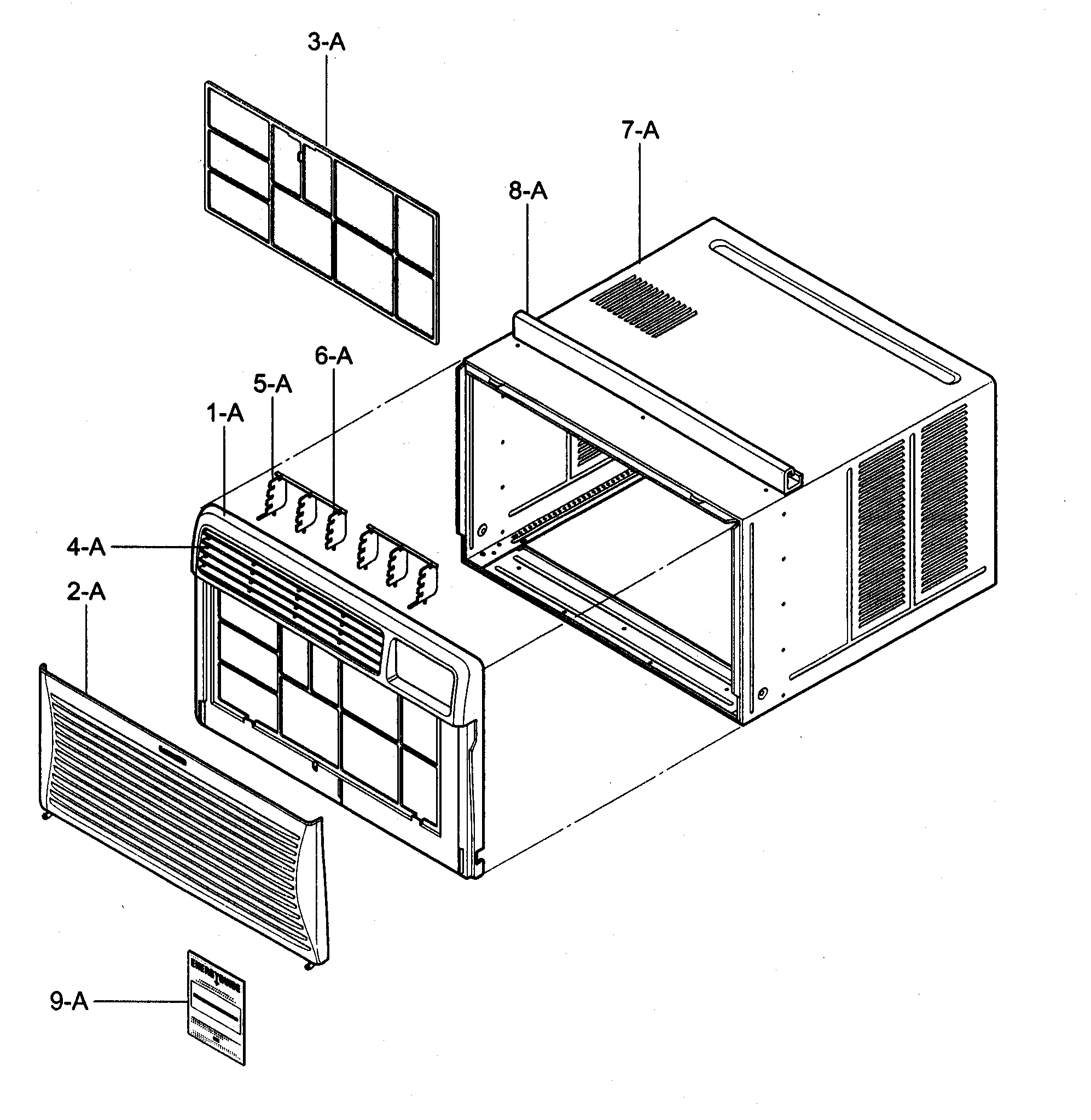

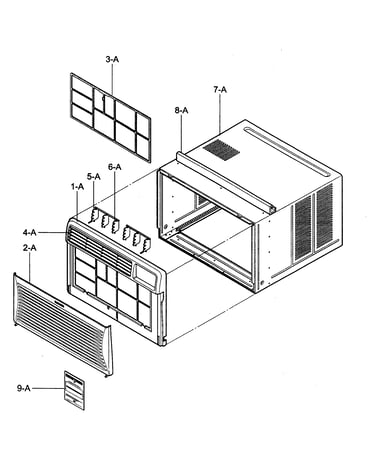

Cabinet/front grille assy diagram

Room air conditioner louver

Part #4758A30050A

Replaced by #4758A30050E

?
Manufacturer substitution
This part replaces 4758A30050A. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
