Model # HT-CT260 Official Sony home theater soundbar

Here are the diagrams and repair parts for Official Sony HT-CT260 home theater soundbar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

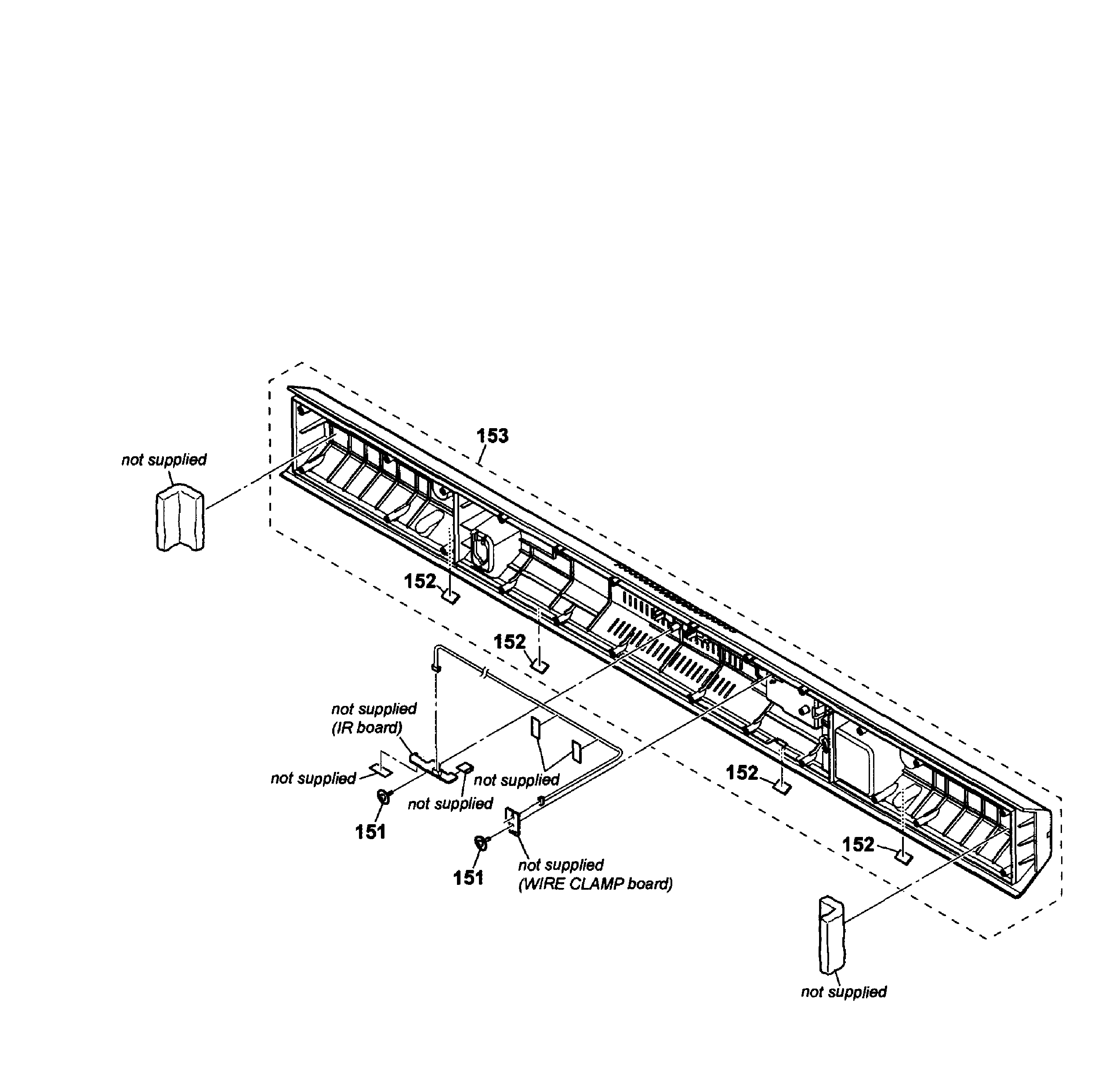

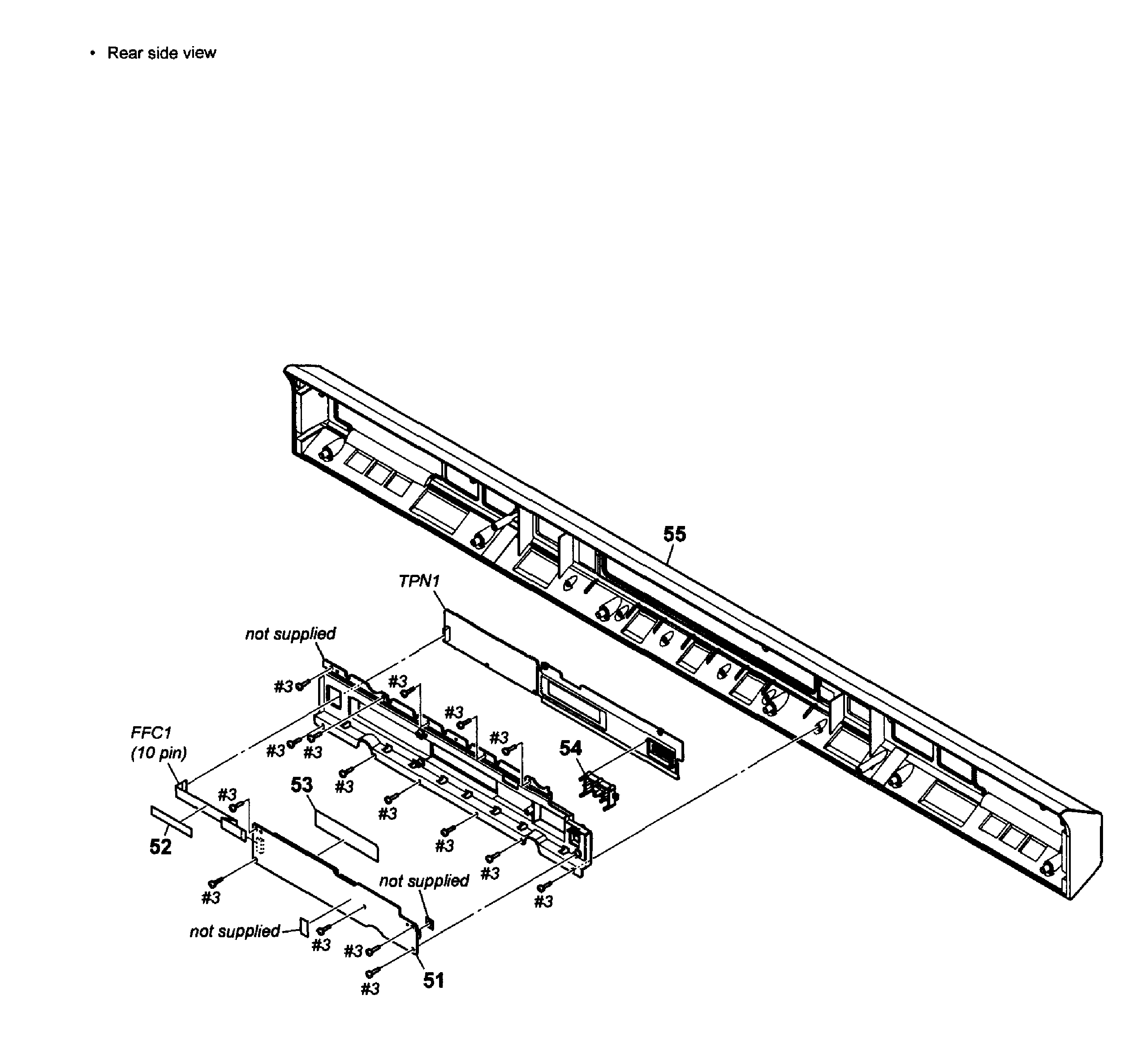

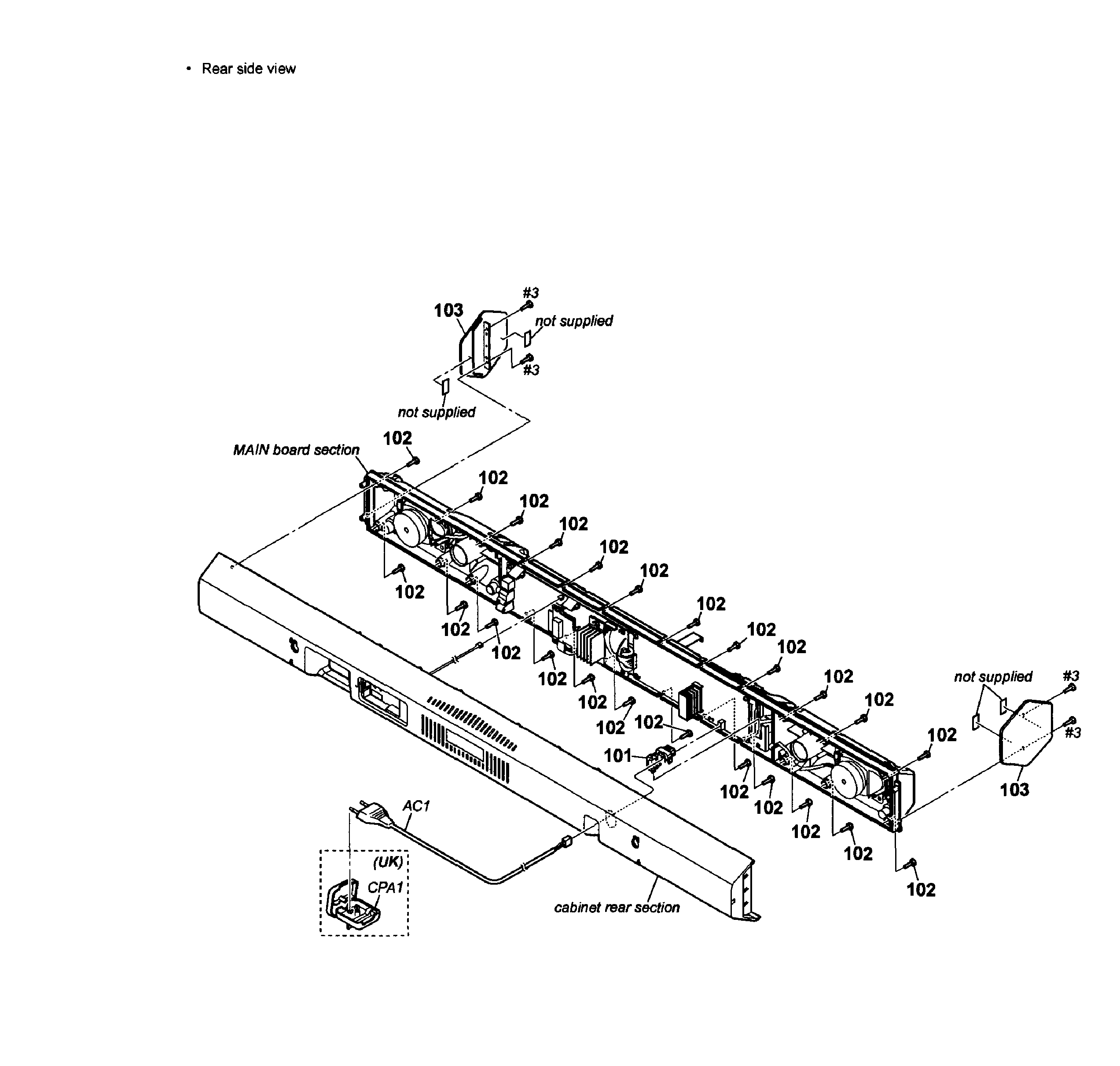

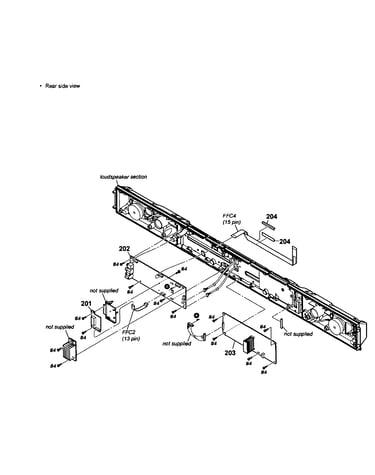

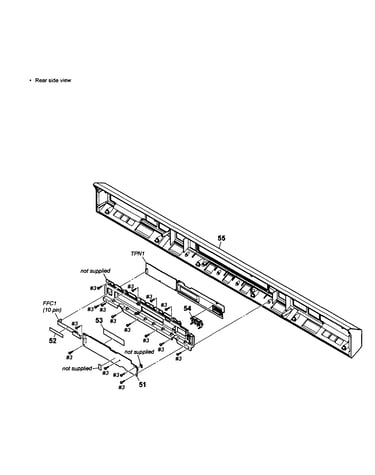

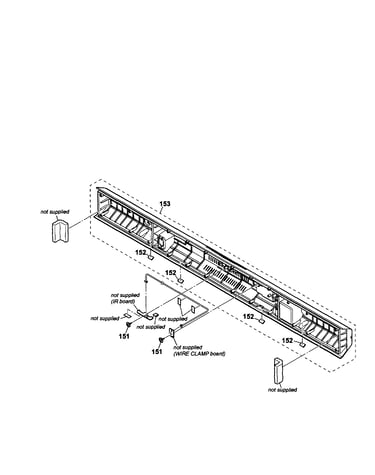

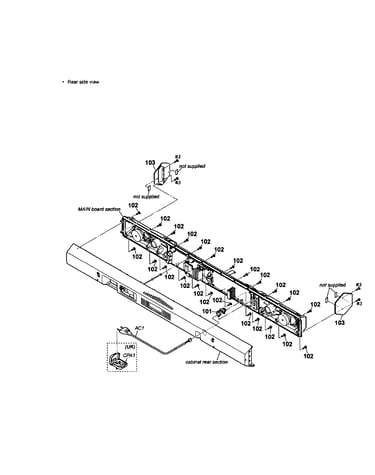

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Tr Rt1n441 872903842
#NI

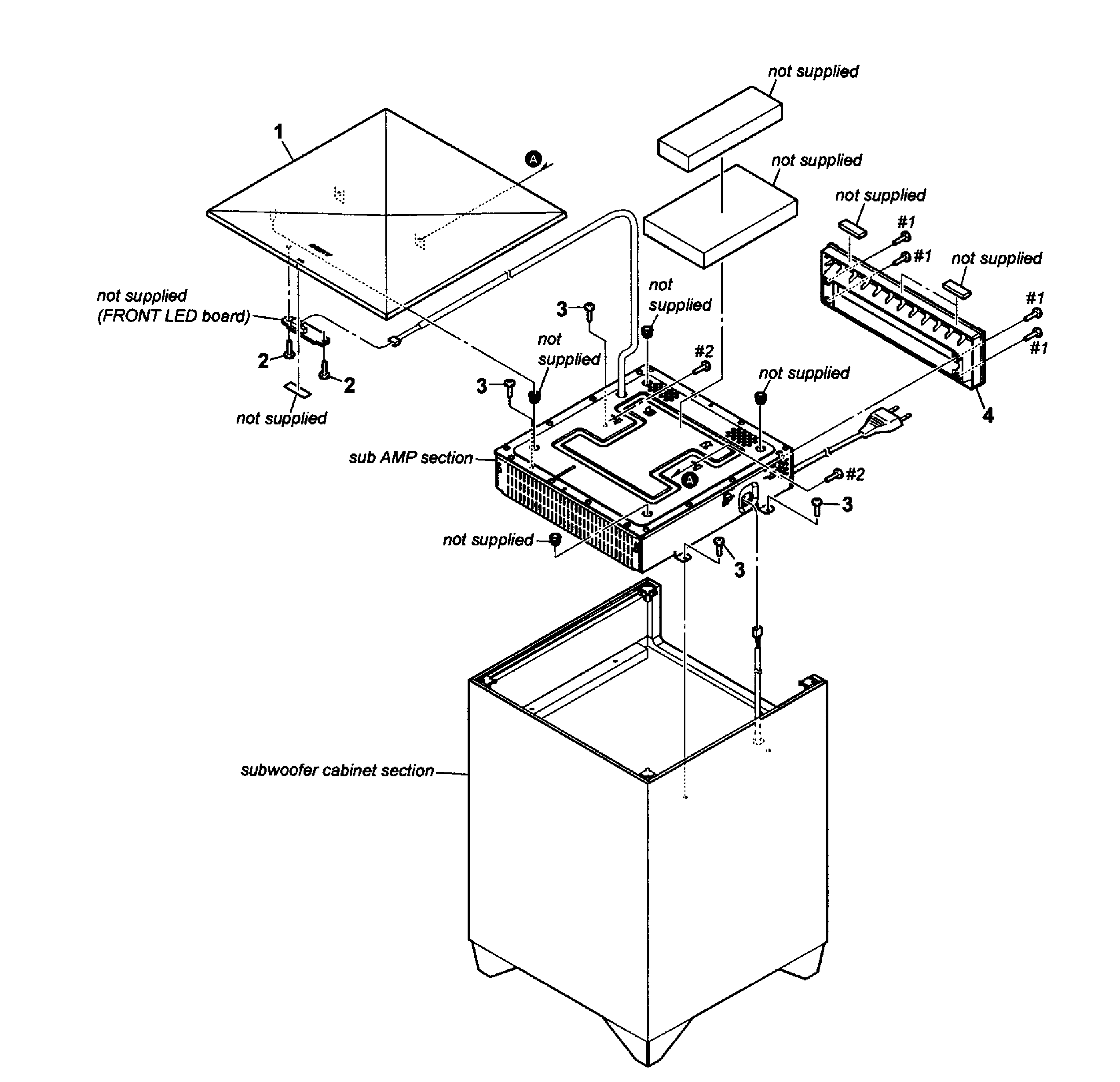

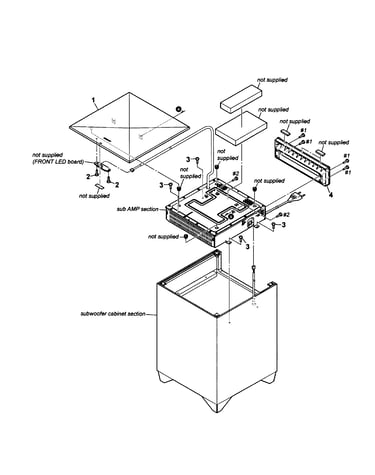

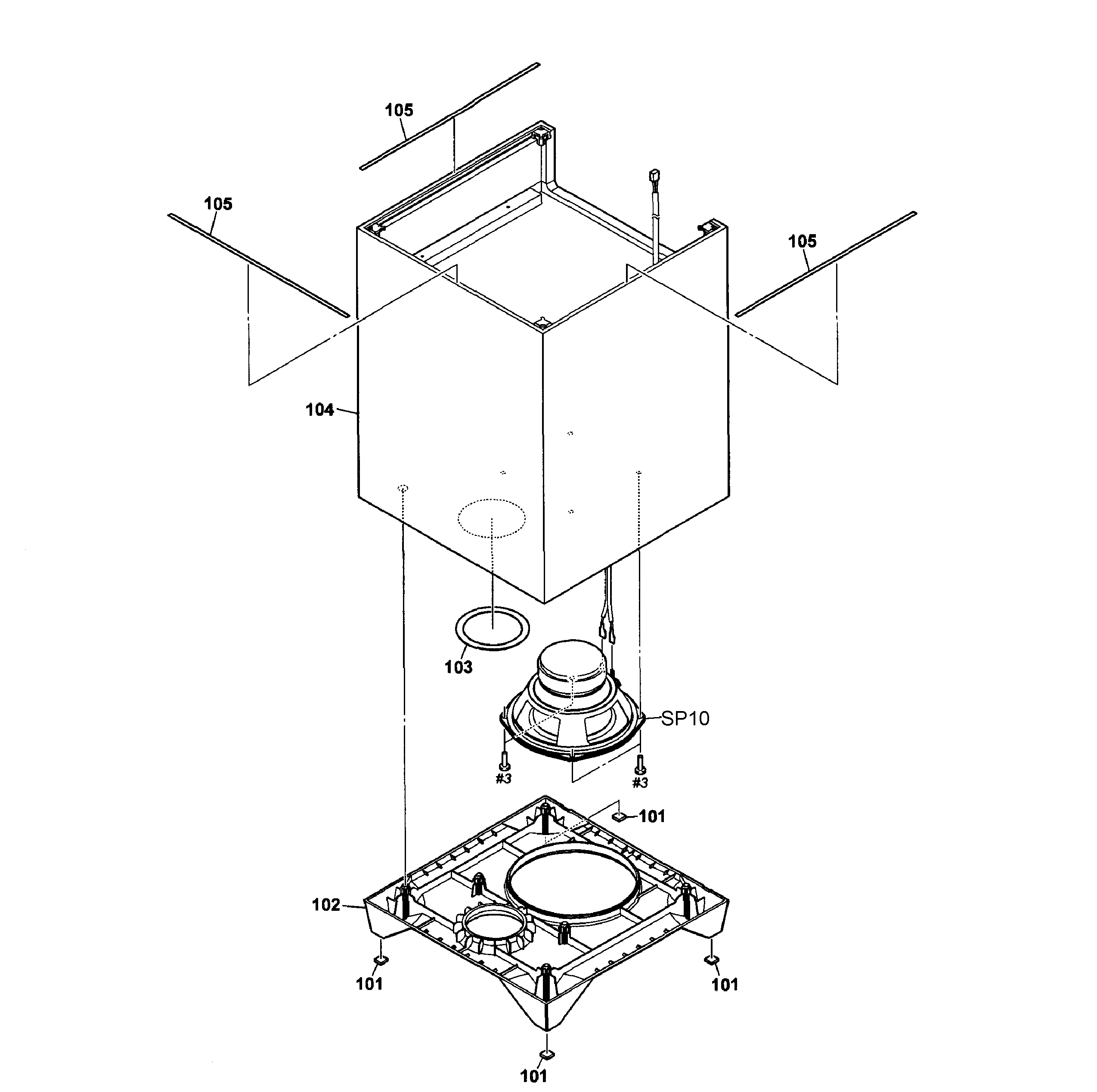

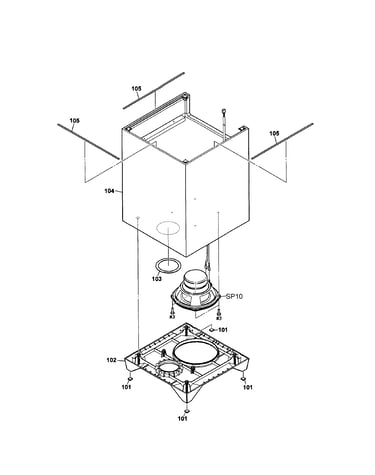

Woofer assy diagram

Tr rt1n441

Part #872903842

Replaced by #872903842

?
Manufacturer substitution
This part replaces 872903842. Substitute parts can look different from the original.
This item is not returnable
In Stock
Loudspeaker 185852712
Loudspeaker

Part #185852712

The manufacturer no longer makes this part, and there's no substitute part

Sub Main B A1888531A
#51

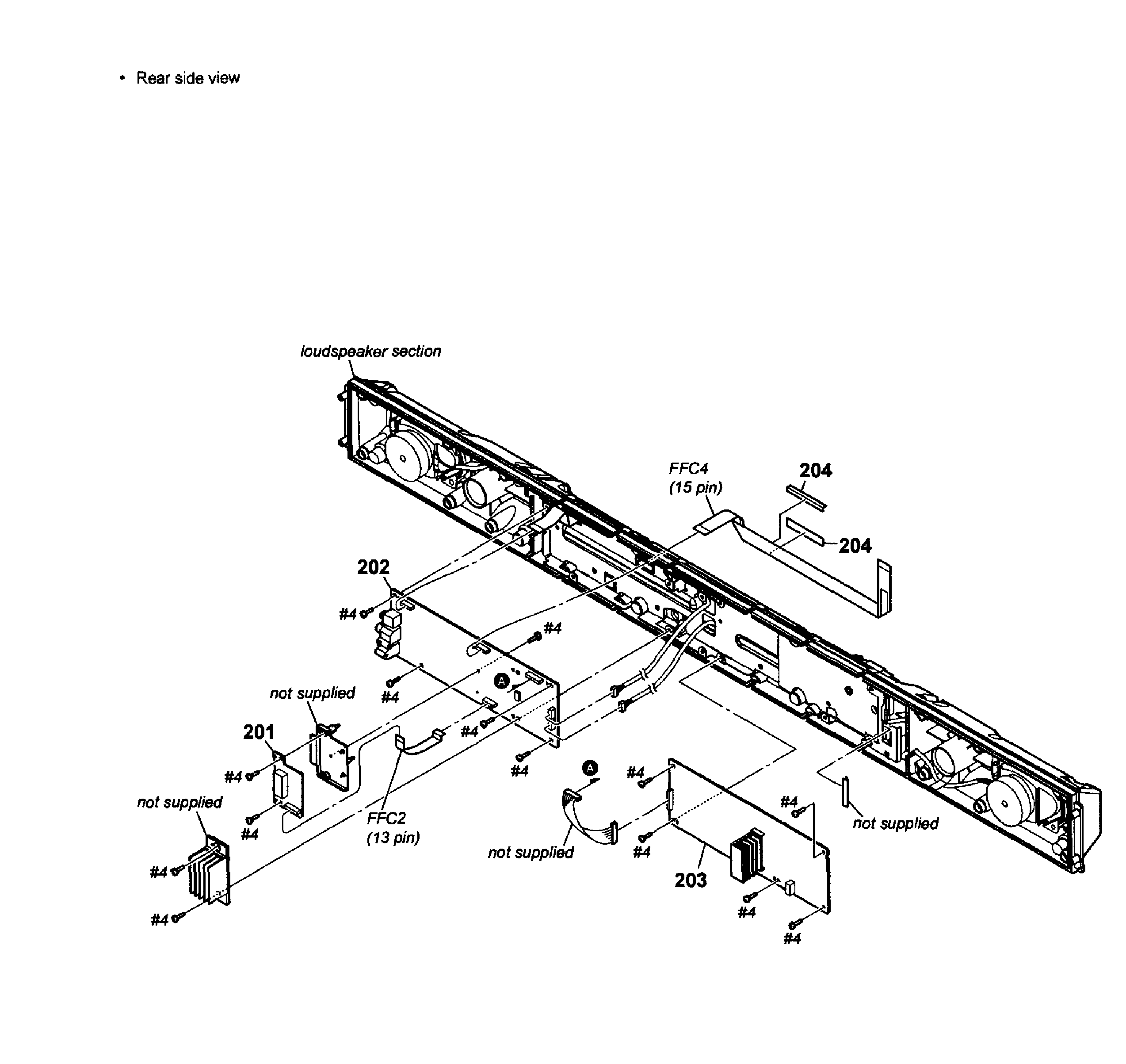

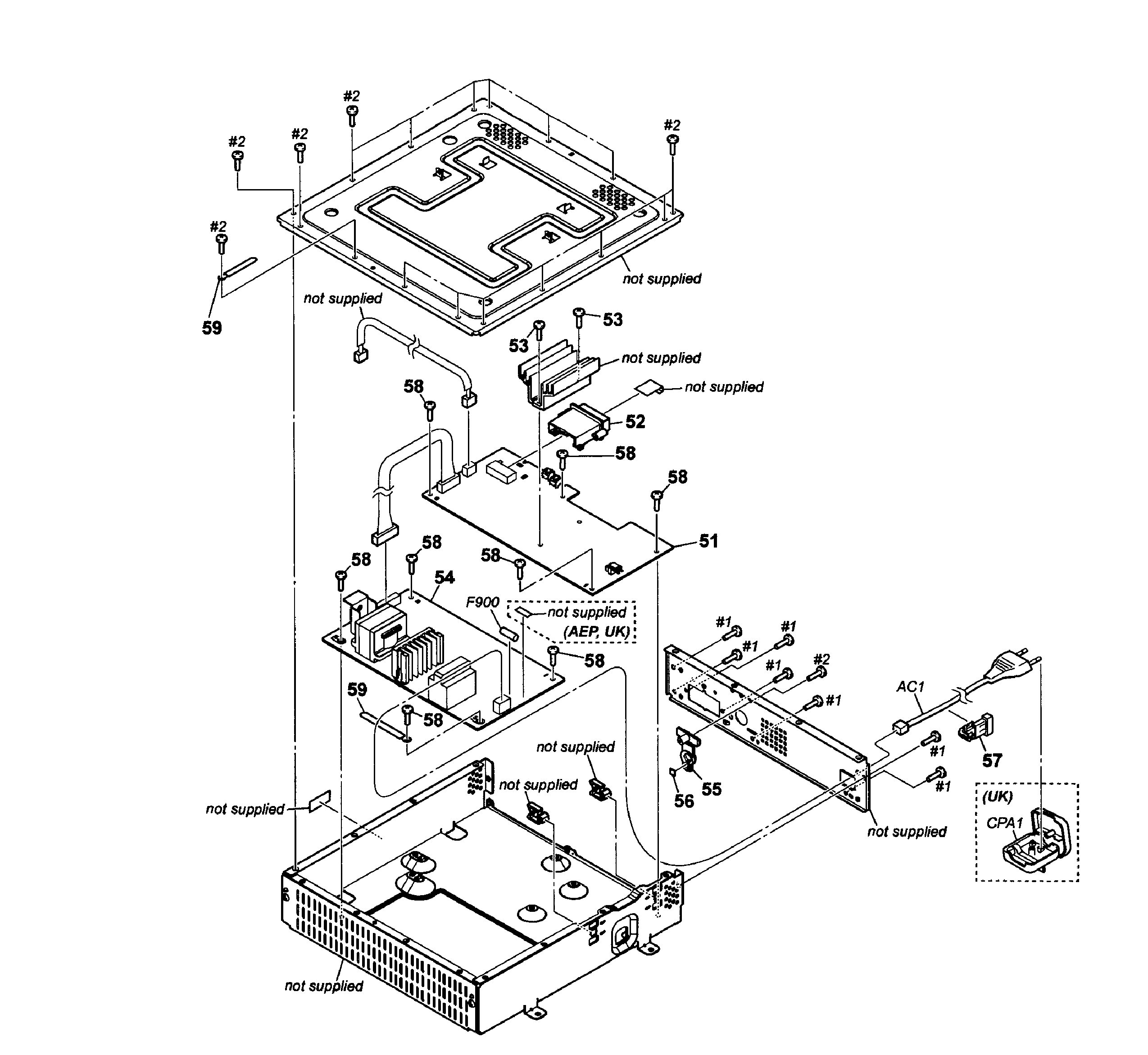

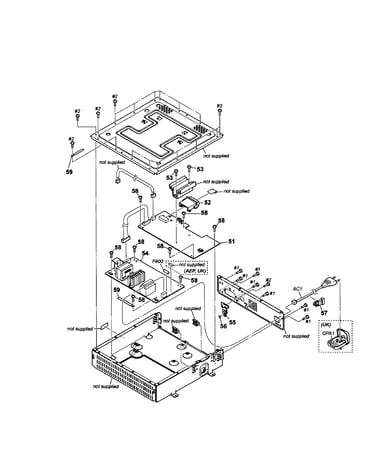

Amp pcb diagram

Sub main b

Part #A1888531A

The manufacturer no longer makes this part, and there's no substitute part

Di Da2j101 650296101
#NI

Woofer assy diagram

Di da2j101

Part #650296101

Replaced by #650296101

?
Manufacturer substitution
This part replaces 650296101. Substitute parts can look different from the original.
This item is not returnable
In Stock
Wire Kit 983360576
Wire kit

Part #983360576

Replaced by #983360576

?
Manufacturer substitution
This part replaces 983360576. Substitute parts can look different from the original.
In Stock
Diode 871906374
#NI

Woofer assy diagram

Diode

Part #871906374

The manufacturer no longer makes this part, and there's no substitute part

Bluetooth A1833832A
#253

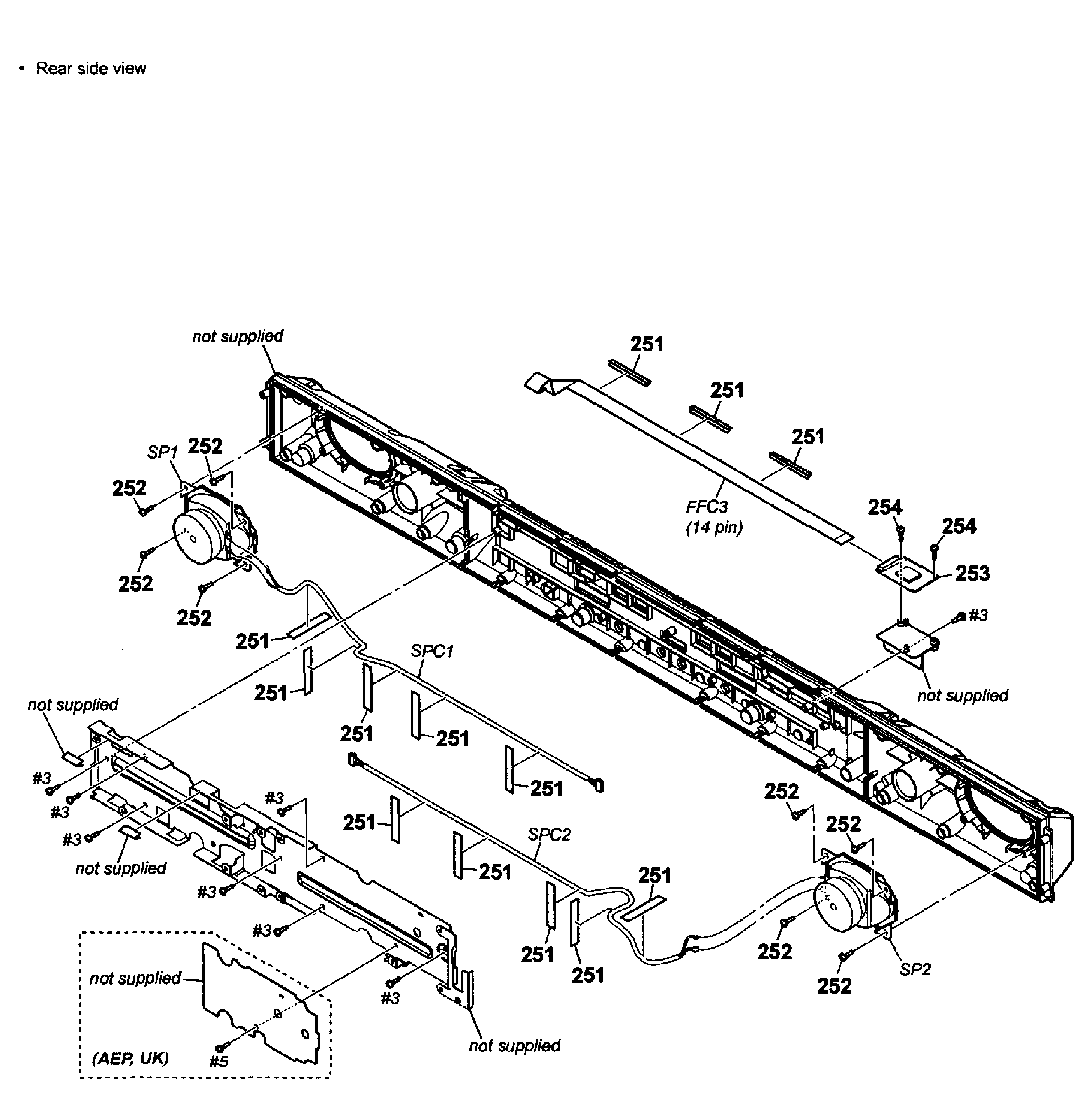

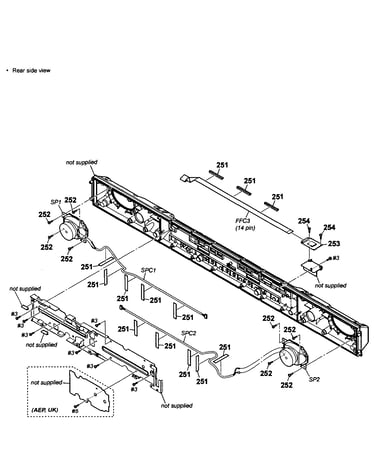

Speakers diagram

Bluetooth

Part #A1833832A

Replaced by #A1833832A

?
Manufacturer substitution
This part replaces A1833832A. Substitute parts can look different from the original.
In Stock
Integrated Circuit 660027601
#NI

Woofer assy diagram

Integrated circuit

Part #660027601

Replaced by #660027601

?
Manufacturer substitution
This part replaces 660027601. Substitute parts can look different from the original.
In Stock
Foot X25859981
#1

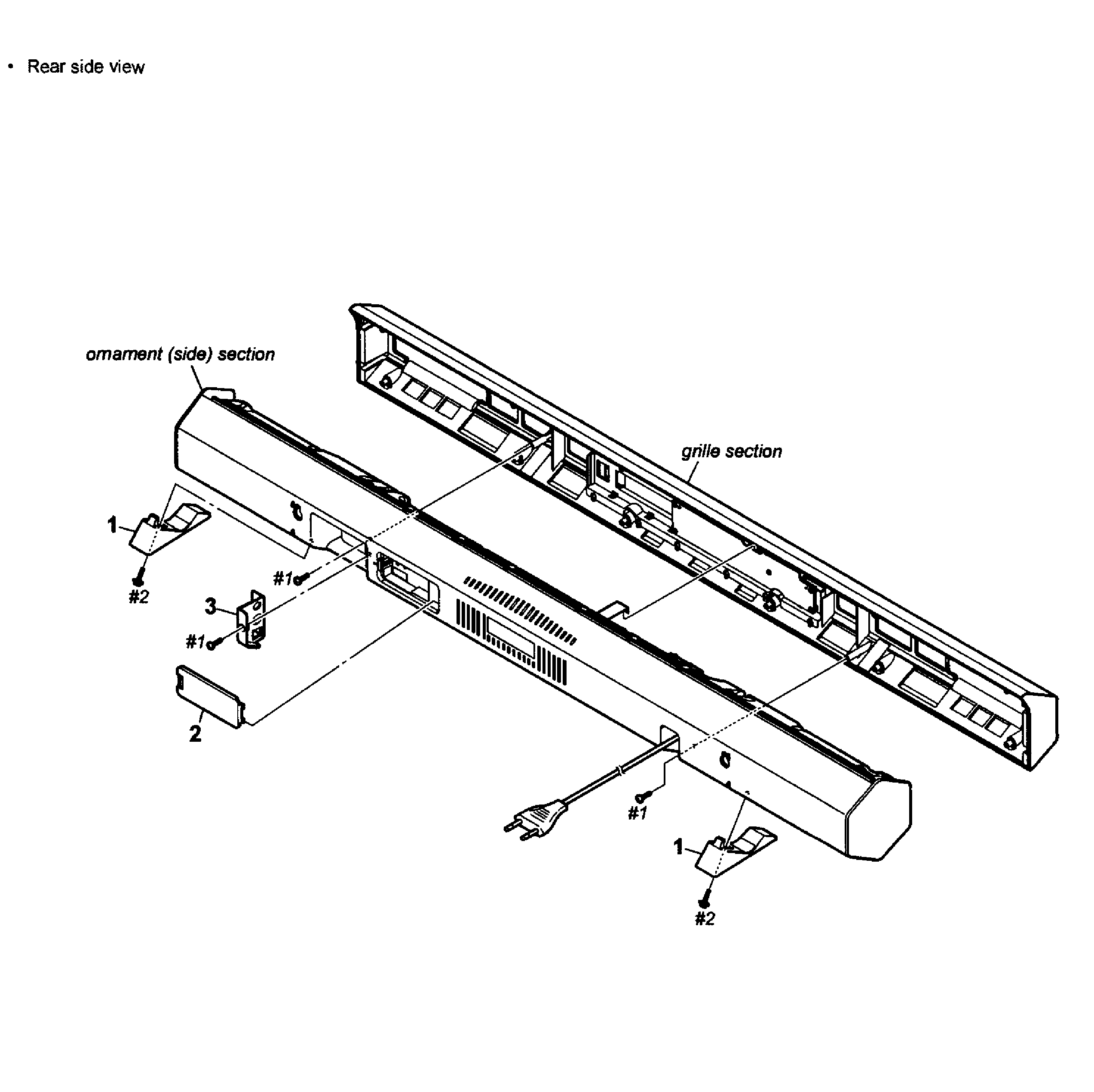

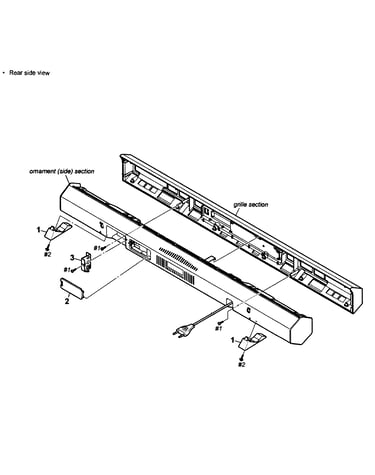

Speaker assy diagram

Foot

Part #X25859981

The manufacturer no longer makes this part, and there's no substitute part

Thermistor 181102811
#NI

Woofer assy diagram

Thermistor

Part #181102811

Replaced by #181102811

?
Manufacturer substitution
This part replaces 181102811. Substitute parts can look different from the original.
This item is not returnable
In Stock
