Sony
Digital Camcorder

Model # DCR-HC40 Official Sony digital video camera

Here are the diagrams and repair parts for Official Sony DCR-HC40 digital video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

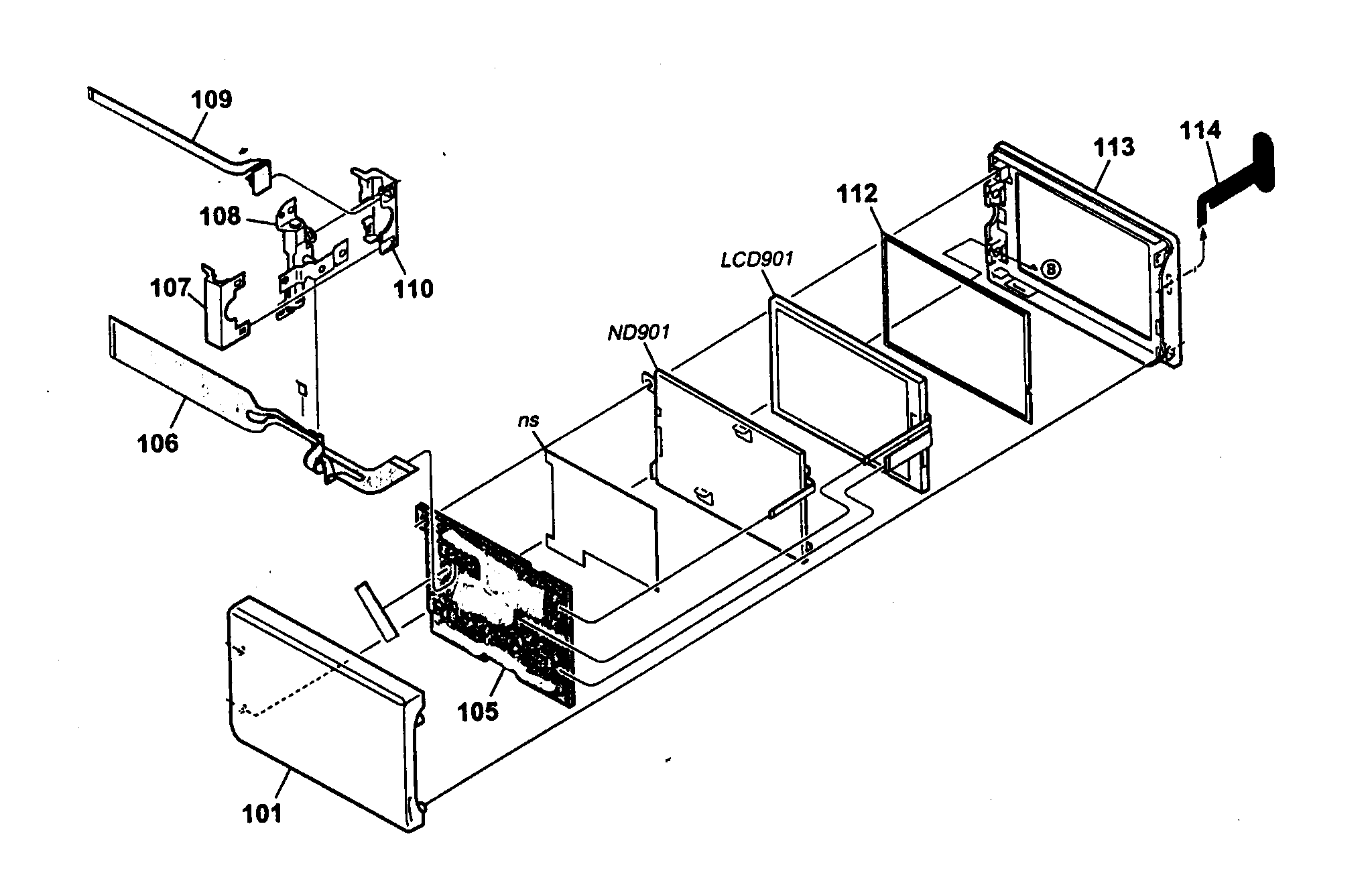

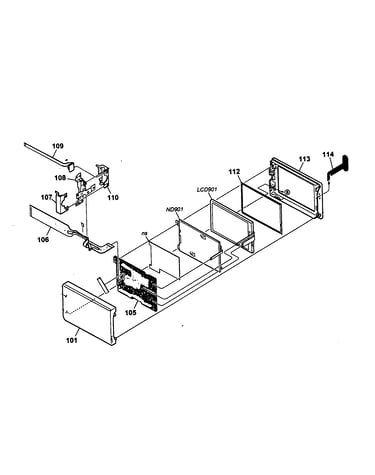

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Sensor 147680741
#NI

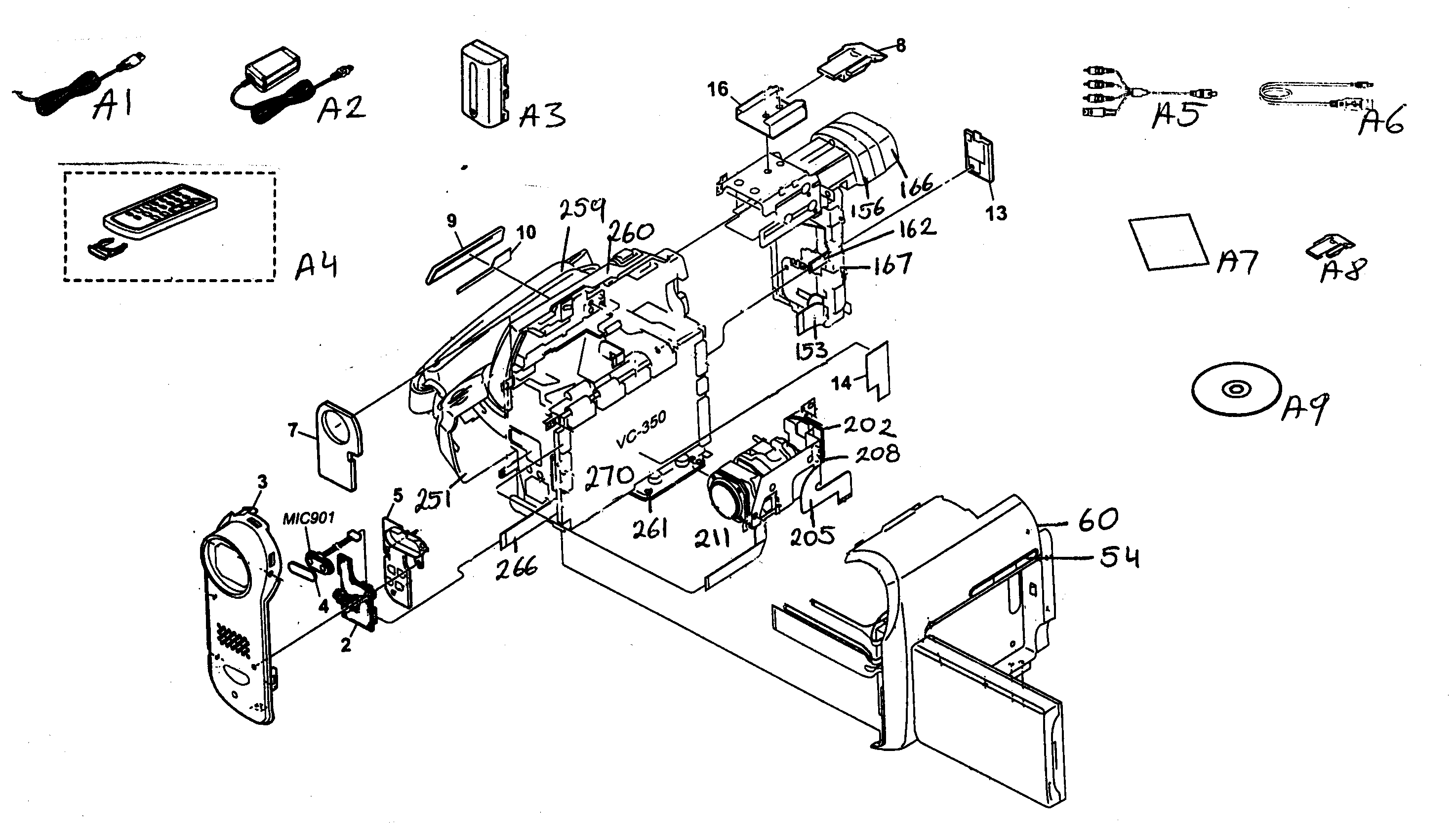

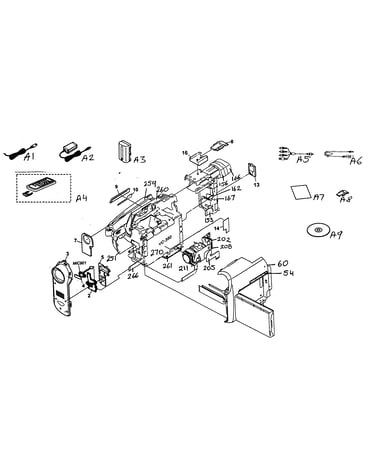

Cabinet parts 1 diagram

Sensor

Part #147680741

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly A7112117A
#210

Cabinet parts 1 diagram

Pcb assembly

Part #A7112117A

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 179010722
#A1

Cabinet parts 1 diagram

Ac cord

Part #179010722

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 186118511
#NI

Cabinet parts 1 diagram

Flexible pcb

Part #186118511

The manufacturer no longer makes this part, and there's no substitute part

Sensor 147680731
#NI

Cabinet parts 1 diagram

Sensor

Part #147680731

The manufacturer no longer makes this part, and there's no substitute part

Ir-051 Pcb A7112122A
Ir-051 pcb

Part #A7112122A

The manufacturer no longer makes this part, and there's no substitute part

Compartment X39529398
#NI

Cabinet parts 1 diagram

Compartment

Part #X39529398

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 186118611
#NI

Cabinet parts 1 diagram

Flexible pcb

Part #186118611

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 186118311
#171

Cabinet parts 1 diagram

Flexible pcb

Part #186118311

The manufacturer no longer makes this part, and there's no substitute part

Motor Block A7095396A
#NI

Cabinet parts 1 diagram

Motor block

Part #A7095396A

The manufacturer no longer makes this part, and there's no substitute part
