Model # GHT220LE TYPE 2 Official Weed Eater hedge trimmer

Here are the diagrams and repair parts for Official Weed Eater GHT220LE-TYPE-2 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

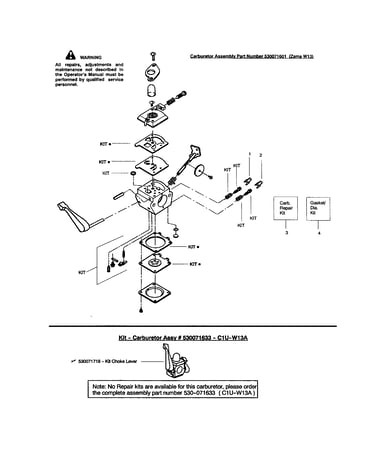

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#52

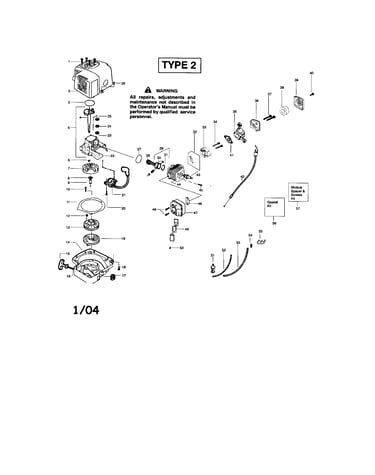

Shroud/cylinder/crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
This item is not returnable
$6.23 |
14% OFF Phone Price : $7.23
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#53

Shroud/cylinder/crankshaft diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
This item is not returnable
$6.18 |
14% OFF Phone Price : $7.18
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#54

Shroud/cylinder/crankshaft diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Line Trimmer Air Filter (replaces 5300479-32, 530-047932) 530047932
#38

Shroud/cylinder/crankshaft diagram

Line trimmer air filter (replaces 5300479-32, 530-047932)

Part #530047932

This item is not returnable
$2.69 |
27% OFF Phone Price : $3.69
In Stock
Flywheel Assembly 530069886
#7

Shroud/cylinder/crankshaft diagram

Flywheel assembly

Part #530069886

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530069886. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Lawn & Garden Equipment Screw 530015849
#14

Blade/handle/gear box diagram

Lawn & garden equipment screw

Part #530015849

This item is not returnable
$2.99
In Stock
Lawn & Garden Equipment Screw 530015805
#11

Blade/handle/gear box diagram

Lawn & garden equipment screw

Part #530015805

This item is not returnable
$3.43
In Stock
Hedge Trimmer Fuel Filter 530095992
#51

Shroud/cylinder/crankshaft diagram

Hedge trimmer fuel filter

Part #530095992

This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Accy We Spar 952030249
#43

Shroud/cylinder/crankshaft diagram

Accy we spar

Part #952030249

Replaced by #530030180

?
Manufacturer substitution
This part replaces 952030249. Substitute parts can look different from the original.
This item is not returnable
$4.09 |
21% OFF MSRP : $5.20
In Stock
Line Trimmer Outer Bearing 530055728
#23

Shroud/cylinder/crankshaft diagram

Line trimmer outer bearing

Part #530055728

This item is not returnable
$7.35
In Stock
