Model # FH50220 Official Hoover floor cleaner

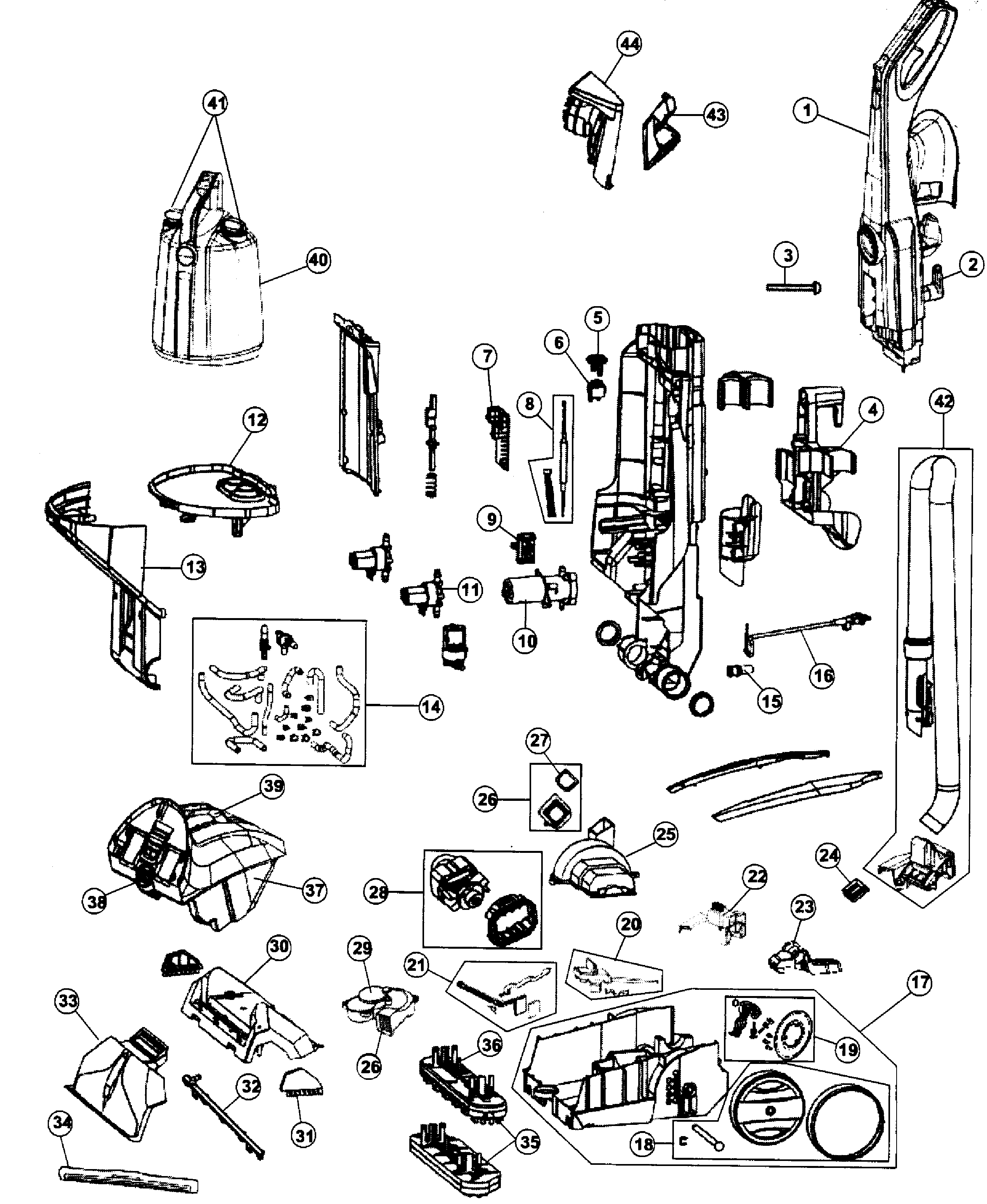

Here are the diagrams and repair parts for Official Hoover FH50220 floor cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Carpet Cleaner Clean-water Tank 303763001
#40

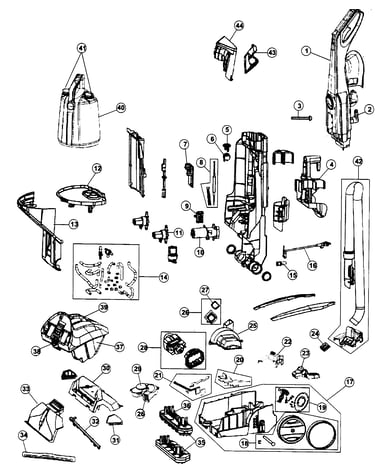

Carpet cleaner diagram

Carpet cleaner clean-water tank

Part #303763001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Recovery Tank Cap 303764001
#41

Carpet cleaner diagram

Carpet cleaner recovery tank cap

Part #303764001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Power Cord 440001363
#16

Carpet cleaner diagram

Carpet cleaner power cord

Part #440001363

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Flow Meter Assembly 440001383
#9

Carpet cleaner diagram

Carpet cleaner flow meter assembly

Part #440001383

The manufacturer no longer makes this part, and there's no substitute part

Seal Hose 521367001
#24

Carpet cleaner diagram

Seal hose

Part #521367001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Pump And Motor 303701001
#10

Carpet cleaner diagram

Carpet cleaner pump and motor

Part #303701001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Turbine Assembly 304347001
#29

Carpet cleaner diagram

Carpet cleaner turbine assembly

Part #304347001

The manufacturer no longer makes this part, and there's no substitute part

Hook 39442060
#2

Carpet cleaner diagram

Hook

Part #39442060

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner On/off Switch 760732001
#6

Carpet cleaner diagram

Carpet cleaner on/off switch

Part #760732001

The manufacturer no longer makes this part, and there's no substitute part

Wiring Kit 440001371
#8

Carpet cleaner diagram

Wiring kit

Part #440001371

The manufacturer no longer makes this part, and there's no substitute part
