Maytag
Microwave/Hood Combo

Model # MMV5207BCS Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMV5207BCS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

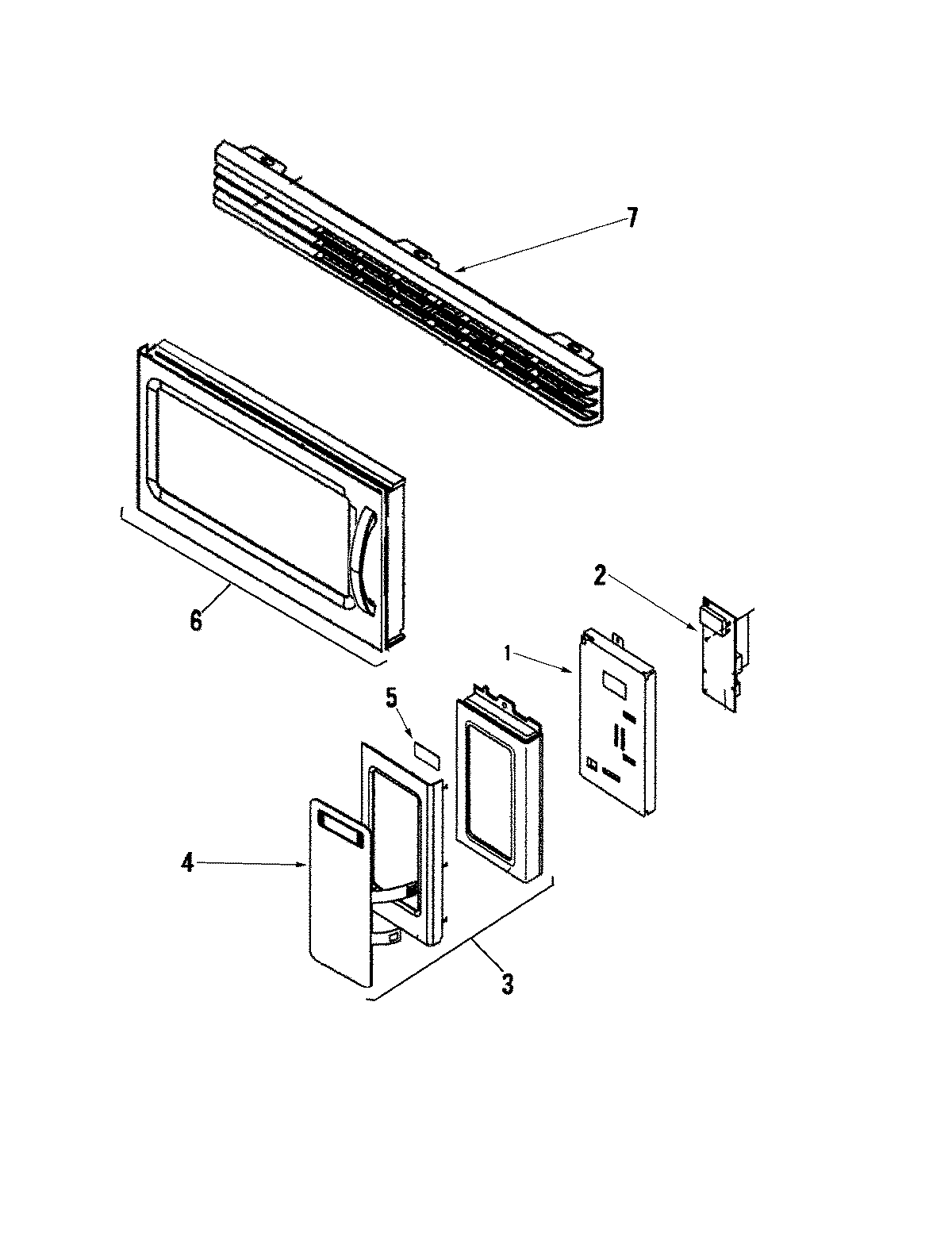

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Diode DE91-70063D
#3

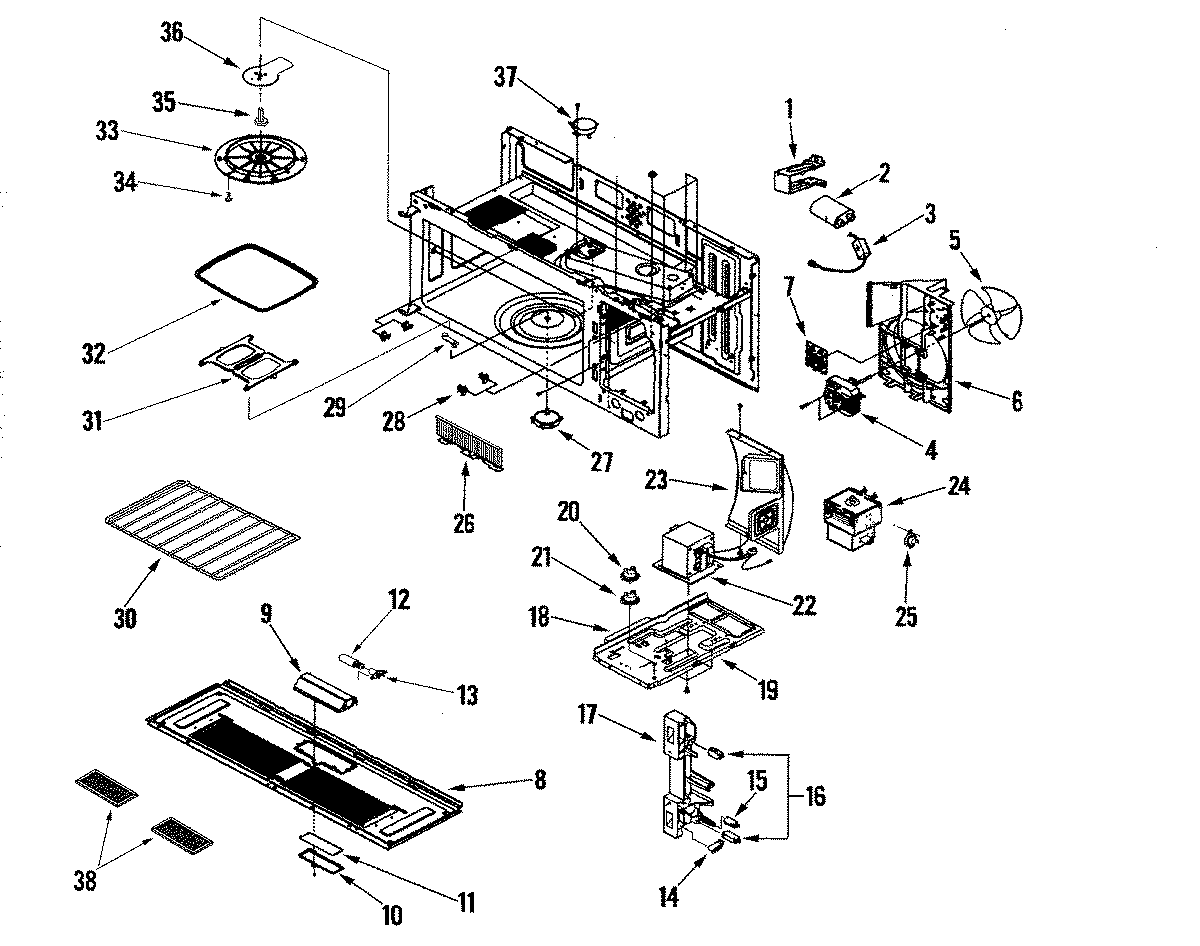

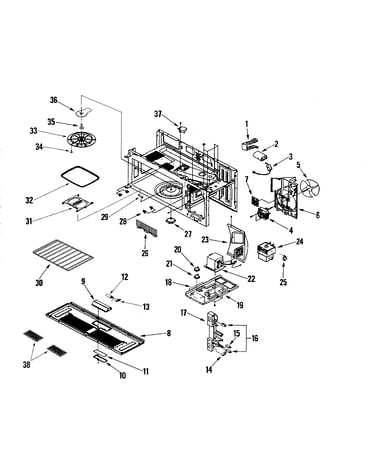

Base/cavity/internal controls diagram

Diode

Part #DE91-70063D

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063D. Substitute parts can look different from the original.
BEST SELLER
$15.79 |
11% OFF Phone Price : $17.79
In Stock
Light Cavity 4713-001165
Light cavity

Part #4713-001165

Replaced by #4713-001165

?
Manufacturer substitution
This part replaces 4713-001165. Substitute parts can look different from the original.
BEST SELLER
$37.54 |
12% OFF Phone Price : $42.54
In Stock
Charcoal Filter DE63-00367D
#9

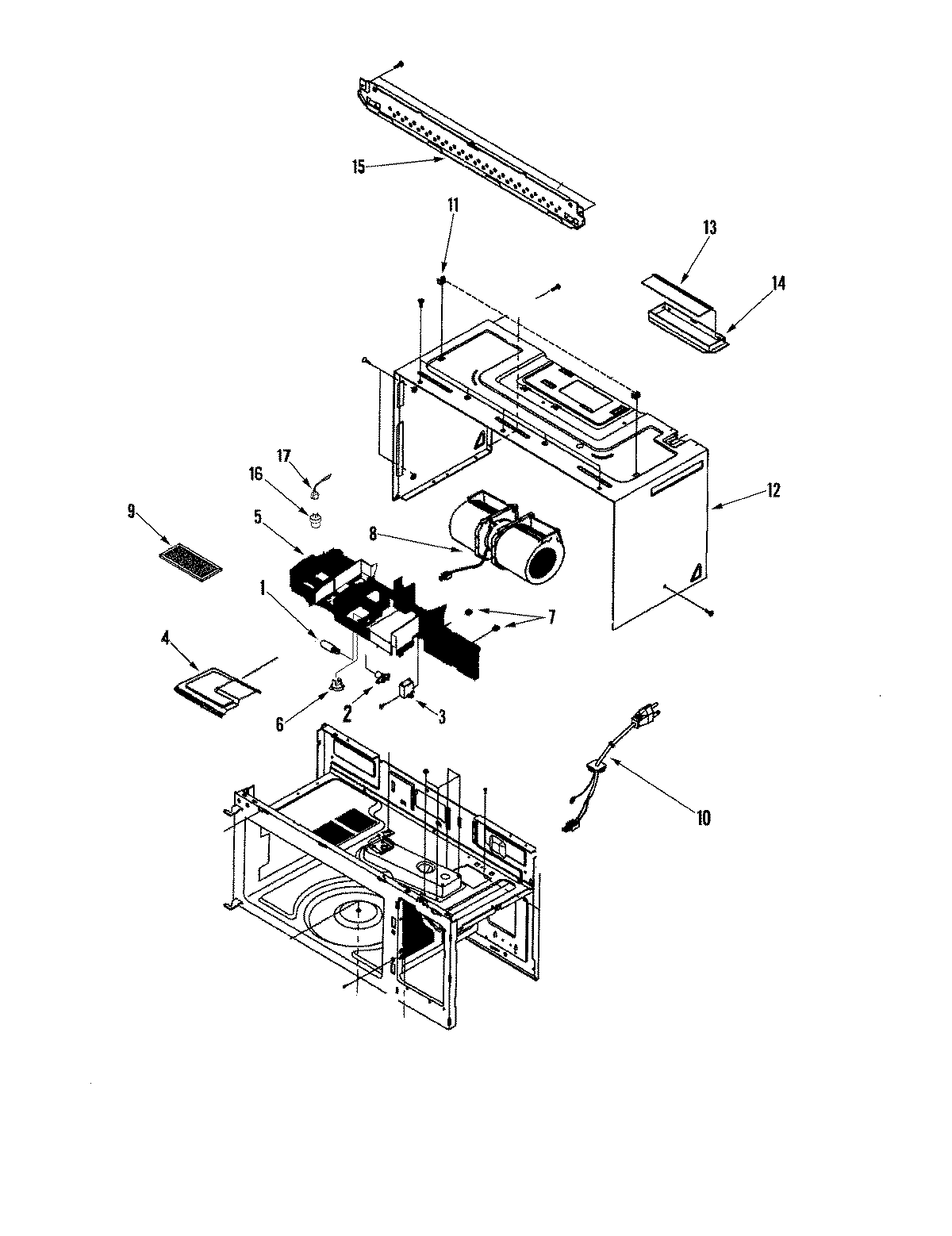

Body/blower motor diagram

Charcoal filter

Part #DE63-00367D

Replaced by #DE63-30016G

?
Manufacturer substitution
This part replaces DE63-00367D. Substitute parts can look different from the original.
BEST SELLER
$50.05 |
9% OFF Phone Price : $55.05
In Stock
Thermostat DE47-20007A
#25

Base/cavity/internal controls diagram

Thermostat

Part #DE47-20007A

Replaced by #DE47-20007B

?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Air Filter DE63-00196A
#38

Base/cavity/internal controls diagram

Air filter

Part #DE63-00196A

Replaced by #6802A

?
Manufacturer substitution
This part replaces DE63-00196A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.99 |
18% OFF Phone Price : $27.99
In Stock
Thermostat DE47-20059A
Thermostat

Part #DE47-20059A

Replaced by #DE47-20059B

?
Manufacturer substitution
This part replaces DE47-20059A. Substitute parts can look different from the original.
$14.80 |
12% OFF Phone Price : $16.80
In Stock
Microwave Door Interlock Switch Lever (replaces De66-90106a) DE66-90106B
#14

Base/cavity/internal controls diagram

Microwave door interlock switch lever (replaces de66-90106a)

Part #DE66-90106B

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Holder Nut A DE92-90508A
#11

Body/blower motor diagram

Holder nut a

Part #DE92-90508A

Replaced by #DE92-90508A

?
Manufacturer substitution
This part replaces DE92-90508A. Substitute parts can look different from the original.
$13.53 |
13% OFF Phone Price : $15.53
In Stock
Filter Assembly DE96-00400B
#7

Base/cavity/internal controls diagram

Filter assembly

Part #DE96-00400B

Replaced by #DE96-00400B

?
Manufacturer substitution
This part replaces DE96-00400B. Substitute parts can look different from the original.
$54.13 |
8% OFF Phone Price : $59.13
In Stock
Microwave Magnetron W10126786
#24

Base/cavity/internal controls diagram

Microwave magnetron

Part #W10126786

Replaced by #WPW10126786

?
Manufacturer substitution
This part replaces W10126786. Substitute parts can look different from the original.
$185.18 |
23% OFF MSRP : $240.00
In Stock
