Model # 171266110 Official Craftsman router table

Here are the diagrams and repair parts for Official Craftsman 171266110 router table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Switch Assembly 29LCN-1019
#7

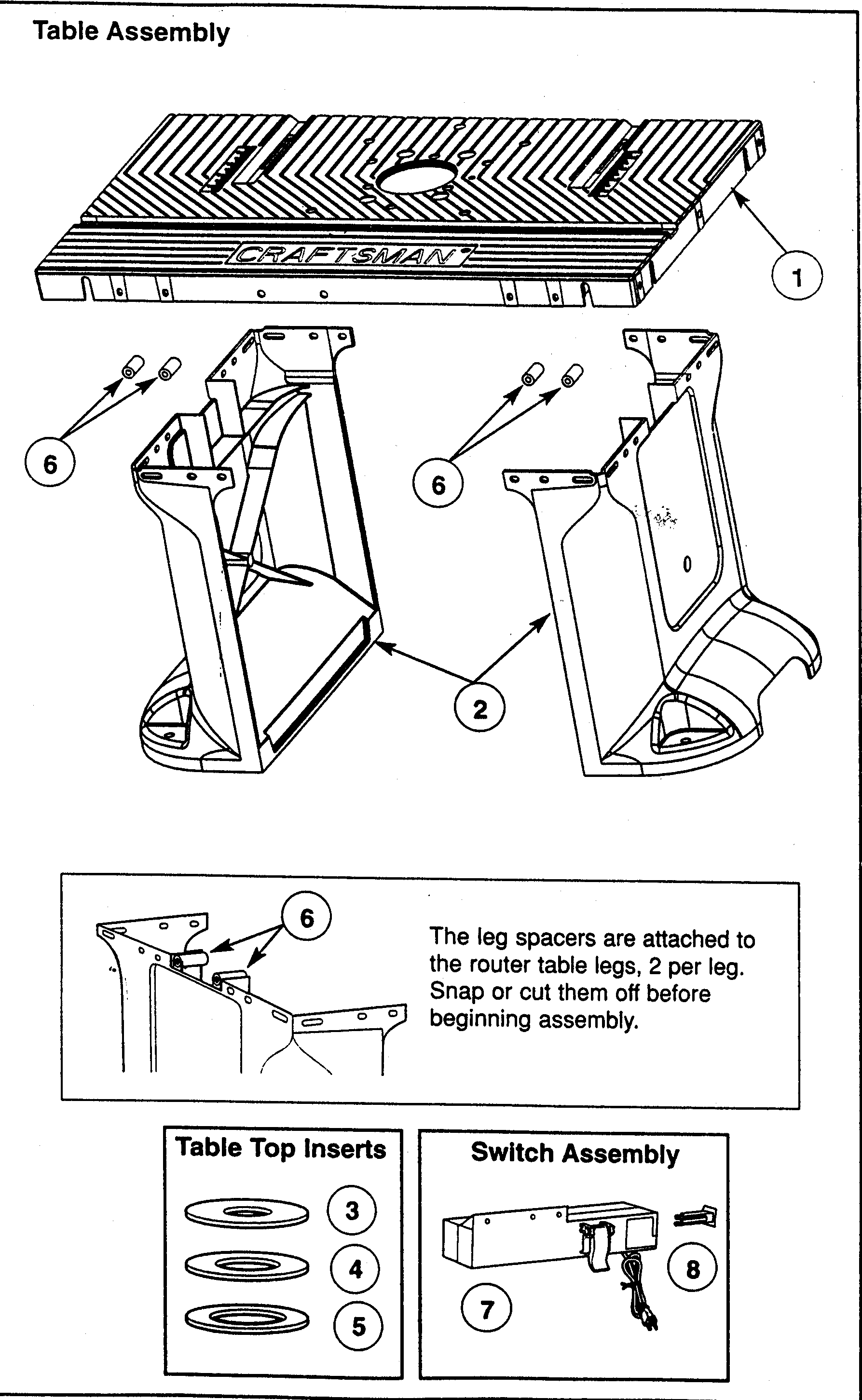

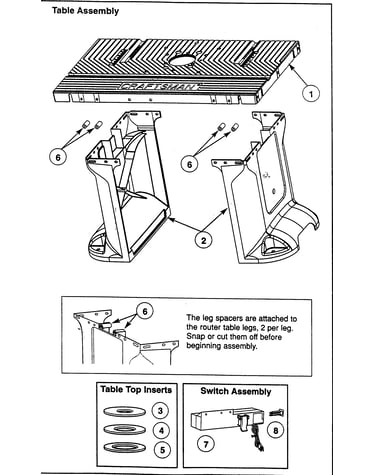

Table asy diagram

Switch assembly

Part #29LCN-1019

The manufacturer no longer makes this part, and there's no substitute part

Leg Spacer 29LCN-1255
#6

Table asy diagram

Leg spacer

Part #29LCN-1255

The manufacturer no longer makes this part, and there's no substitute part

Leg Assembly 29LCN-1283
#2

Table asy diagram

Leg assembly

Part #29LCN-1283

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-32x1 3/4" 29A-970-15
#17

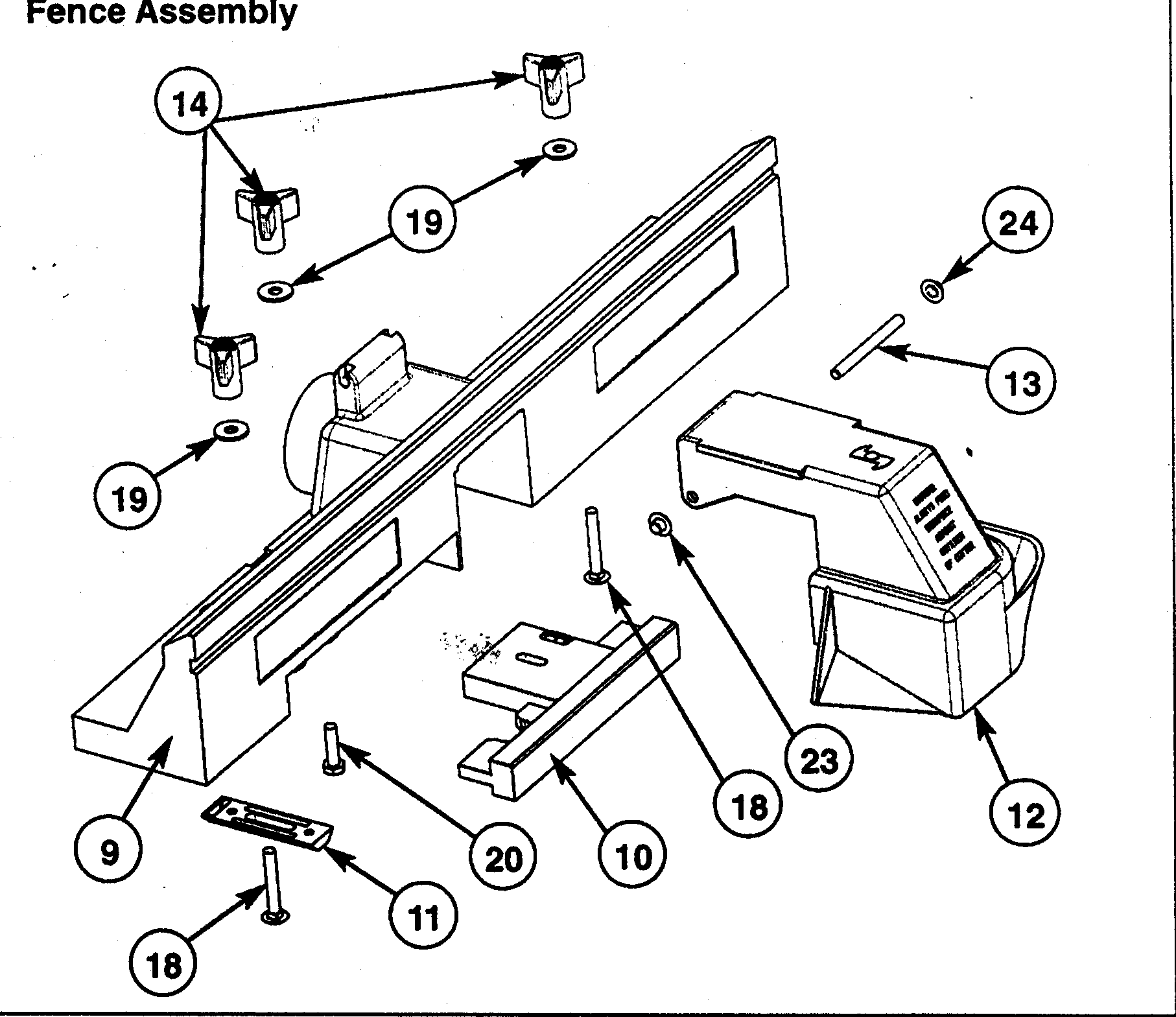

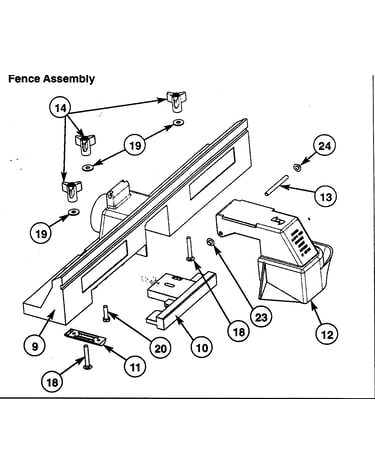

Fence assy diagram

Screw #10-32x1 3/4"

Part #29A-970-15

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-32x5/8" 29A-970-14
#16

Fence assy diagram

Screw #10-32x5/8"

Part #29A-970-14

The manufacturer no longer makes this part, and there's no substitute part

Tabletop 29LCN-981
#1

Table asy diagram

Tabletop

Part #29LCN-981

The manufacturer no longer makes this part, and there's no substitute part

Hardware Bag 29LD-841-14
#21

Fence assy diagram

Hardware bag

Part #29LD-841-14

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 49LCN-98
#NI

Table asy diagram

Owner's manual

Part #49LCN-98

The manufacturer no longer makes this part, and there's no substitute part

Insert 29LCN-996-1
#3

Table asy diagram

Insert

Part #29LCN-996-1

The manufacturer no longer makes this part, and there's no substitute part

Hardware Bag 29A-306-41
#19

Fence assy diagram

Hardware bag

Part #29A-306-41

The manufacturer no longer makes this part, and there's no substitute part
