Weatherking
Central Air Conditioner

Model # WPKEA-060CAS Official Weatherking remote heat pump

Here are the diagrams and repair parts for Official Weatherking WPKEA-060CAS remote heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

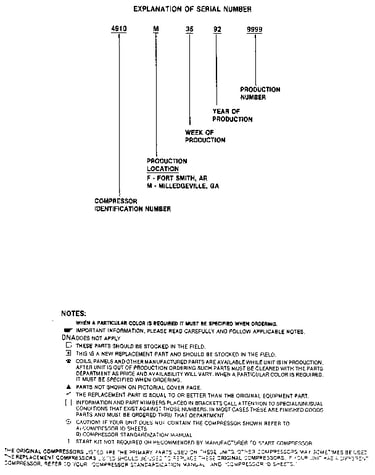

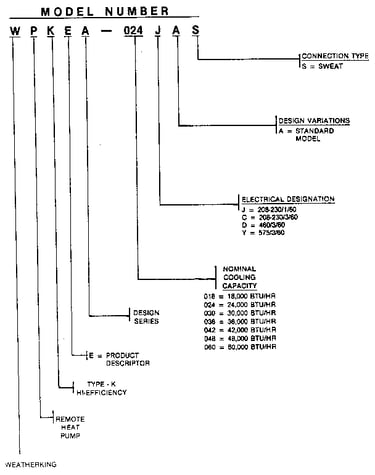

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Capacitor 43-20847-04
#15B

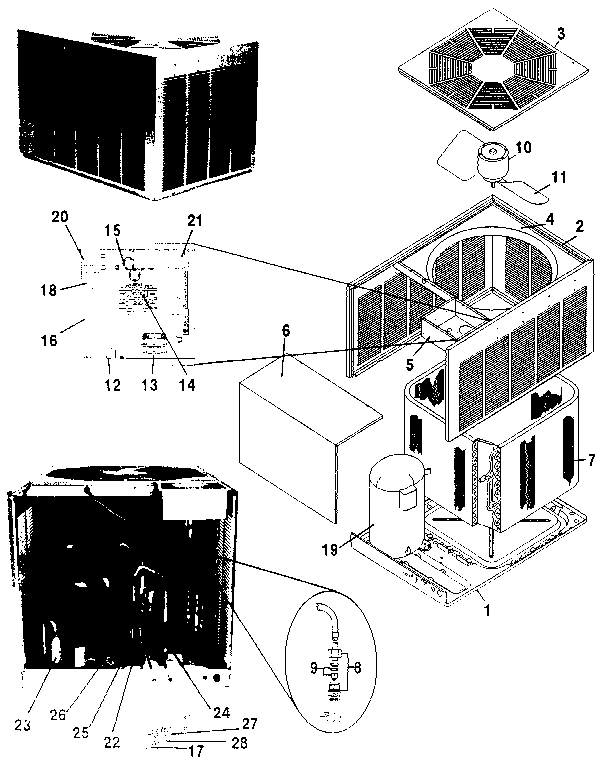

Replacement parts diagram

Capacitor

Part #43-20847-04

Replaced by #12005

?
Manufacturer substitution
This part replaces 43-20847-04. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Relay 42-19736-07

#NI

All parts diagram

Relay

Part #42-19736-07

The manufacturer no longer makes this part, and there's no substitute part

Dfrst Relay 42-21579-06
#13

Replacement parts diagram

Dfrst relay

Part #42-21579-06

The manufacturer no longer makes this part, and there's no substitute part

Servce Valve 61-21368-16
#28

Replacement parts diagram

Servce valve

Part #61-21368-16

$113.00
In Stock
Accumulator 83-22272-94
#22A

Replacement parts diagram

Accumulator

Part #83-22272-94

$337.72
In Stock
Grille Assembly AS-58470-03
#3

Replacement parts diagram

Grille assembly

Part #AS-58470-03

$1657.69
In Stock
Switch 47-21144-01

#NI

All parts diagram

Switch

Part #47-21144-01

$48.58
In Stock
Adptr Fittg 83-21457-03

#NI

All parts diagram

Adptr fittg

Part #83-21457-03

$41.89
In Stock
Temp Control 41-20864-01

#NI

All parts diagram

Temp control

Part #41-20864-01

$109.53
In Stock
Central Air Conditioner Condenser Fan Motor 51-23053-11
#10

Replacement parts diagram

Central air conditioner condenser fan motor

Part #51-23053-11

$308.30
In Stock
