Kenmore 2538751212 window air conditioner Parts
Here are the diagrams and repair parts for Kenmore 2538751212 window air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 2538751212 Window Air Conditioner

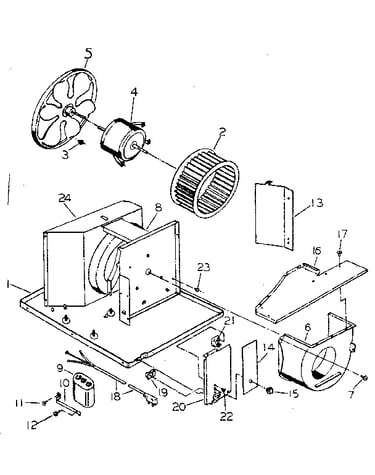

Electrical system air handling parts diagram
Strap
Part #511947Replaced by #5308047452
Manufacturer substitutionThis part replaces 511947. Substitute parts can look different from the original.In Stock$27.17
Qty

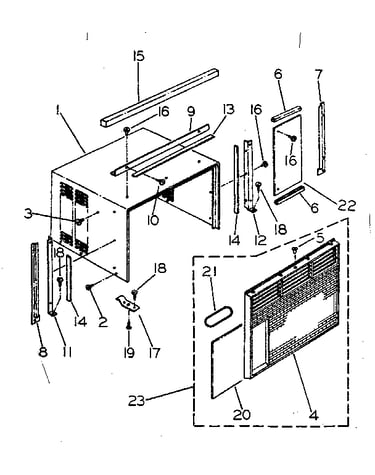

Cabinet and front parts diagram
Window Panel
Part #149202-10Replaced by #5300100078
Manufacturer substitutionThis part replaces 149202-10. Substitute parts can look different from the original.In Stock$54.32QtyCabinet and front parts diagram
Panel
Part #509022-02Replaced by #5300509023
Manufacturer substitutionThis part replaces 509022-02. Substitute parts can look different from the original.In Stock$128.30QtyCabinet and front parts diagram
Bracket
Part #513429Replaced by #5300135987
Manufacturer substitutionThis part replaces 513429. Substitute parts can look different from the original.In Stock$49.88QtyScrew
Part #521068Replaced by #5303209556
Manufacturer substitutionThis part replaces 521068. Substitute parts can look different from the original.In Stock$25.24QtyCabinet and front parts diagram
Screw
Part #509750Replaced by #5308047555
Manufacturer substitutionThis part replaces 509750. Substitute parts can look different from the original.In Stock$25.17QtyCabinet and front parts diagram
Fornt Asm
Part #509023Replaced by #5300509023

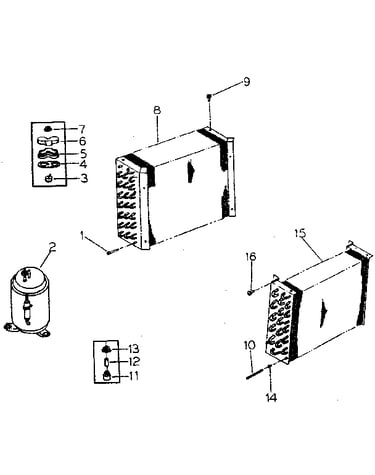

Manufacturer substitutionThis part replaces 509023. Substitute parts can look different from the original.In Stock$128.30QtyUnit parts diagram
Capillary Tube
Part #144044-24Replaced by #5314404427
Manufacturer substitutionThis part replaces 144044-24. Substitute parts can look different from the original.In Stock$36.14QtyScrew
Part #521208Replaced by #5303209556
Manufacturer substitutionThis part replaces 521208. Substitute parts can look different from the original.In Stock$25.24QtyElectrical system air handling parts diagram
Nut
Part #521082Replaced by #137086500
Manufacturer substitutionThis part replaces 521082. Substitute parts can look different from the original.In Stock$40.49Qty
