Model # ACE184XP0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACE184XP0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

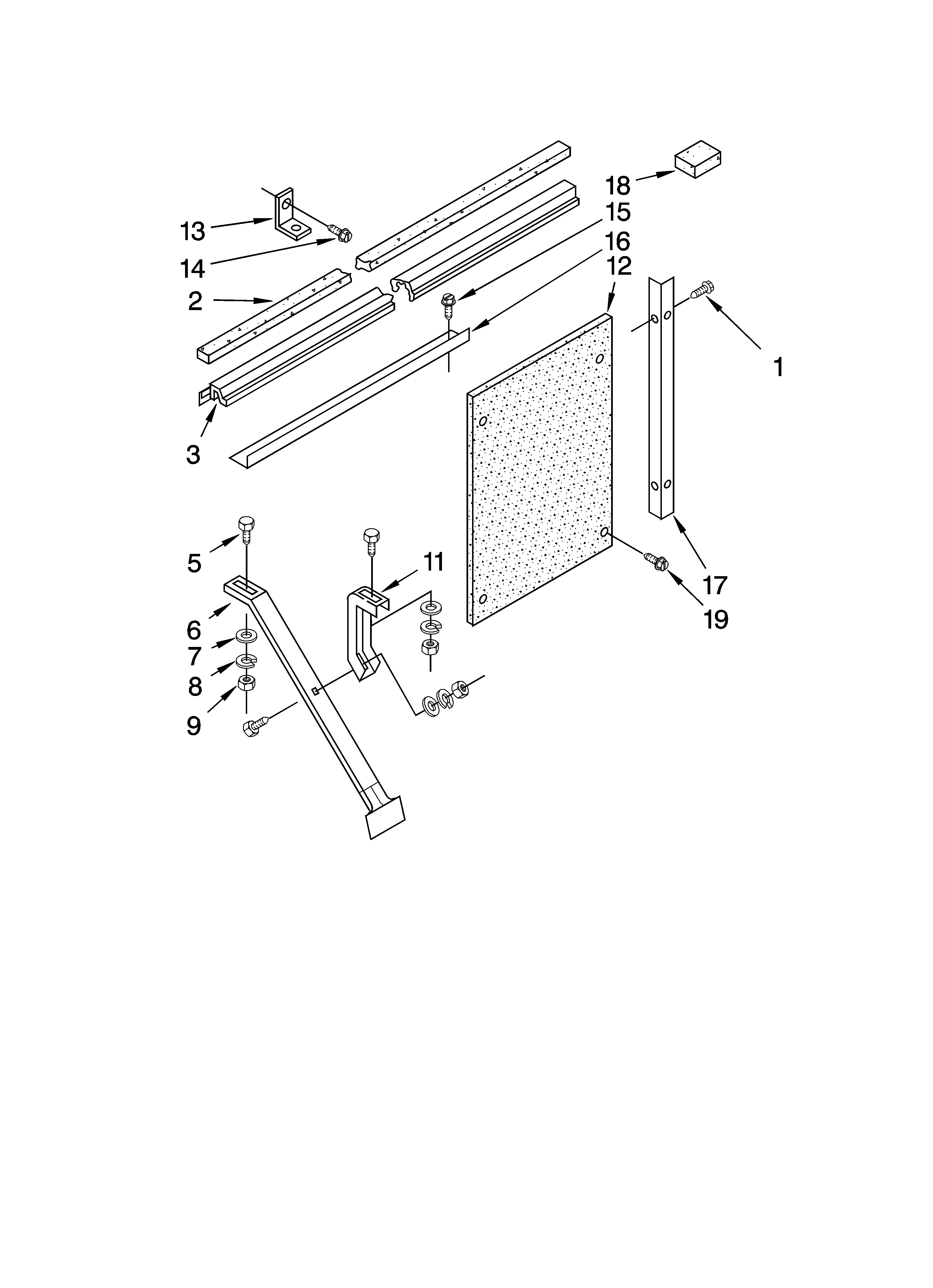

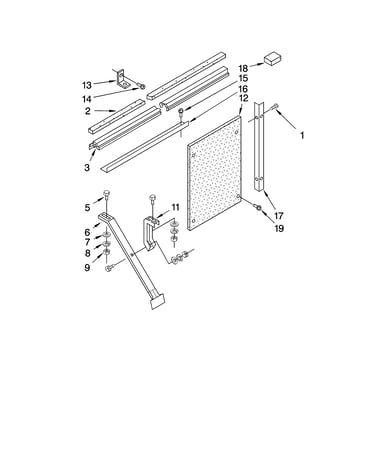

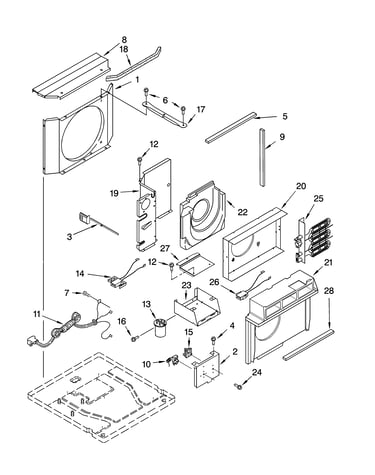

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Valve 876764
#6

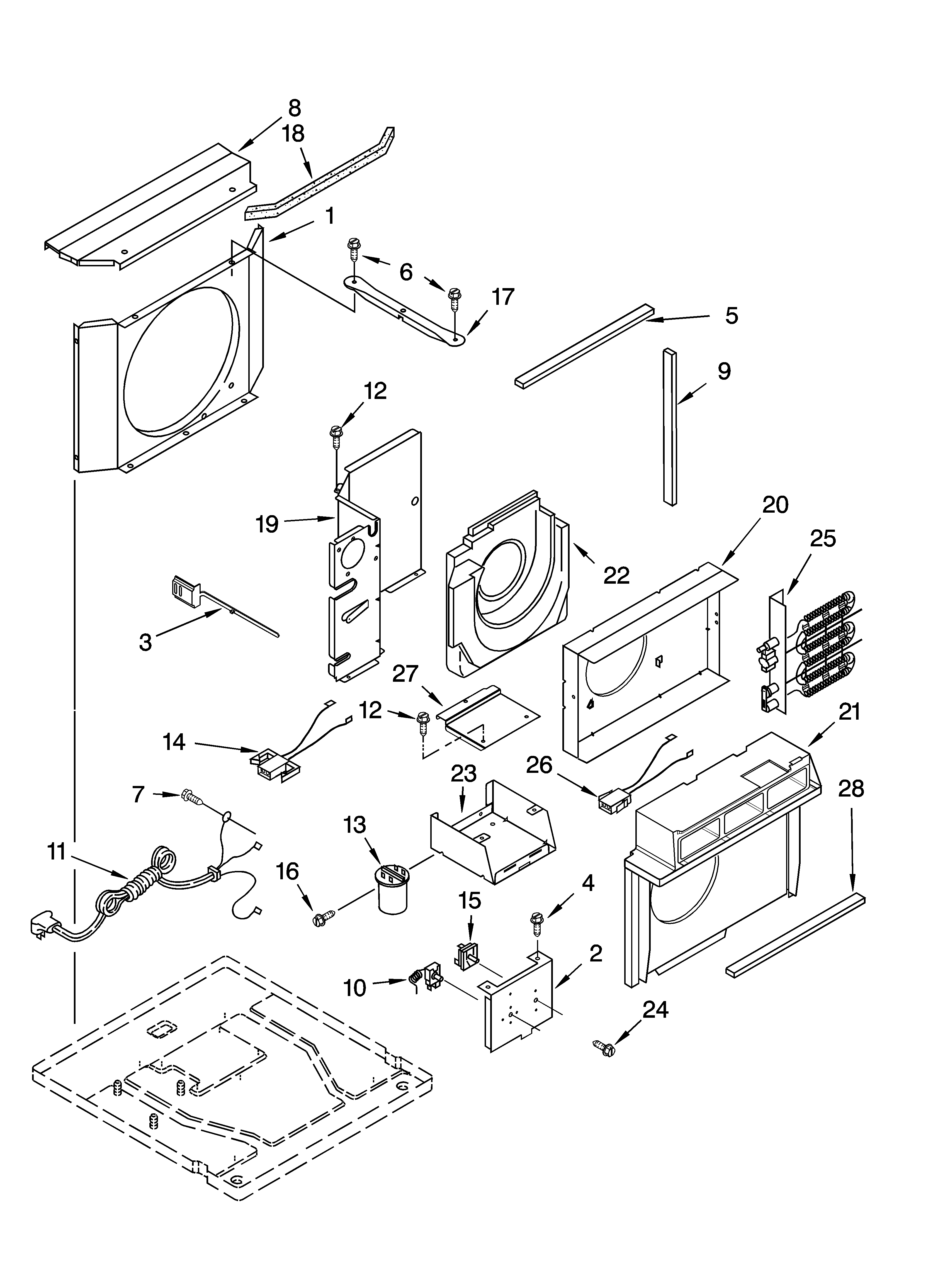

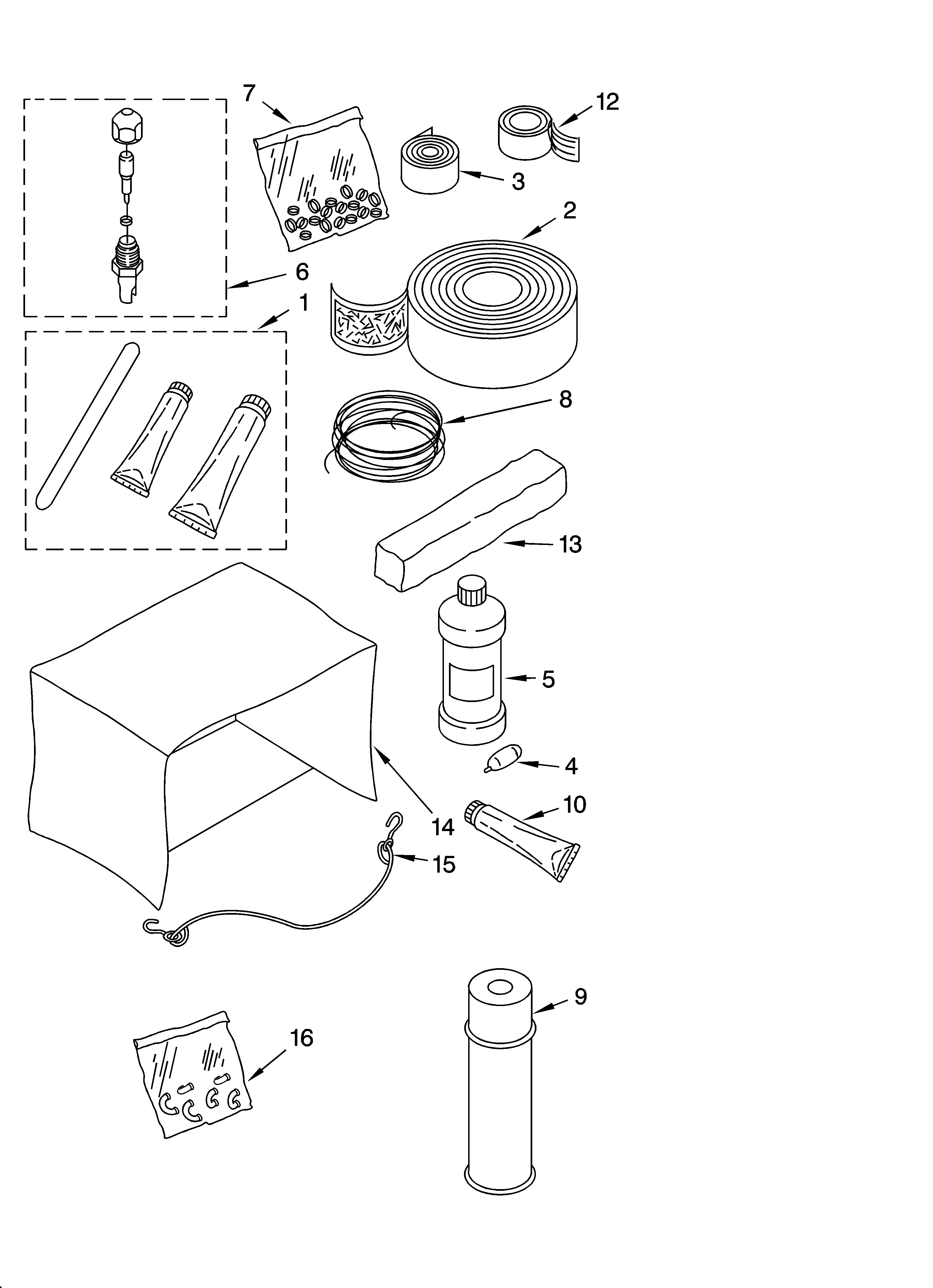

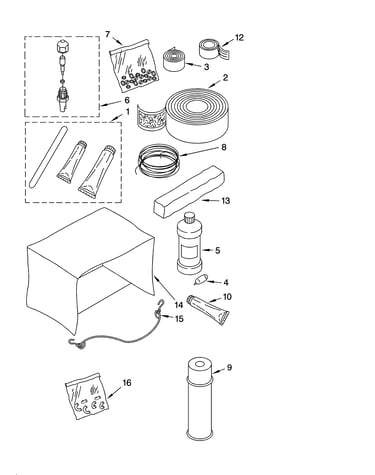

Optional parts (not included) diagram

Valve

Part #876764

Replaced by #876764

?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Valve Kit 978025
#6A

Optional parts (not included) diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Washer 1160880
#43

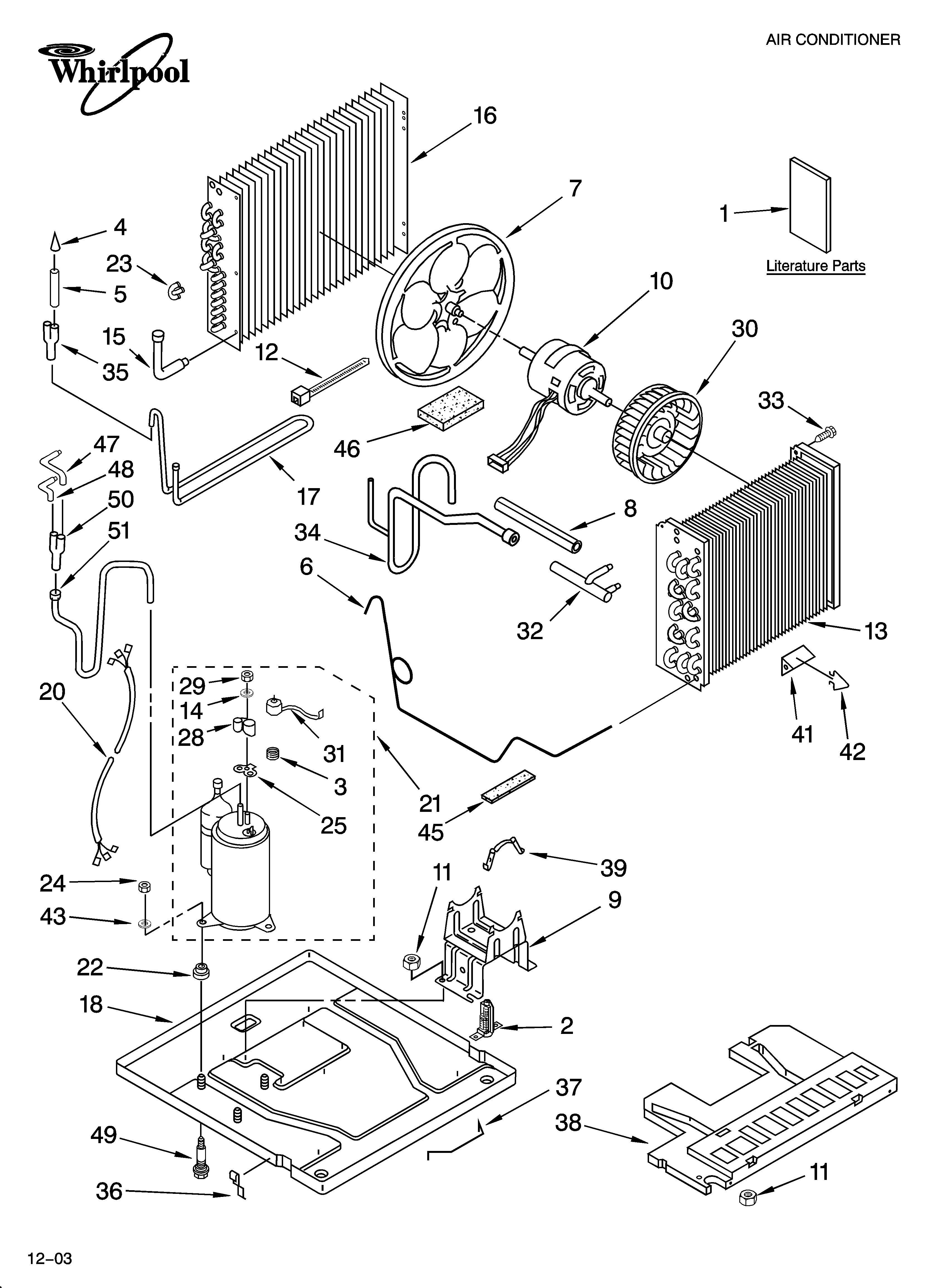

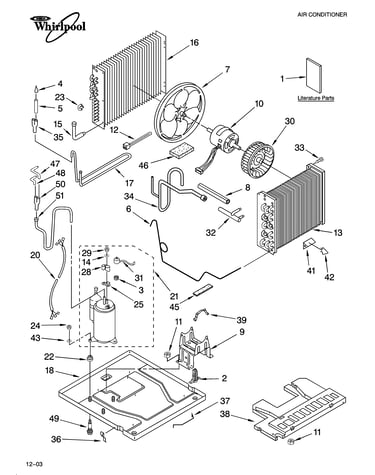

Unit parts diagram

Washer

Part #1160880

Replaced by #W11236646

?
Manufacturer substitution
This part replaces 1160880. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Valve Kit 978026
#6B

Optional parts (not included) diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Refrigerator Screw 1157158
Refrigerator screw

Part #1157158

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978030
#6F

Optional parts (not included) diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Sealer 212643
#12

Optional parts (not included) diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Wire Tie 1159130
#12

Unit parts diagram

Wire tie

Part #1159130

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 1159130. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Room Air Conditioner Rotary Switch Knob 8031121
#4

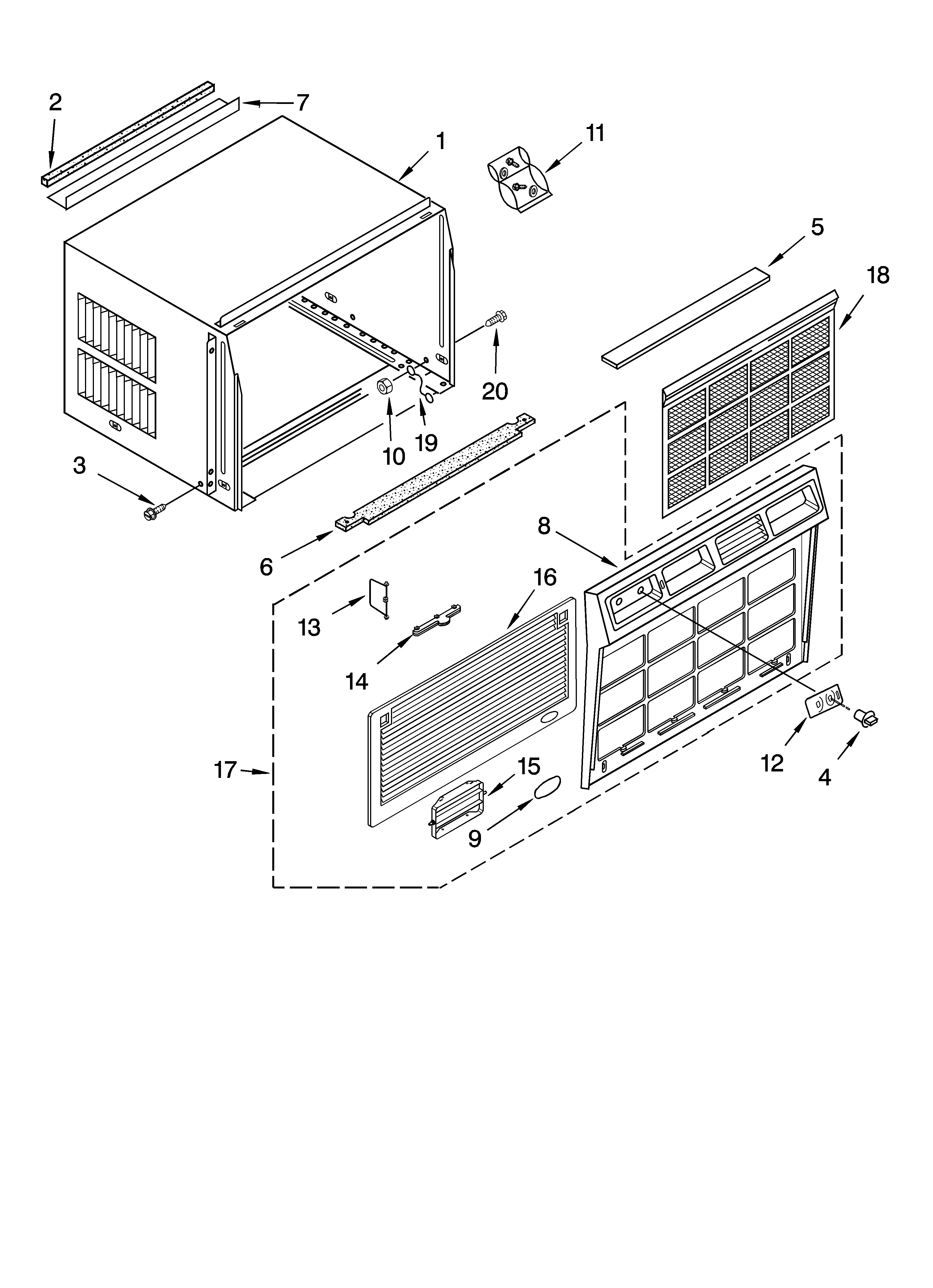

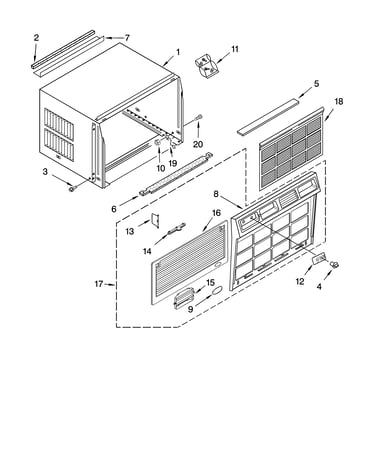

Cabinet parts diagram

Room air conditioner rotary switch knob

Part #8031121

Replaced by #WP8031121

?
Manufacturer substitution
This part replaces 8031121. Substitute parts can look different from the original.
$35.94 |
14% OFF Phone Price : $41.94
In Stock
