Model # 42LH20-UA Official LG lcd television

Here are the diagrams and repair parts for Official LG 42LH20-UA lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Remote Control AKB69680401
#A2

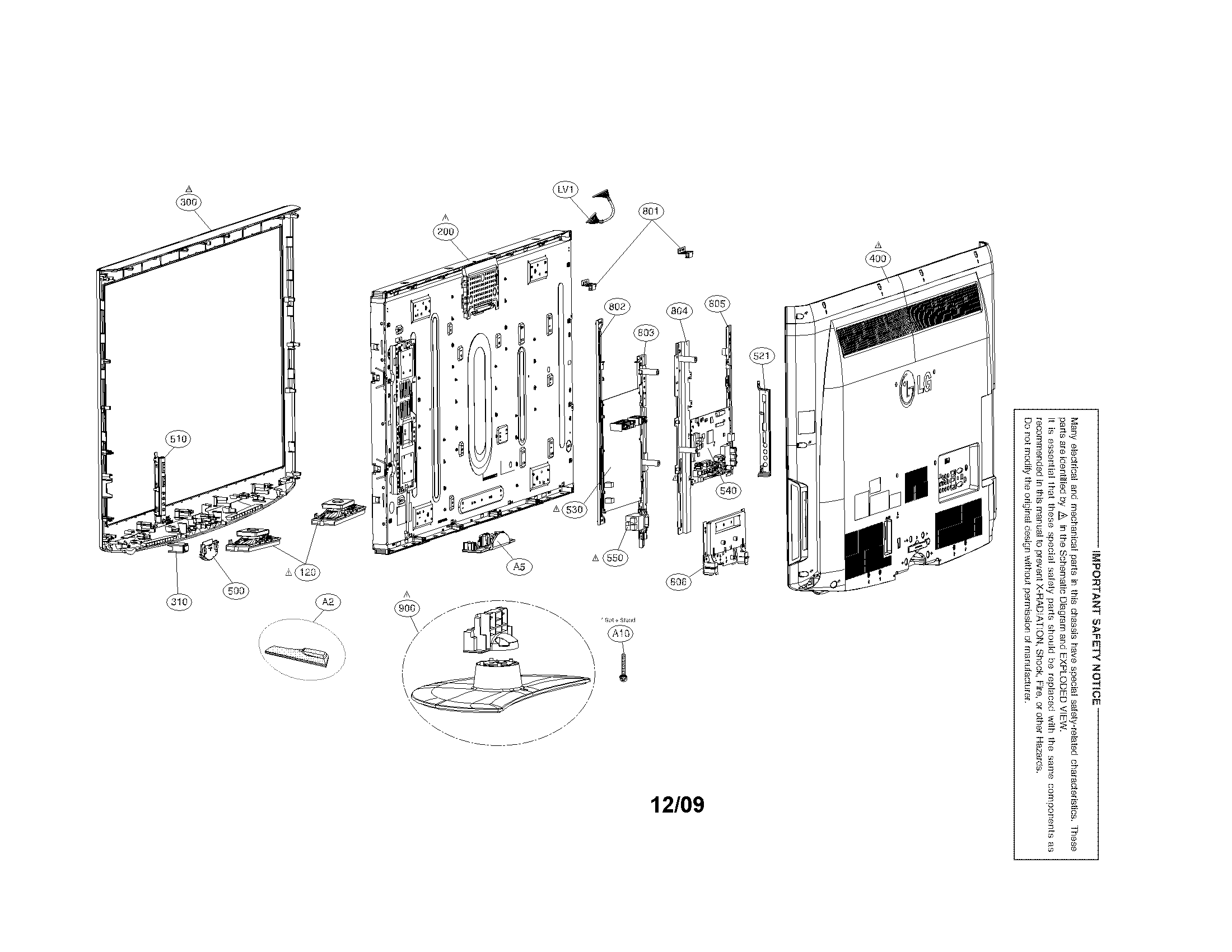

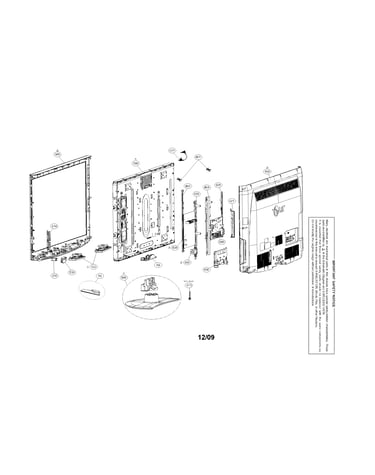

Case parts diagram

Remote control

Part #AKB69680401

Replaced by #AKB74115501

?
Manufacturer substitution
This part replaces AKB69680401. Substitute parts can look different from the original.
$35.31
In Stock
Cover ACQ65528512
#400

Case parts diagram

Cover

Part #ACQ65528512

Replaced by #ACQ65528512

?
Manufacturer substitution
This part replaces ACQ65528512. Substitute parts can look different from the original.
$67.80
In Stock
Lcd Module EAJ60664501
#200

Case parts diagram

Lcd module

Part #EAJ60664501

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly ABJ65528410
#300

Case parts diagram

Cabinet assembly

Part #ABJ65528410

Replaced by #ABJ65528410

?
Manufacturer substitution
This part replaces ABJ65528410. Substitute parts can look different from the original.
$117.90
In Stock
Support MJH55273301
#805

Case parts diagram

Support

Part #MJH55273301

Replaced by #MJH55273301

?
Manufacturer substitution
This part replaces MJH55273301. Substitute parts can look different from the original.
This item is not returnable
$7.46
In Stock
Front Pcb EBR59217402
#500

Case parts diagram

Front pcb

Part #EBR59217402

Replaced by #EBR59217402

?
Manufacturer substitution
This part replaces EBR59217402. Substitute parts can look different from the original.
$27.07
In Stock
Support MJH55273201
#804

Case parts diagram

Support

Part #MJH55273201

Replaced by #MJH55273201

?
Manufacturer substitution
This part replaces MJH55273201. Substitute parts can look different from the original.
$18.09
In Stock
Support MJH41408308
#801

Case parts diagram

Support

Part #MJH41408308

Replaced by #MJH41408308

?
Manufacturer substitution
This part replaces MJH41408308. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Pcb Assembly EBR60148105
#510

Case parts diagram

Pcb assembly

Part #EBR60148105

Replaced by #EBR60148105

?
Manufacturer substitution
This part replaces EBR60148105. Substitute parts can look different from the original.
$34.96
In Stock
Sngl Harn EAD60690901
#LV1

Case parts diagram

Sngl harn

Part #EAD60690901

Replaced by #EAD60690901

?
Manufacturer substitution
This part replaces EAD60690901. Substitute parts can look different from the original.
$26.86
In Stock
