Model # LD10D2-P1329702M Official Amana microwave

Here are the diagrams and repair parts for Official Amana LD10D2-P1329702M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

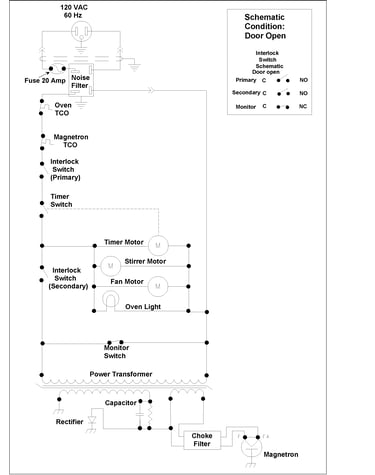

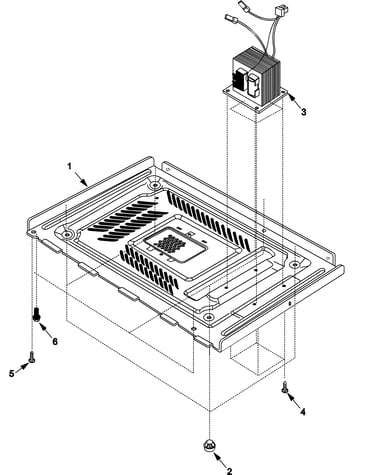

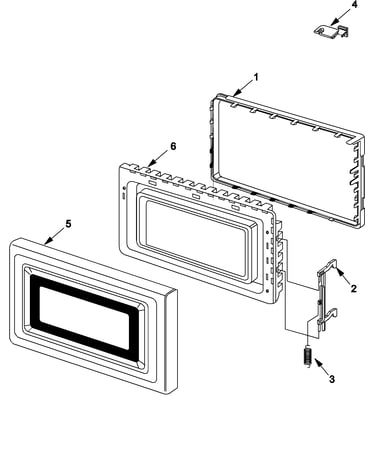

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Magnetron R9900082
#7

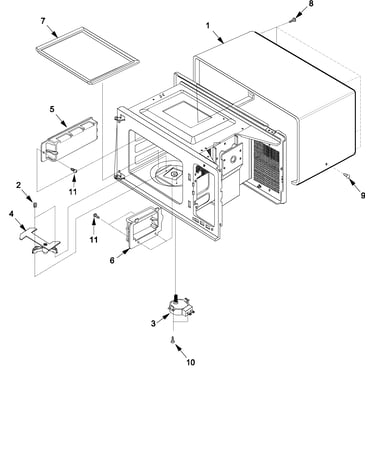

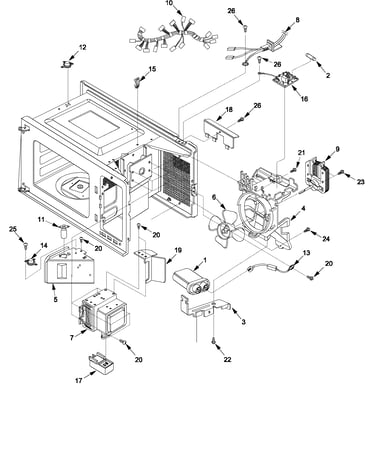

Interior diagram

Magnetron

Part #R9900082

The manufacturer no longer makes this part, and there's no substitute part

Diode R9800486
#13

Interior diagram

Diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
19% OFF Phone Price : $25.69
In Stock
Fuse R0131110
#2

Interior diagram

Fuse

Part #R0131110

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces R0131110. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Switch R9900519
#2

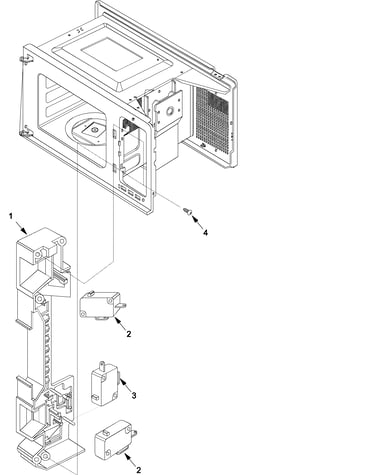

Latch board diagram

Switch

Part #R9900519

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces R9900519. Substitute parts can look different from the original.
$42.20
In Stock
"screw, Tappi" R0131246
"screw, tappi"

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Capacitor R0131325
#1

Interior diagram

Capacitor

Part #R0131325

$107.20
In Stock
Filter R9800442
#17

Interior diagram

Filter

Part #R9800442

Replaced by #4359624

?
Manufacturer substitution
This part replaces R9800442. Substitute parts can look different from the original.
$17.87
In Stock
Spring R9800320
#3

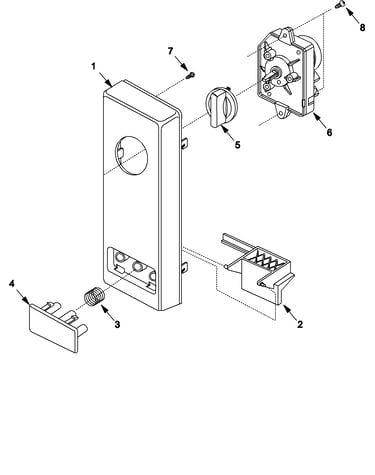

Controller diagram

Spring

Part #R9800320

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces R9800320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
"screw,tap Ti" R0131029
"screw,tap ti"

Part #R0131029

Replaced by #R0131029

?
Manufacturer substitution
This part replaces R0131029. Substitute parts can look different from the original.
$13.11
In Stock
Screw, Tap T R9800411
#23

Interior diagram

Screw, tap t

Part #R9800411

The manufacturer no longer makes this part, and there's no substitute part
