Craftsman
Walk-Behind Mower

Model # 13191469 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191469 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

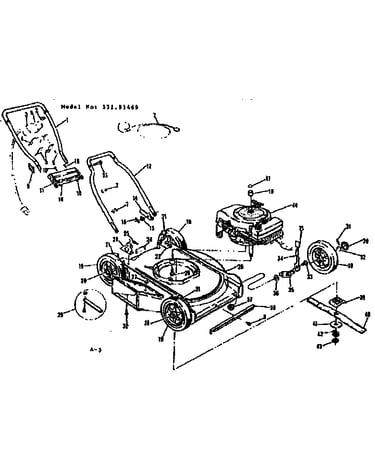

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Blade 56400
Blade

Part #56400

Replaced by #145106

?
Manufacturer substitution
This part replaces 56400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$13.39 |
13% OFF Phone Price : $15.39
In Stock
Handle Knob 58741
#9

Replacement parts diagram

Handle knob

Part #58741

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58741. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Bolt 58714
#13

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Washer 52160
#32

Replacement parts diagram

Washer

Part #52160

Replaced by #532052160

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$3.99 |
20% OFF Phone Price : $4.99
In Stock
Wheel 62446
#19

Replacement parts diagram

Wheel

Part #62446

The manufacturer no longer makes this part, and there's no substitute part

Bolt 423562
#26

Replacement parts diagram

Bolt

Part #423562

The manufacturer no longer makes this part, and there's no substitute part

Replacement Bag 9-80406

#NI

All parts diagram

Replacement bag

Part #9-80406

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 62886
#23

Replacement parts diagram

Bracket assembly

Part #62886

The manufacturer no longer makes this part, and there's no substitute part

Number Plate 66594
#24

Replacement parts diagram

Number plate

Part #66594

The manufacturer no longer makes this part, and there's no substitute part

Wire Clamp 58863
#2

Replacement parts diagram

Wire clamp

Part #58863

The manufacturer no longer makes this part, and there's no substitute part
