Kenmore
Microwave/Hood Combo

Model # 72180009401 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72180009401 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

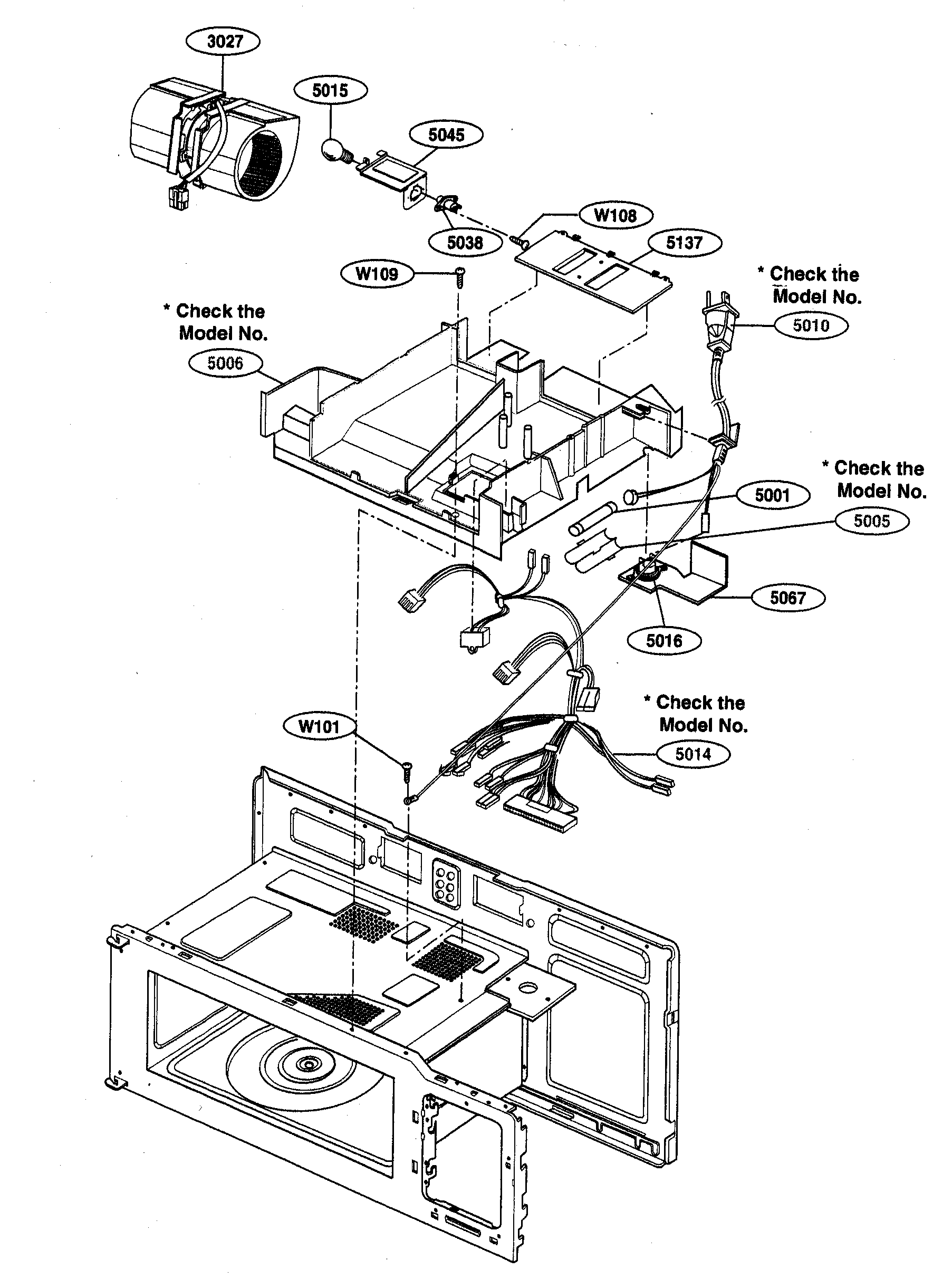

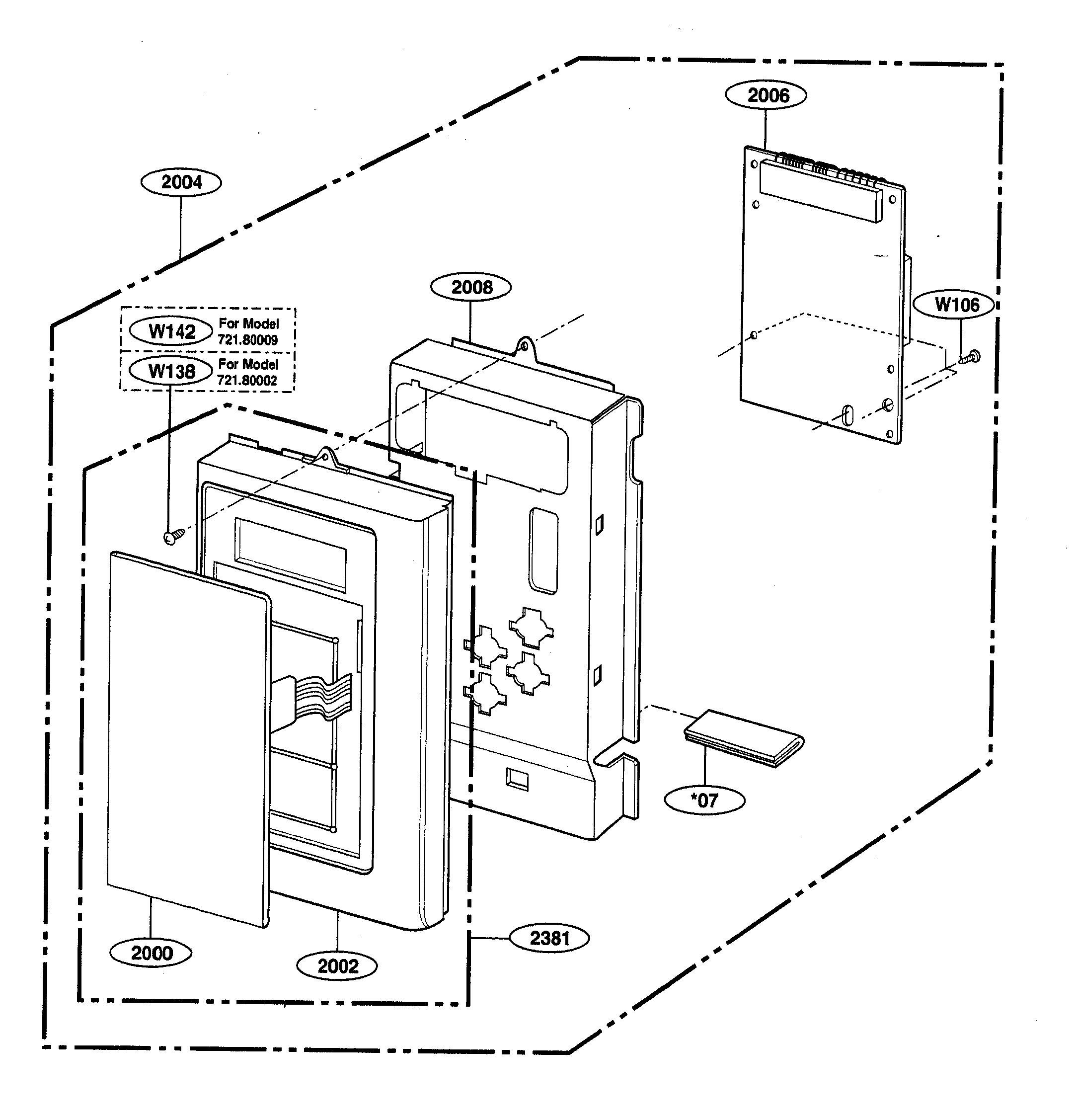

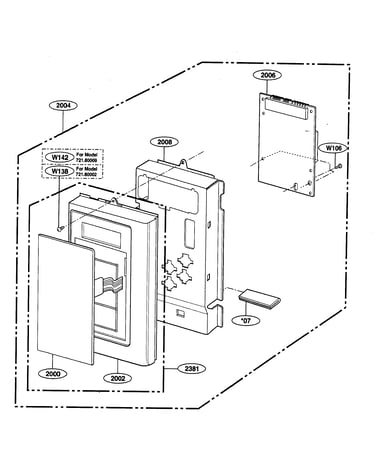

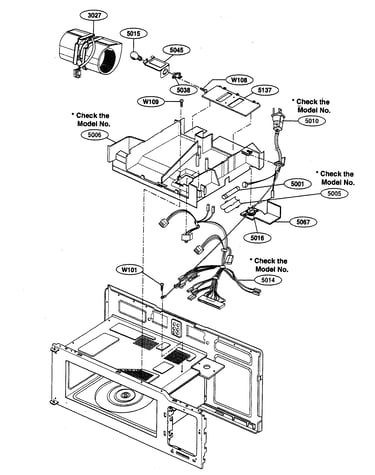

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Microwave Grease Filter (replaces 2b72705b) 5230W1A012B
#3026

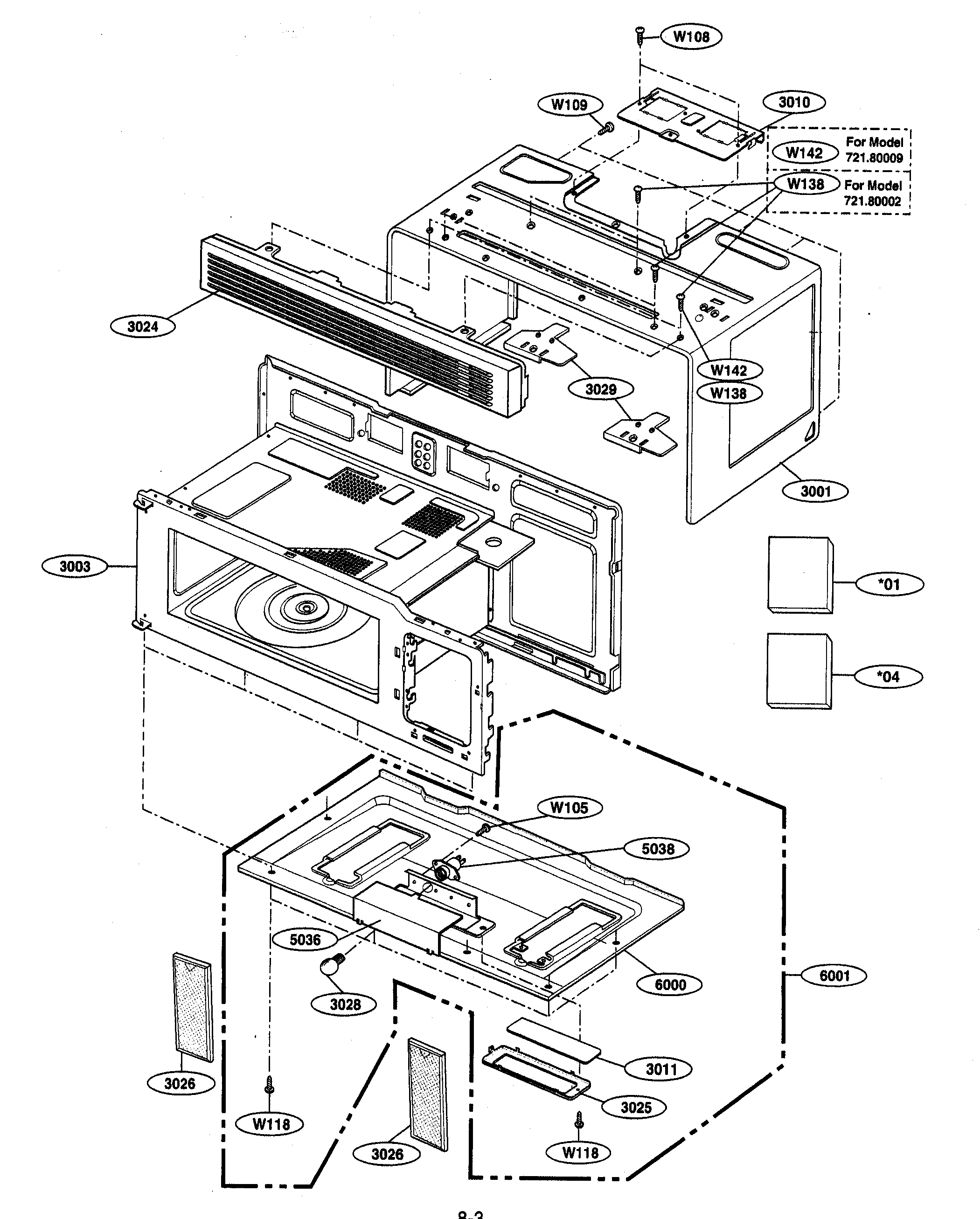

Oven cavity diagram

Microwave grease filter (replaces 2b72705b)

Part #5230W1A012B

BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

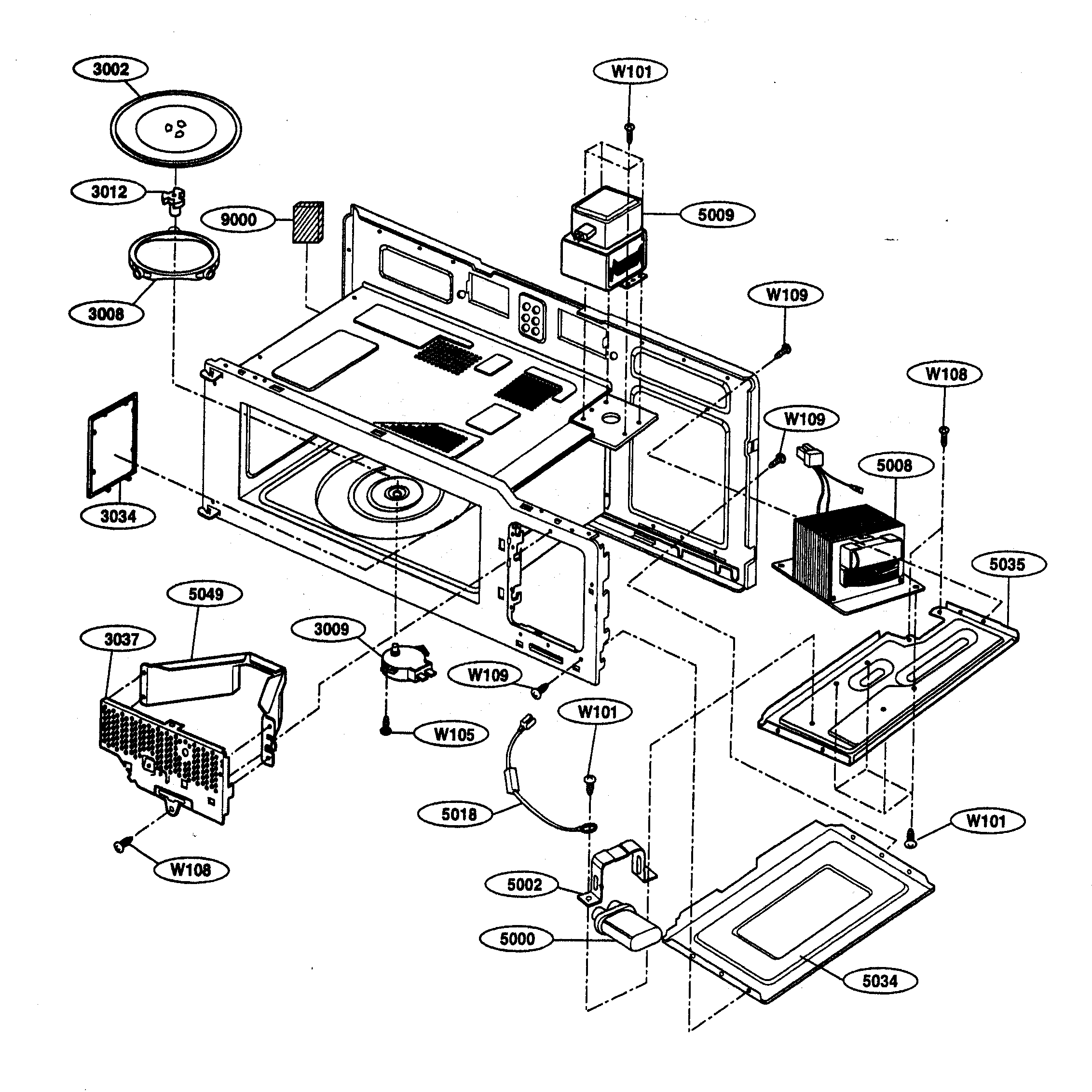

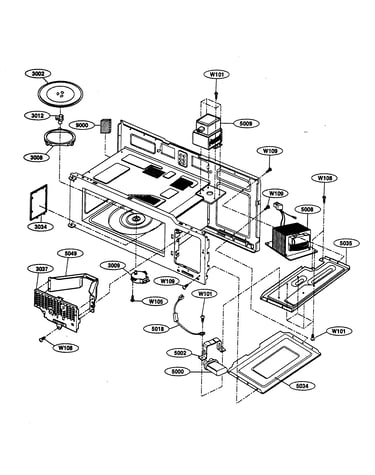

Interior parts 1 diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B
#3028

Oven cavity diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

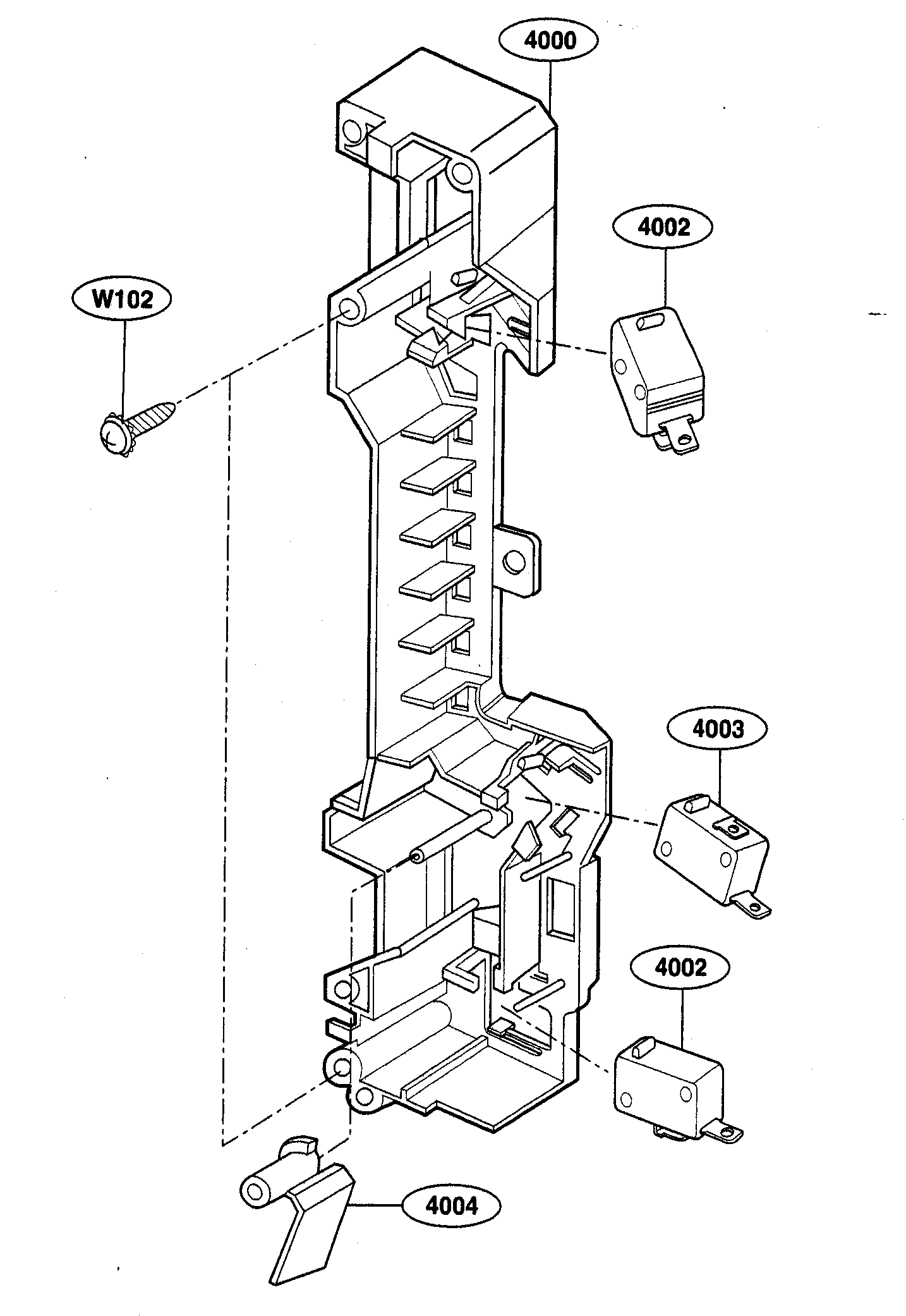

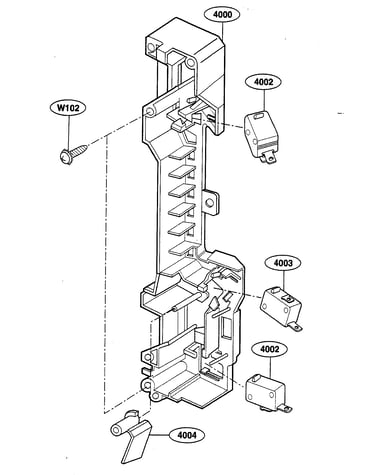

Latch board diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B
#5000

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Door Latch Hook (replaces 4026w2a015a) 4026W2A019C
#1006

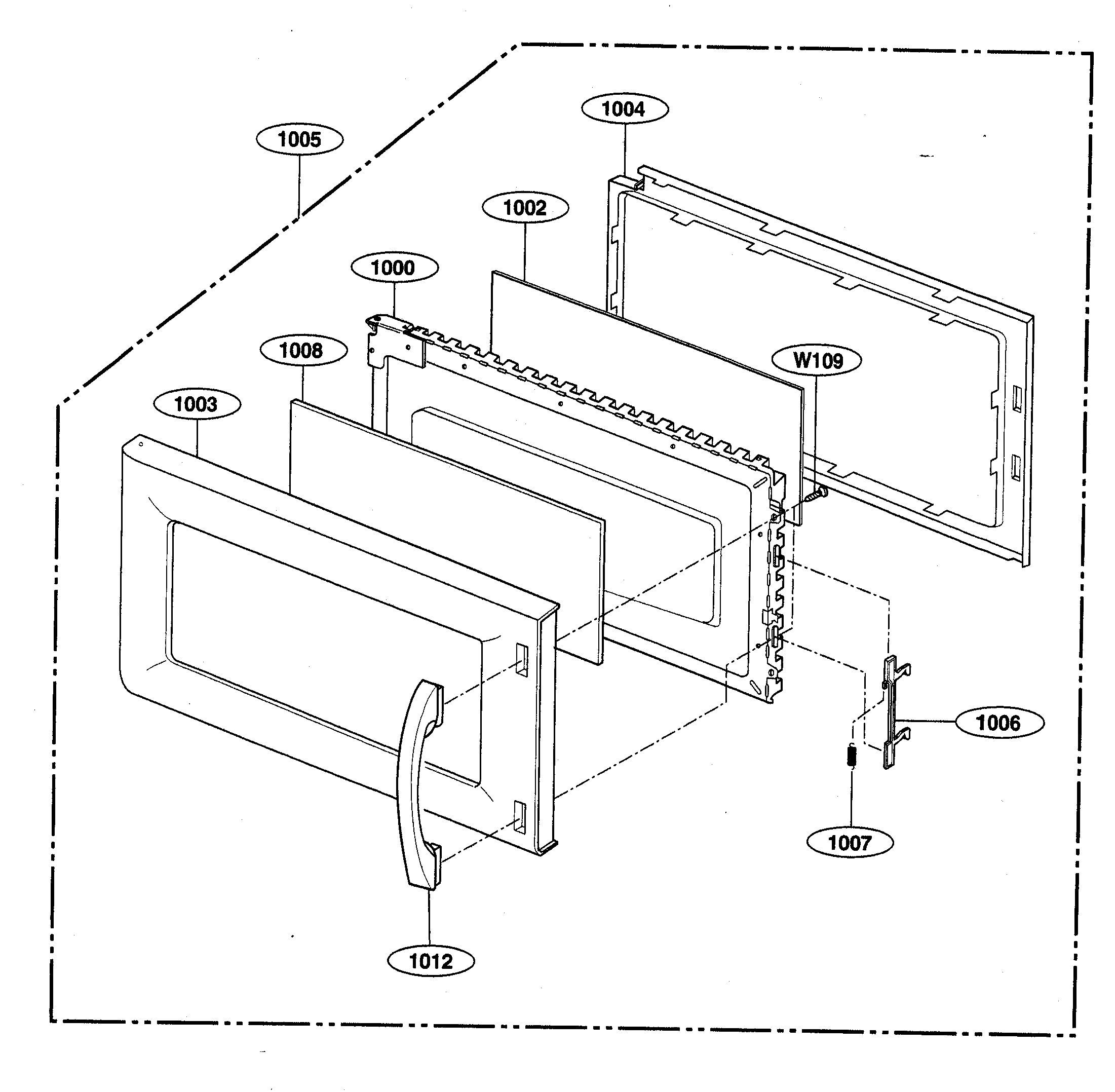

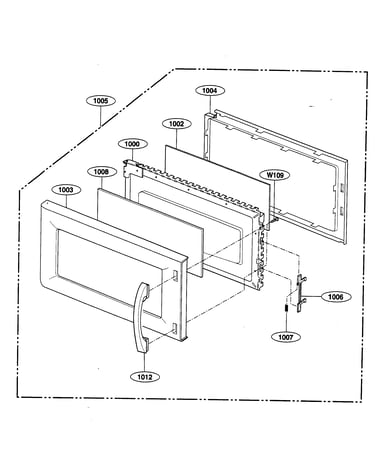

Door parts diagram

Microwave door latch hook (replaces 4026w2a015a)

Part #4026W2A019C

BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

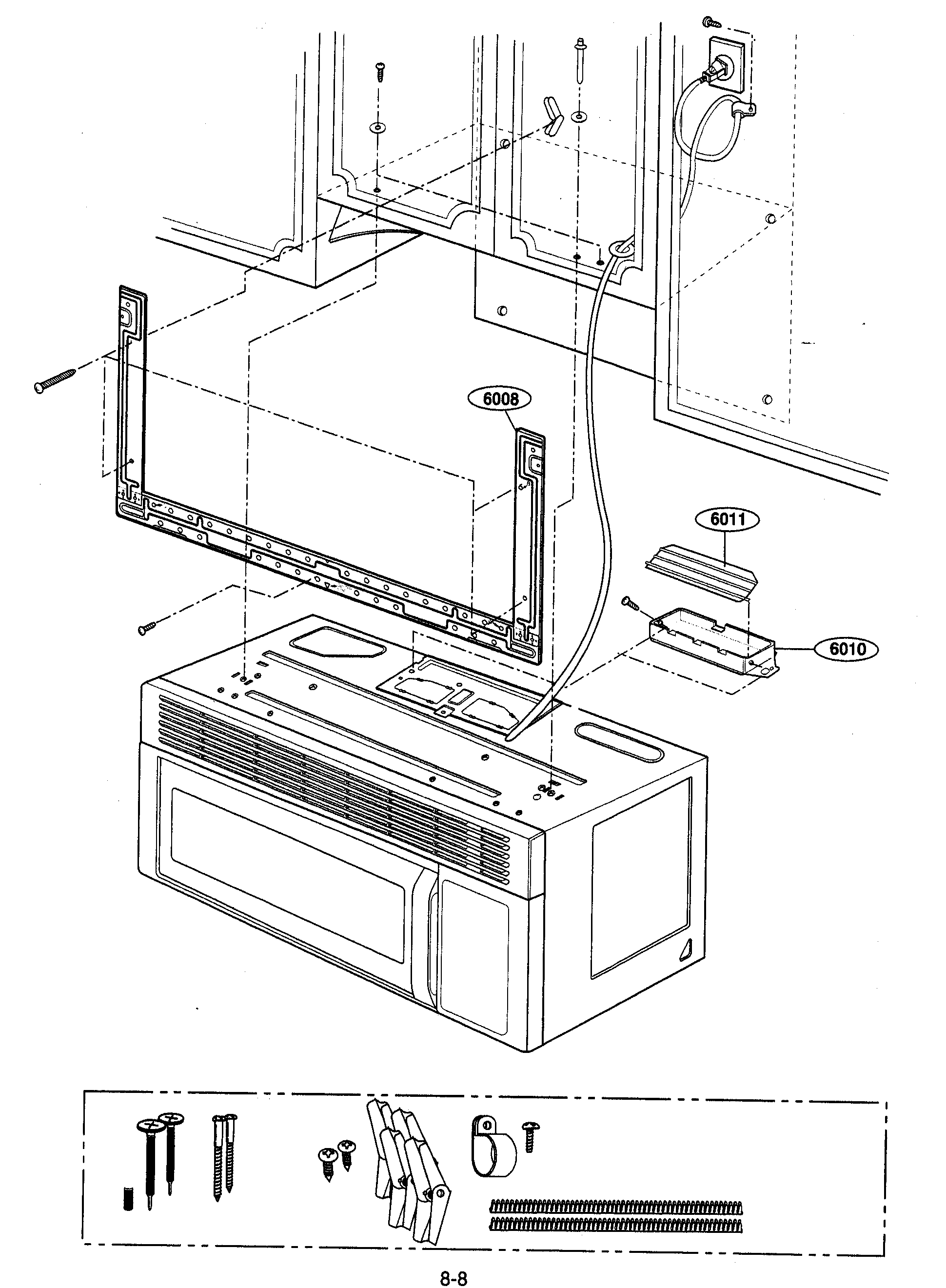

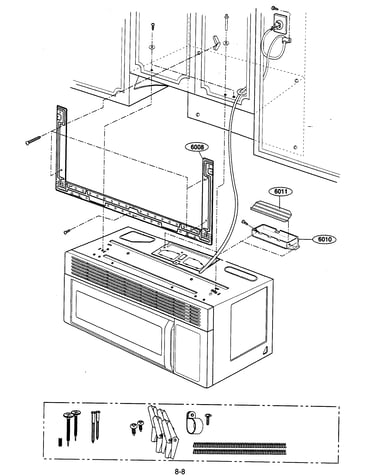

Instalation diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Vent Damper Door (replaces 3b71432a) 4900W1A001B
#6011

Instalation diagram

Microwave vent damper door (replaces 3b71432a)

Part #4900W1A001B

BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
